Customizable Drill Bit Holder (Metric)
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
5.2 h
3 plates
Open in Bambu Studio
Boost
7
17
1
0
29
11
Released
Description
Content has been automatically translated.

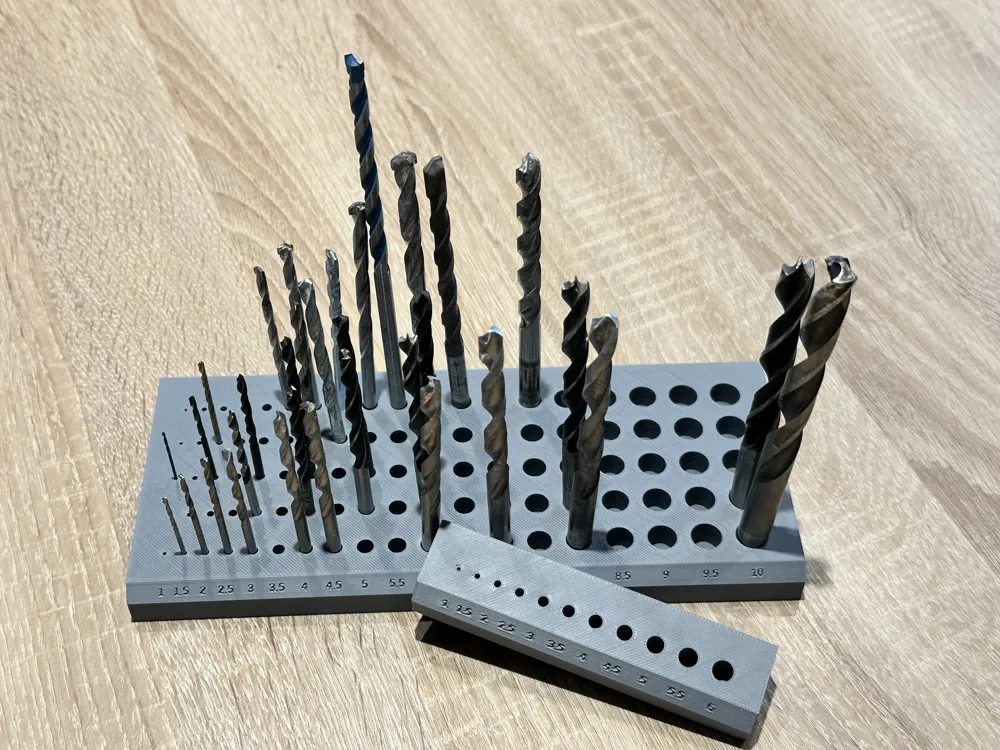

A drill bit holder adapted to YOUR bits, not the other way around.
No more universal drill bit holders that don't fit anyone.

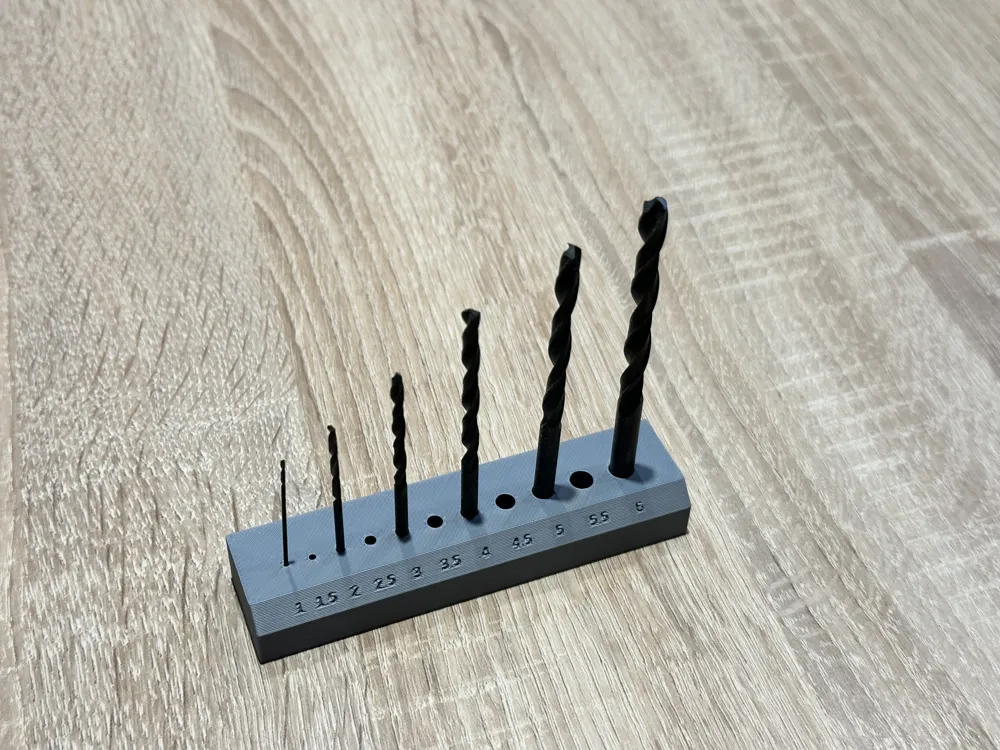

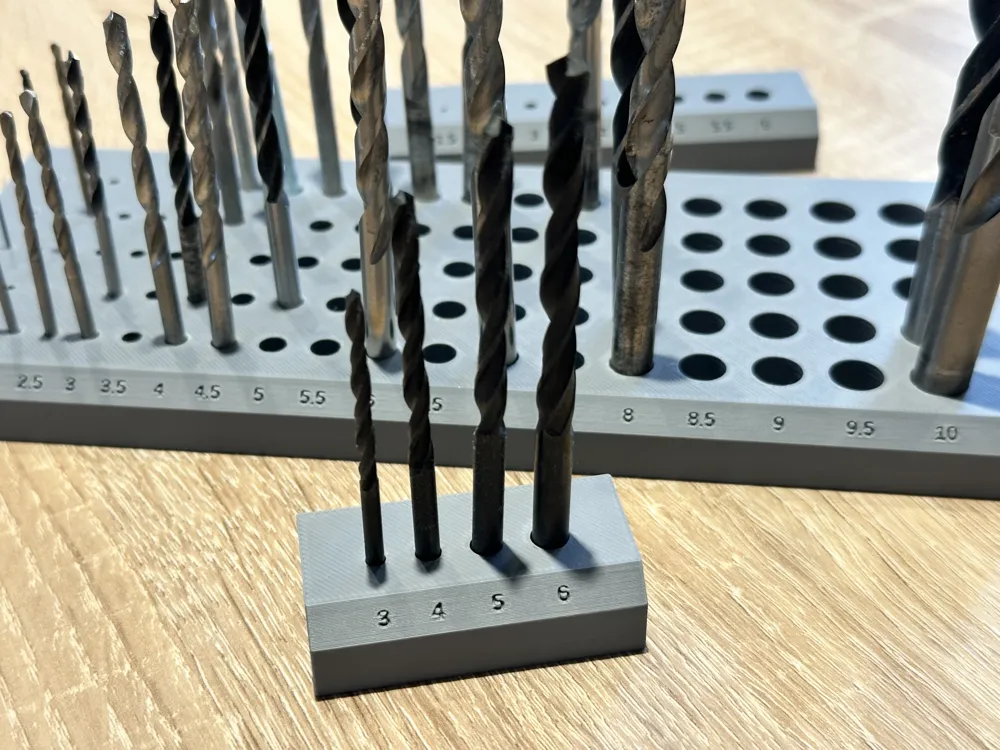

This one is fully configurable to your needs: diameter range, step between sizes, number of rows, fit tolerance — each parameter is modifiable from the customization tool.

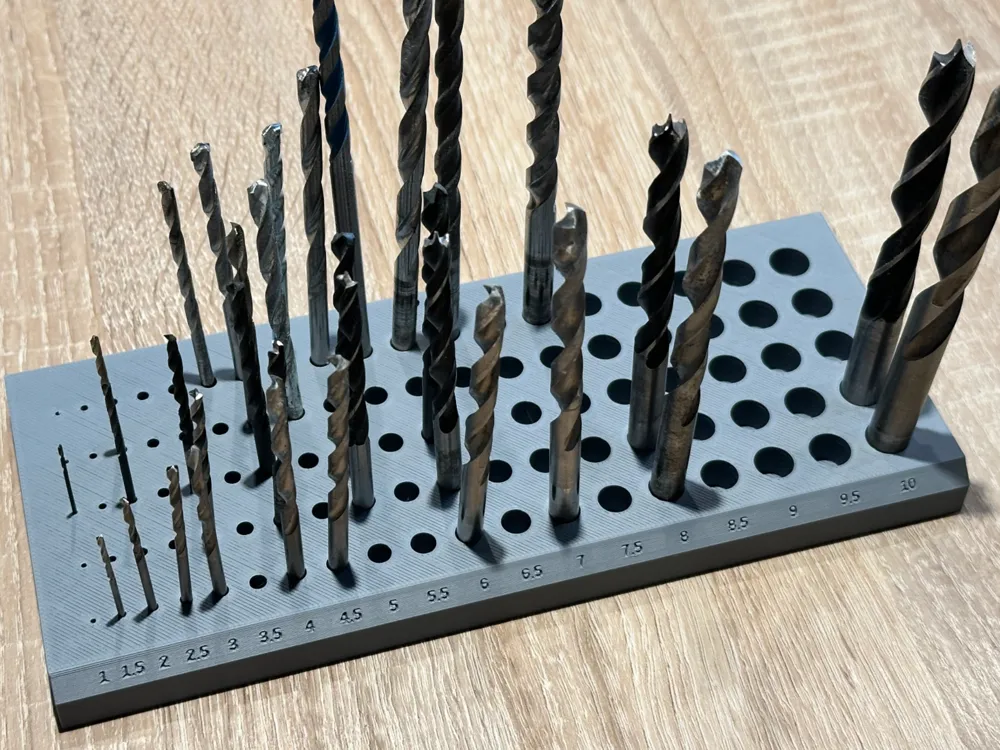

- Sizes engraved on a 45° chamfer on the front, read the size at a glance.
- Smart spacing: holes are spaced edge-to-edge (4.5 mm of material between each), not center-to-center. Small drills aren't lost in empty space, large ones don't overlap.

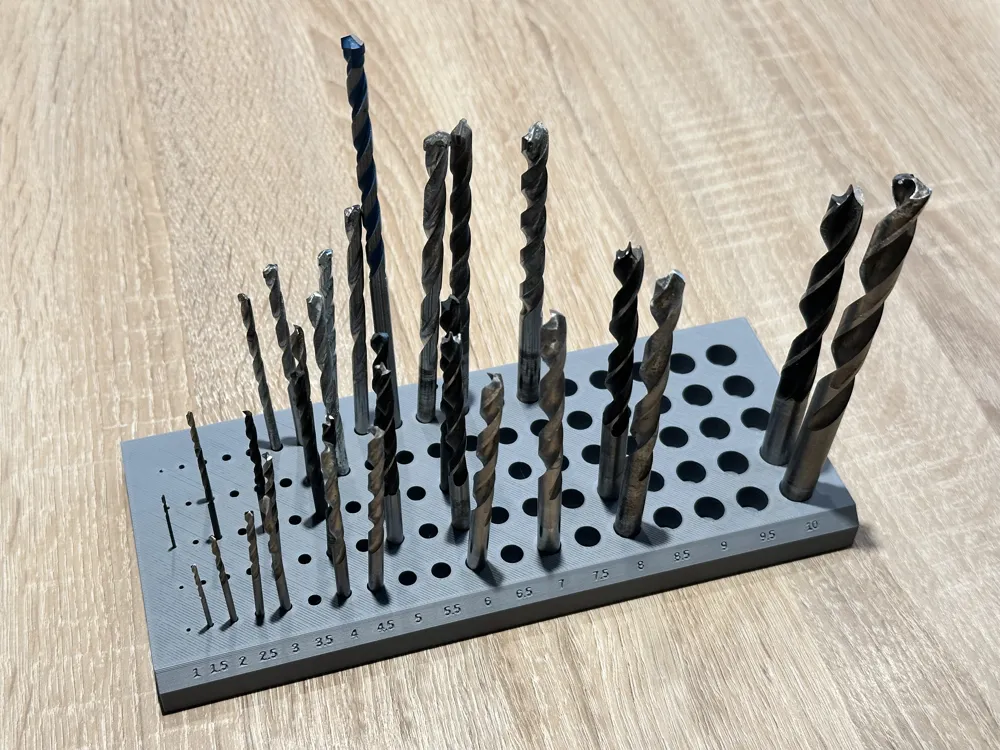

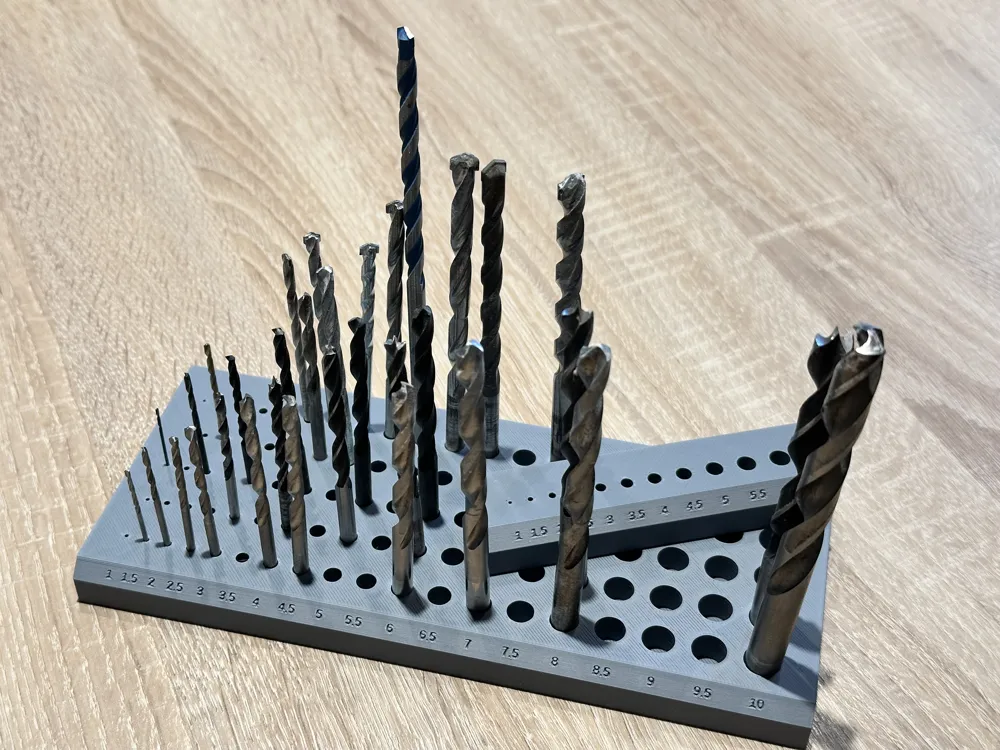

- Multi-rows: plan a row for wood, one for concrete, one for metal, one for your extra drills, etc…
- Adjustable tolerance: +0.4 mm by default for a snug fit that holds without forcing. Adapt according to your print tolerance
Available parameters:
| Parameter | Default | Description |
| min_drill | 1 | Diameter of the smallest drill bit (mm) |
| max_drill | 10 | Diameter of the largest drill bit (mm) |
| step | 0,5 | Step between sizes (mm) |
| num_rows | 5 | Number of identical rows |
| tolerance | 0,4 | Clearance added to each hole diameter (mm) |
| spacing | 4,5 | Edge-to-edge spacing between holes (mm) |
| chamfer | 5 | Size of the engraved chamfer (mm) |
| hole_depth | 10 | Hole depth (mm) |
| plate_thickness | 15 | Plate thickness (mm) |
Print, place your drill bits, organize your workshop.
