Description

Content has been automatically translated.
Show original

Boost Me (for free)

❤️👀

If you sell these lamps and want to support the work behind them, you can check out my Patreon memberships :) ❤️

patreon.com/3DLabHN





Please clean the print beds well before printing, as they have many very small details :) DO NOT USE THE SUPPORT STORAGE OPTION, as it would be impossible to remove excess material and thin parts could break or bend.

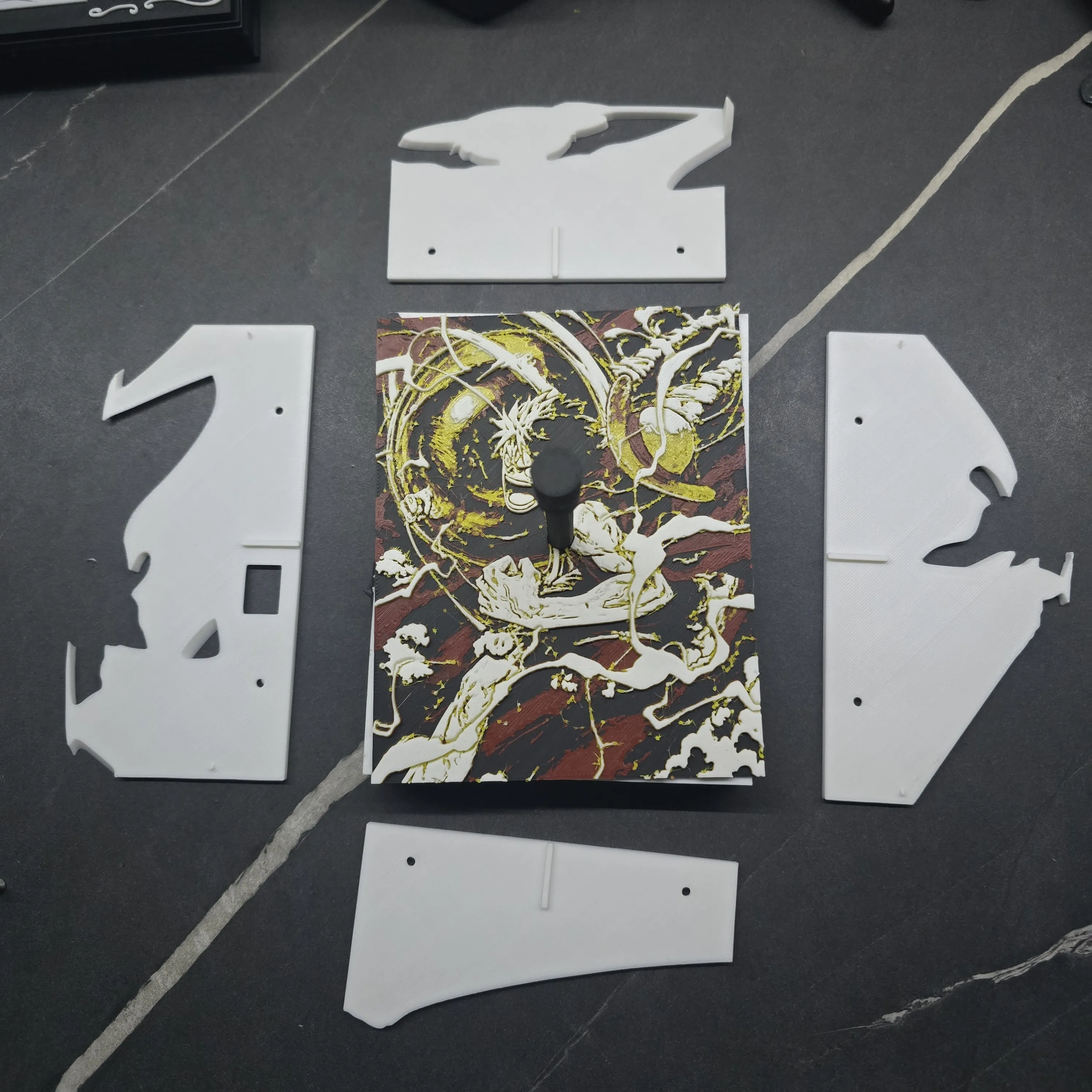

If you download the STL file, you need to separate the walls and print them this way.

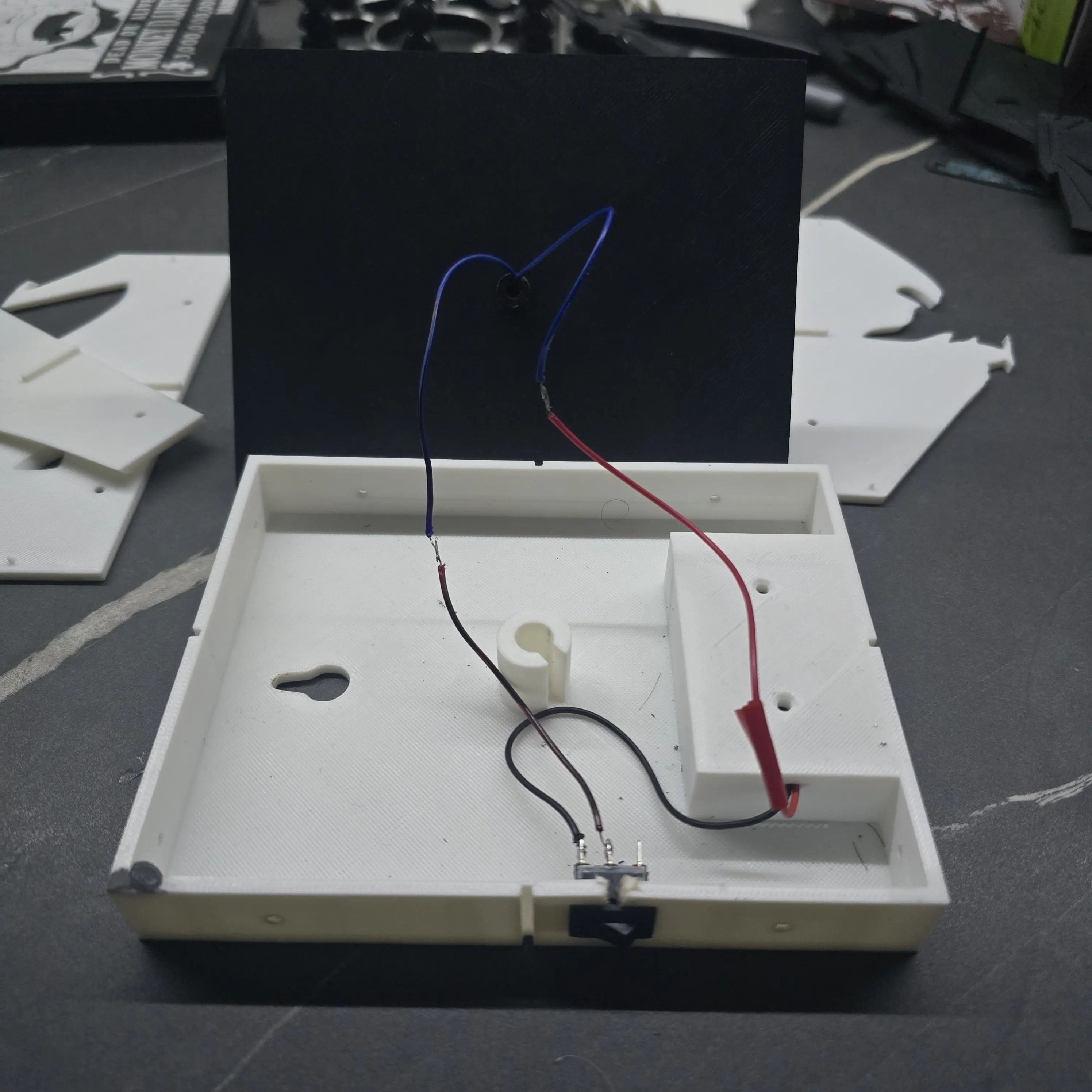

The electronics are very simple :)



LED required

https://www.amazon.com/-/es/gp/product/B01CI5P4B4/ref=ox_sc_act_image_7?smid=A14FP9XIRL6C1F&th=1



Battery holder

https://www.amazon.com/-/es/gp/product/B013GNC08C/ref=ox_sc_act_image_1?smid=A32K43E9PI2383&th=1



Switch

https://www.amazon.com/-/es/uxcell-Terminal-Encendido-Interruptor-Basculante/dp/B07GNHMY3B/ref=sr_1_1?__mk_es_US=%C3%85M%C3%85%C5%BD%C3%95%C3%91&crid=2WC8CVI84ZLGZ&dib=eyJ2IjoiMSJ9.sifsZkNRPK6EGt_40Iab4o_080uSEYq3zNmr4xDP02dYq5yzxP9rzkojqi6Z_bcQx0TFJbLHKukyRllHVL-bYsKR3qXqmyh_Y0cyqUOOFH%20b23XFH_eeNzEk79RGGH-5f DSwCd4Nhew4B3wBtCDM2iQlHVWthr3gxvjOSC%20sZXbTzfHvBL4I 3uNojvOGCKSuo9e3rNTCO-JFRFrzrc9yeimBawLcij2ia2y2Ie8HWoHyvAbYZeO3GxFwbRQWm_2B17 oTvOXRNkTF_JwFPc.Dazra42U37q92eTxDor3XCZGxhdRxAQ--Dd02kIUgIs&dib_tag%20=se&pal abras%20clave=KCD1-11&qid=1775605318&sprefix=cambiar+kcd1-11%2Caps%2C246&sr=8-1



1 piece of 27 x 15 mm transparent PET bottle to cover the LED


Documentation (1)

Other Files (1)
Instrucciones de montaje Lámpara de proyección de sombra.pdf
