Mini Guitar Pedal Fidget Clicker

🎛️ Mini Guitar Pedal Fidget Clicker 🎛️

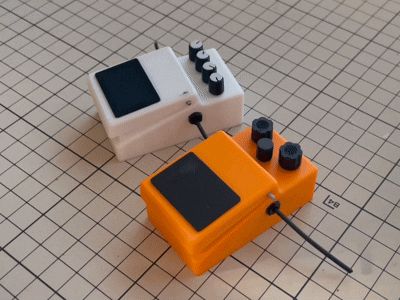

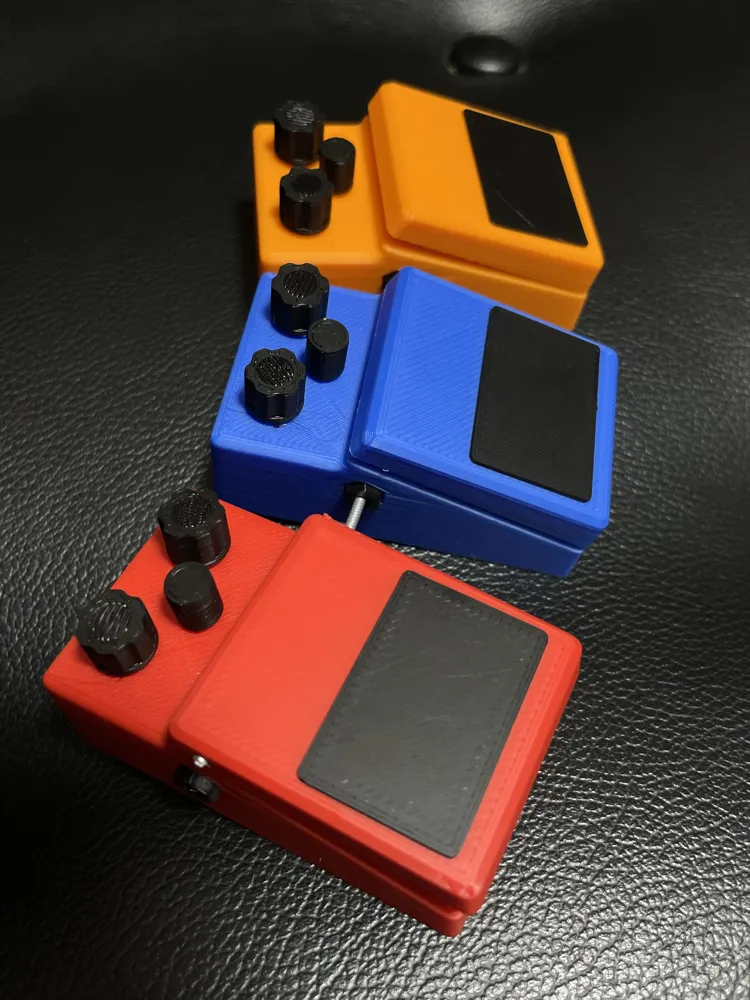

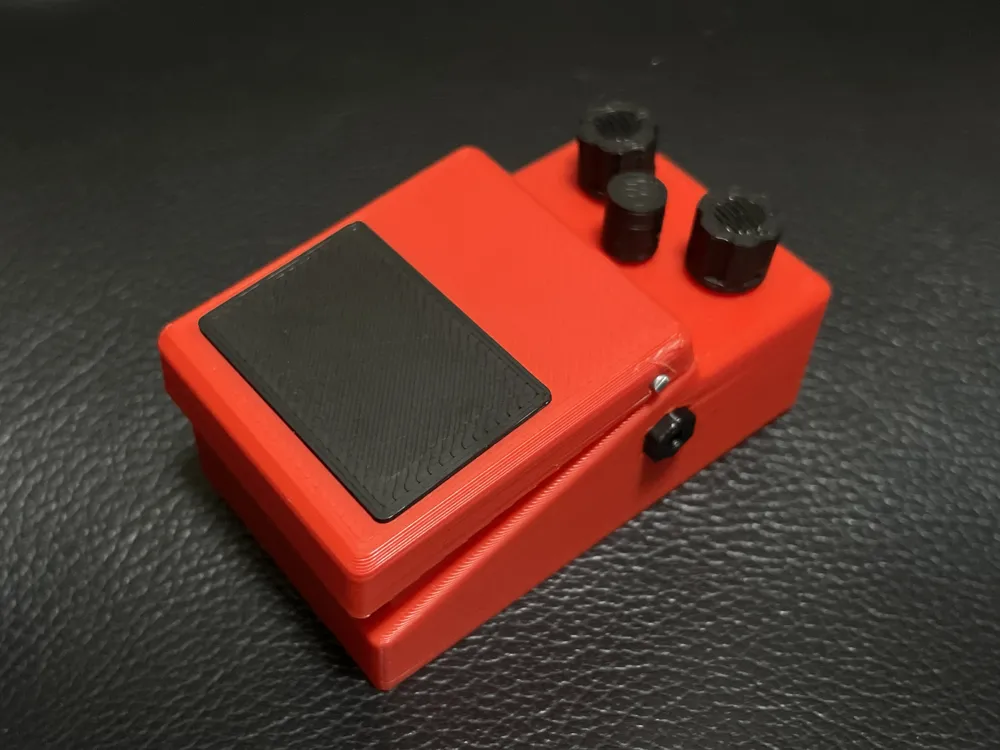

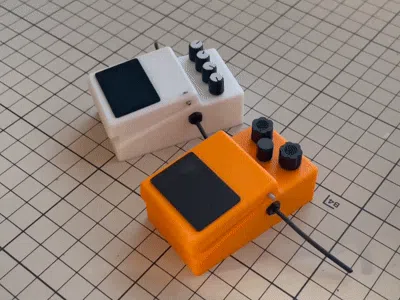

This is a mini guitar pedal-style fidget clicker designed as a playful desk toy with a mechanical click.

The top plate moves with an angled footswitch-style action, pressing an internal MX mechanical switch as it is stepped on.
Rather than using a simple vertical button press, this model aims to capture the feel of a compact footswitch-style motion in a small 3D-printable form.

Features

• Angled footswitch-style action
• Uses an MX mechanical switch
• Rotating knobs for added realism and playfulness
• Can be connected using filament pieces as cables
• Assembly design
• No glue required
• No AMS required

This model was designed to be easy to print and assemble while capturing the satisfying feel of a mini pedal-style fidget clicker.

An MX mechanical switch is required separately and is not included.
I am also considering a future version without a switch, but this current version is designed around an MX switch.

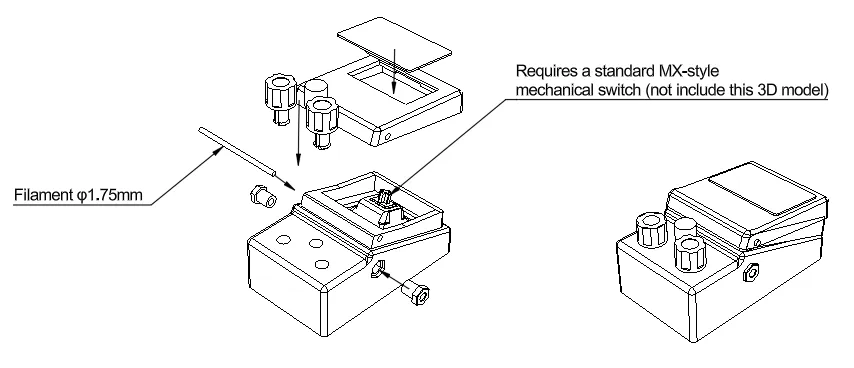

Assembly

1. Install the MX mechanical switch into the main body first.
2. Attach the top cover.
   Use a piece of 1.75 mm filament cut to an appropriate length as the hinge pin.
3. Attach the knobs and screw-like parts in the correct positions, using the reference photos as a guide.
4. Once assembled, enjoy clicking it — or print several and connect them together with filament pieces for even more fun.

Important Note

This model is an original 3D design and is not affiliated with any commercial pedal, brand, or existing clicker product.
Please do not contact any manufacturers or sellers regarding this model.
Personal use only.
