B-HITCH Modular Knipex Cobra XS Attachment

The Knipex Cobra XS Has a New Home

If you carry the Knipex Cobra XS 100mm, you already know it is the ultimate compact pliers. But keeping it loose in your pocket means it is constantly sliding around, buried under keys, or digging into your side when you sit down.

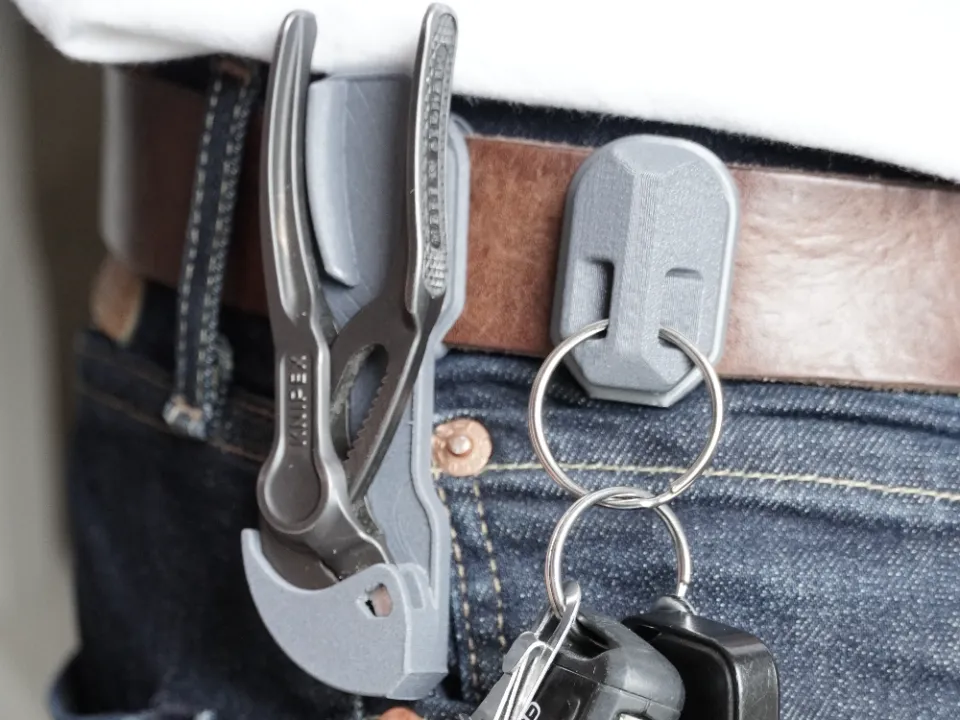

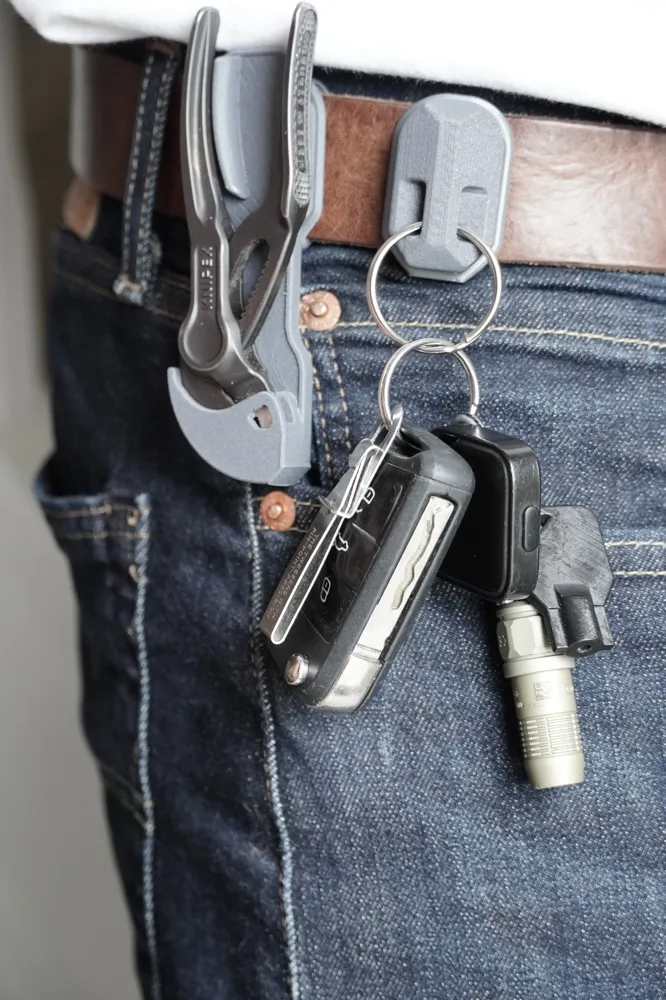

This custom-molded holster locks directly into the modular B-HITCH 2.0 system, giving you instant, low-profile access right on your belt.

Design Features

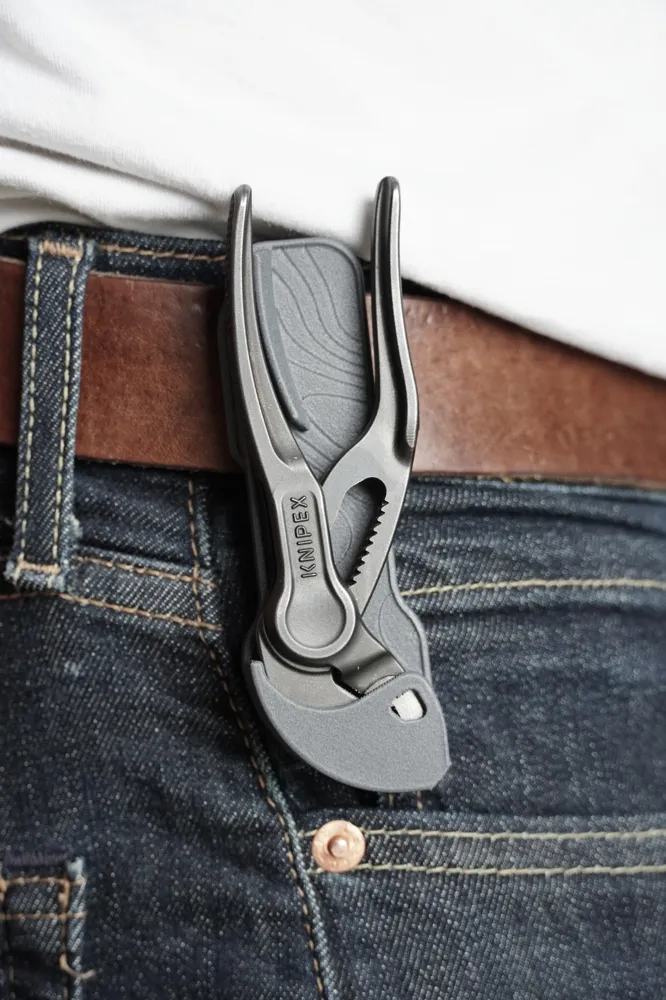

• Tight Perfect Molded Fit - Tailored specifically for the Knipex Cobra XS 100mm pliers. Secure retention without the bulk of a traditional sheath.
• Magnetic or Plain Versions - The print plate includes files for the new V2.0 magnet latch, utilising an 8x2mm neodymium magnet with a dab of CA or Super Glue in the recess for a secure, tactile snap. There is also a plain version available on the bed if you prefer a standard mechanical lock.
• 45-Degree Print Durability - The modular holster is designed to print at a 45-degree angle. This aligns the layer lines for maximum structural strength, eliminating common shear points under load.

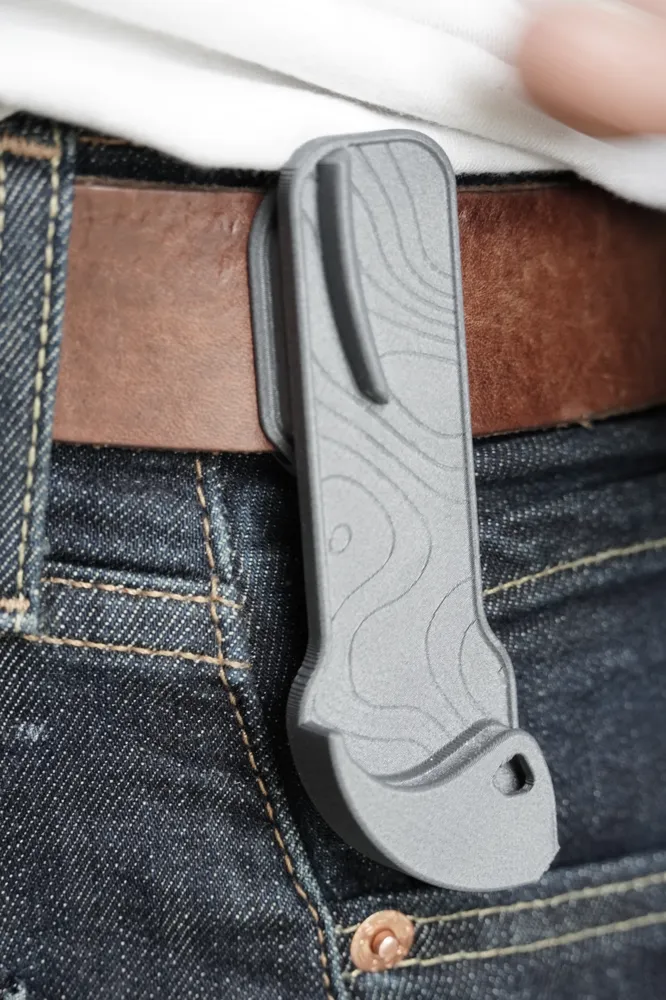

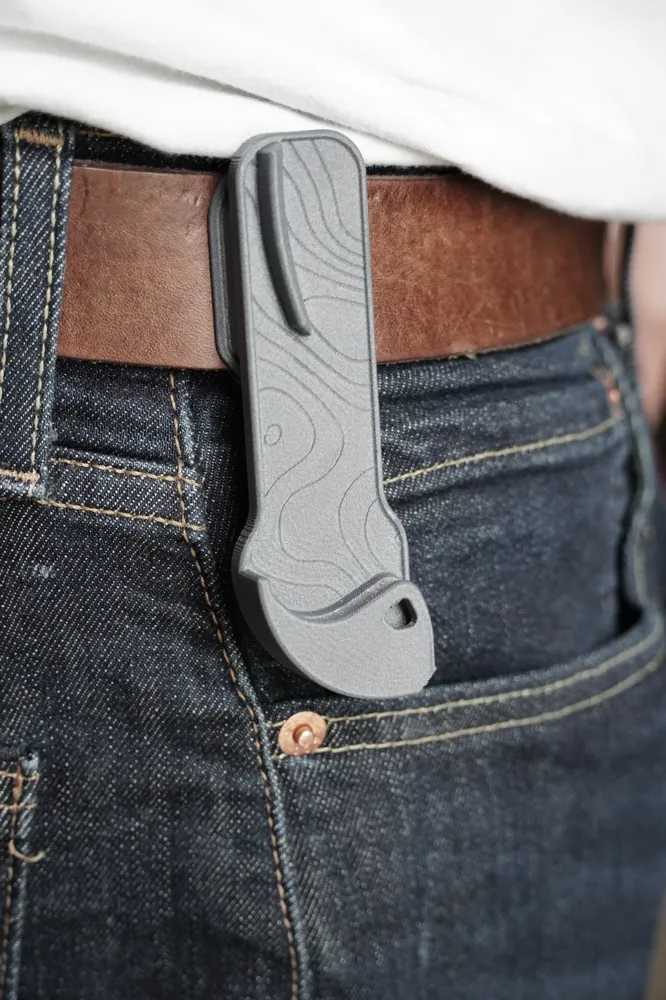

• Topo Print - Because… TOPO PRINT.

Fitment and Break-in Tip

This system is engineered with tight tolerances to keep your tools secure.

To begin with the system will need working in but once it is worked in it will last and lookafter your tool with the added locking post.

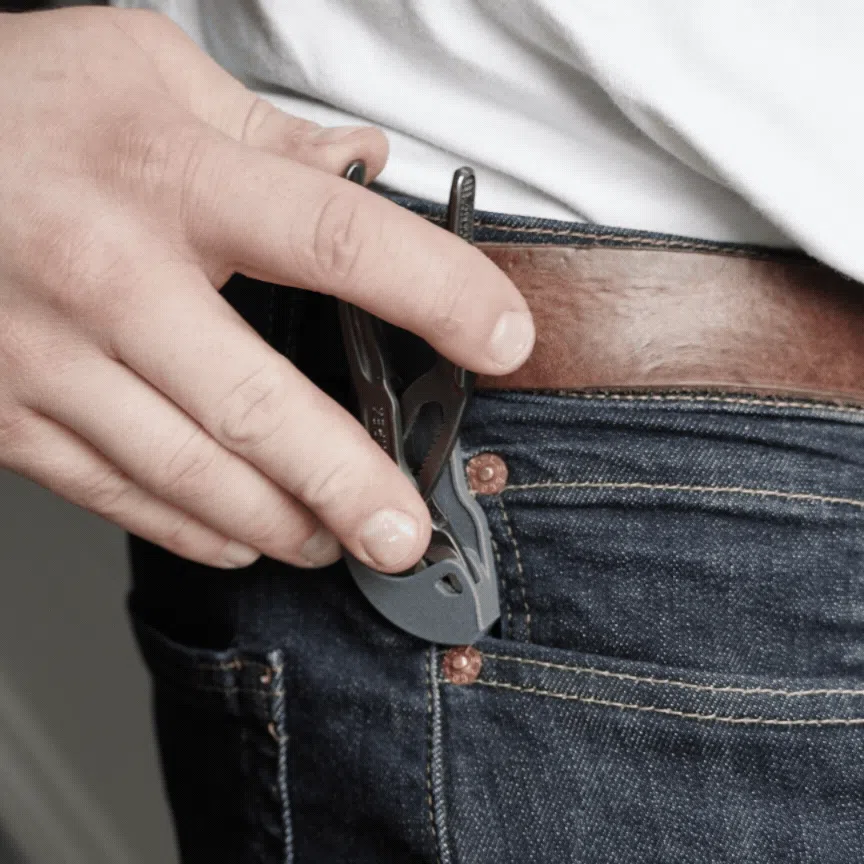

To release the pliars as shown in the video push the pliars outwards and forwards.

Part of the B-HITCH Ecosystem

This holster is part of an ongoing, modular system. Drop a comment below with any critiques, or let me know what tool attachment you want to see designed next.
