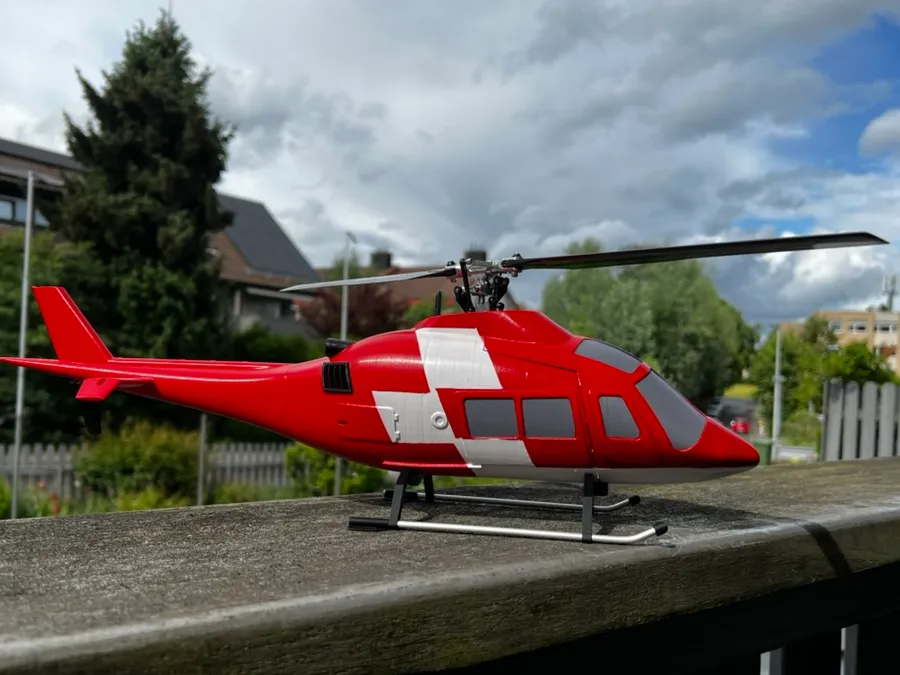

RC-Helicopter AW 109 da Vinci REGA

AW 109 da Vinci REGA - 17.05.26

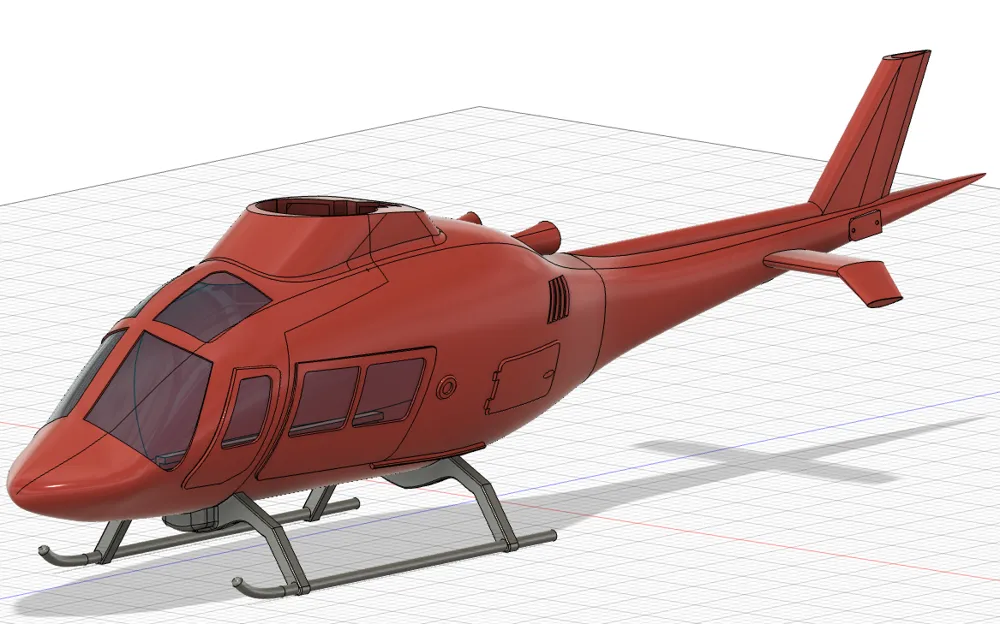

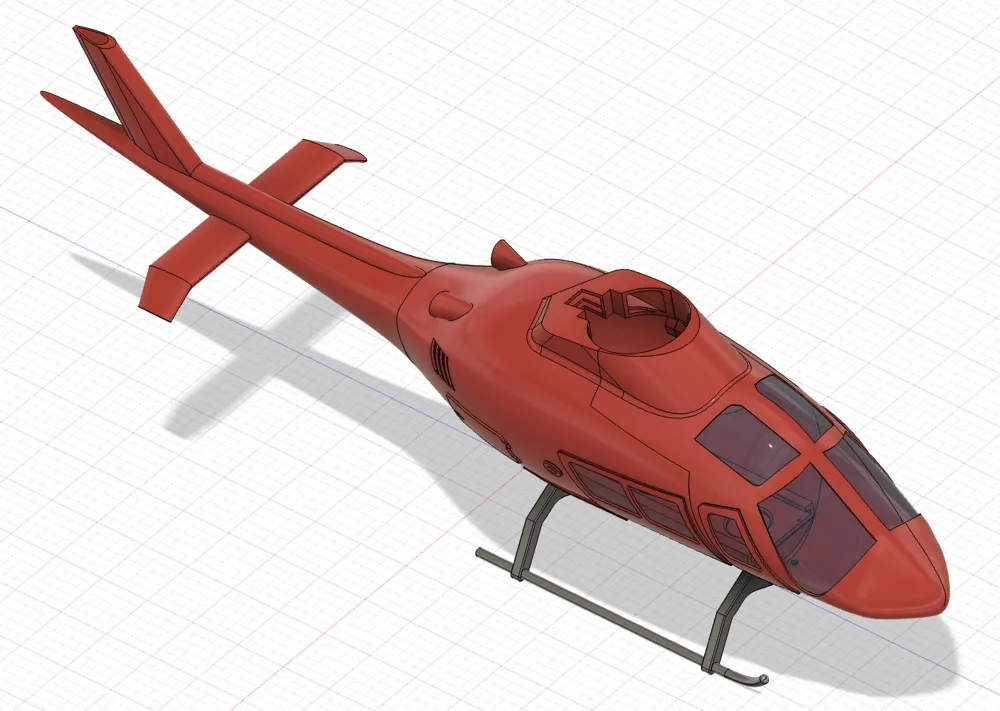

Designed with Fusion 360 by Hans Lehner

This RC model is designed for the installation of an OMP EVO 2 drive

To do this, remove the existing OMP EVO2 from the tail boom and landing gear

The sled has the appropriate drill holes for mounting the main mechanics
A reversal of the direction of rotation is necessary for the tail rotor

The front section is fastened by 2x2 neodymium magnets 5x5

Scale - 1:23.8

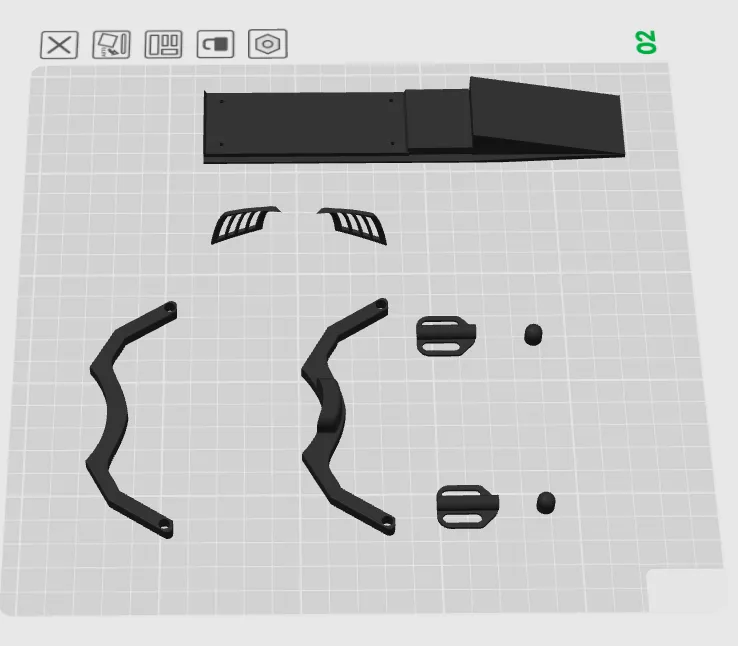

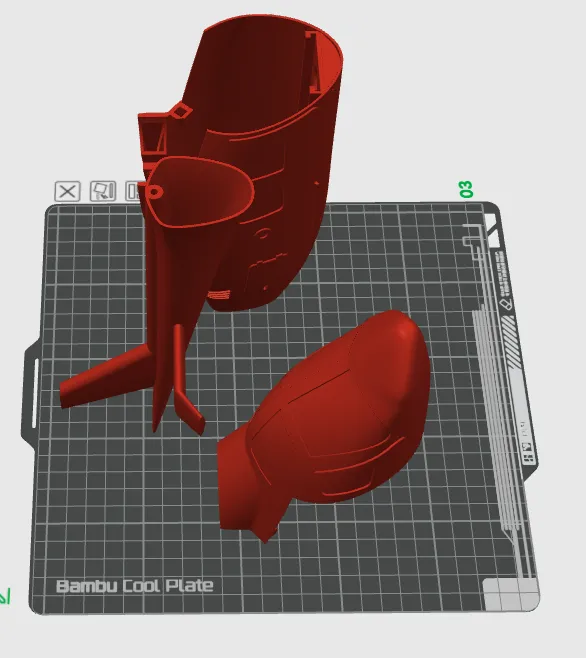

Bambu Studio Settings:

Smoothing - all surfaces
Wall lines - 3Infill 7%
Supports Tree (Hybrid)

Tail-Center connection - Carbon 3mm
Skids Aluminum 3.75mm

Print times: approx 15h
Tail 1h40
Center 3h25 Front 1h36
Landing gear 38min

Mounting sled Drive/Lipo 23min

Colors:
Windows - Anthracite Fuselage - RAL 3020 Traffic Red glossy

Decals - helicopter-decals.de
AS 350 - REGA old - HB-ZRJ - Decal 150

Weight:
Tail with support 38gr - without 30gr
Center with support 106gr - without 87gr
Front with support 45gr - without 35gr Total weight incl OMP 2 EVO - Lipo 1000mA = 272gr

I welcome any feedback

Regards Hans
