Mixed Color Chameleon

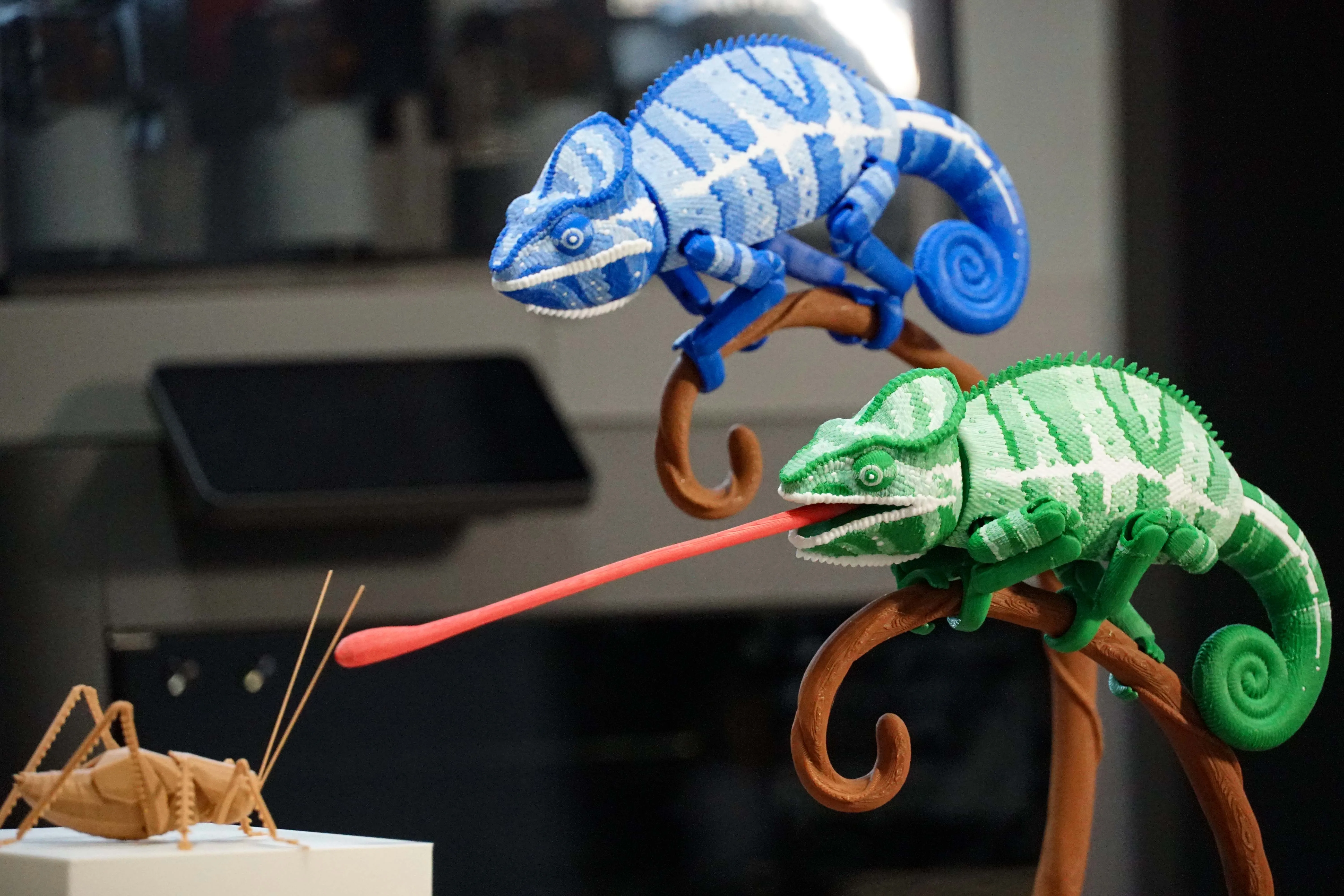

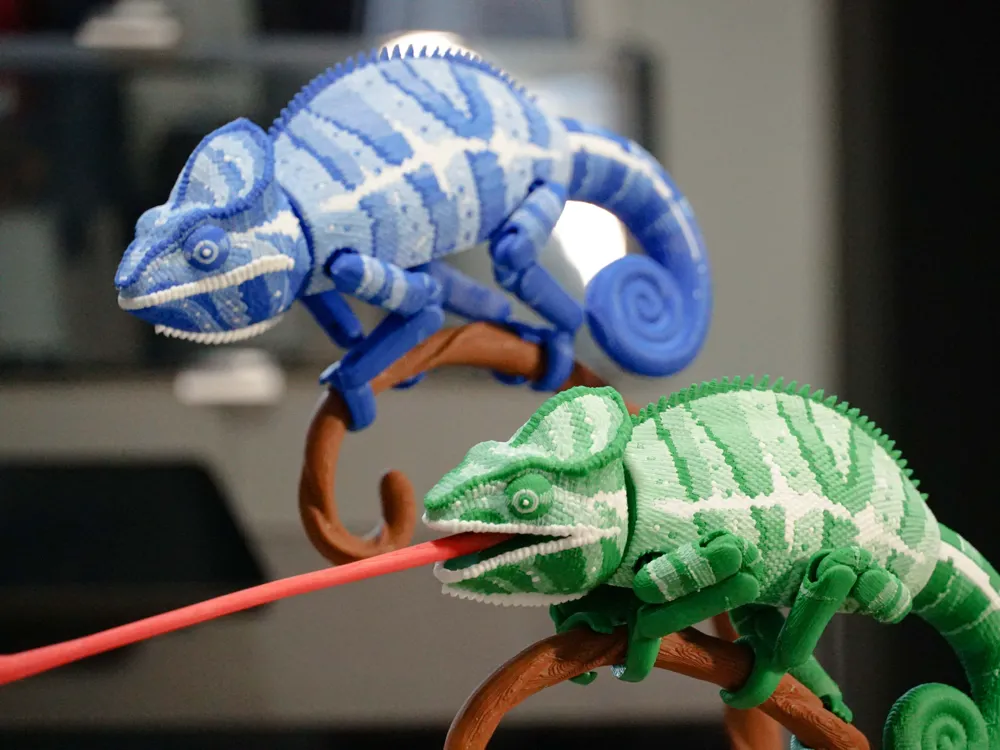

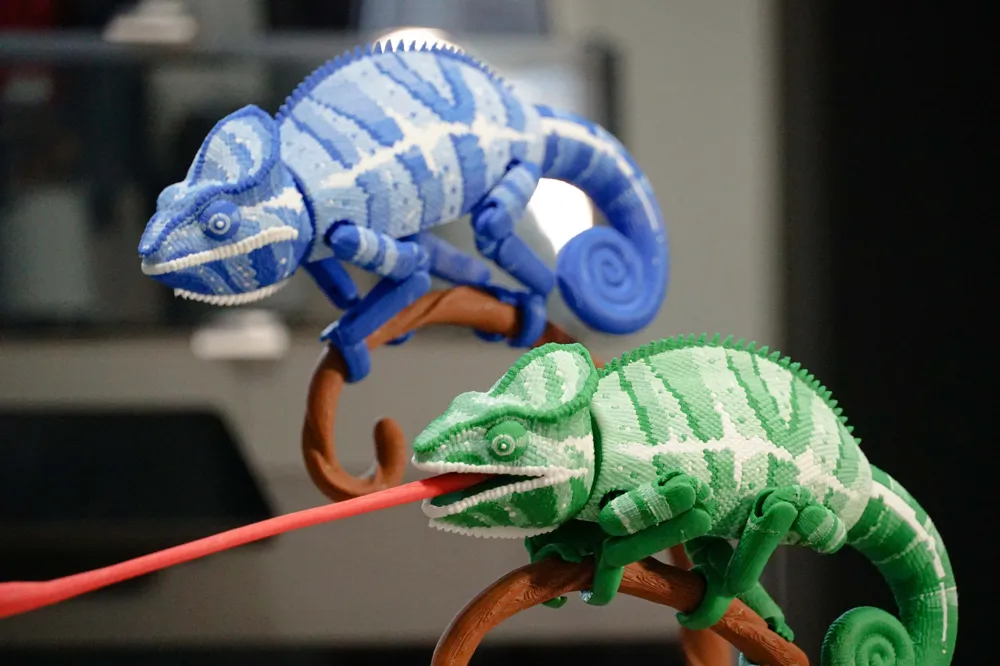

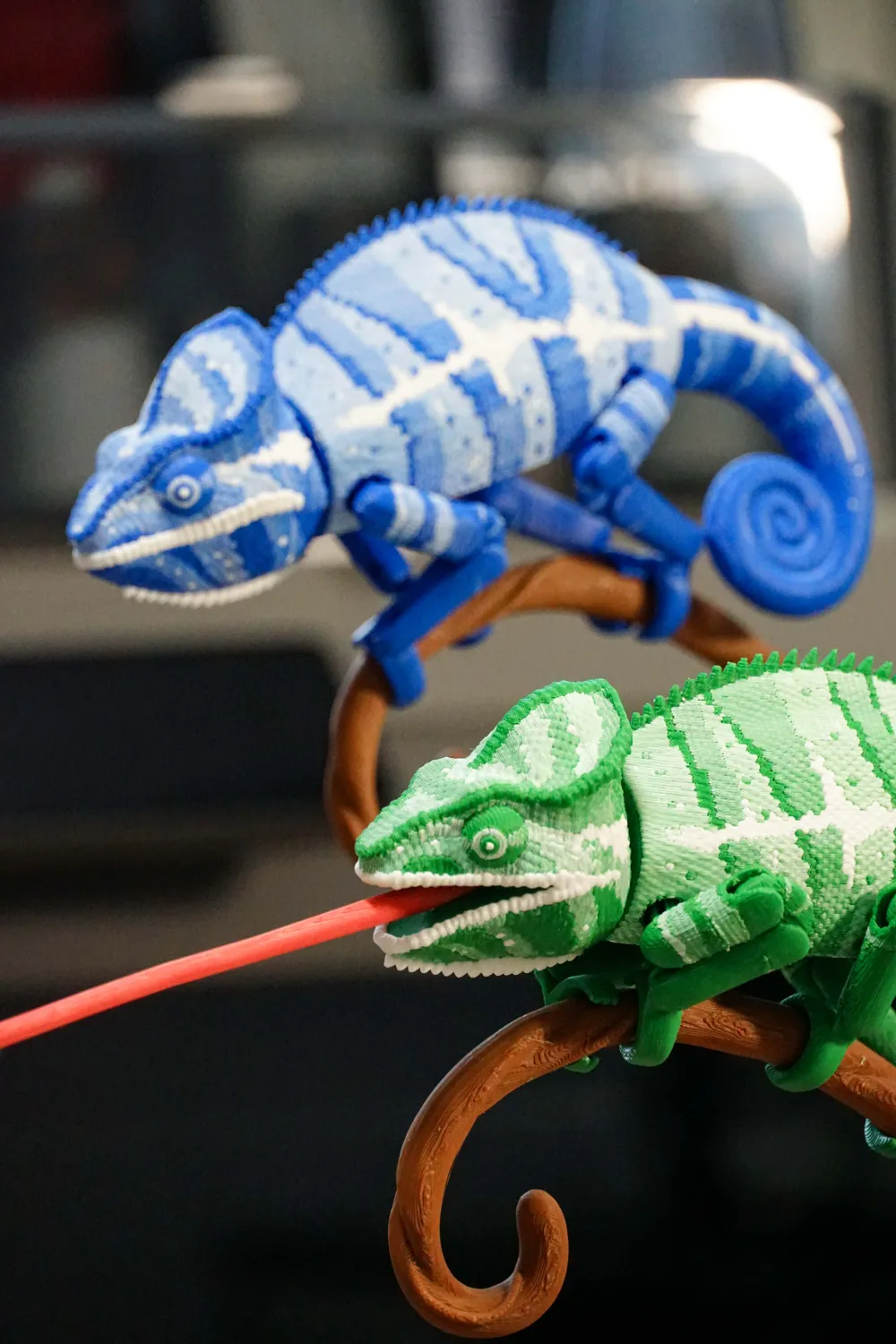

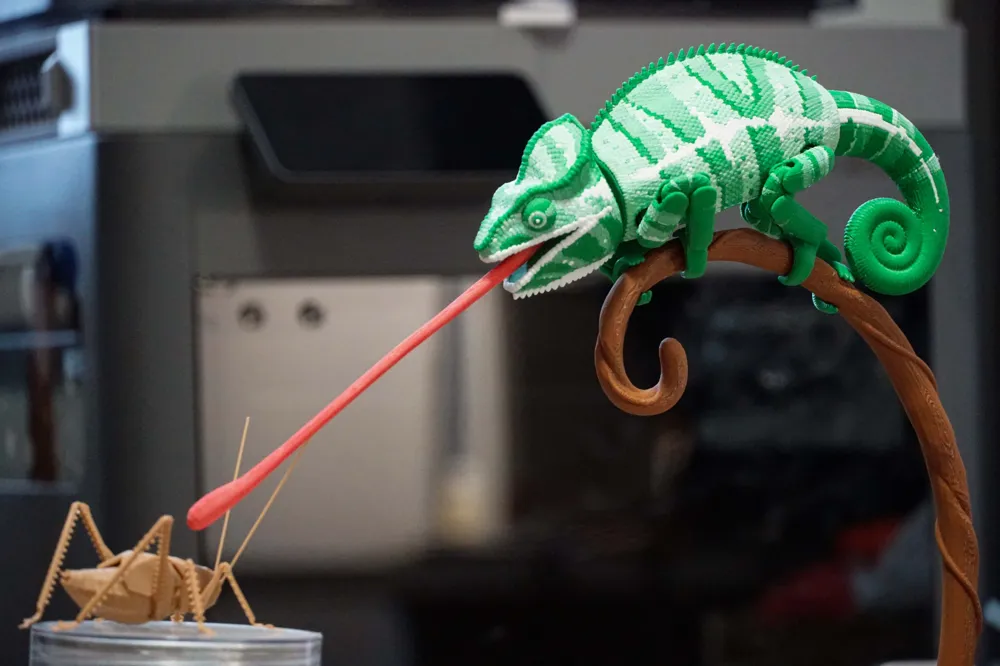

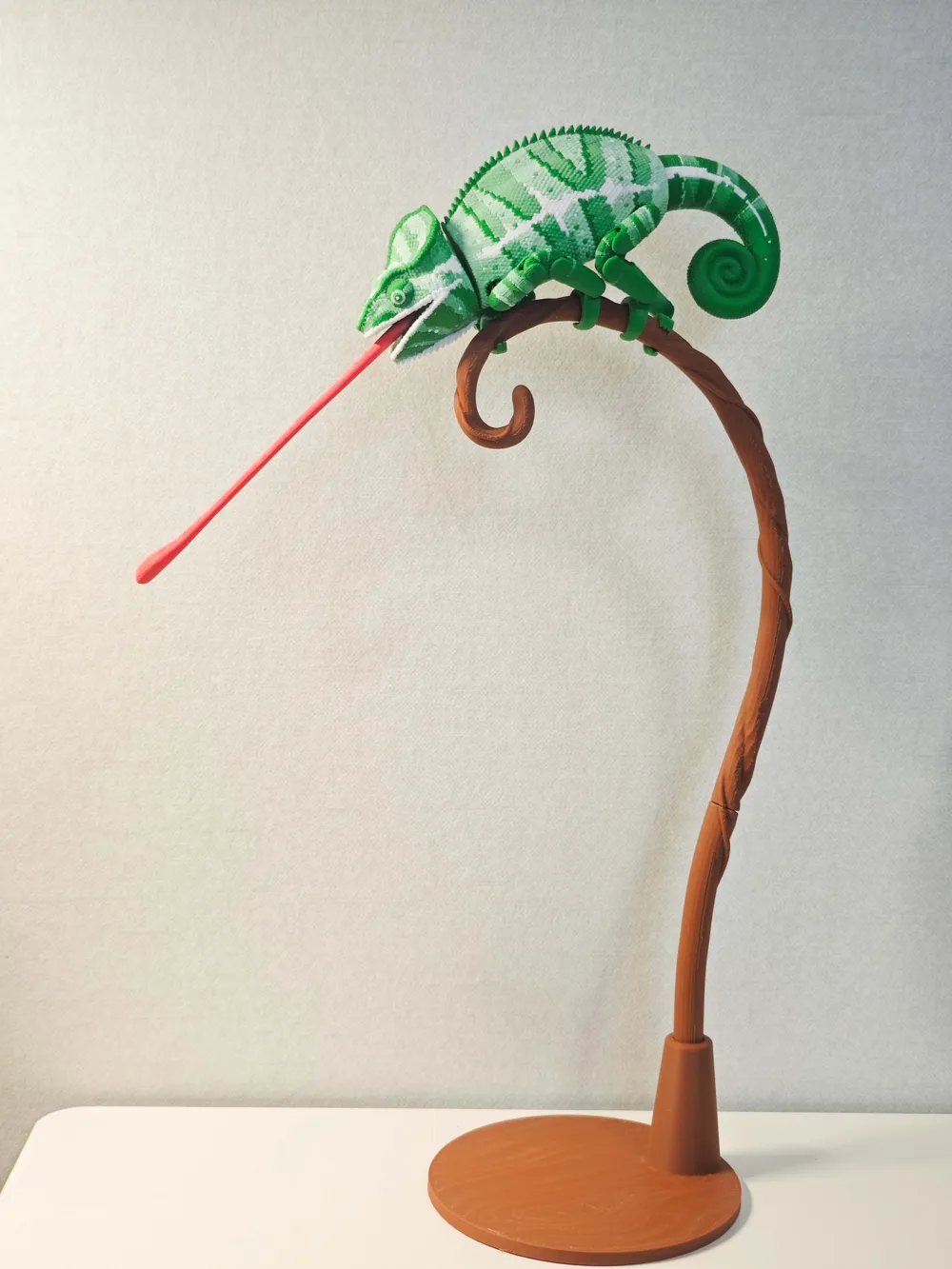

This is a chameleon model, with its limbs, head, and tail separated. The joints also have some articulation. Assembly is simple and requires no glue

I tried the new color mixing function, creating multi-color gradient effects. Paired with X2D dual-head printing, it was a pleasant surprise

Because the color mixing function is still in the experimental stage, color mixing profiles cannot be uploaded, so the uploaded model is 4-color. For color mixing, please refer to my instructions below

Be sure to enable color mixing sub-layers, if you don't understand, you can ask me

Using green and white filaments, mixed colors produce three gradient shades of light green, medium green, and dark green. The final effect is also quite good, and printing with dual-head machines like X2D, H2D also produces no waste. Additionally, H2C can also try 4-color printing with your preferred colors

Different materials yield different color mixing gradient effects. It is recommended to print a test model first to test the color mixing effect, and then choose appropriate colors. I prefer a larger difference between the three shades of green for a more noticeable effect

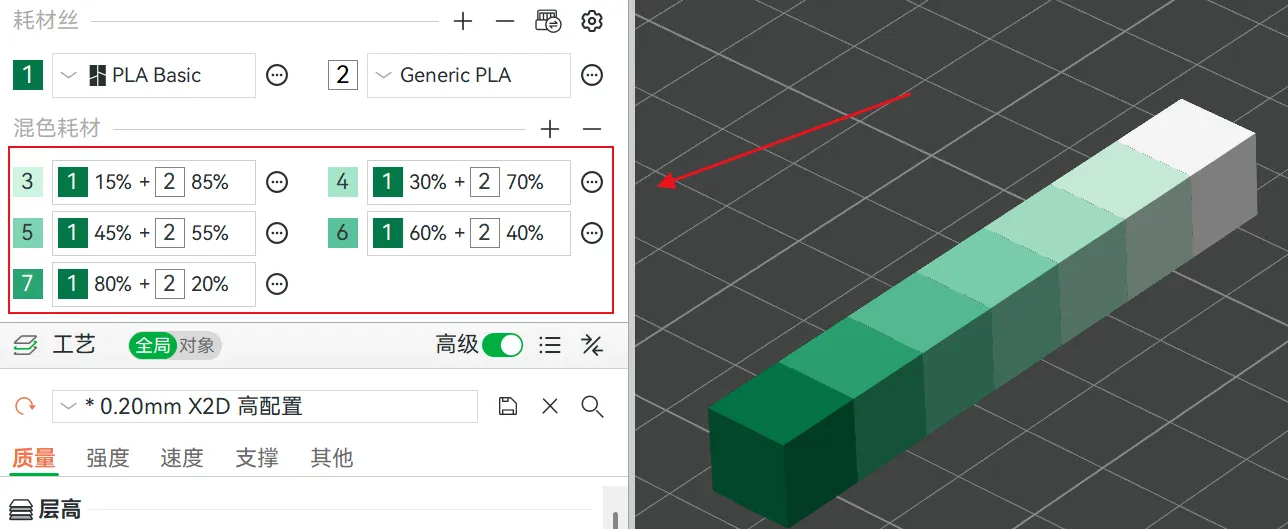

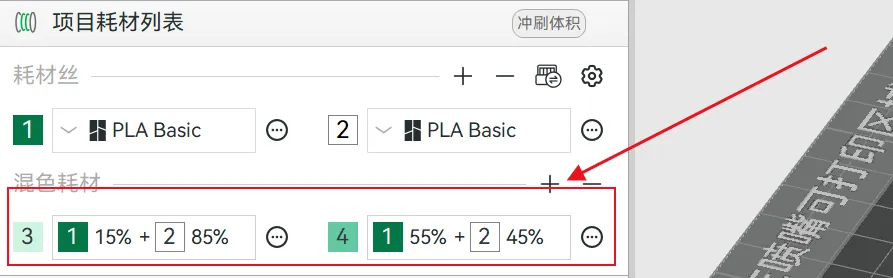

Set it up like this when printing. Add mixed filament, then adjust the mixing ratio, you can also refer to my values

Be sure to enable color mixing sub-layers
