Corner Shelf 22 cm

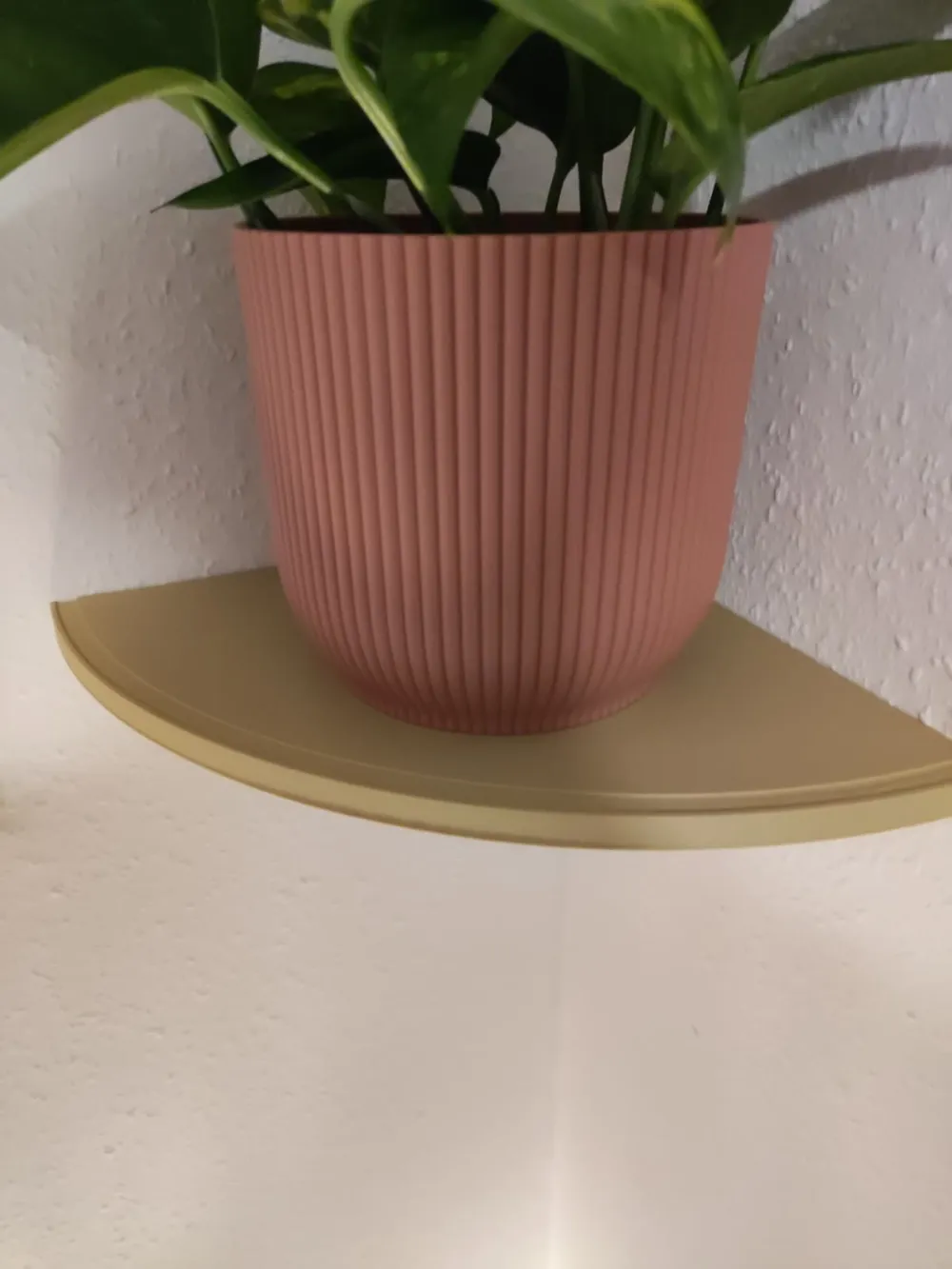

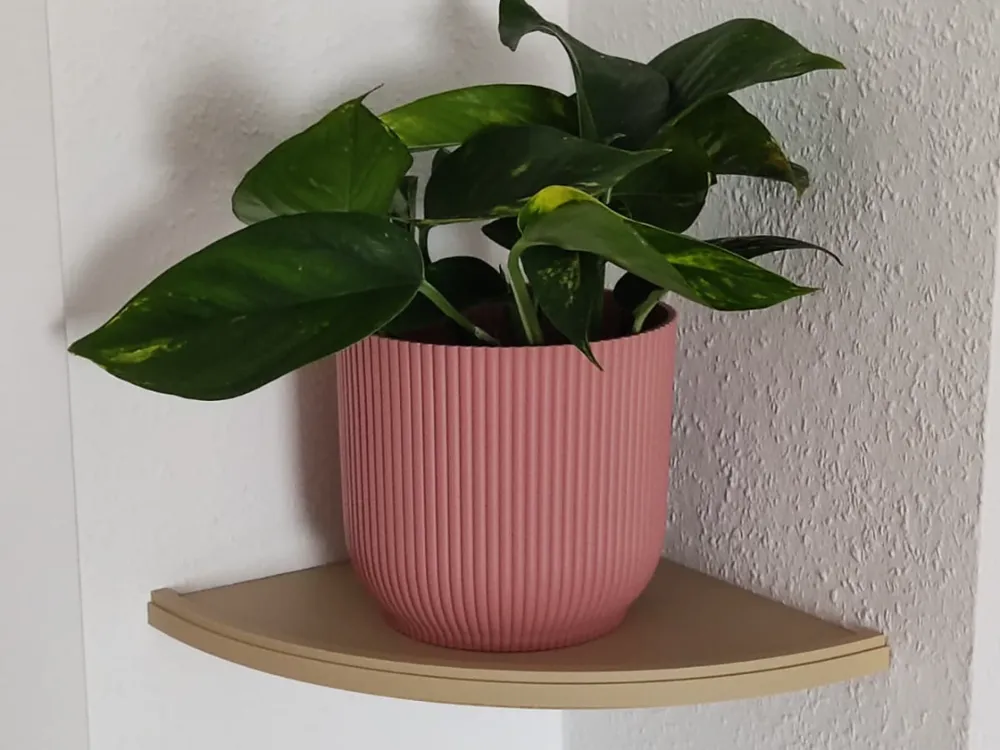

This corner shelf is perfect for a flower pot.

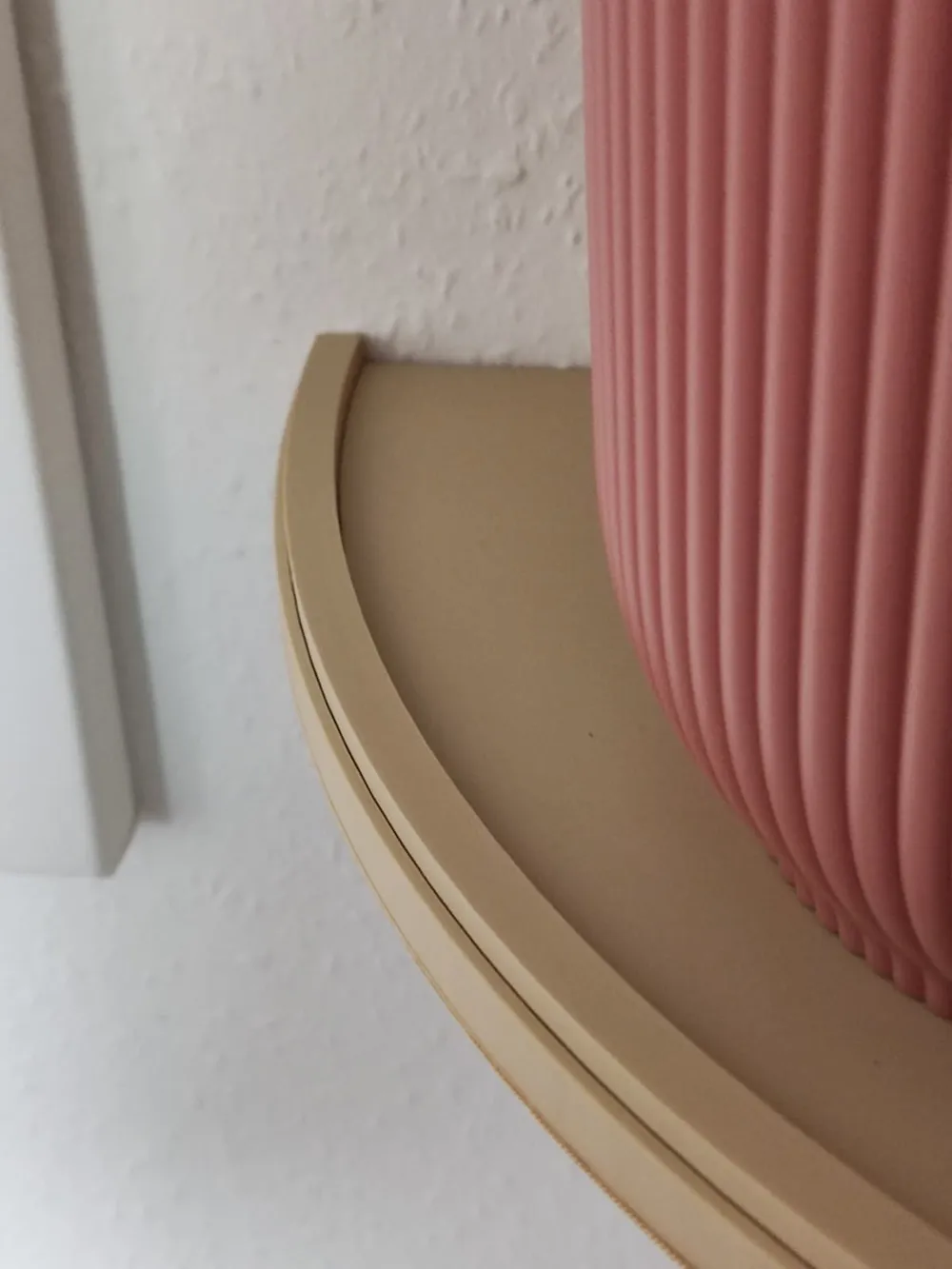

The rim is printed separately and must be glued in.

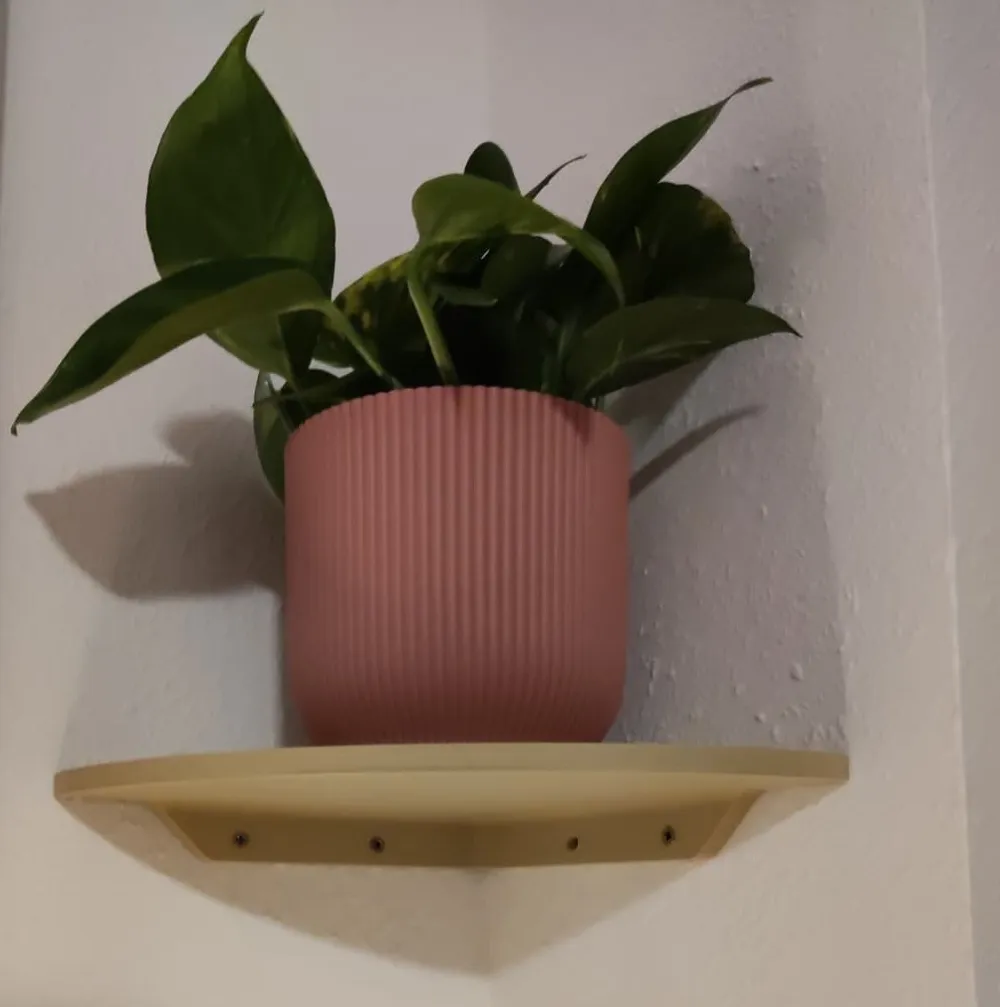

The shelf is attached to the wall with up to 4 screws. The holes are 5 mm in diameter and perfectly suited for size 4 countersunk screws. I used 4x40 screws and a 6 mm dowel for fastening in brick or aerated concrete. The shelf is thus securely held. Depending on the surface, larger screws and dowels may need to be used.
I have attached a sectional drawing with the dimensions. The drawing can be used as a drilling template when printed at a 1:1 scale. The distance between the corner and the hole and between the holes is 7 cm each.

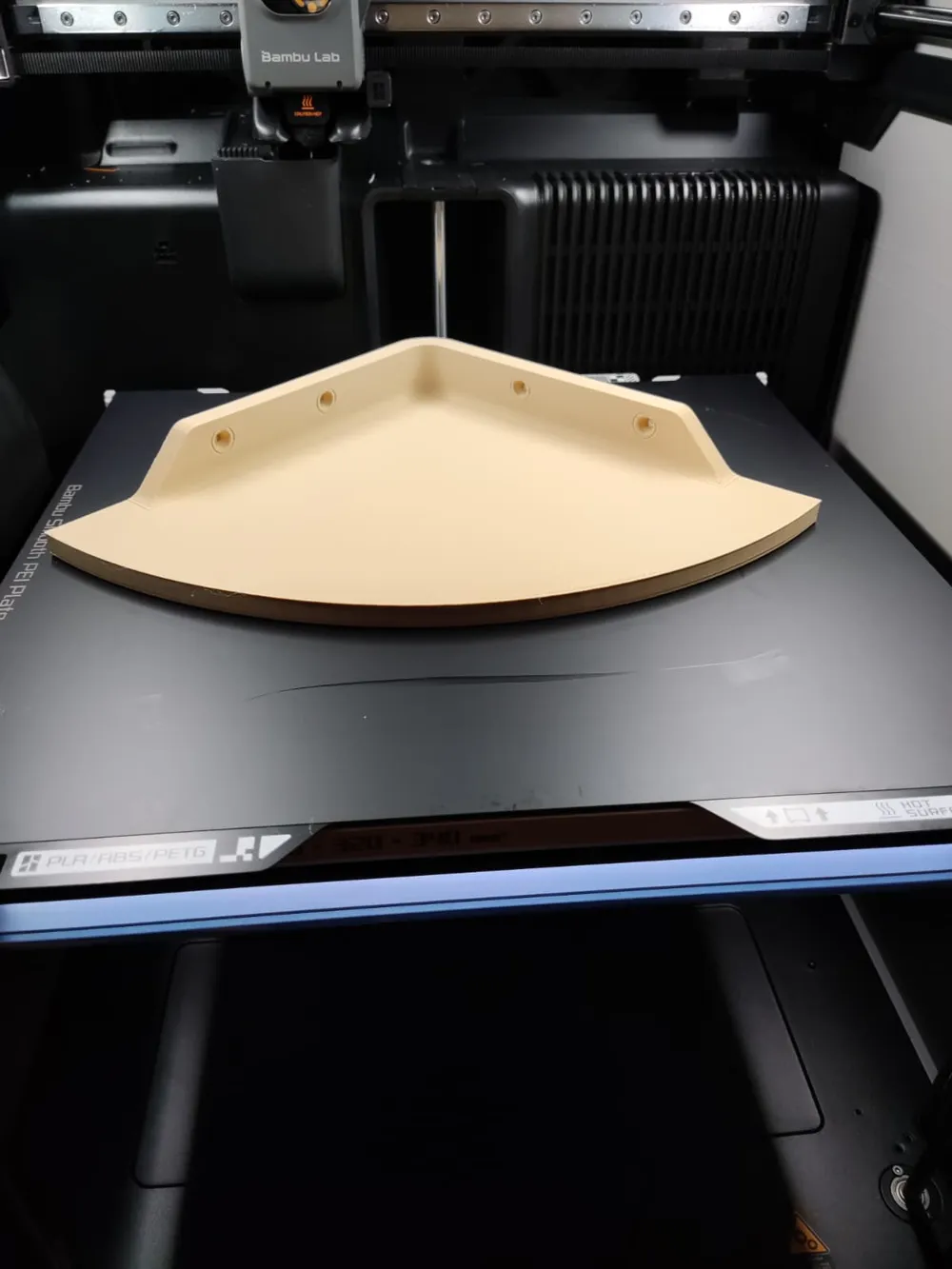

I reinforced the holes in the slicer so that the screws can be tightened without damaging the shelf. In the first attempt (see pictures), this created unsightly edges around the holes. I have now adjusted the modifier in BumbuStudio so that the surface remains nice. So there should be no problems.
If anything is unclear, feel free to ask me.
If you like my models, please leave feedback, a like, or a boost.
Thank you :)
