<h2>打印配置</h2>推荐使用 PLA 材料打印，模型已拆分为上下两段，可在一盘内完成打印。 该配置适用于 0.4mm 喷嘴，推荐层高 0.2mm，兼顾打印速度与孔位精度。推荐参数：<ul><li>打印机：Bambu Lab X1 Carbon 或同级高速打印机</li><li>喷嘴：0.4 mm</li><li>材料：PLA</li><li>层高：0.2 mm</li><li>墙层：4 层</li><li>填充：15% Gyroid</li><li>支撑：开启，推荐树状支撑 / Organic Tree Support</li><li>支撑角度：30°</li><li>热床温度：45–55°C</li><li>喷嘴温度：215–220°C</li><li>底边：建议开启自动 Brim，宽度约 5 mm</li><li>打印方式：一盘打印，上下两节分体成型</li></ul>打印建议：为保证吹口、指孔和内径精度，建议使用校准良好的 PLA 耗材，并保持较稳定的流量。打印完成后，可对接口、歌口和指孔边缘进行轻微清理，避免毛刺影响装配与吹奏手感。该模型支持高速打印，但若希望获得更好的音准稳定性和表面质量，可适当降低外墙速度。模型文件中的配置已针对日常练习与演奏使用进行设置。

<h2>print profile</h2>It is recommended to print with PLA filament, the model has been split into upper and lower sections and can be printed on a single plate This profile is suitable for a 0.4mm nozzle, with a recommended layer height of 0.2mm, balancing printing speed and hole accuracyRecommended parameters:<ul><li>Printer: Bambu Lab X1 Carbon or equivalent high-speed printer</li><li>Nozzle: 0.4 mm</li><li>Material: PLA</li><li>Layer height: 0.2 mm</li><li>Walls: 4 layers</li><li>Infill: 15% Gyroid</li><li>Supports: Enabled, recommended tree supports / Organic Tree Support</li><li>Support angle: 30°</li><li>Bed temperature: 45–55°C</li><li>Nozzle temperature: 215–220°C</li><li>Brim: Recommended to enable auto brim, width approximately 5 mm</li><li>Printing method: Single plate print, upper and lower sections printed separately</li></ul>Printing suggestions:To ensure accuracy of the mouthpiece, finger holes, and inner diameter, it is recommended to use well-calibrated PLA filament and maintain a stable flow rate After printing, the edges of the joints, whistle mouth, and finger holes can be lightly cleaned to avoid burrs affecting assembly and playing feelThis model supports high-speed printing, but for better pitch stability and surface quality, the outer wall speed can be appropriately reduced The profile in the model file has been set up for daily practice and performance use

0.2mm layer, 4 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

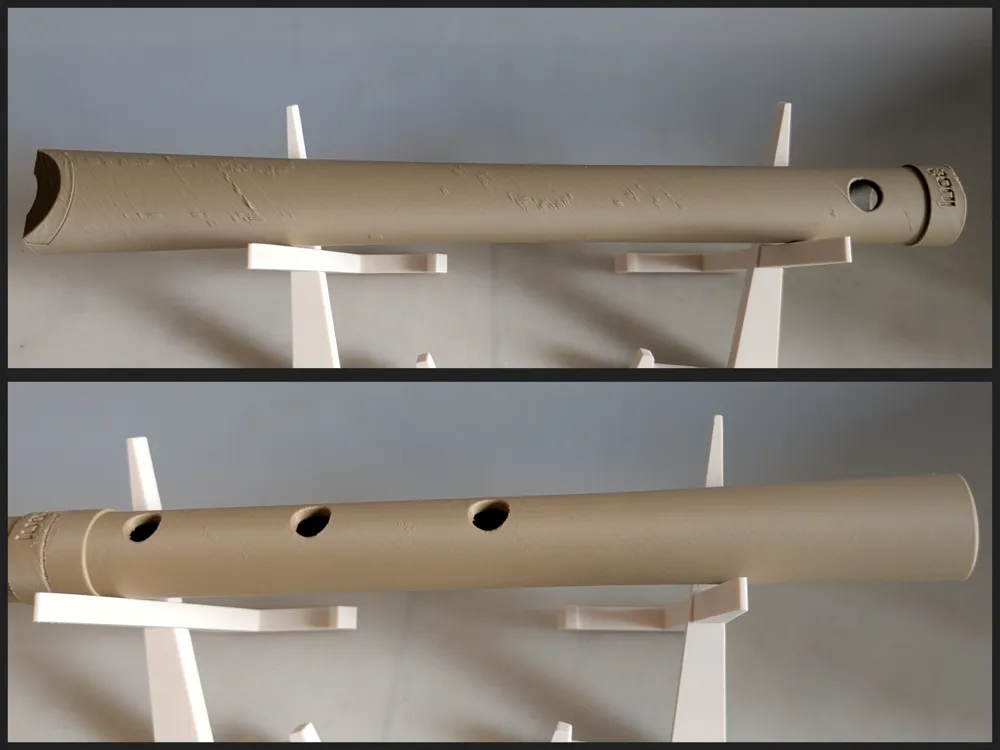

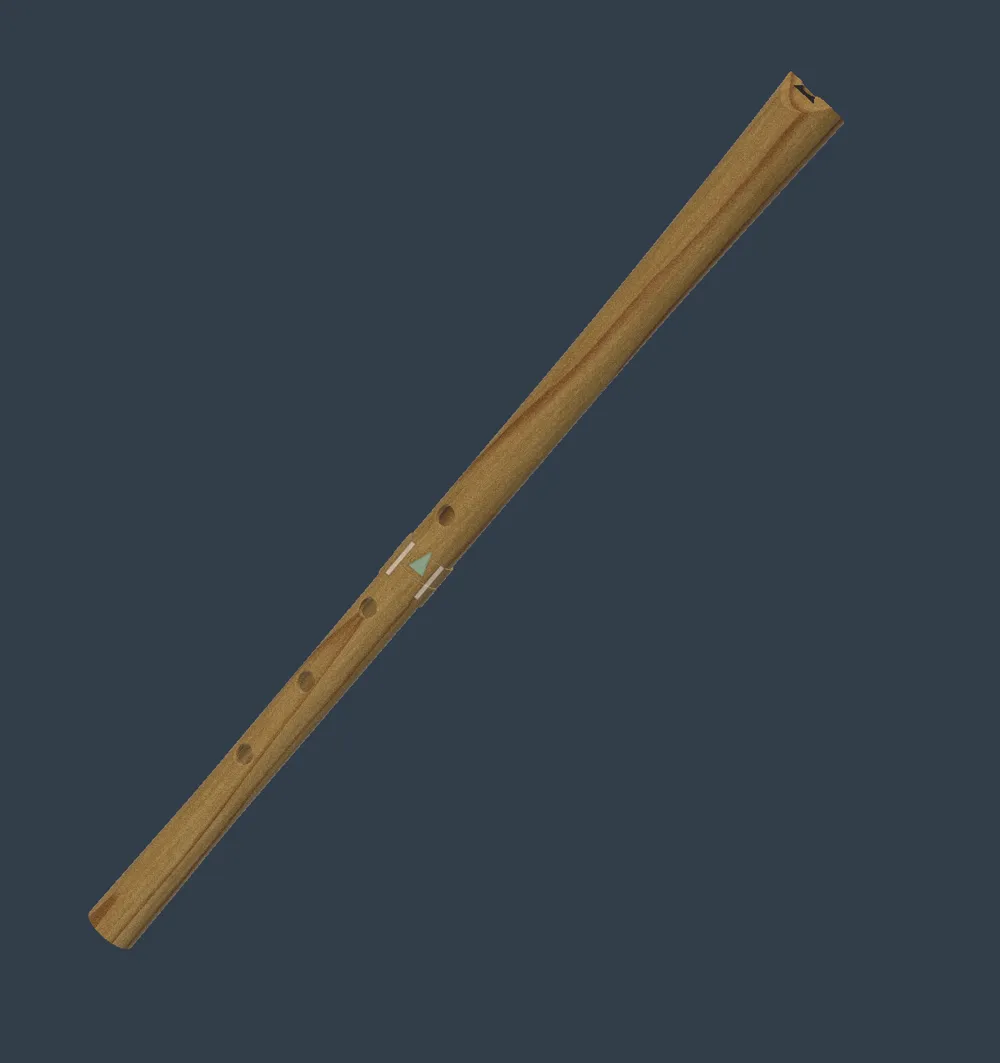

<h2>1.8-Shaku Five-Hole Shakuhachi｜Key of D｜PLA High-Speed Printable Version</h2>&nbsp;<ul><li>A fully printable, well-tuned 1.8-shaku five-hole shakuhachi in the key of D. Designed with a modern tuned bore and standard modern utaguchi shape, it is suitable for daily practice and basic performance. Prints in one plate with PLA and supports high-speed printing.&nbsp;</li><li>Glue the joints for better performance.</li></ul>&nbsp;<ul><li>This is a 1.8-shaku five-hole shakuhachi designed by me, with D as the fundamental note. The model features a modernized bore tuning design and a standard modern utaguchi mouthpiece shape, offering stable intonation and good playing response. It is fully suitable for daily practice and basic performance.</li></ul>&nbsp;<ul><li>This version can be printed in one plate and is suitable for PLA material with high-speed printing.</li></ul>&nbsp;<ul><li>This is a free public basic version. A more precise professional version, featuring professional tuning and enhanced overtone resonance optimization, is also available. Please contact the author for more details.</li></ul>

Print Profile(1)

Description

1.8-Shaku Five-Hole Shakuhachi｜Key of D｜PLA High-Speed Printable Version
