Window Exhaust Vent
Print Profile(1)
Description
window exhaust adapter designed for 3D printer enclosures.

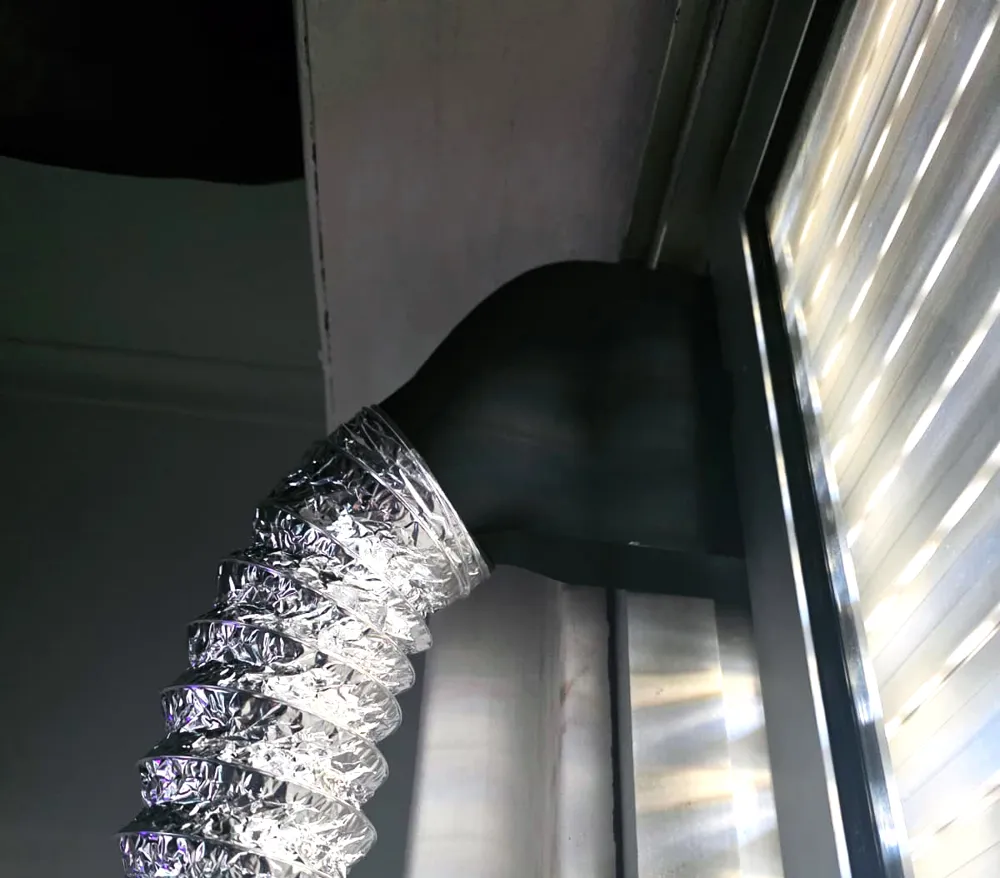

This vent allows you to safely extract fumes, VOCs and hot air from your enclosure directly through a window using standard flexible ventilation tubing.

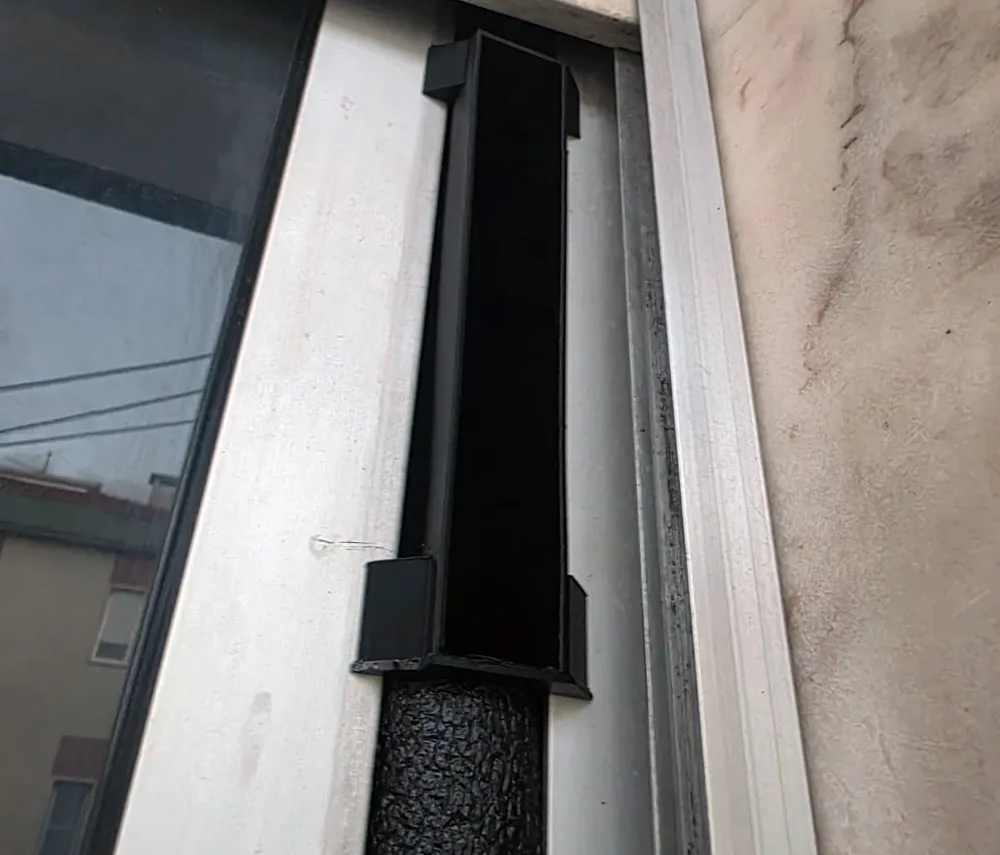

Designed to fit securely in window tracks while maintaining a clean and compact profile.

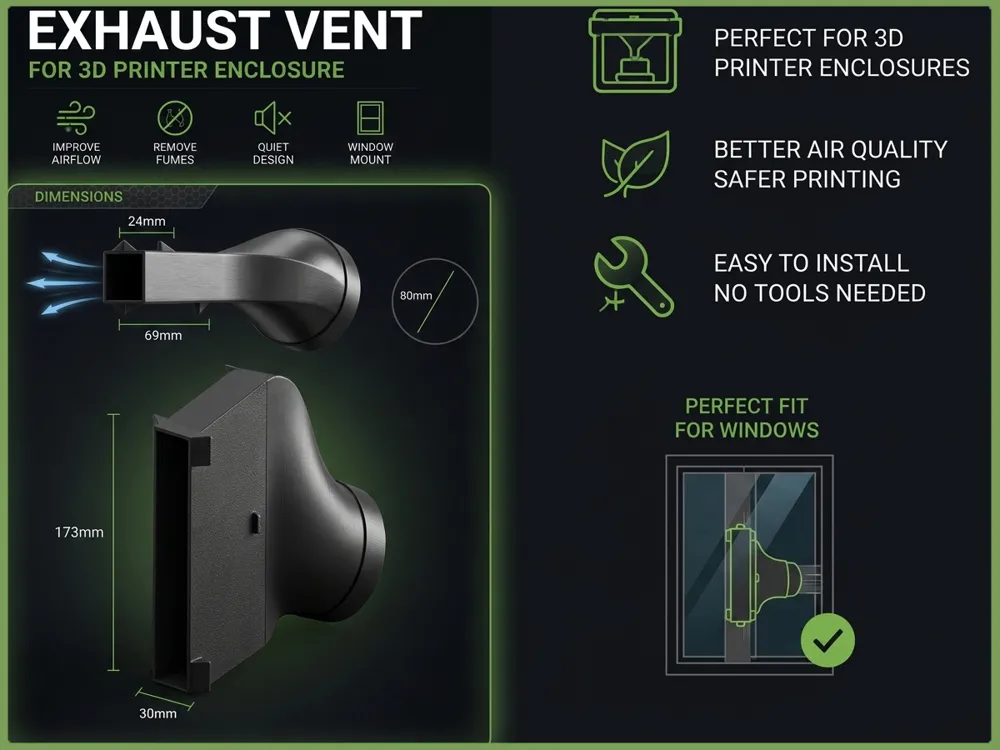

Dimensions
- Height: 173mm
- Width: 30mm
- Window track insert: 24mm
- Frame insert length: 69mm
- Duct size: 80mm
*This is my first 3D project and my second 3D print overall (the first one was a Benchy) .
I created this file and decided to share it here on MakerWorld for others to use. I hope it can be useful.
Feel free to suggest any improvements or modifications..feedback is always welcome.
It can also be used together with my other project, the X2D EXAUST FAN.
