Mini Adjustable USB-C Lab Power Supply - Portable
Print Profile(1)
Description

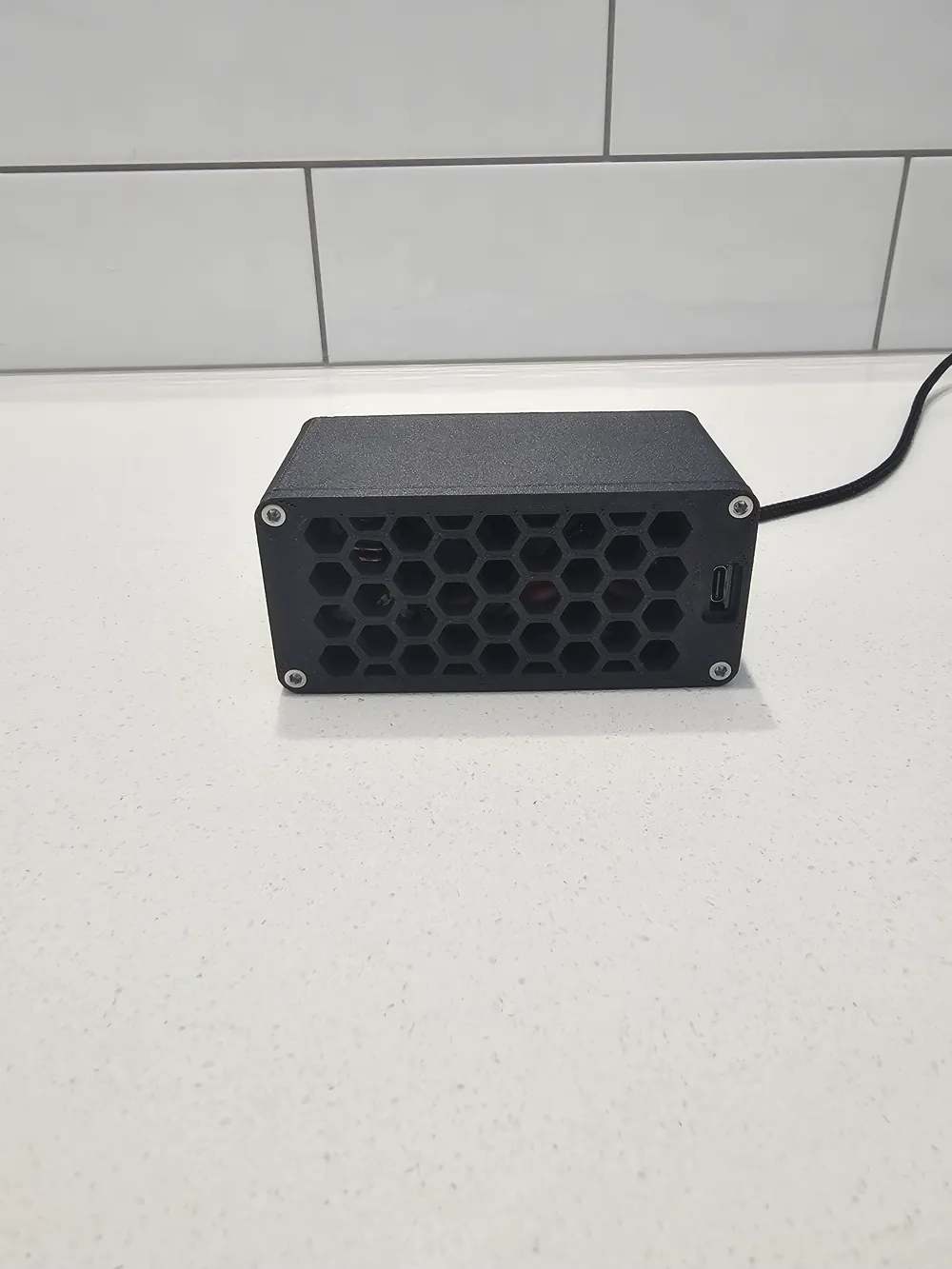

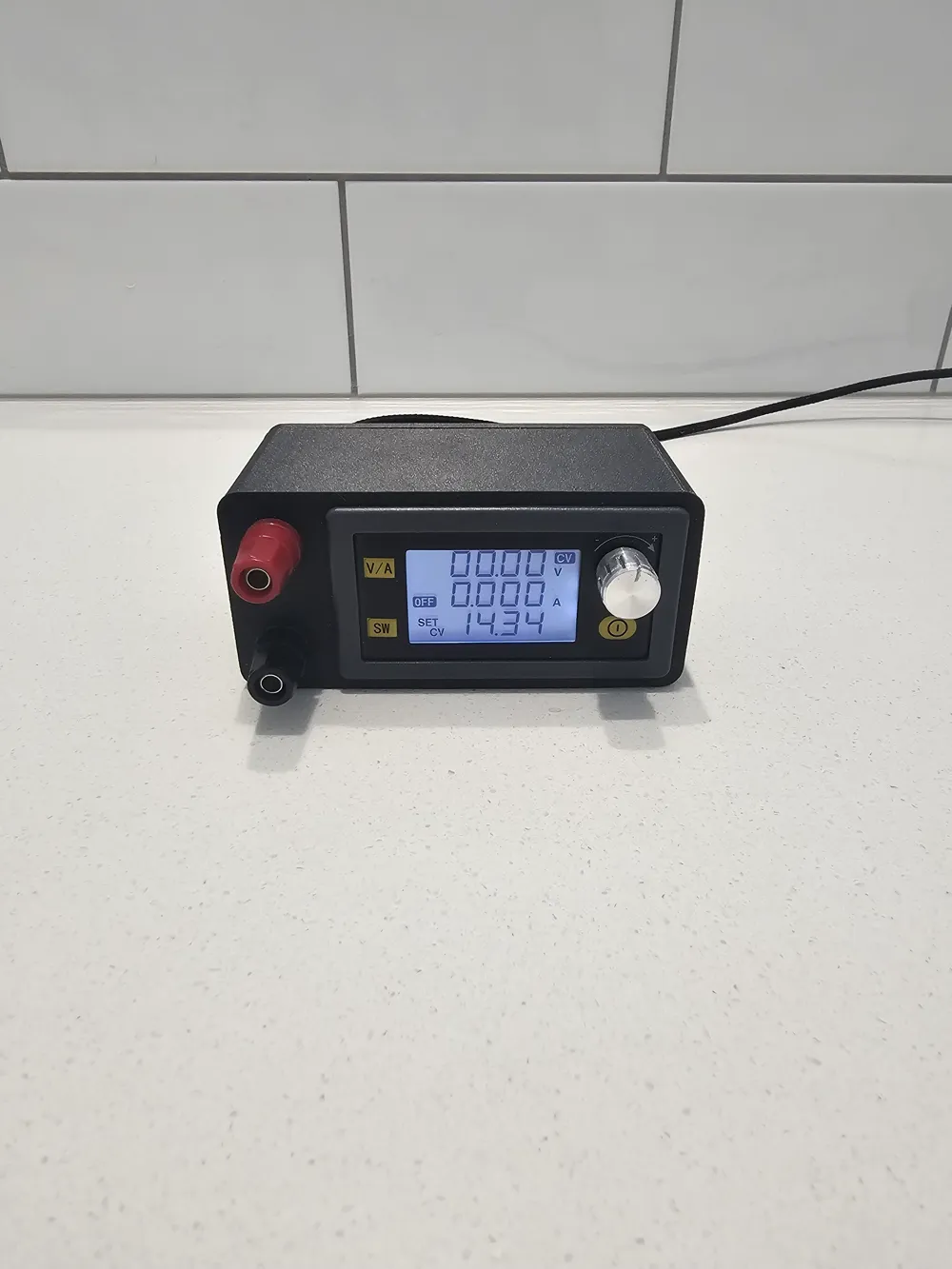

A compact, desktop-friendly lab power supply enclosure powered entirely over USB-C.
With a USB-PD power bank it turns into a portable power supply.
Bill of Materials
| # | Component | Link | Qty Required |
|---|---|---|---|
| 1 | DC-DC Buck Converter Module (Boost) | https://www.aliexpress.com/item/1005007364635204.html | 1 |
| 2 | USB-C PD Trigger Board | https://www.aliexpress.com/item/1005005324658230.html | 1 |
| 3 | Output Banana Posts | https://www.aliexpress.com/item/1005005887292589.html | 2 |
| 4 | M3 x 4.5 OD x 4mm Heat Set | https://www.aliexpress.com/item/1005008897571758.html | 4 |
| 5 | M3 x 12mm | https://www.aliexpress.com/item/1005009084859054.html | 4 |
| 6 | Silicone Wire ( 18 AWG) | https://www.aliexpress.com/item/1005007027554211.html | 1 |
Assembly
- Print all the parts and install heat-sets first.
- Do not install the DC-DC Converter module, this needs to be done last.
- Install Banana posts and solder/crimp connections.
- Solder the USB-C Decoy and feed the wires down the slot ( Make select the 20V option via the solder bridge!)
- Connect the outputs and input to the DC-DC converter module via the screw terminals through the front plate.
- Press the DC-DC convert module in and tighten up the back screws.
Notes
- Check all connections before powering up the device.
- If the device doesn't support USB-C PD then it won't work.
