Cub Cadet Ultima ZT Mower
Print Profile(1)
Description

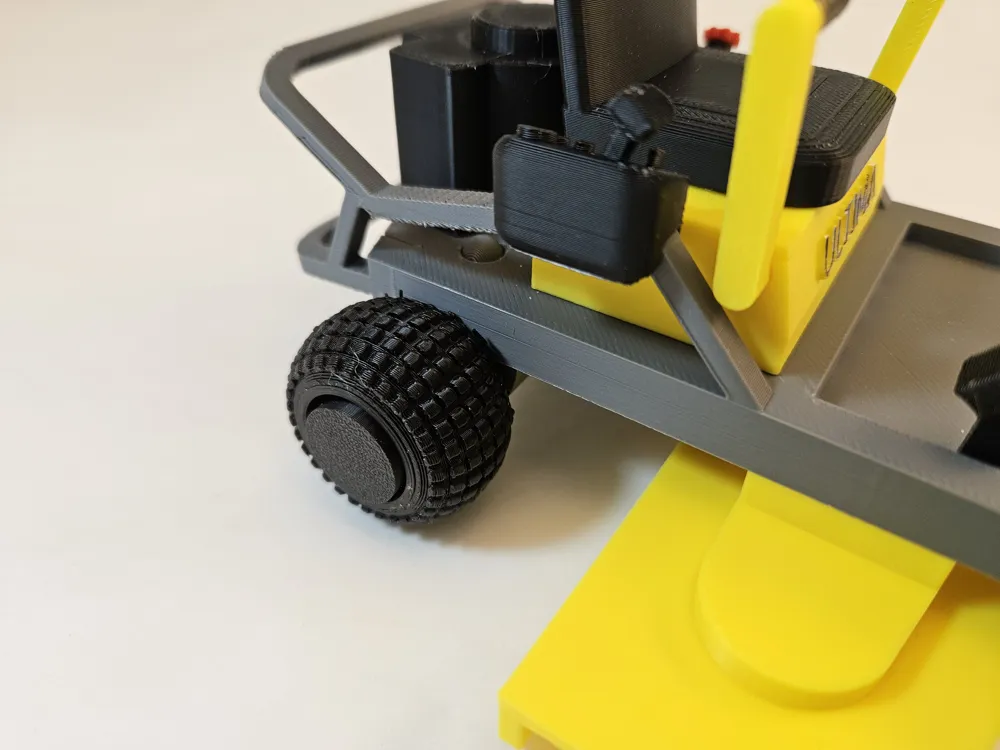

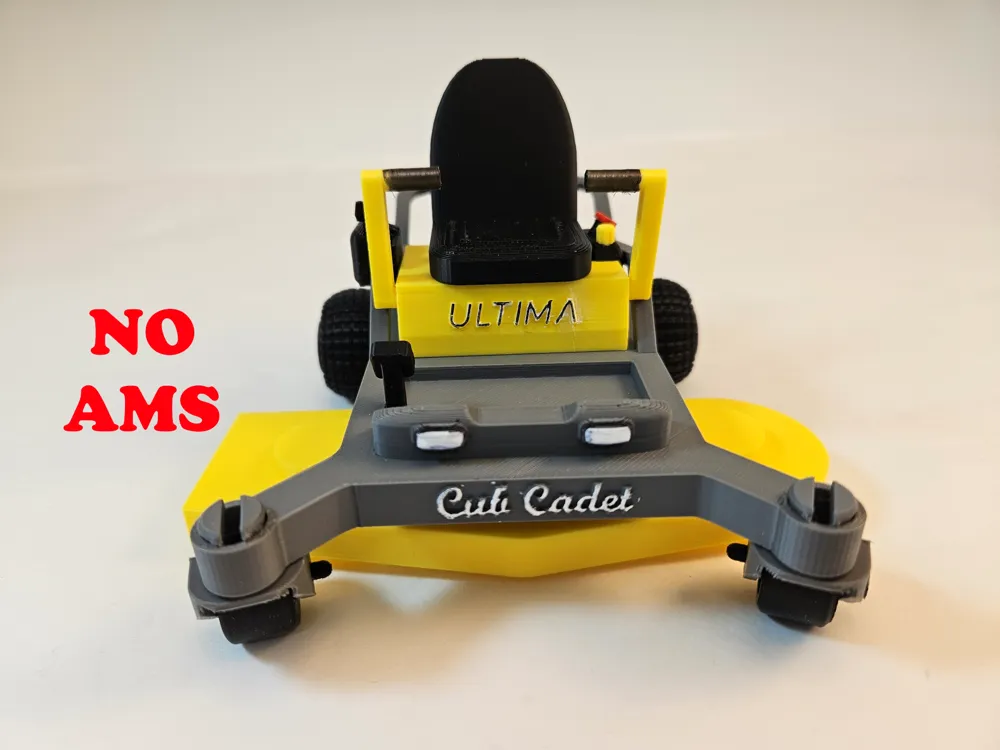

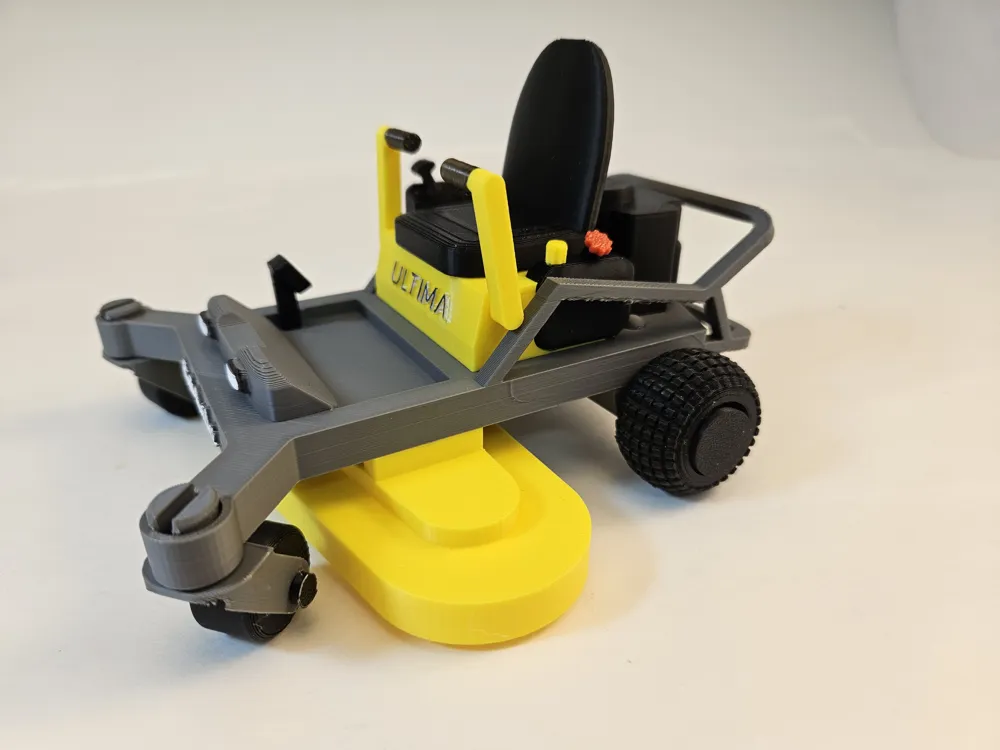

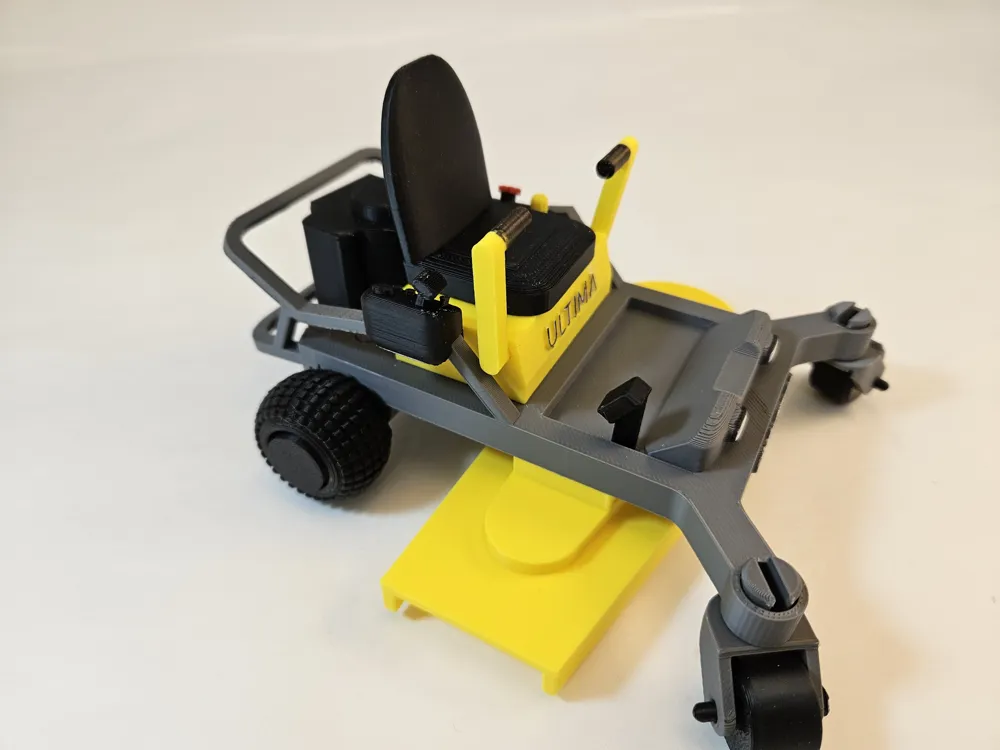

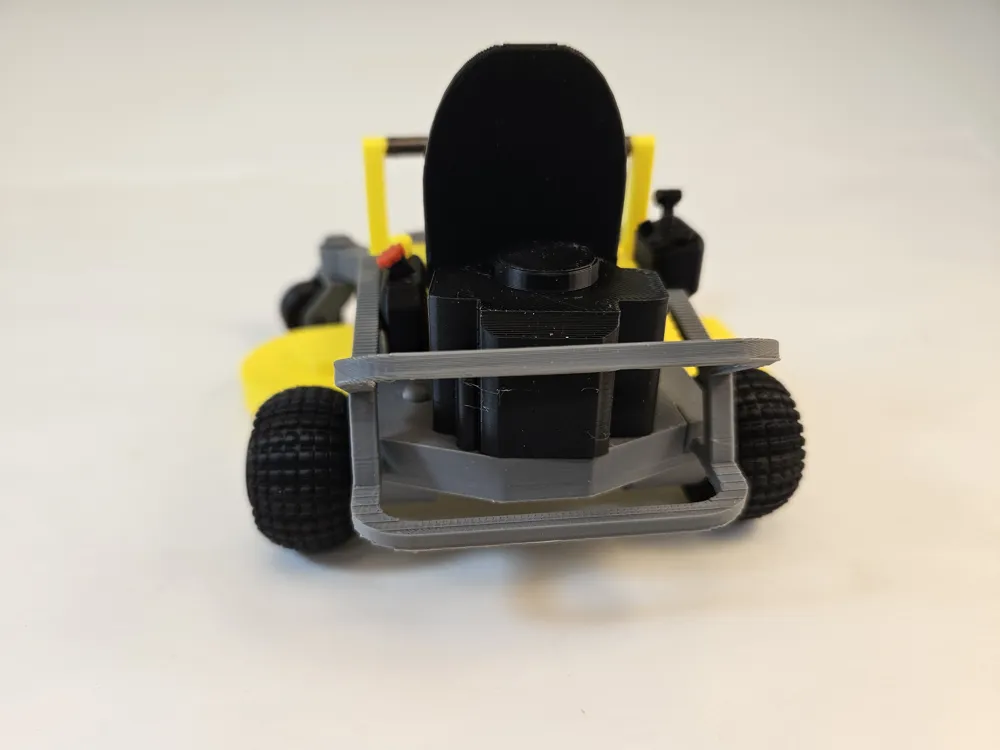

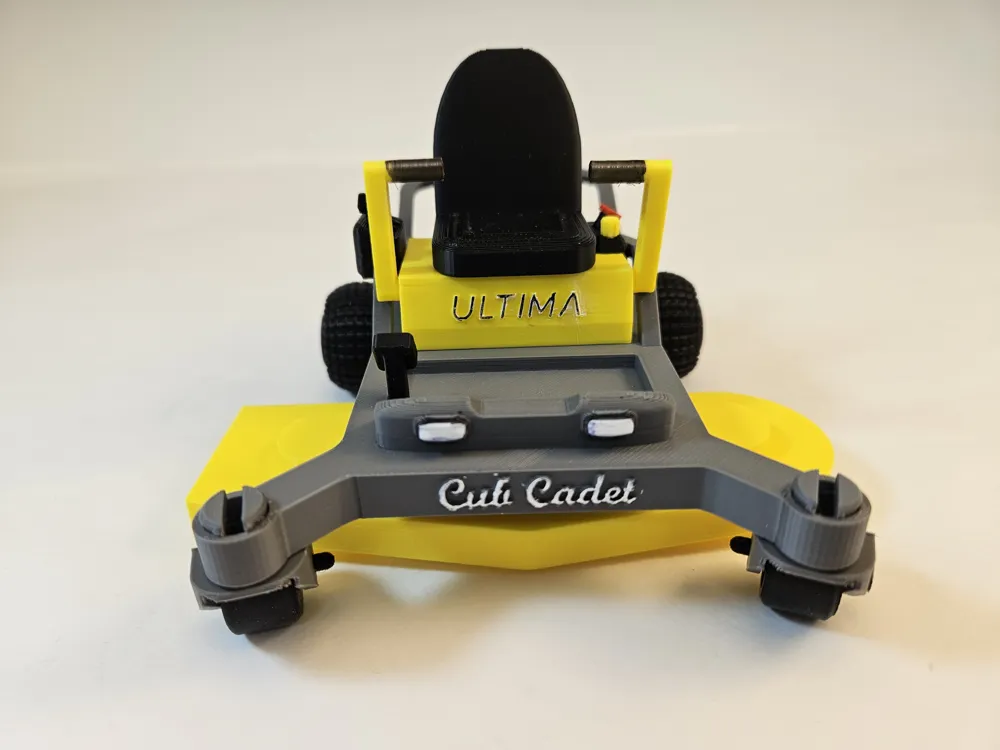

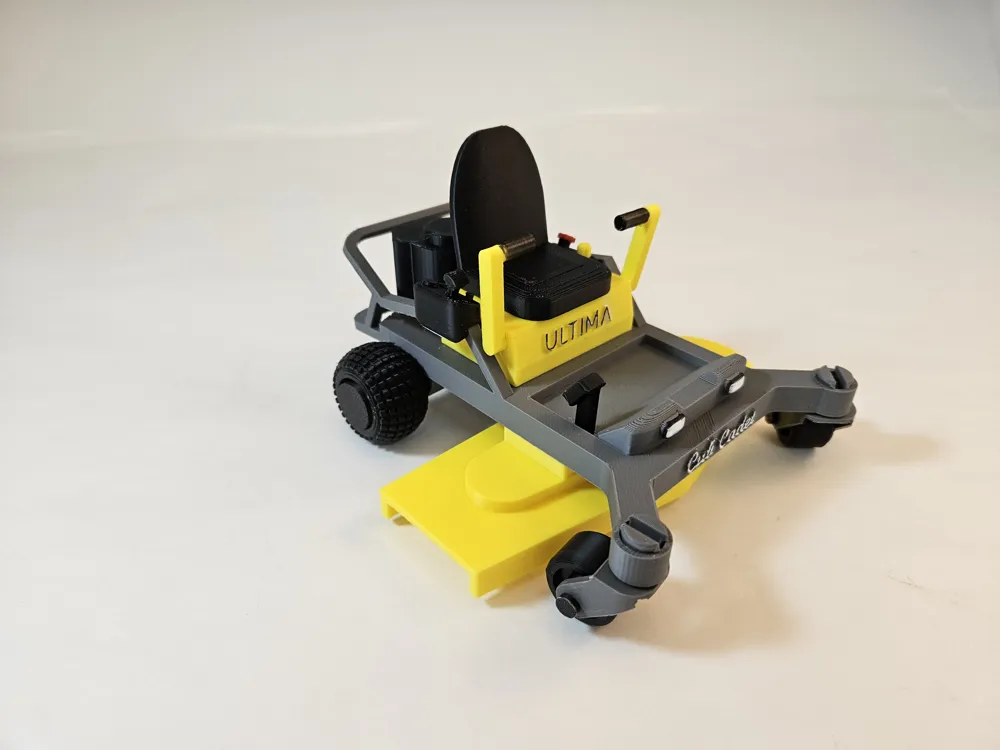

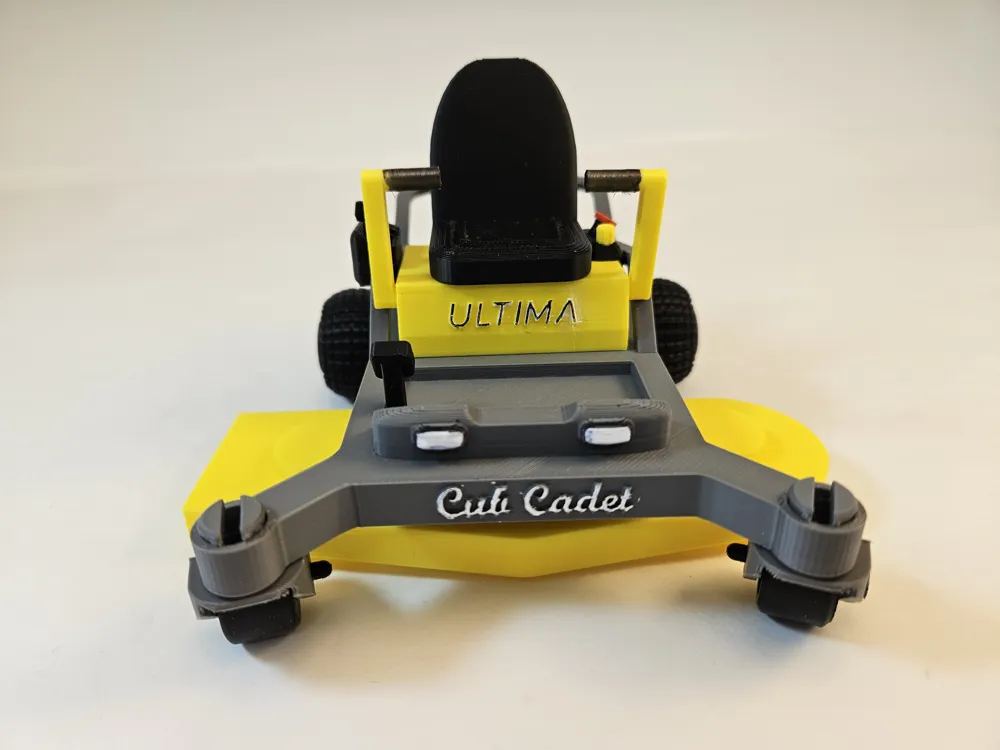

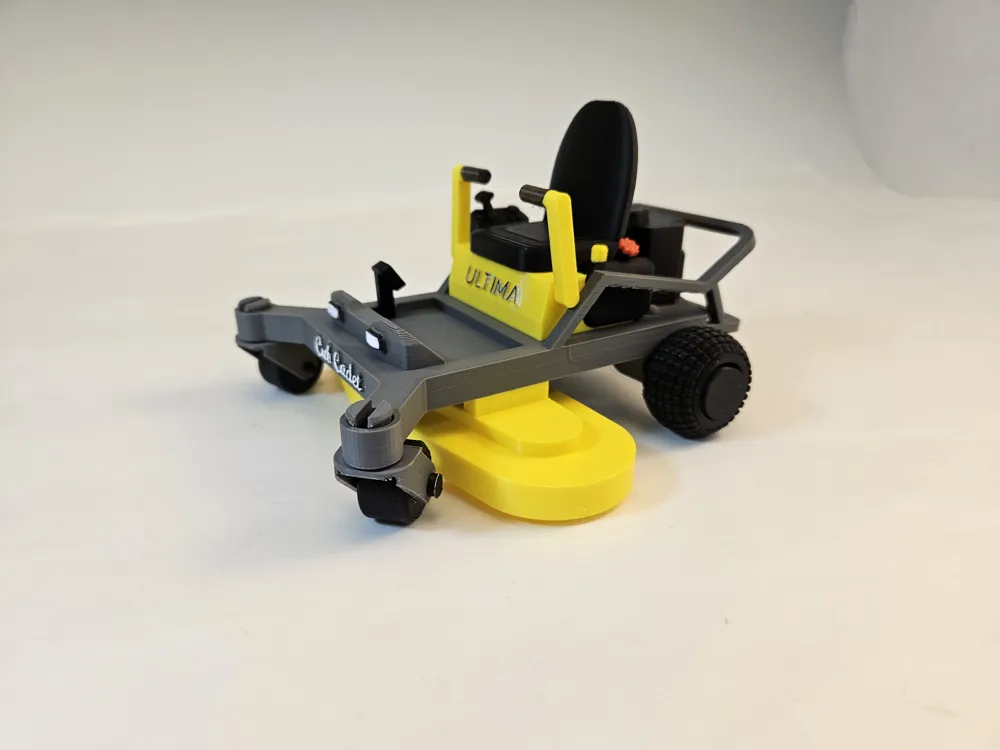

Cub Cadet ULTIMA ZT Mower NO AMS on 4 plates. It has the deck lift pedal and cut height knob. The wheels roll freely and the swivel pivots for zero turning, The steering handles also move. no glue needed all push pin assembly . The Mower measures 6 inches long x 5.5 inches wide x 3.5 inches tall. I used all PLA and printed on a P1S with support on.
Assembly, How I do it.
1. Remove all support first
2. Do any painting
3. Place the hubs on the frame and push the pins into wheels on the hubs, Be careful not to squeeze on the roll bars they can break.
4. Assemble the wheels and pins in the front yokes and attach the yokes to frame
5. Place the control box on the roll bar frame
6. Assemble the steering, the tank and its parts, Then the seat to the seat base. Don't put it on the frame yet
7. Place the deck lift pedal into the frame hole
8. Attach the engine, then the seat assembly, then the mowing deck
Have Fun
