Adjustable RockSteel Roto Tape Rotape Compass

The rototape I got was off by enough to annoy me, as well as the center slot being extremely sloppy on the needle.

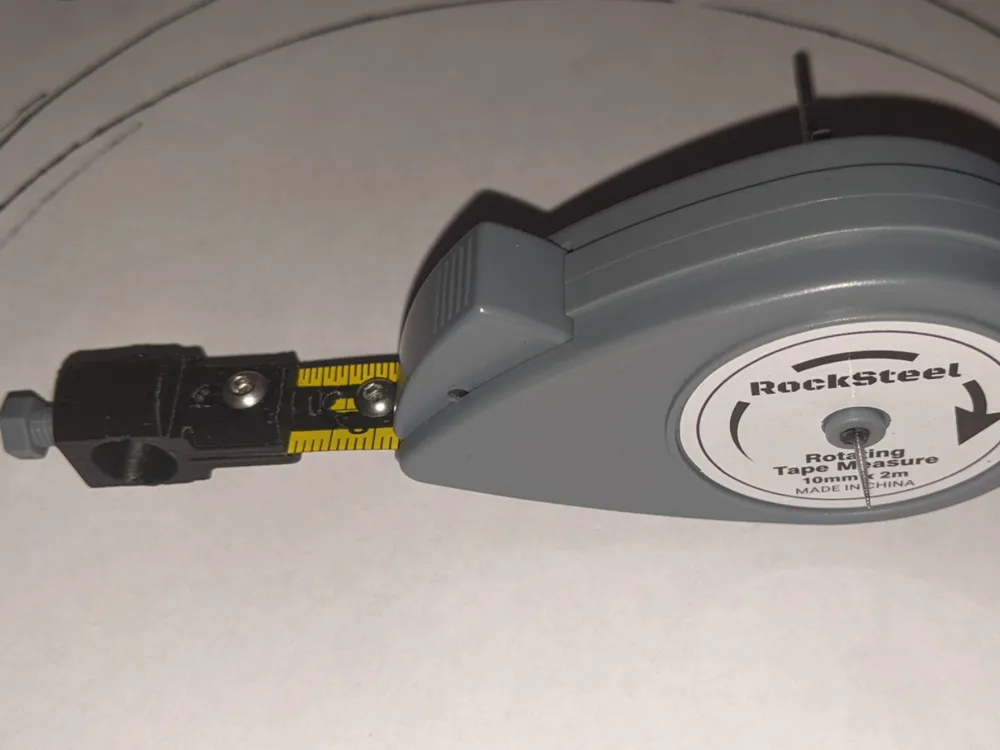

the bushing file can be super glues into the bottom hole so that the needle is centered and will only go down as much as in the photo.

You will need to cut out the rivets with some cutters. I also had to run a regular M5 bolt through the threads to get the original screw to fit.

You will need an M3x6mm and 12mm bolt and nut to lock the adjustment. The holes in the tape are small enough where I had to thread the bolts into them to get them to pass through.

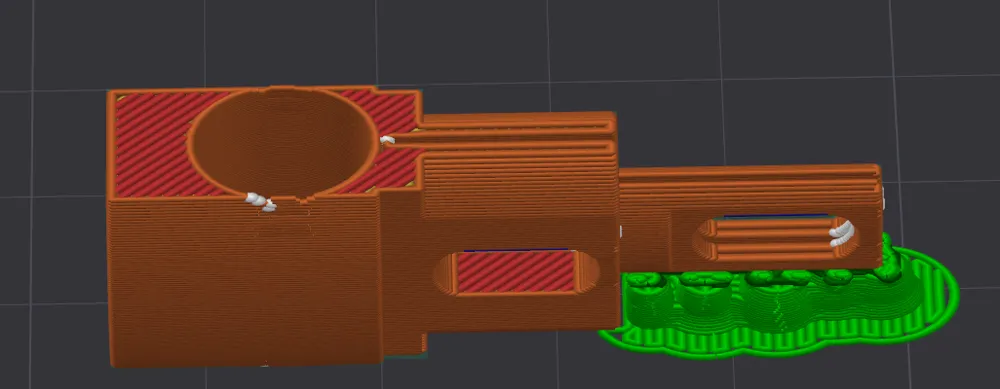

You only need supports as pictured.

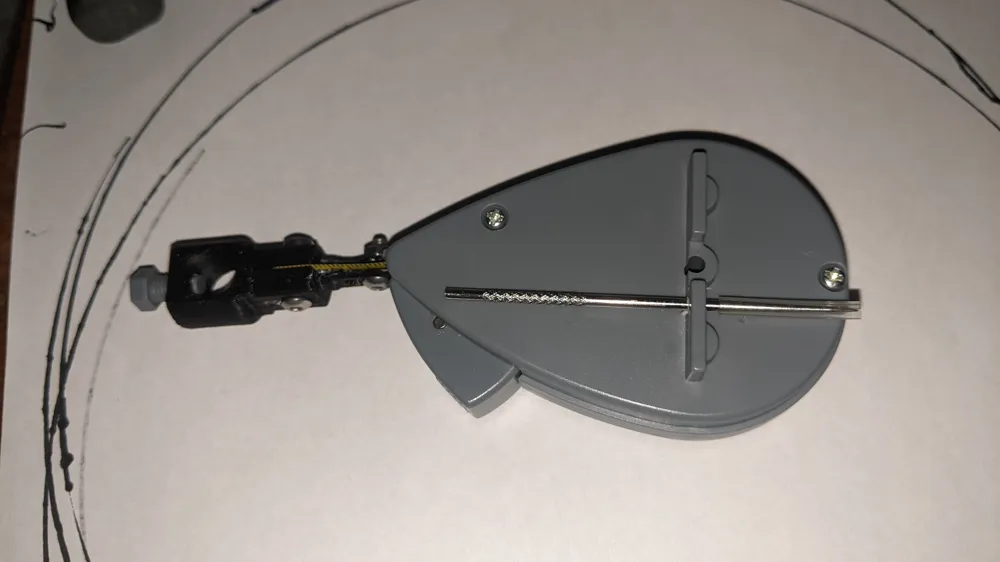

I also drilled a hole as seen in the 2nd photo to allow me to store the pin with the tool.
