MGE Insta360 Ace Pro 2 Protective Ring + TPU Cover
Print Profile(1)
Description
Hello everyone,
Just in time for the start of the outdoor season, I got myself a new action camera

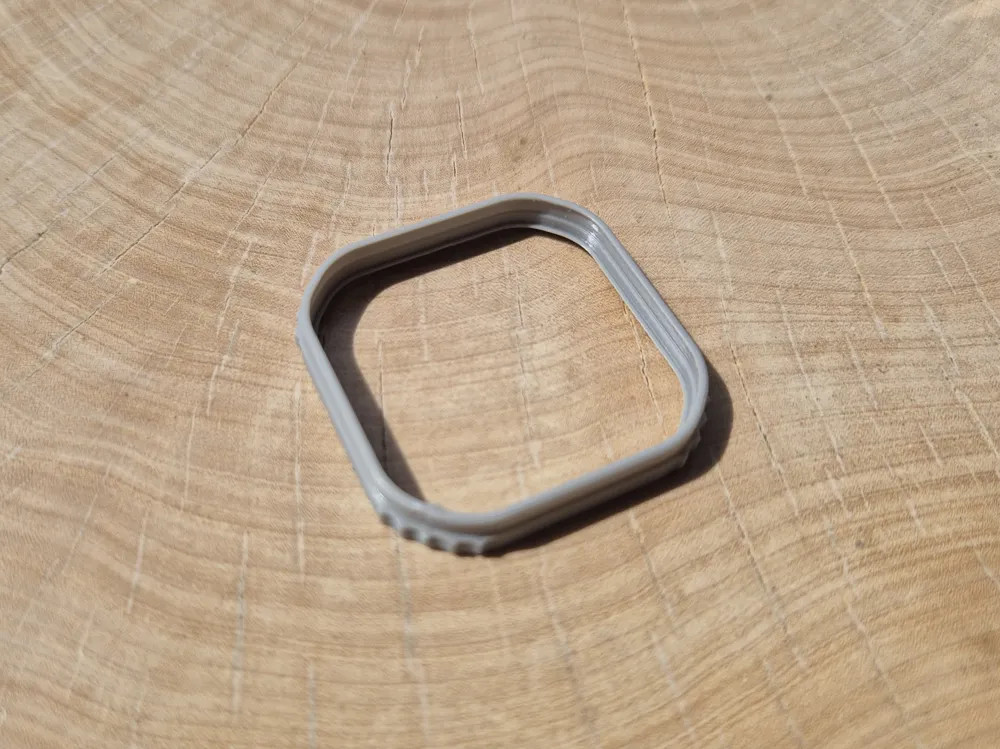

For this, I developed a lens protective ring that, in contrast to the original (elastomer), is made of hard plastic, e.g. PETG
This is clipped on and remains permanently mounted. The ring extends 1.5 mm beyond the lens, thus offering better protection in the event of collisions
Thanks to the knurling, the complete attachment can be disassembled more easily

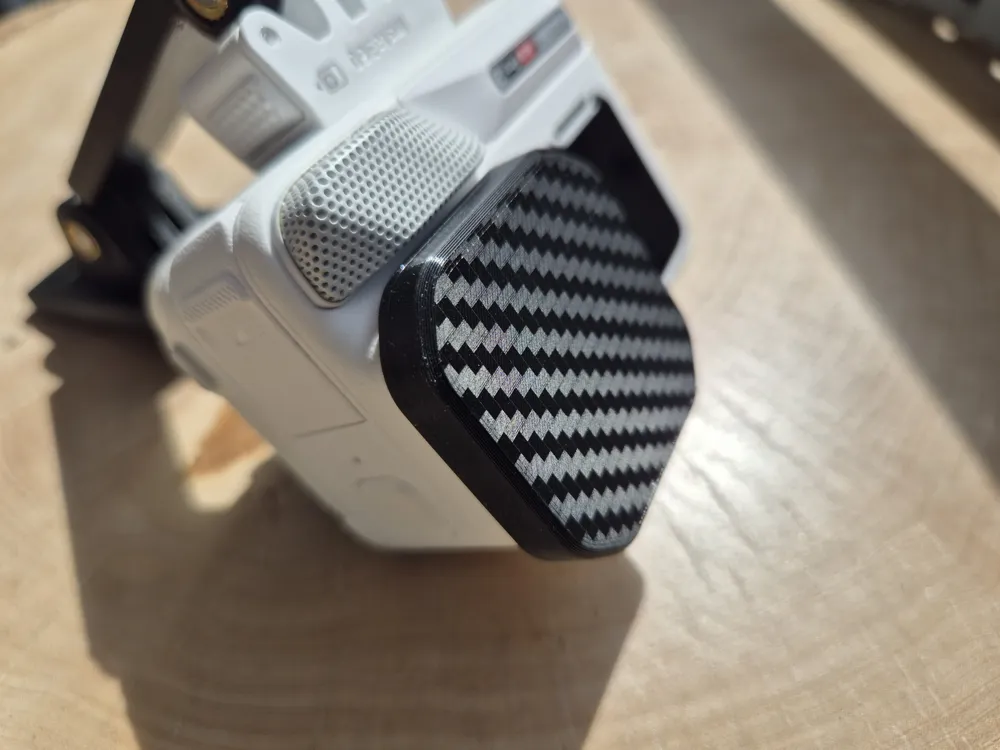

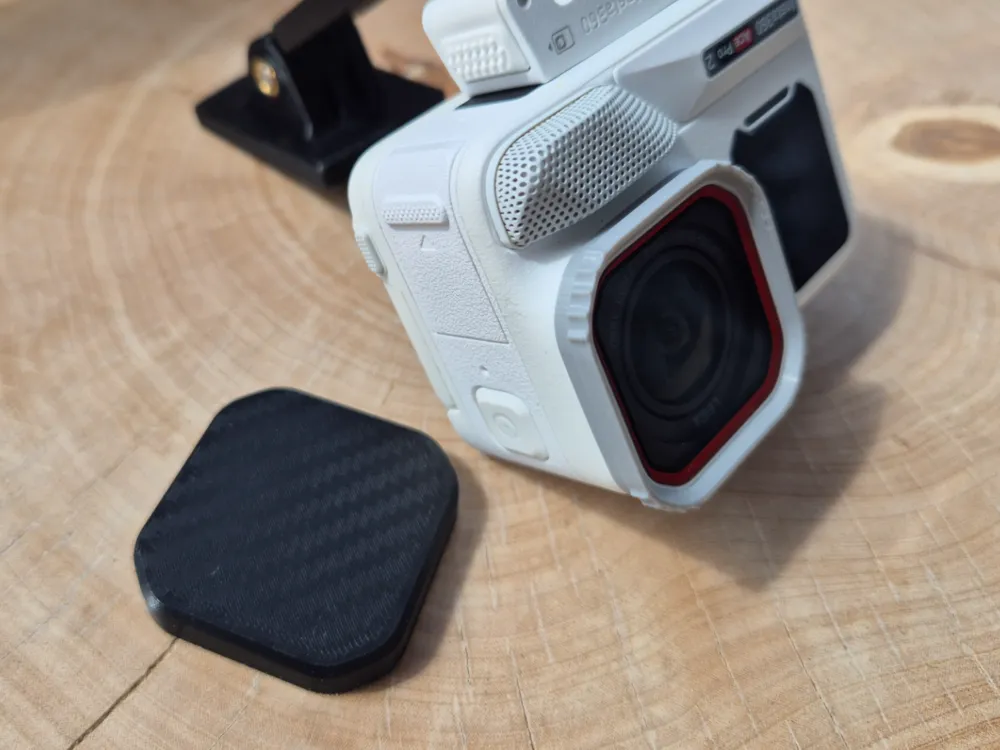

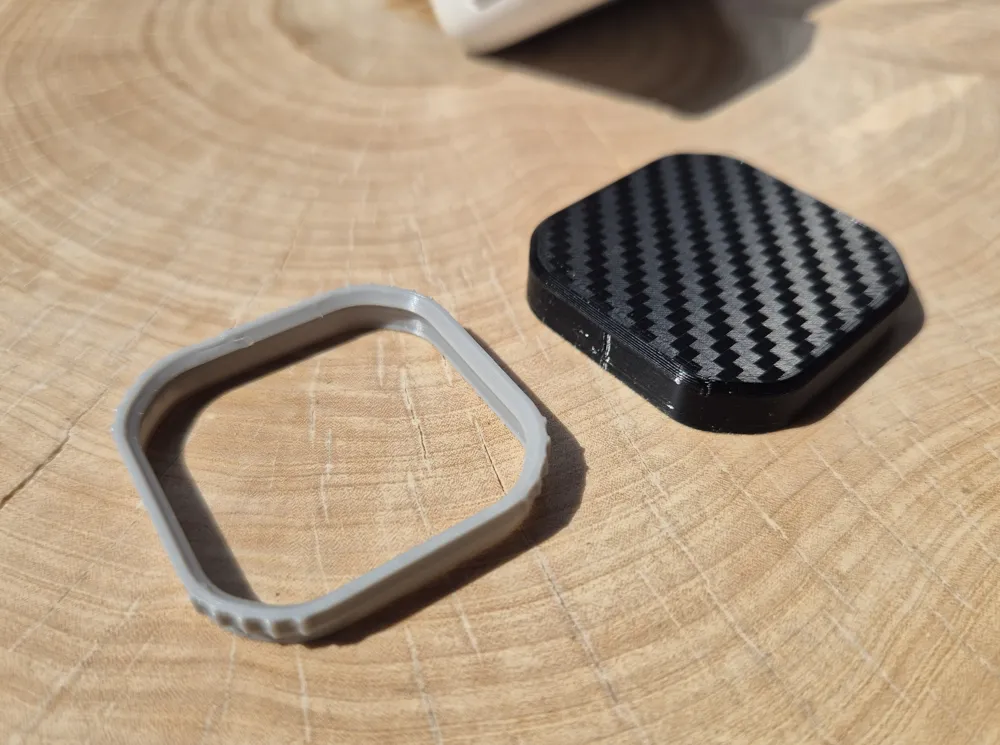

For transport, I developed a soft TPU cover; this can only be used in combination with the protective ring
The ring only fits the original attachment and not filters from other manufacturers
Assembly:
The ring sits very tightly; it must be pulled over all edges as simultaneously as possible
Disassembly:
Slightly twist the lens and release the ring with your fingernail
"Michas Glide Equipment" (MGE)
In this collection, I will publish more camera mounts and tools related to paragliding
Boost Me (for free)
I use quite a bit of material for development and optimal print settings. I appreciate every boost that supports my work for future models :)
Have fun with it!
