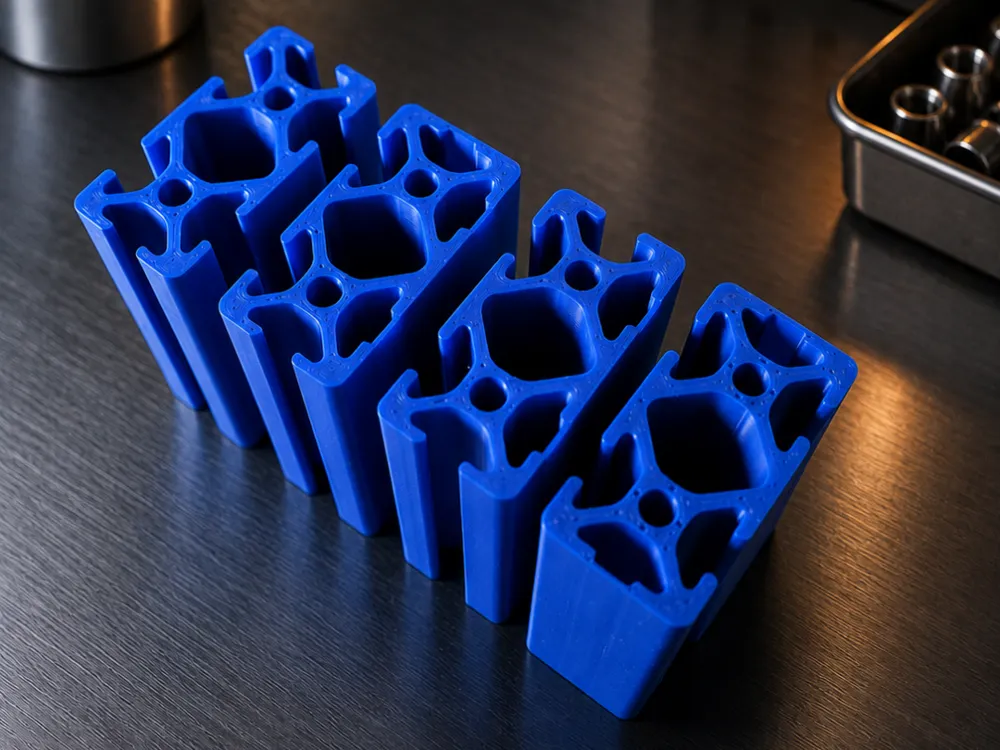

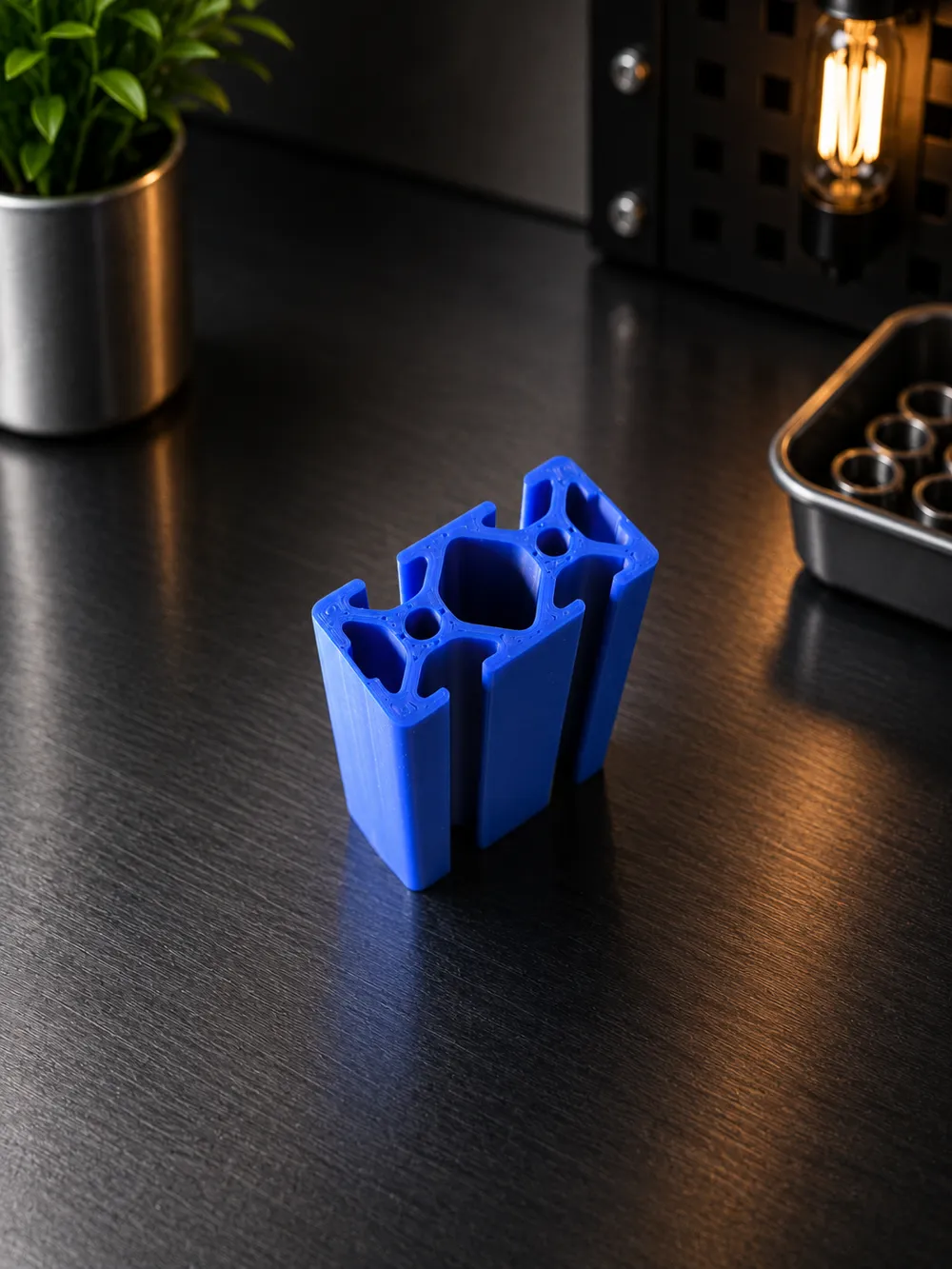

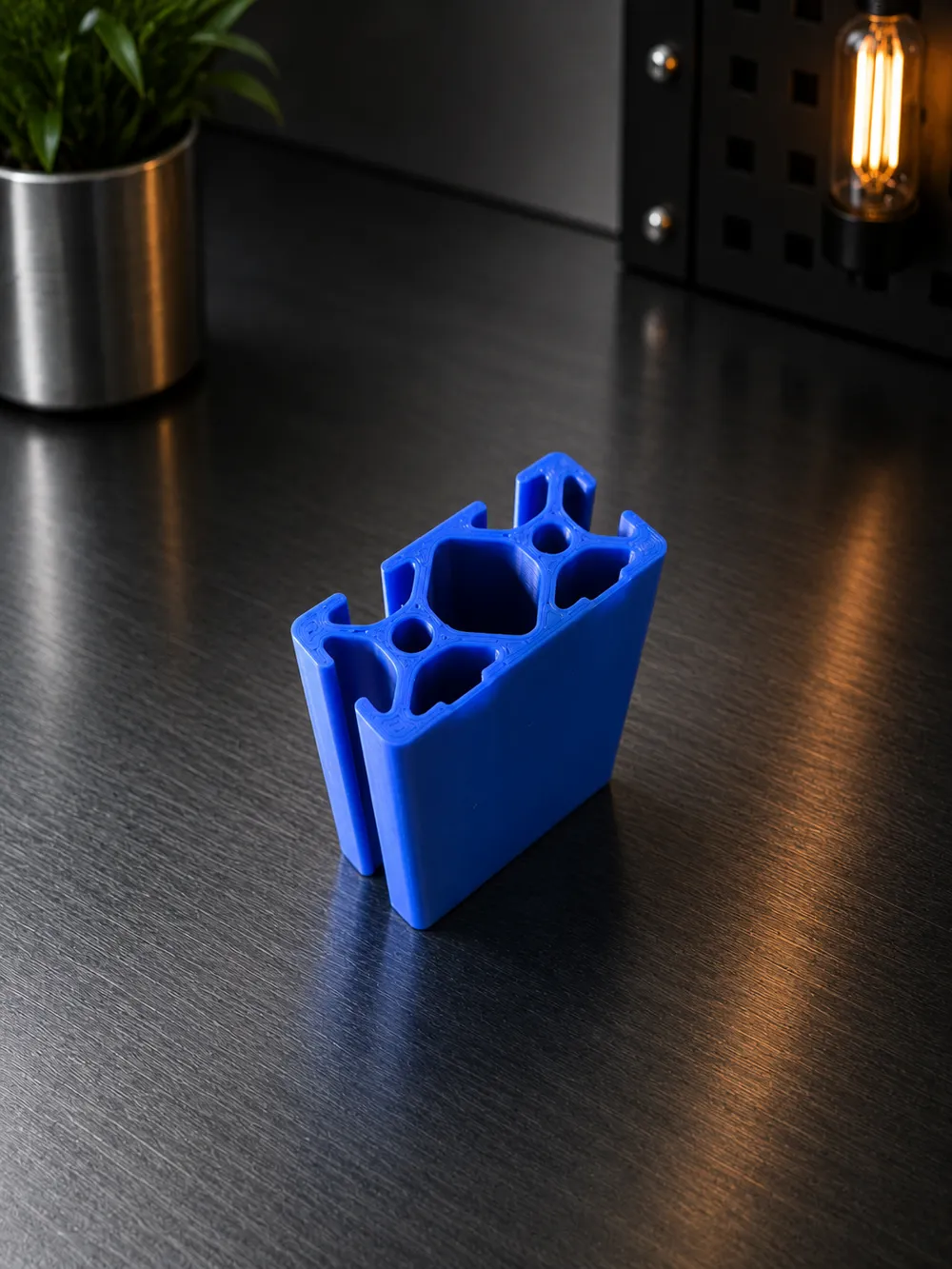

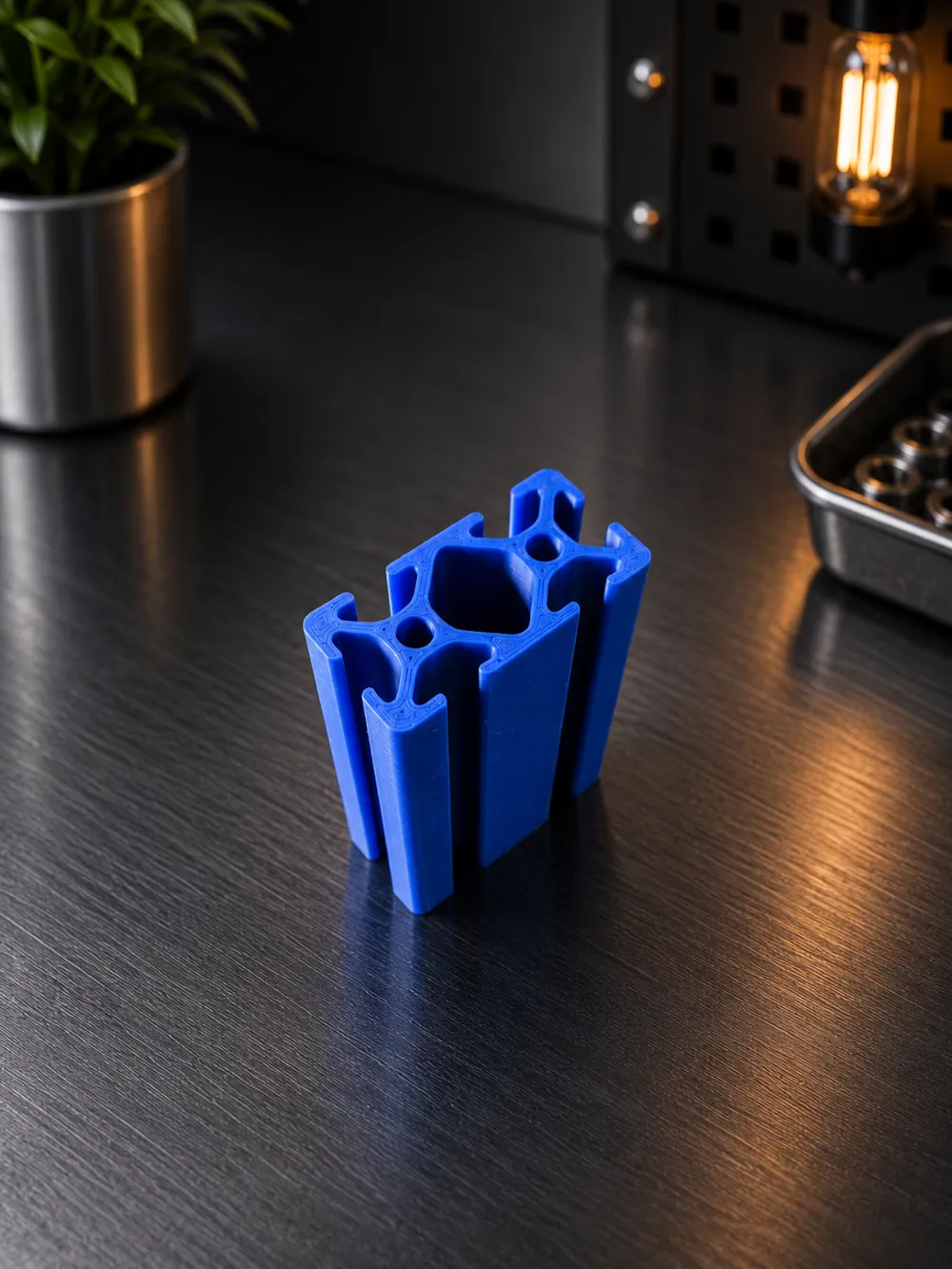

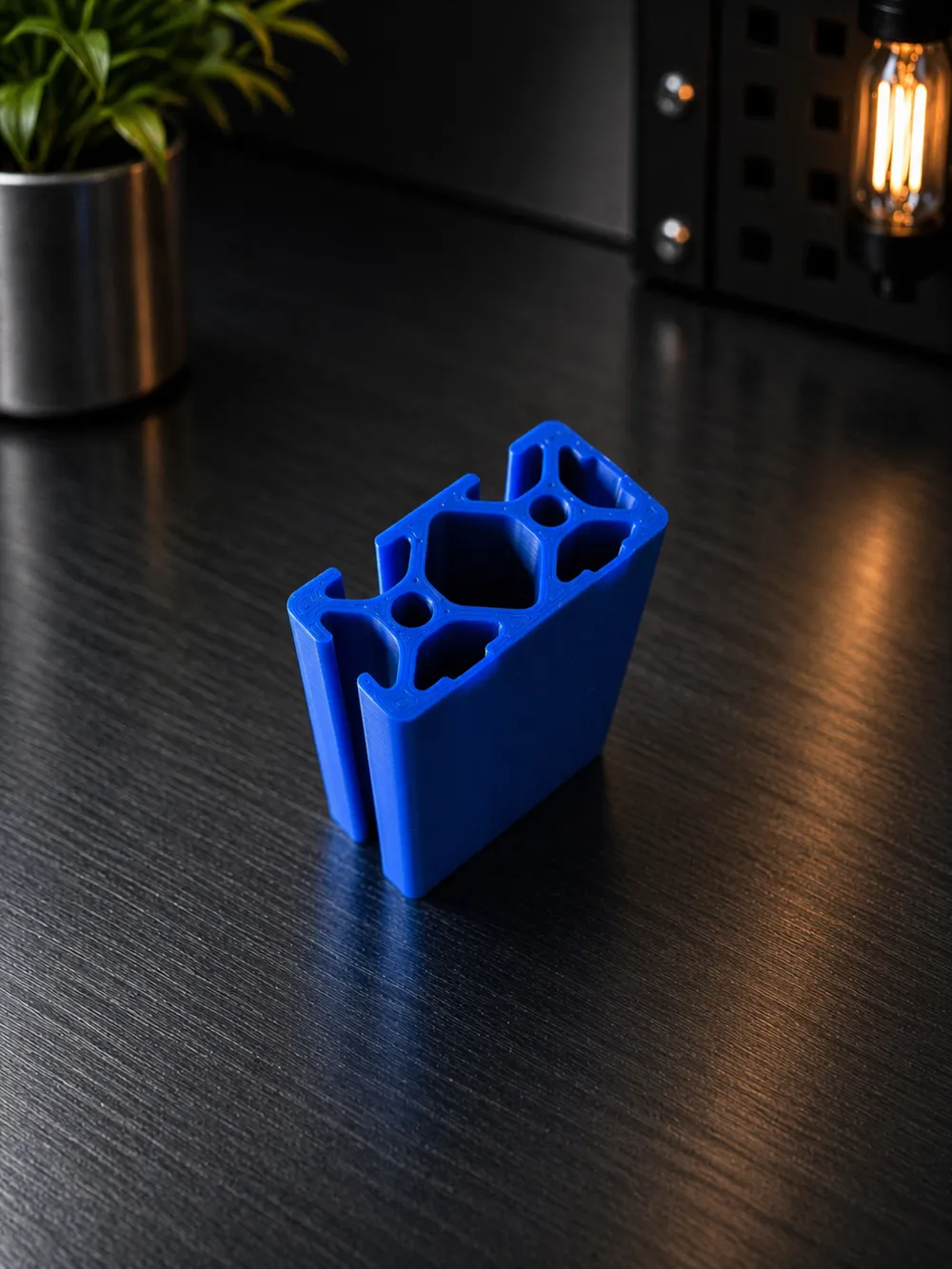

Parametric Profile 5 – 40x20 Extrusions
This model provides a fully customisable version of the classic 40x20 aluminium extrusion (Profile 5), designed for makers who need flexible, parametric frame components for their projects. Based on the standard 40×20 profile with 5 mm slots, it replicates the widely used modular system featuring four open grooves compatible with M5 hardware and common accessories.
- Fully parametric length customization

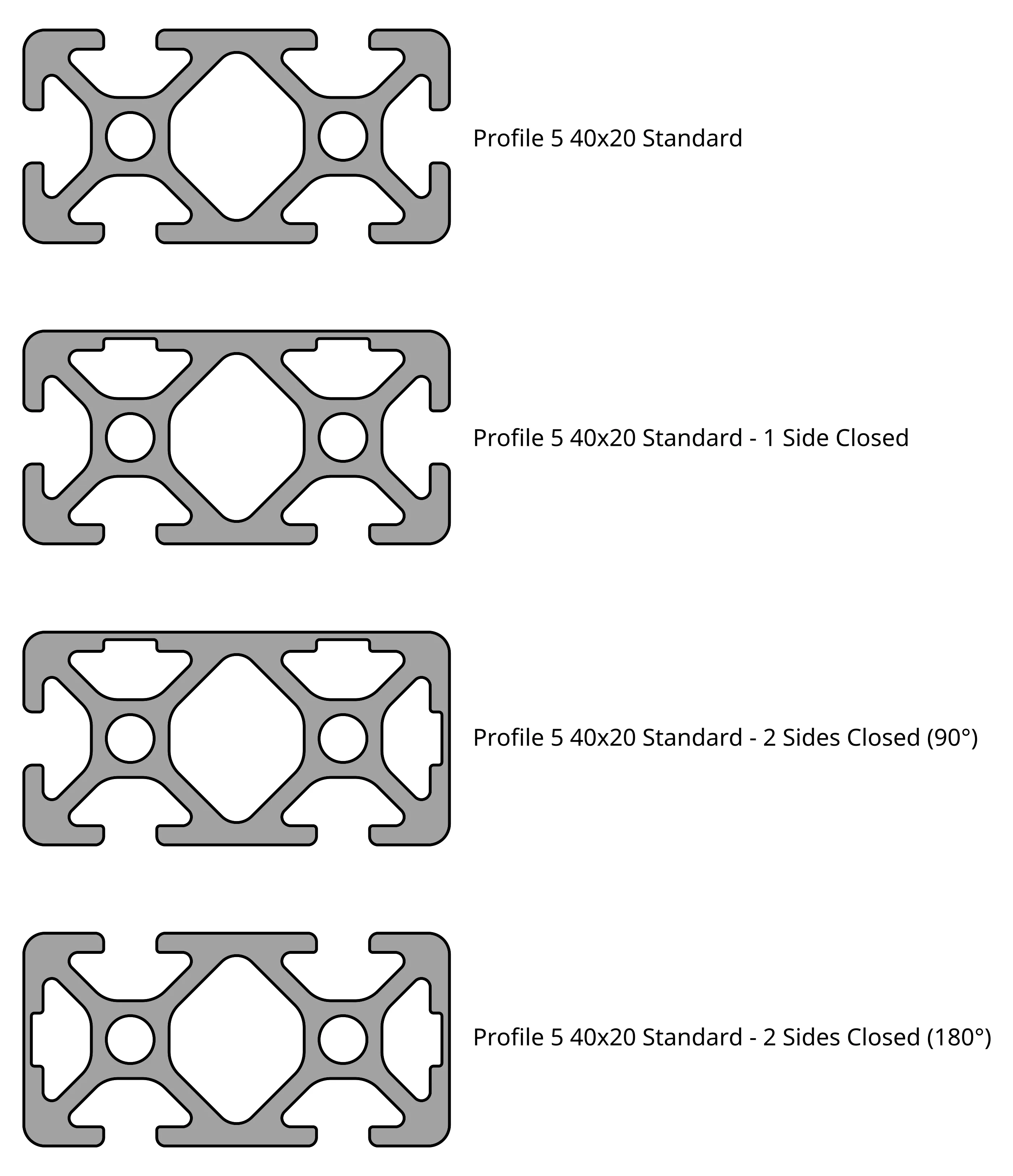

- Standard 40×20 profile geometry (slot 5 compatible)
- Designed for easy integration with T-nuts, brackets, and connectors
- Lightweight and printable alternative for rapid prototyping
- Center hole optimized for M3 heat-set inserts
Perfect for:
- DIY frames and structural prototypes
- 3D printer mods and accessories
- Electronics enclosures and test rigs
- Educational and design experimentation
Scale, adapt and print to fit your project!
