Parametric Geometric Floating Wall Shelf
Create your own fully customizable geometric floating wall shelf directly in the customizer!
This parametric model allows you to generate modern wall shelves in multiple shapes and sizes, with a smart integrated mounting system designed for clean printing and easy wall installation.
✨ Features
🔷 Multiple geometric shapes

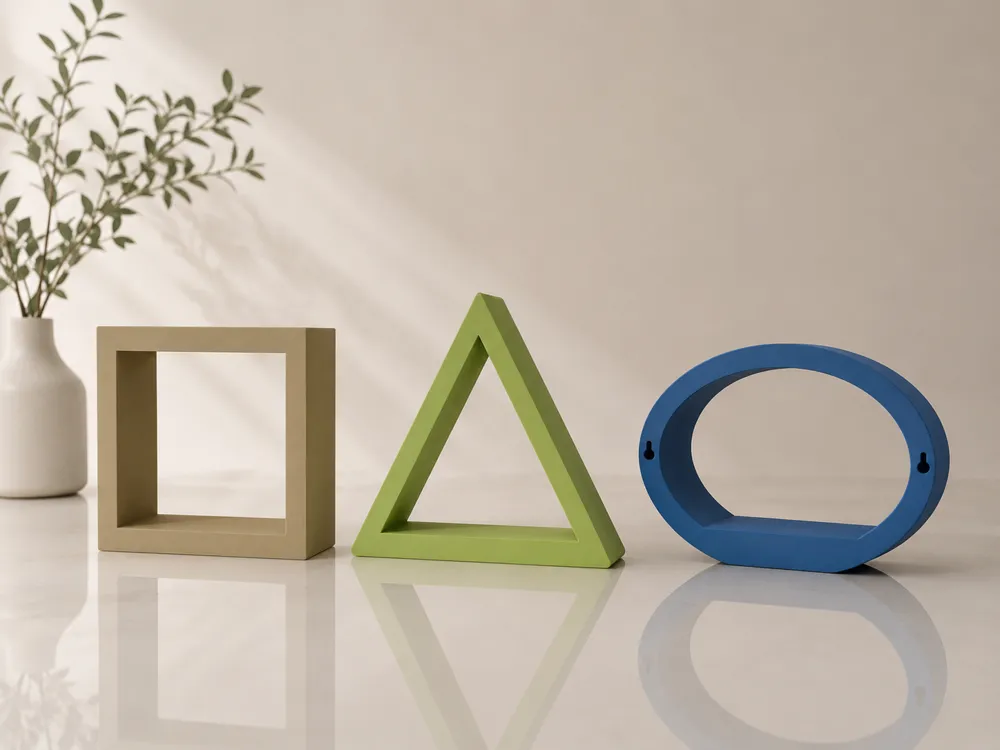

Choose between several shelf styles:

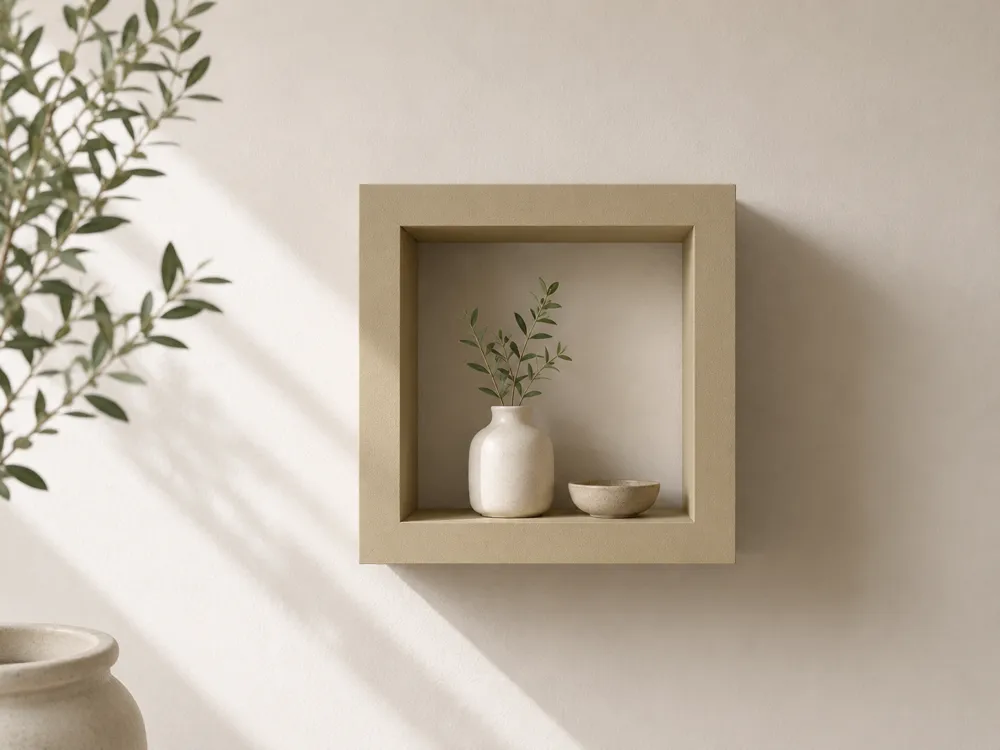

- Rectangle

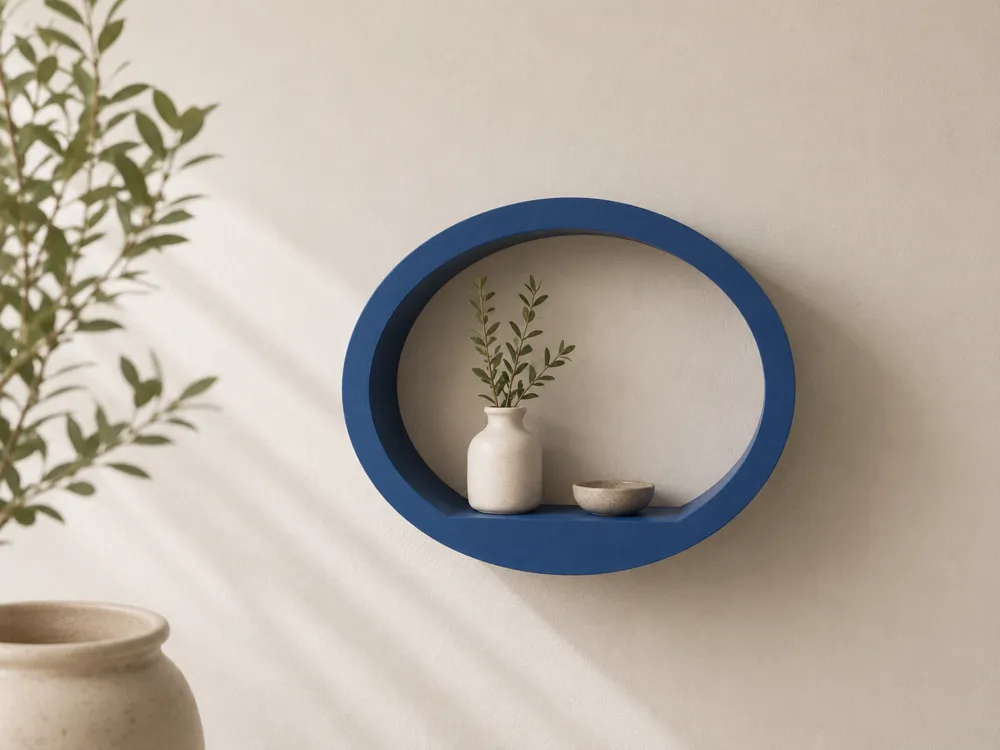

- Round

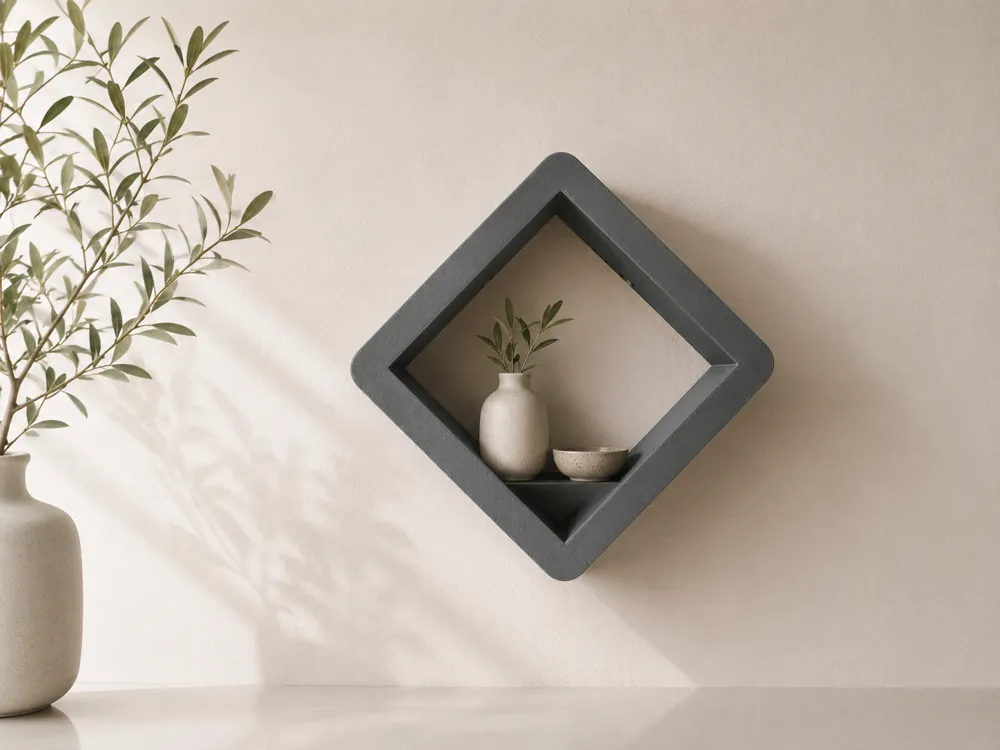

- Diamond

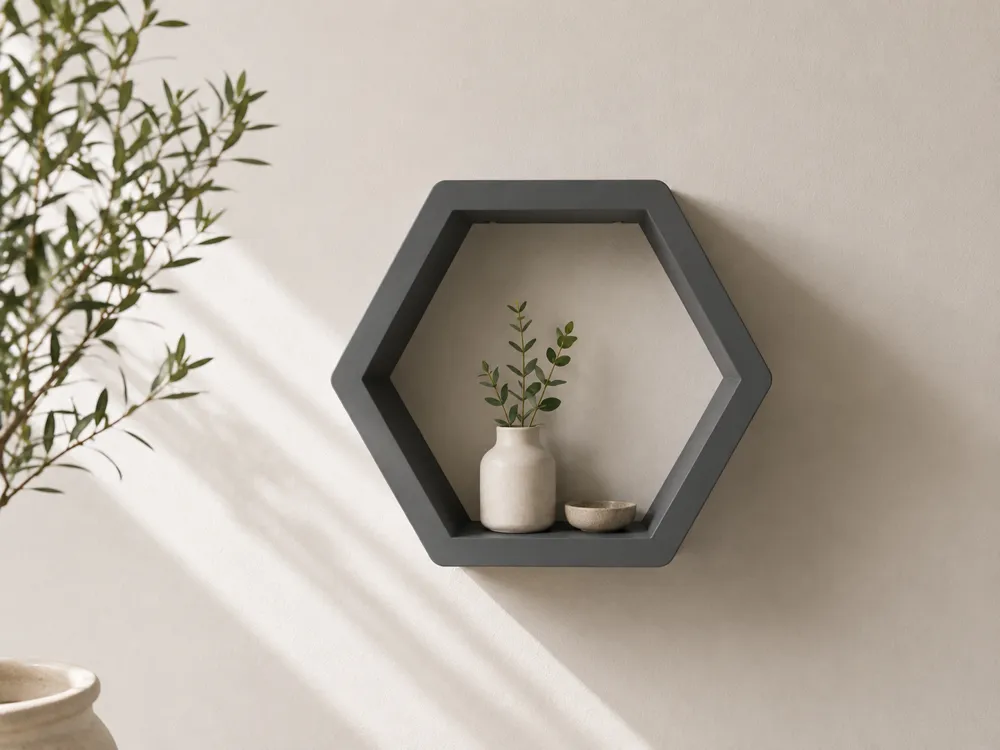

- Hexagon
- Inverted Hexagon

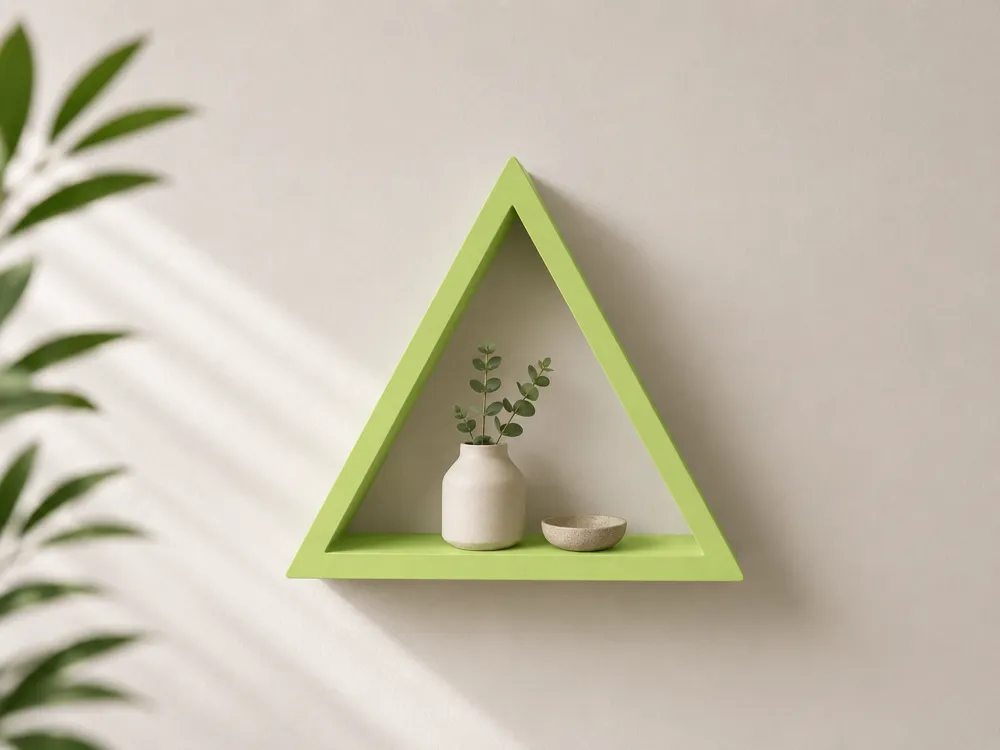

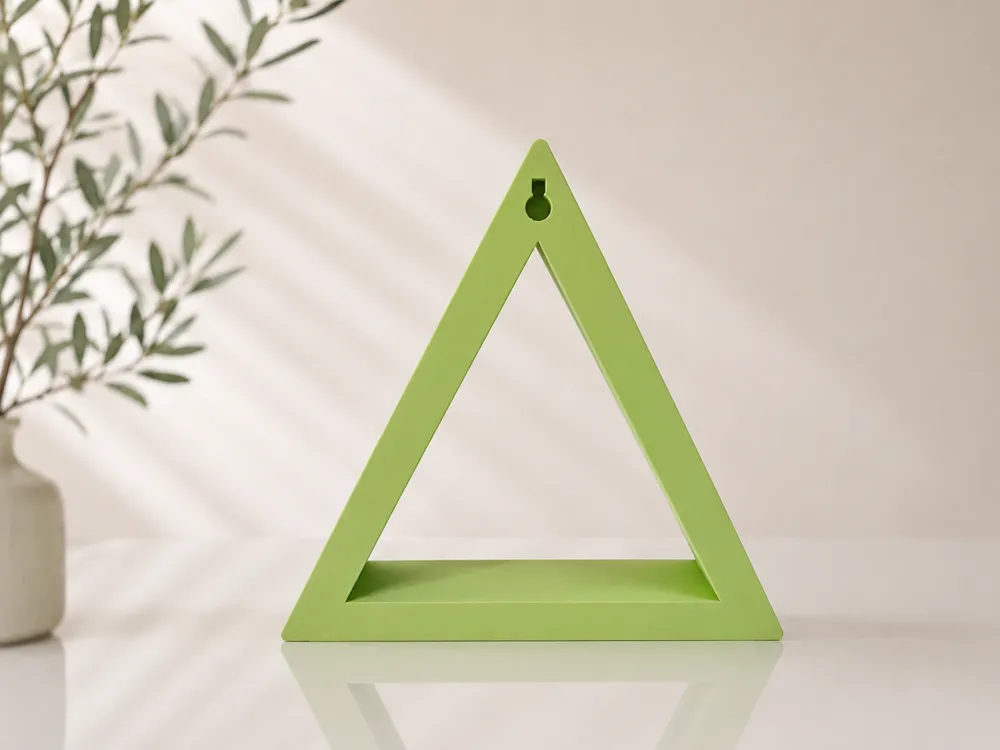

- Triangle
- Inverted Triangle
📐 Fully parametric
Customize:
- Shelf width
- Shelf height
- Shelf depth
- Wall/frame thickness
- Corner radius
- Floor/platform height
- Mounting type
- Screw type (M4 / M5)
🧱 Optional integrated floor
Some shapes support an optional bottom floor/platform for additional storage and stability:
- Round
- Diamond
- Inverted Triangle
The floor height is also customizable.
🔩 Smart wall mounting system

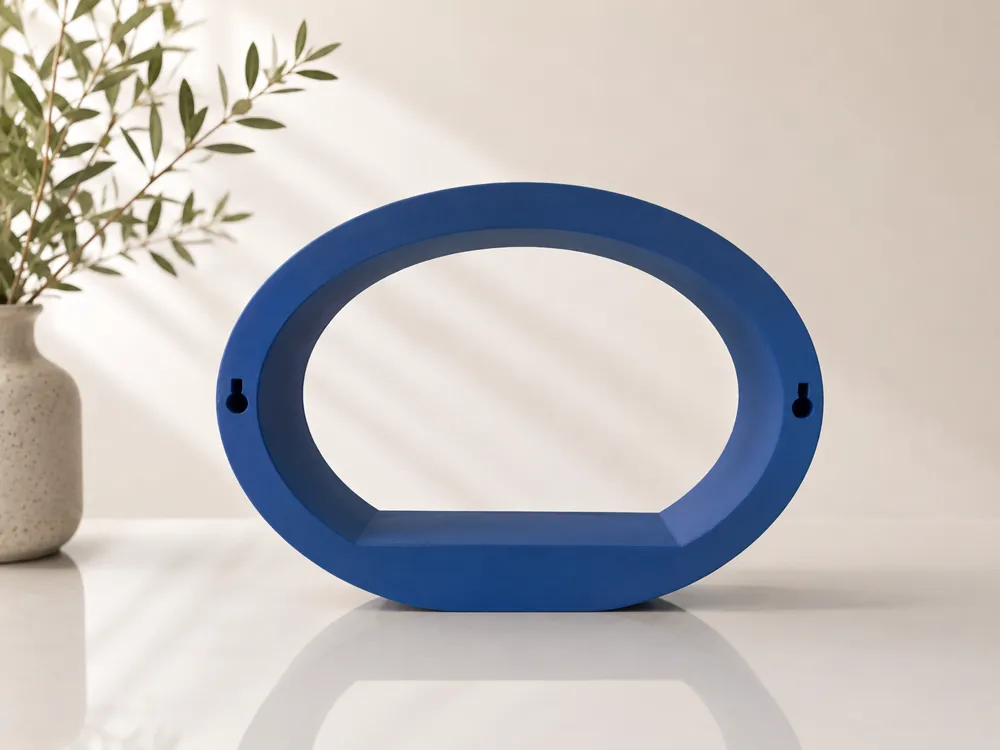

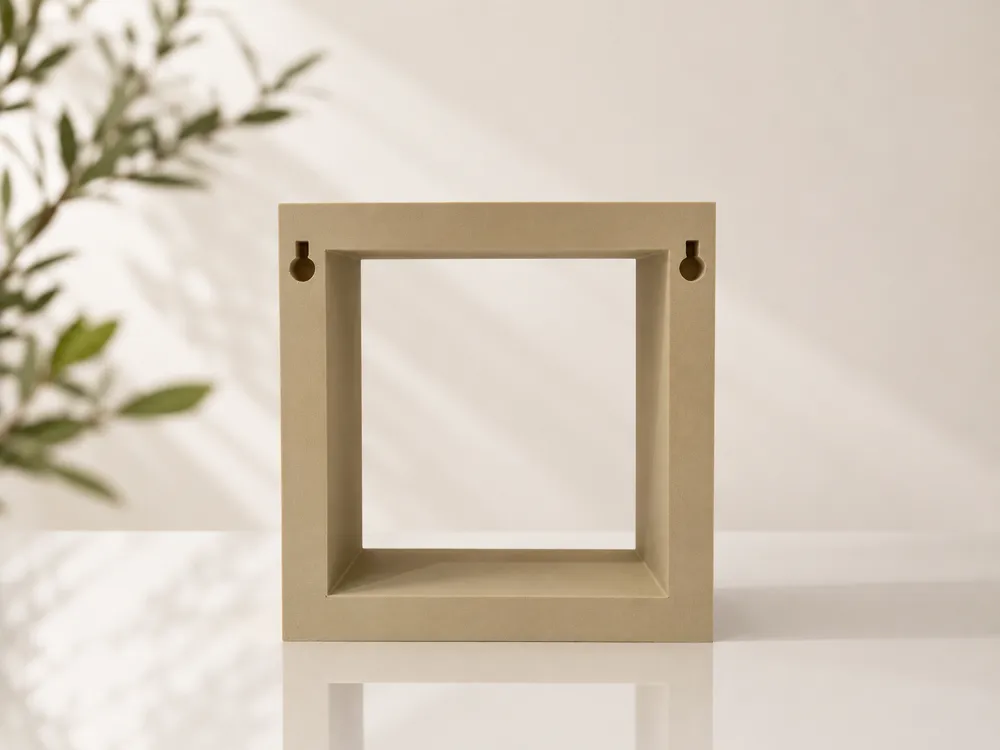

Integrated hidden keyhole mounting system:
- Clean invisible mounting from the front
- Optimized for 3D printing
- Automatic placement depending on shape
- Supports M4 and M5 screws
- Advanced mounting geometry for complex shapes
Different shapes automatically use the most appropriate mounting strategy:
- Full keyholes
- Semi-keyholes
- Hidden head pockets
- Slope-aware placement
🪛 Important mounting note
For proper installation, screw heads must protrude approximately:
7 mm from the wall
This allows the hidden mounting system to lock correctly behind the screw heads.
🧩 Wall drilling template included
Optional printable wall drilling template:
- Automatically matches keyhole spacing
- Compact size (only as large as necessary)
- Single-hole shelves automatically disable unnecessary templates
- Helps position screws accurately on the wall
🖨️ Printing recommendations
Recommended materials:
- PLA
- PETG
- ABS/ASA for stronger wall installations
Recommended settings:
- 3–5 walls
- 10–25% infill
- Add some modifiers on the keyholes for strength (see my print profiles)
- Add some supports for the keyholes (very easy to take off)
⚠️ Notes
- Very thin walls are automatically prevented for structural safety.
- Some mounting systems adapt automatically depending on shelf proportions.
- Large corner radii may slightly affect internal mounting placement to preserve strength.
❤️ Fully customizable
Perfect for:
- Minimalist interiors
- Decorative wall storage
- Gaming setups
- Offices
- Bathrooms
- Kitchen organization
- Display shelves
Create your own unique geometric shelf design in seconds.
