Dayton Audio BST-1 Bass Shaker for Playseat Trophy

Designed specifically for the Dayton Audio BST-1 and the Playseat Trophy, this mount provides a clean and solid way to attach your bass shaker directly to the 25mm frame tube of the Playseat Trophy.

The mount is designed to reduce flex and keep the shaker firmly attached to the chassis, helping transfer vibration efficiently through the cockpit for a more immersive sim racing experience.

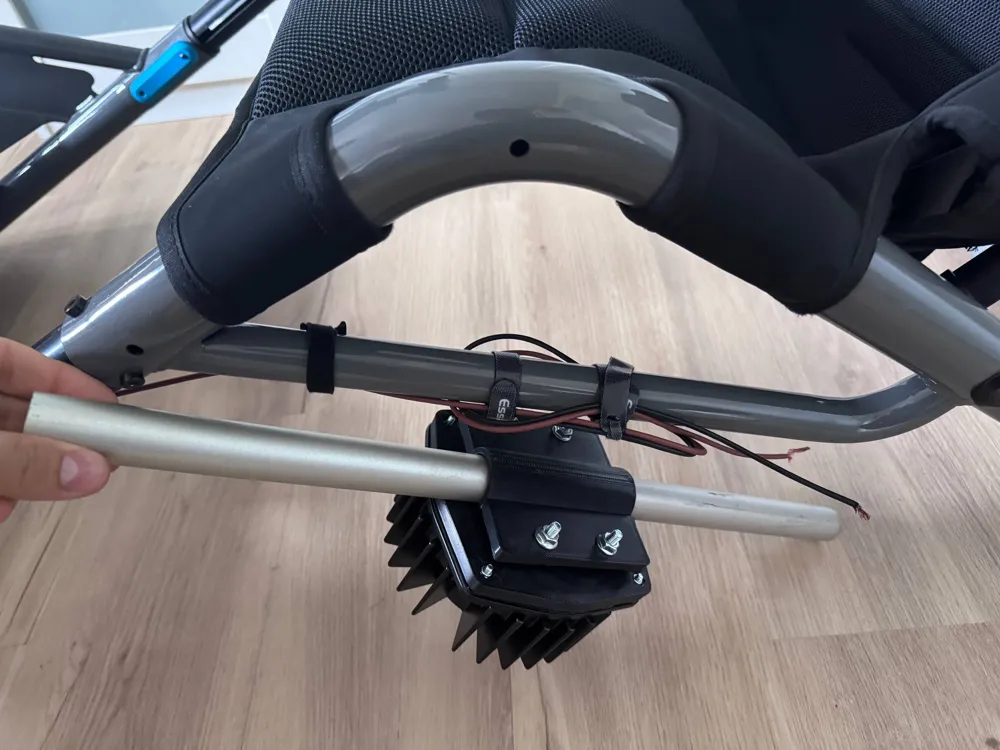

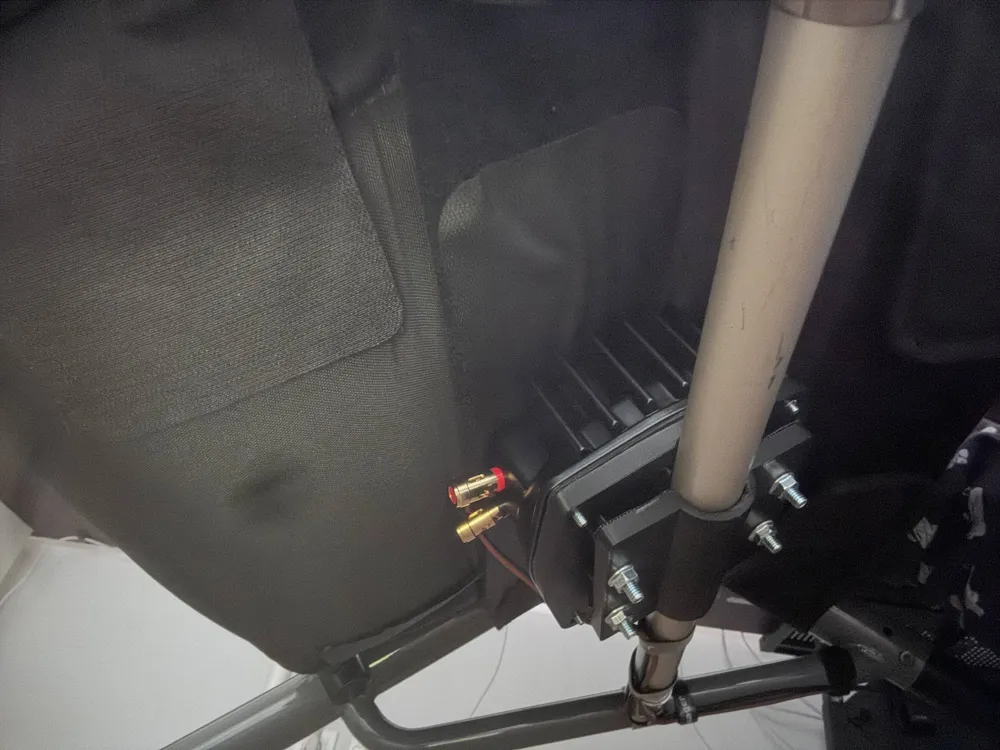

You can mount it directly on the cockpit or add an extra bar below the seat like I did (see photos). I used a curtain 25mm bar and this adapters from amazon: https://amzn.eu/d/0fhJHb5b Clean and rock solid.

Others will charge you 20-30 euros plus shipping for this kind of support, so please boost me if this was useful, it's all I ask!  Enjoy!!

Features

• Compatible with 25mm tubes, in the Playseat Trophy under seat
• Designed for the Dayton Audio BST-1 Bass Shaker
• Strong and secure clamp-style mounting system
• Easy installation with standard hardware
• Compact design that fits cleanly on the cockpit frame
• Ideal for sim racing haptic feedback setups

Hardware Required

• 4x M4 bolts for the BST-1
• 4x M6 bolts and nuts for the tube clamp

You will need to drill holes in the clamp; it could be done in the slicer, but I didn’t have the time. Perhaps if there are enough boosts, I will publish a revision.

Recommended to put / print some spacers so pieces don't bend too much when tightening the bolts.

Printing Recommendations

• Material: PETG, ABS, or ASA recommended
• Infill: 40%+ for strength
• Layer height: 0.2mm
• Print orientation: As provided in the files for maximum strength

This mount was created to provide a simple and reliable solution for adding tactile feedback to the Playseat Trophy without modifying the frame. Perfect for racing sims, flight sims, and other immersive setups.
