Tire Markings / Tire Position Markers
Print Profile(1)
Description
No more guesswork when changing seasonal wheels!
Description

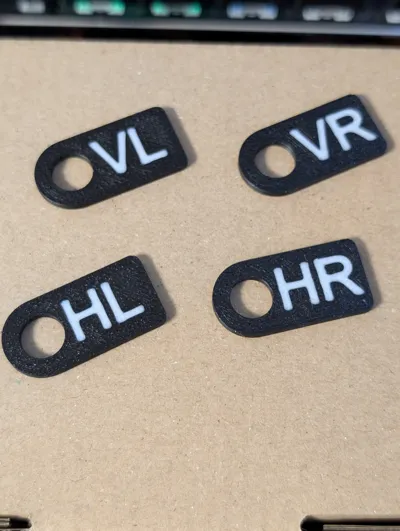

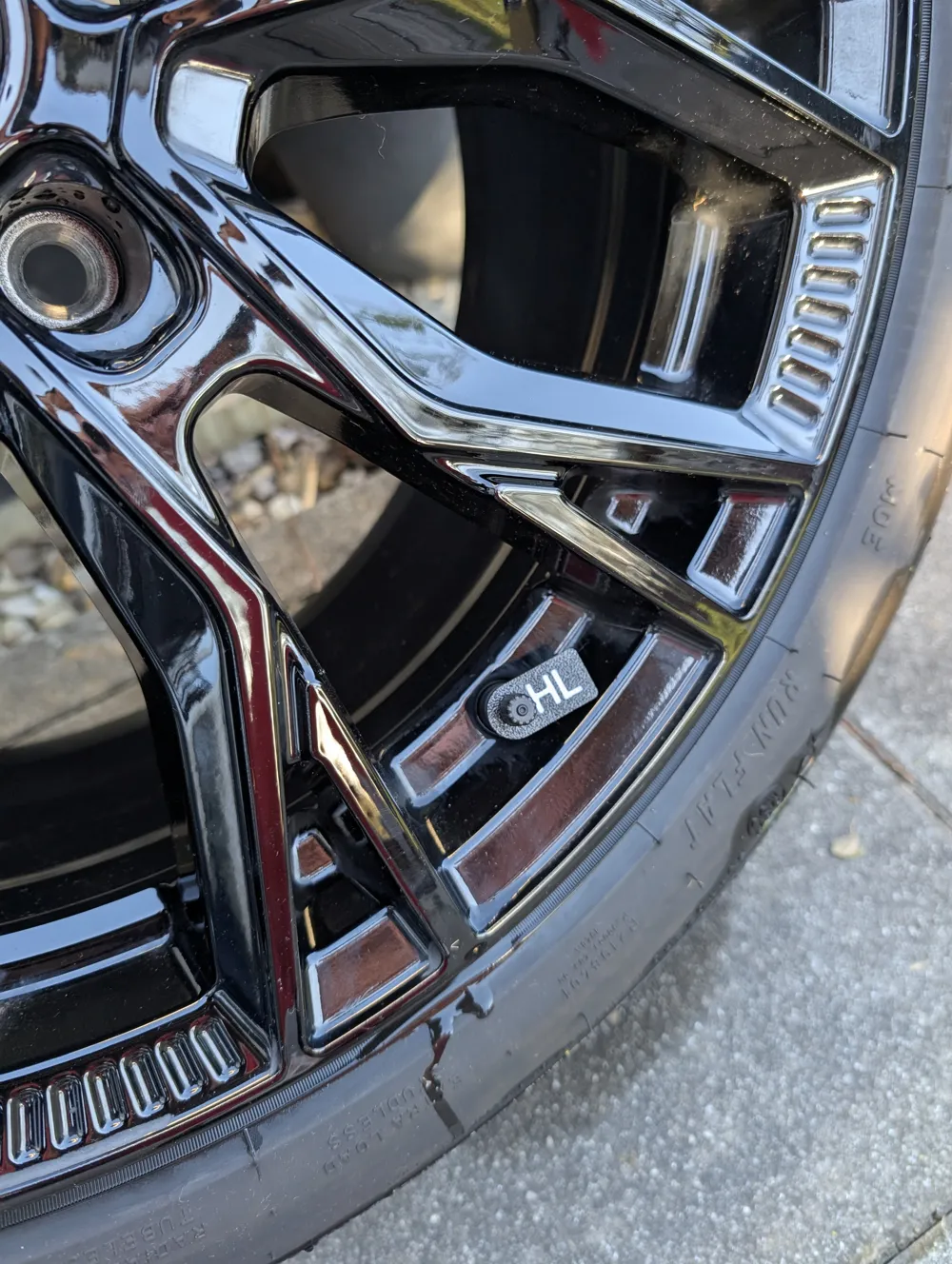

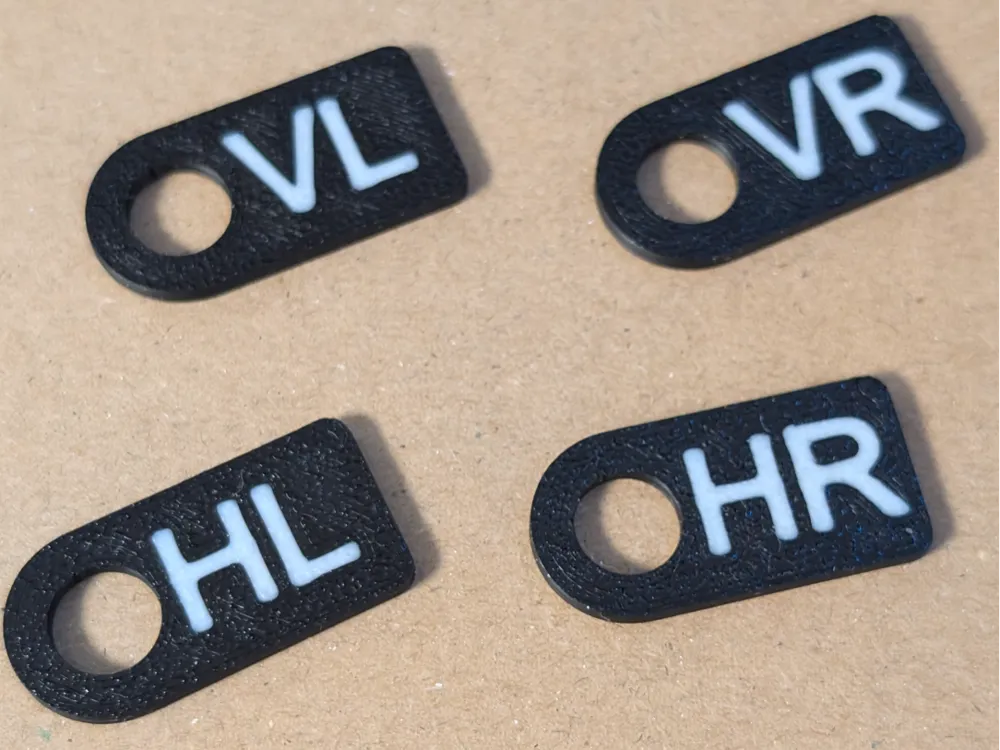

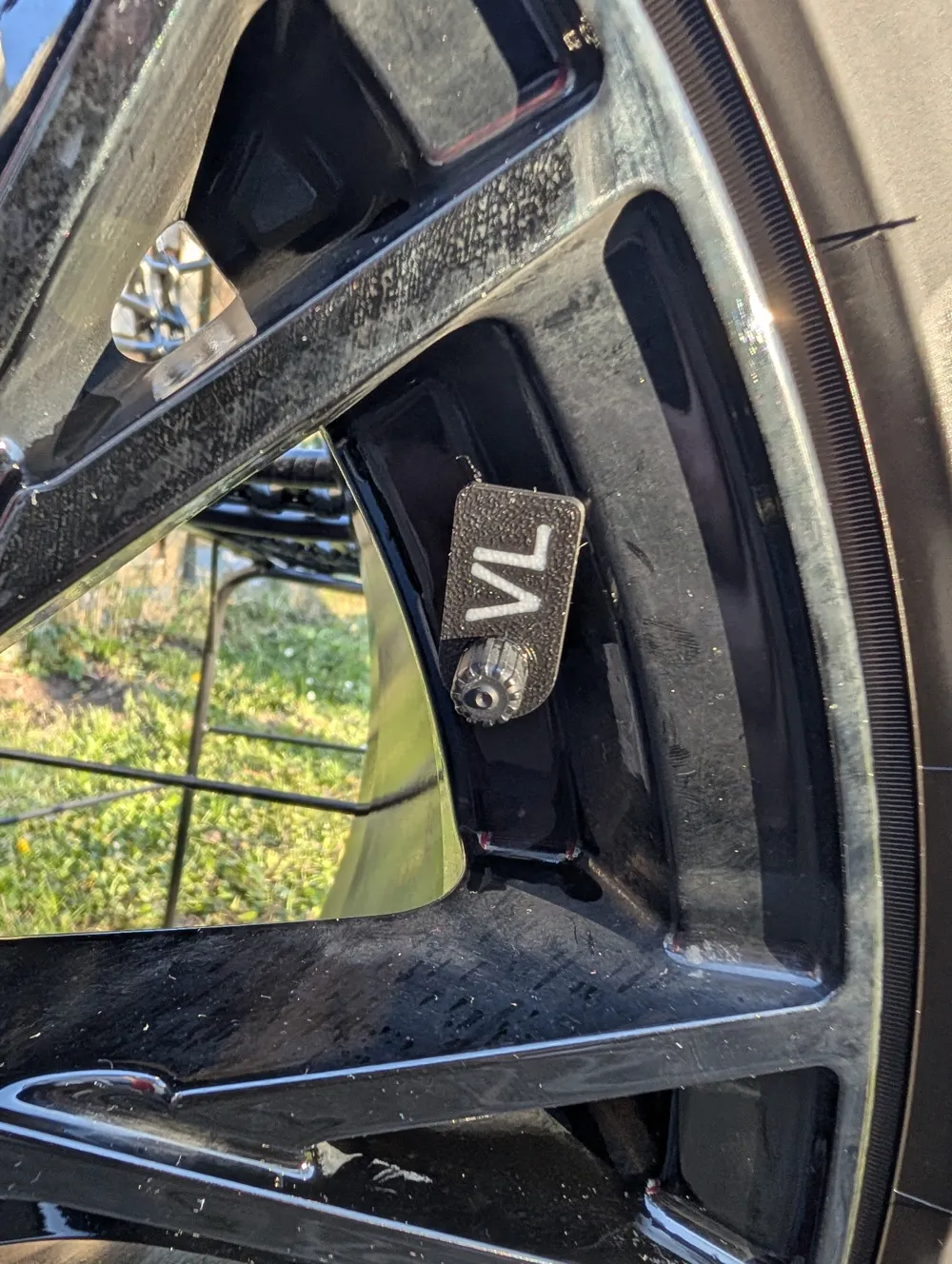

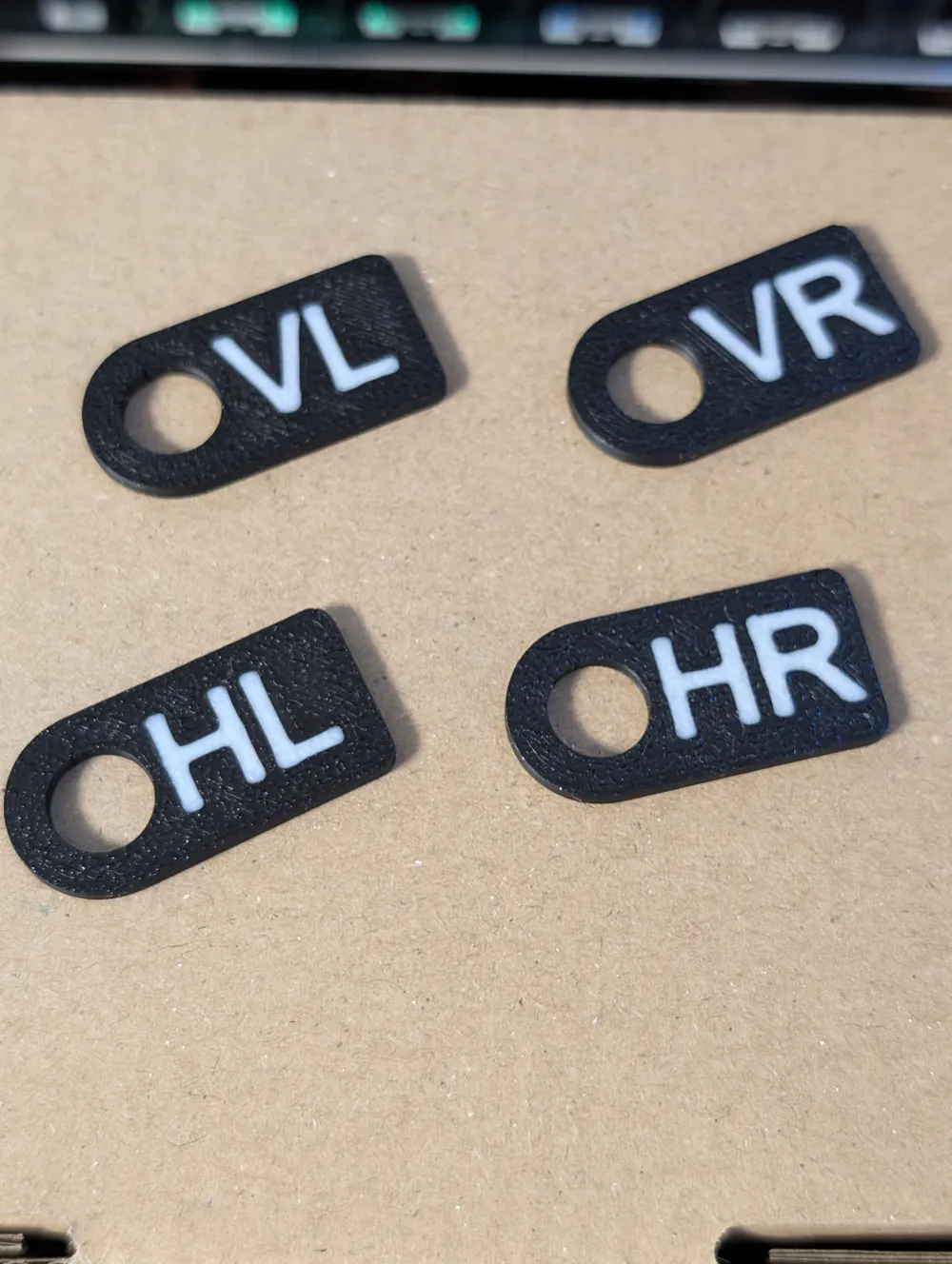

This set of four compact tire markers helps you permanently and clearly label the position of your wheels when switching from summer to winter tires (or vice versa). The markers are simply pushed over the tire valve and secured with the existing valve cap.
The designations correspond to common workshop standards:
- FL: Front Left
- FR: Front Right
- RL: Rear Left
- RR: Rear Right
Special features of this file:
- Pre-configured 3MF: The file is already set up so that the letters are automatically printed in contrasting colors. You can adjust the colors in the slicer to your liking.
- Clean Finish: The model is printed "Face-Down" (with the text side down). This results in a perfectly smooth surface and a clean text appearance on the visible side.
- Easy Handling: Fits all standard car tire valves and is securely locked by the valve cap.
Print Settings
- Material: I successfully printed this model with PLA.
- Print Orientation: The model is already oriented for face-down printing to achieve the best result on the build plate.
- Color Change: Use the included 3MF profile for Bambu Studio. The color change areas for AMS or manual filament change are already defined.
- Layer Height: 0.16 mm or 0.20 mm for a fine result.
- Walls: 2 to 3 wall lines ensure stability in the ring area.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
