Monster can upcycling object holder project

Monster Cup & Organizer:

 High-Performance Upcycling 🛠️🥤

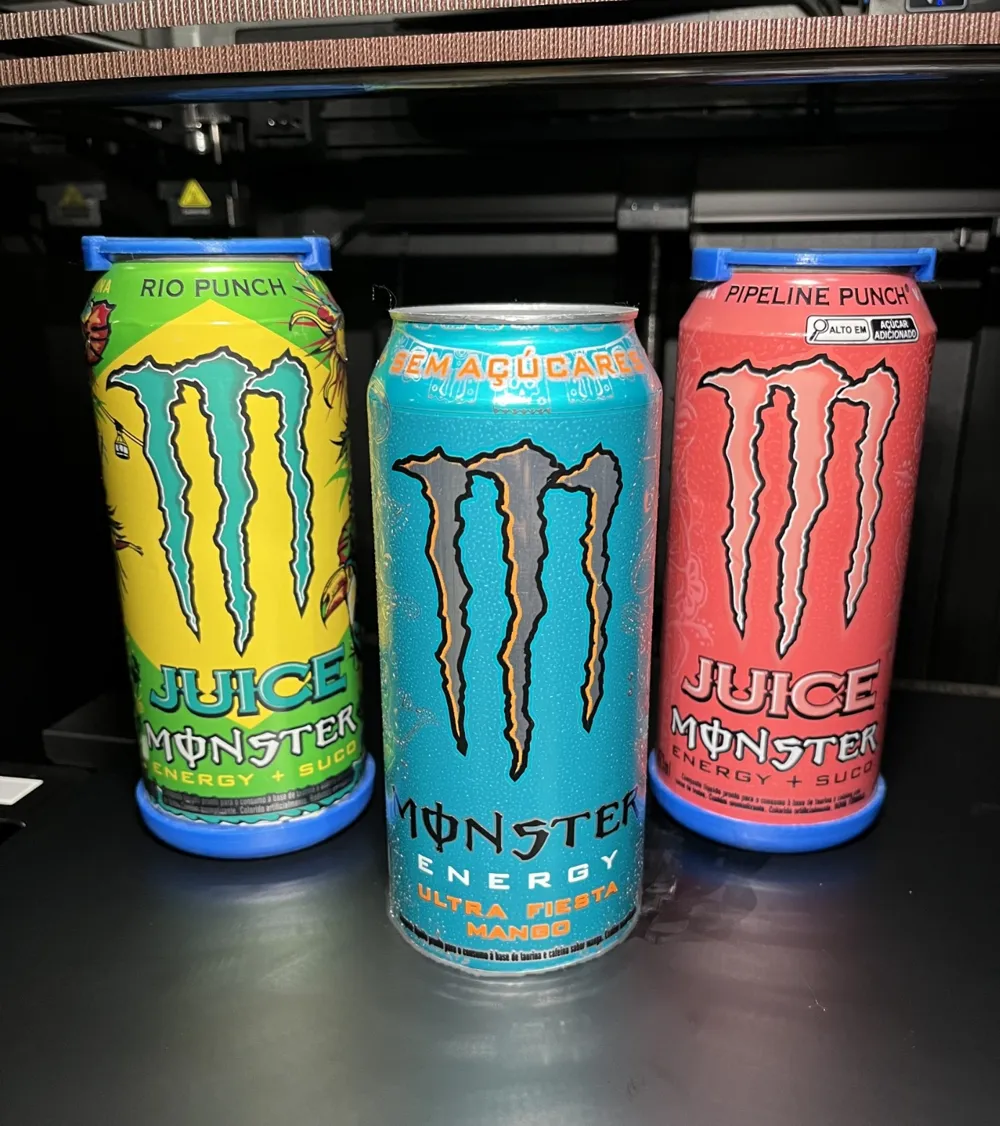

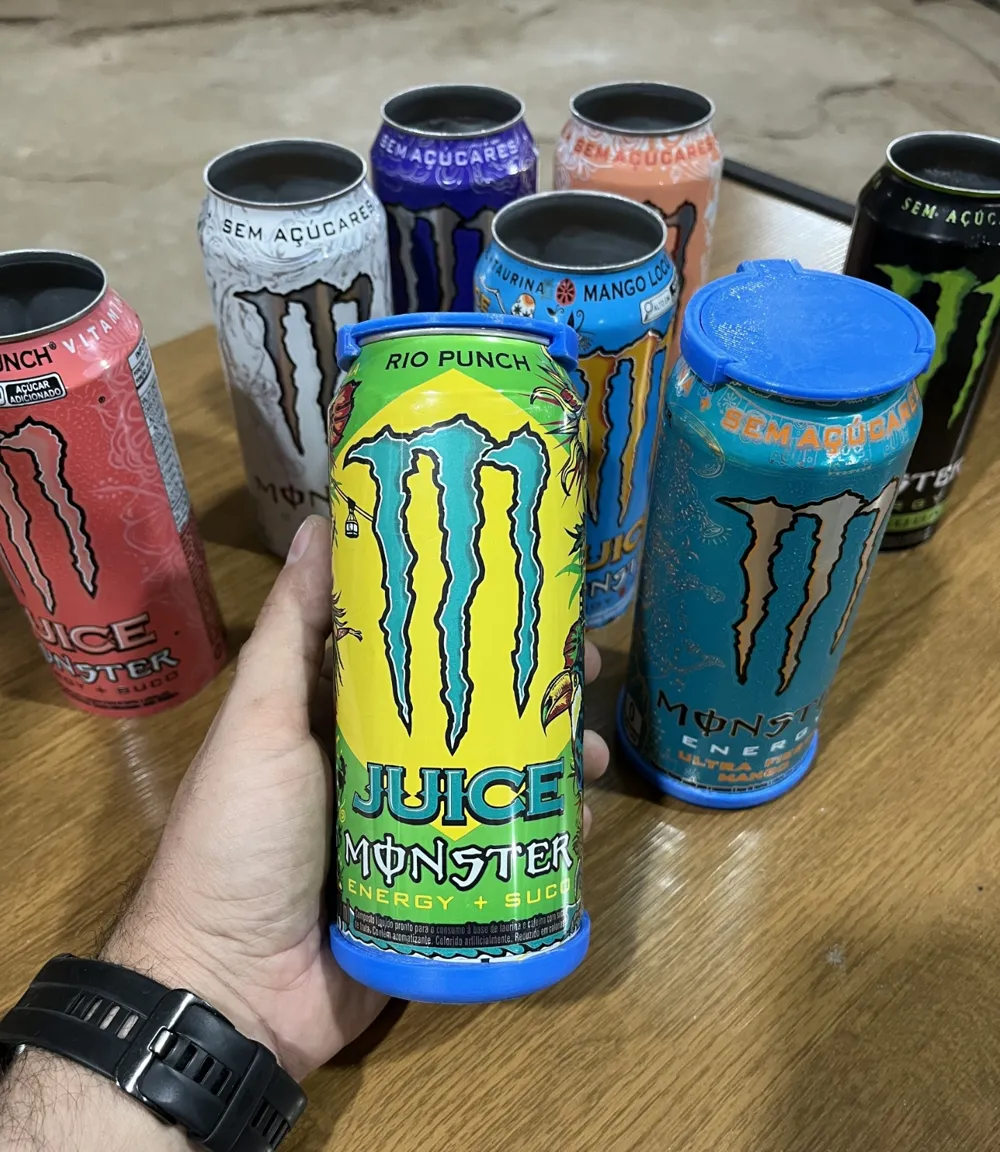

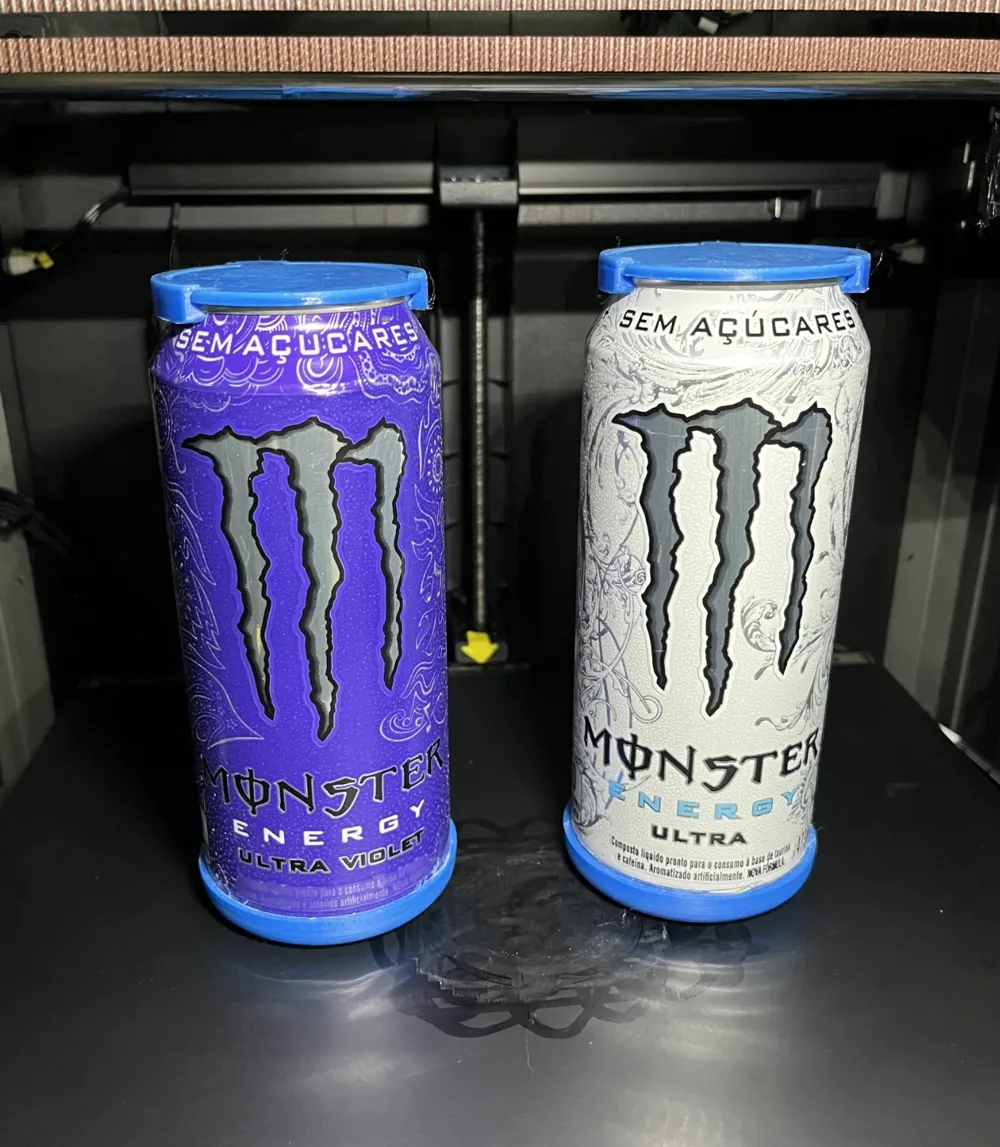

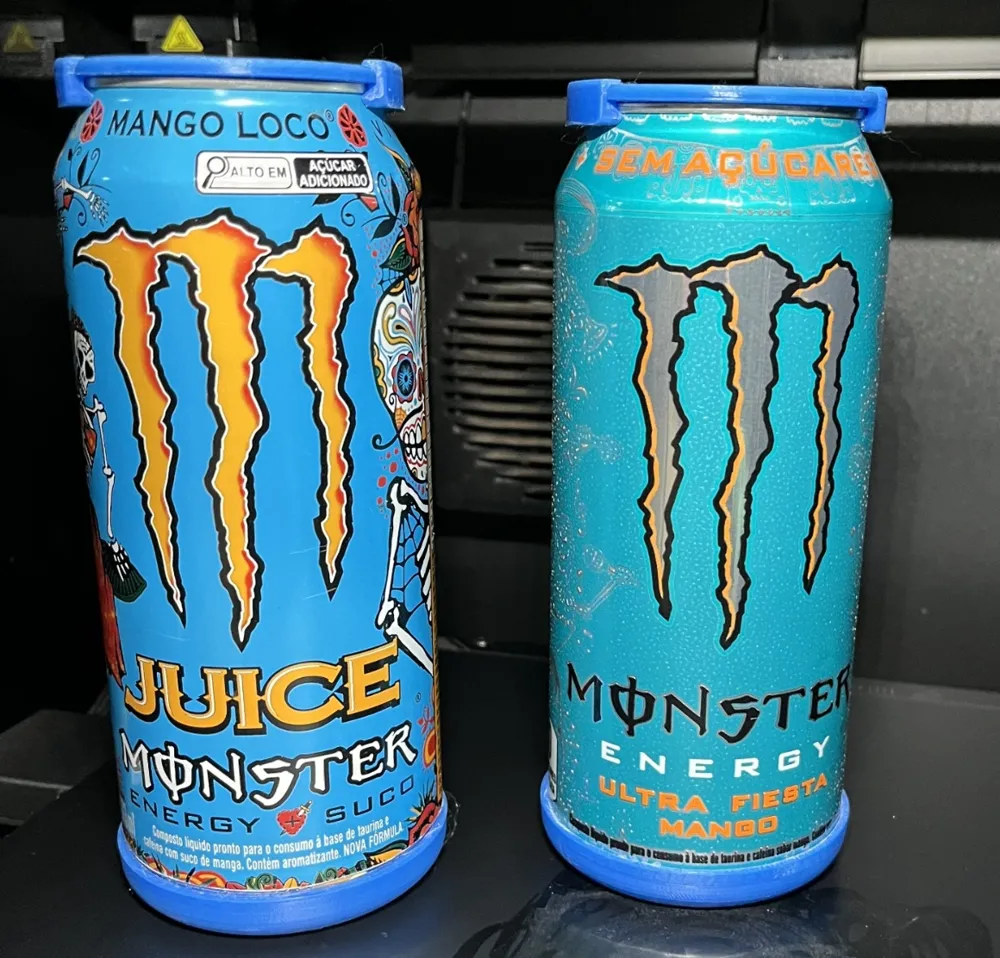

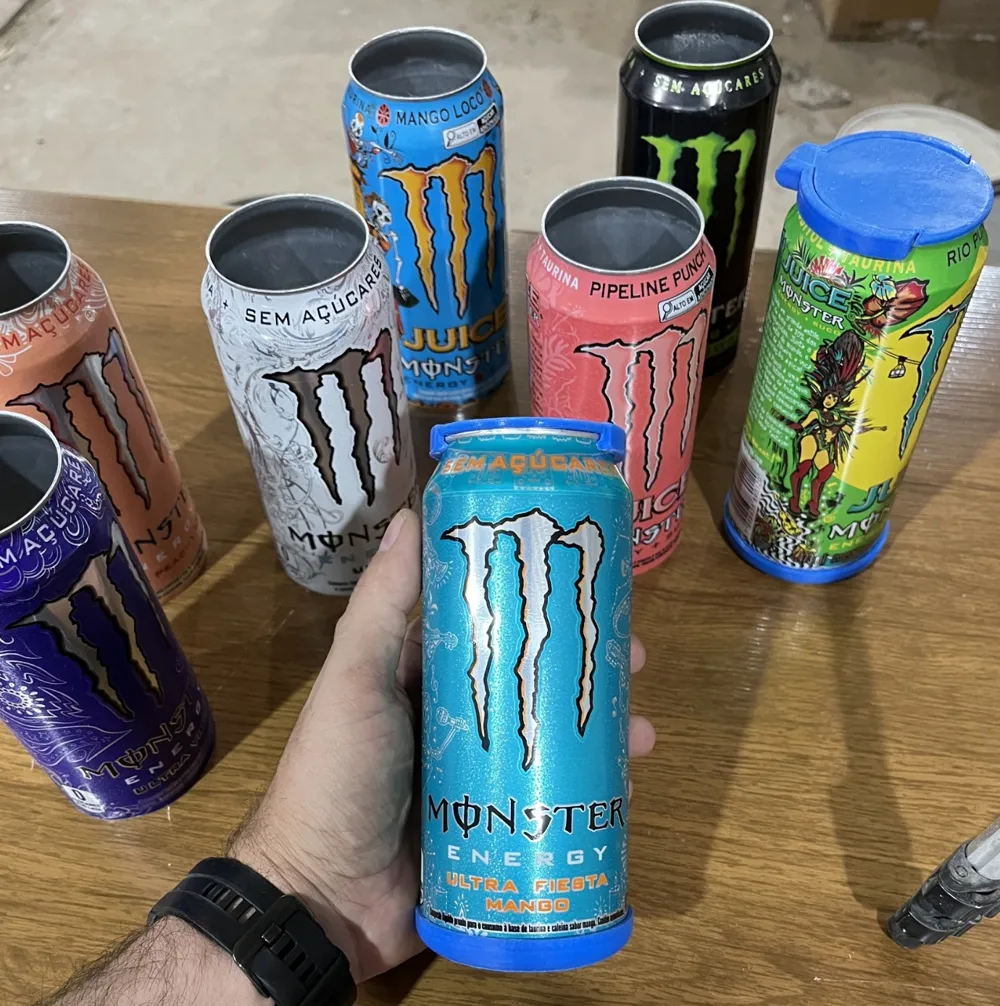

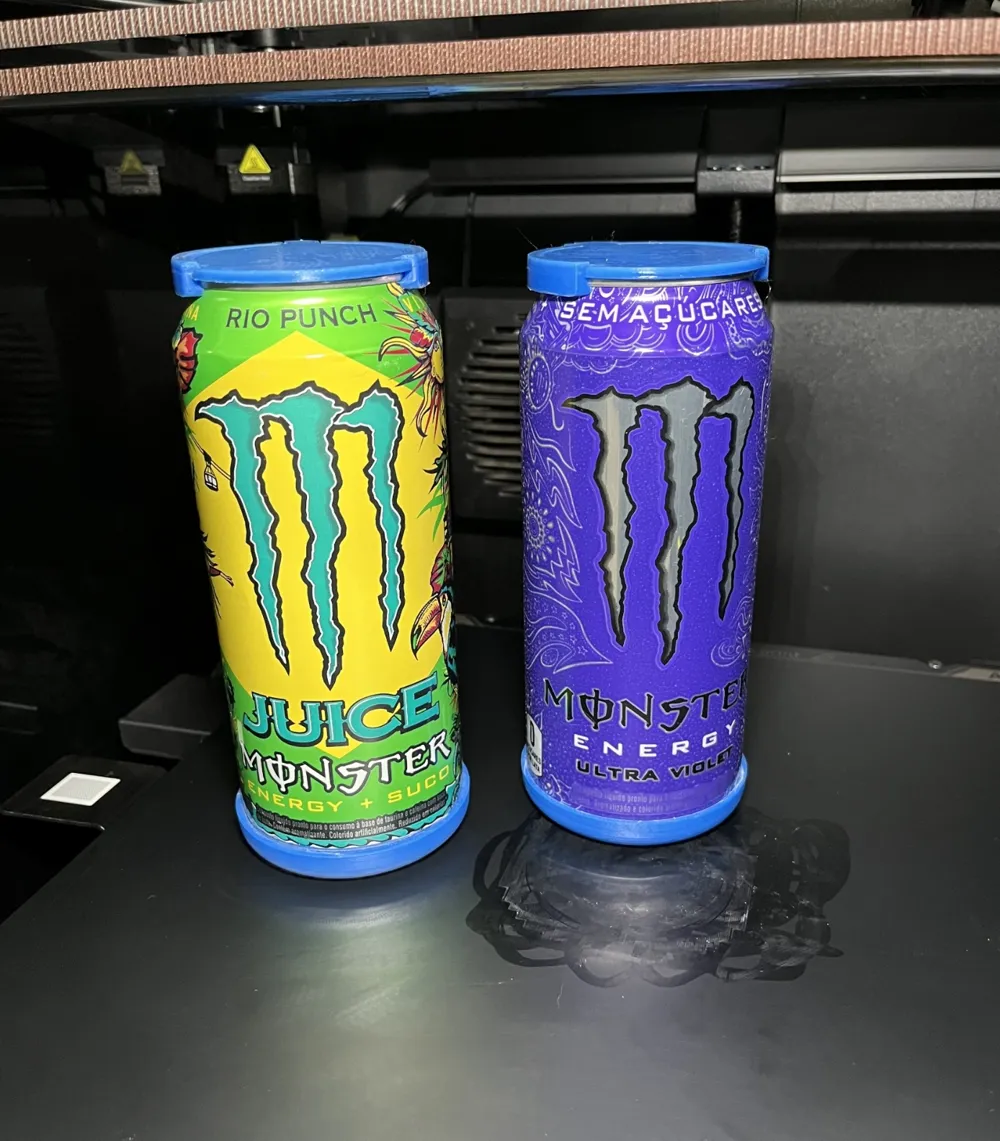

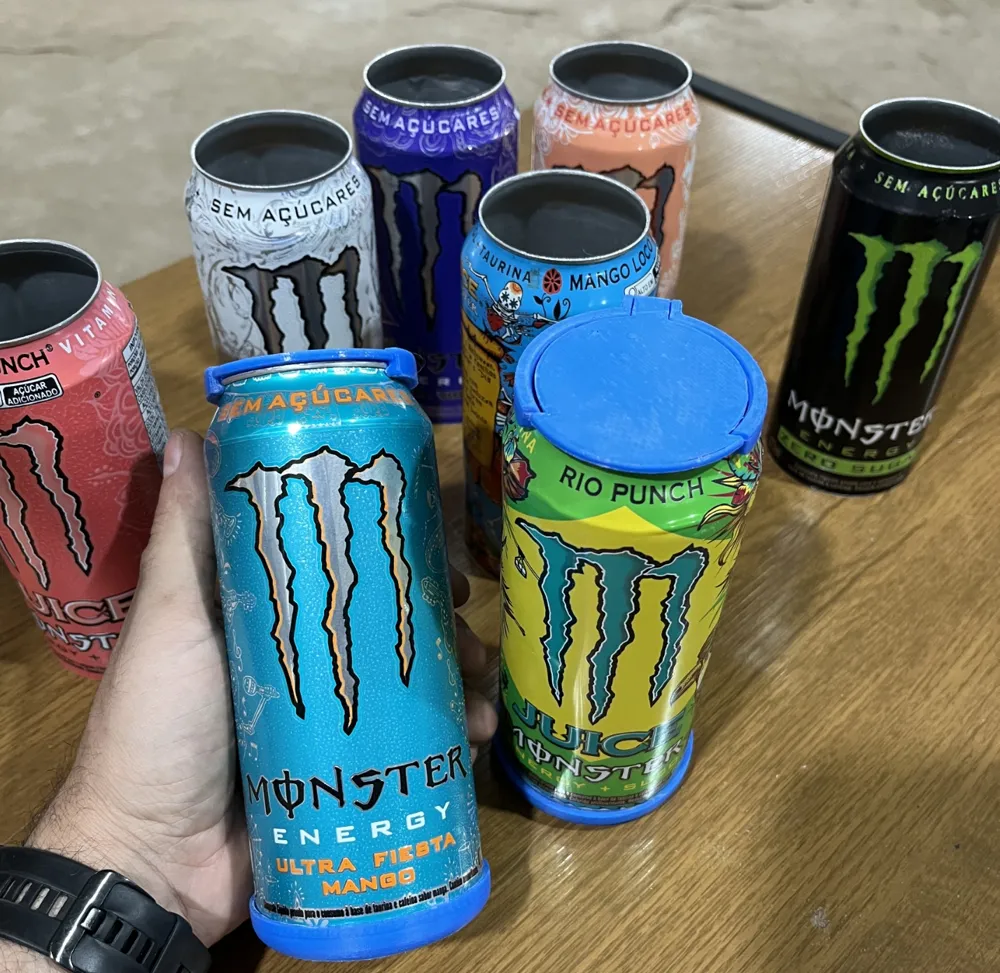

Have you ever felt bad about throwing away a Monster can because of its beautiful design? Me too. That's why I designed this Structural Internal Reinforcement that transforms an empty can into a sturdy, weighty, premium-finished object holder (or decorative cup)

It's not just a silly snap-fit; it's an engineering project designed for interference fit (press-fit) and optimized for support-free FDM printing

What makes this project different?

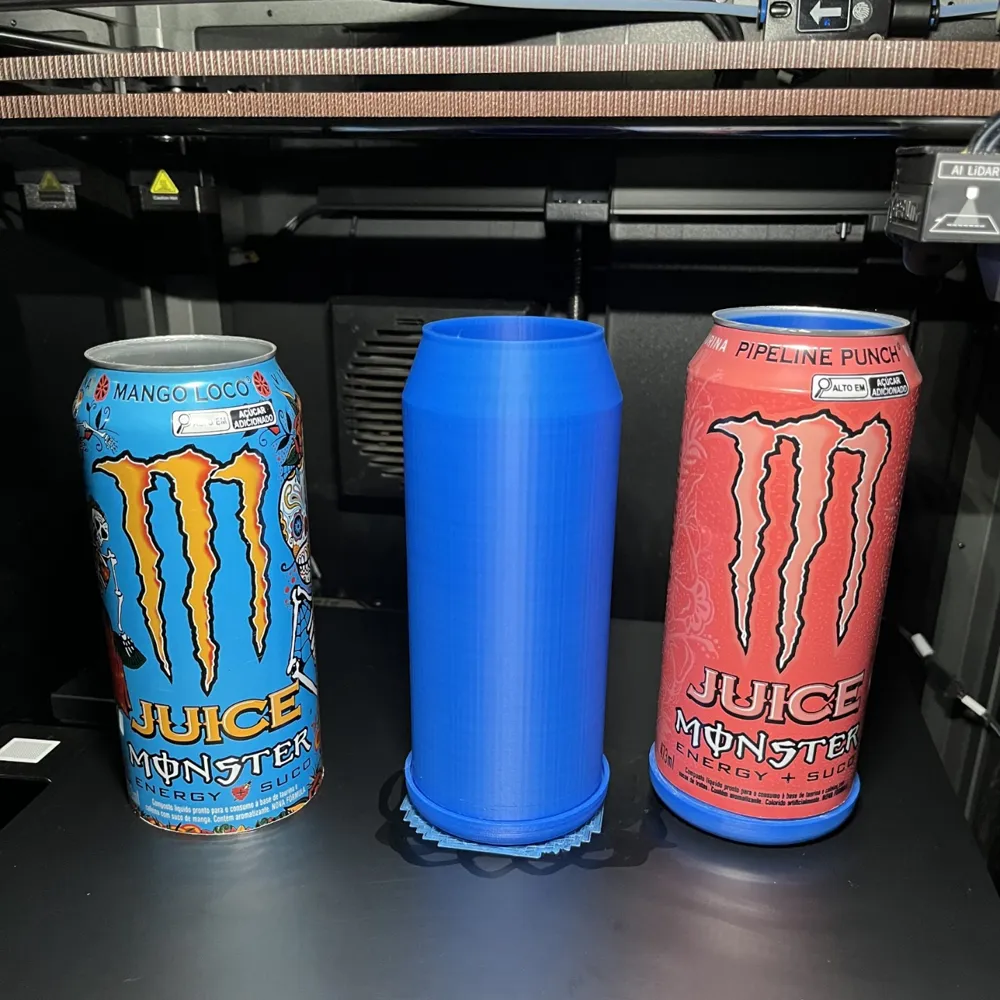

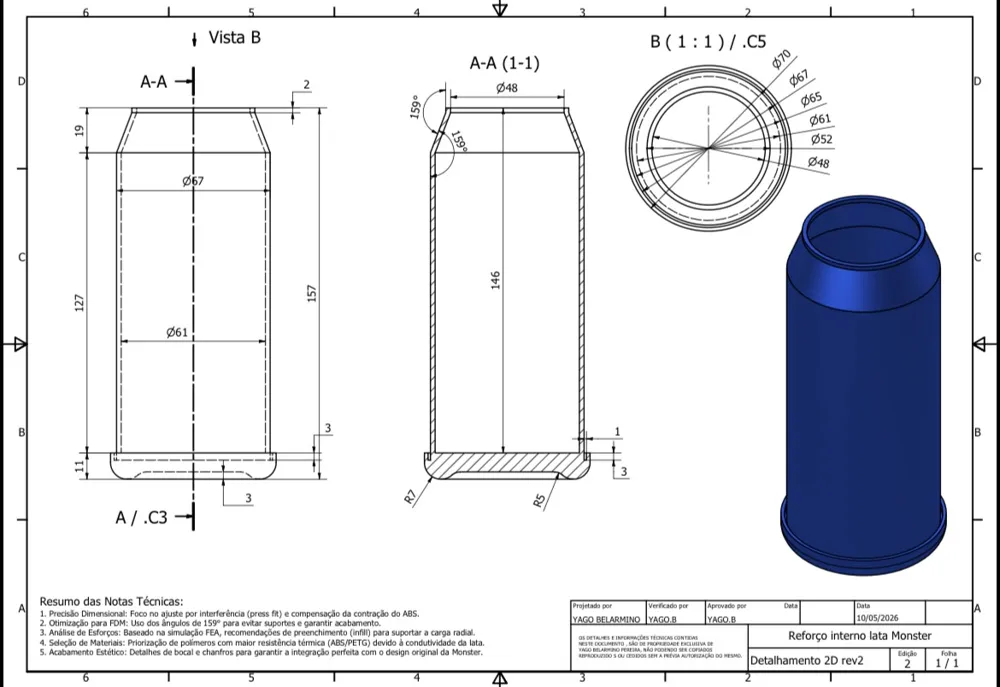

• Invisible Design: The reinforcement features a finishing groove that conceals the can's cut edge, giving it an industrial product appearance

• Print Optimization: 159⁰ angles designed to avoid supports and ensure a smooth internal surface

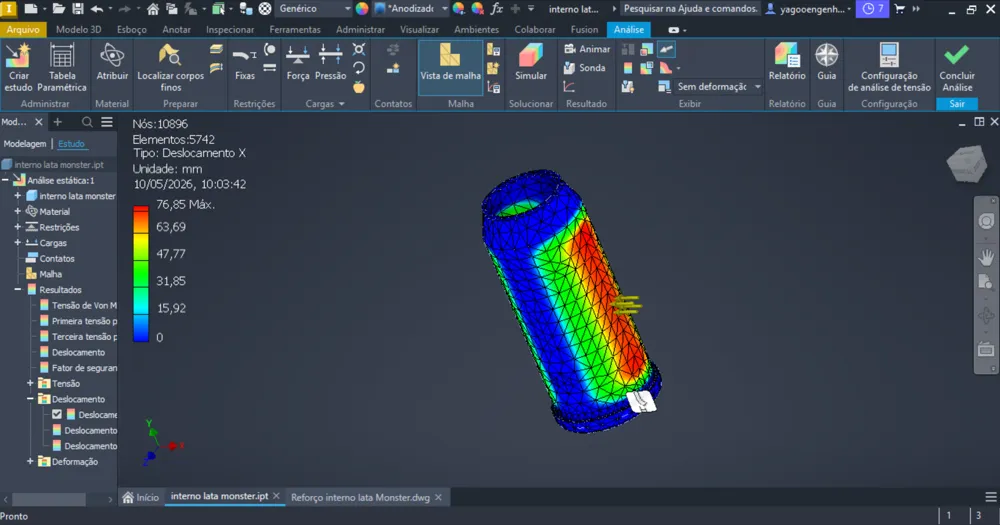

• Durability: Walls sized to withstand radial loads and compensate for the natural thermal shrinkage of materials like ABS

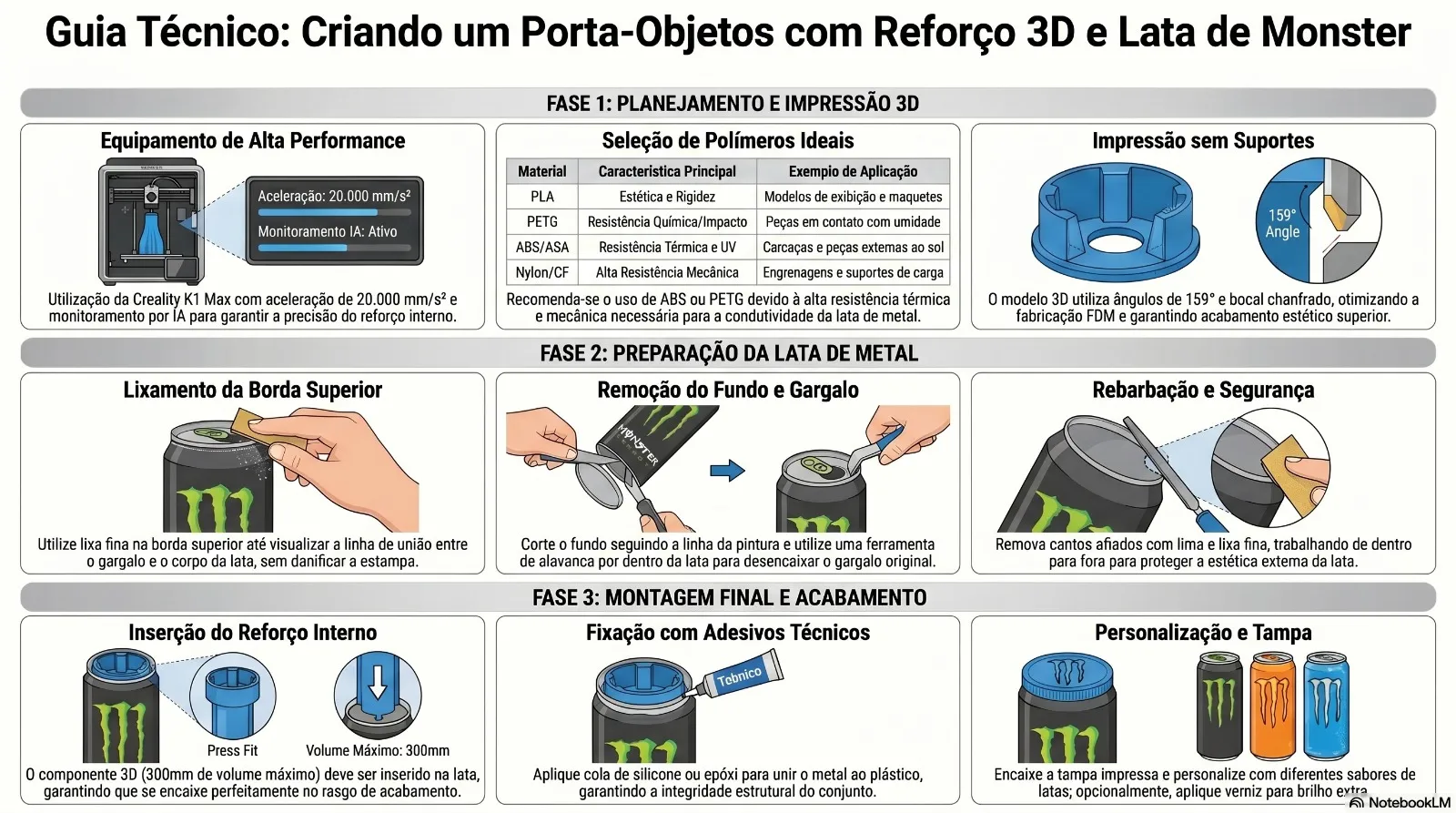

📋 Manufacturing Guide (Summary)

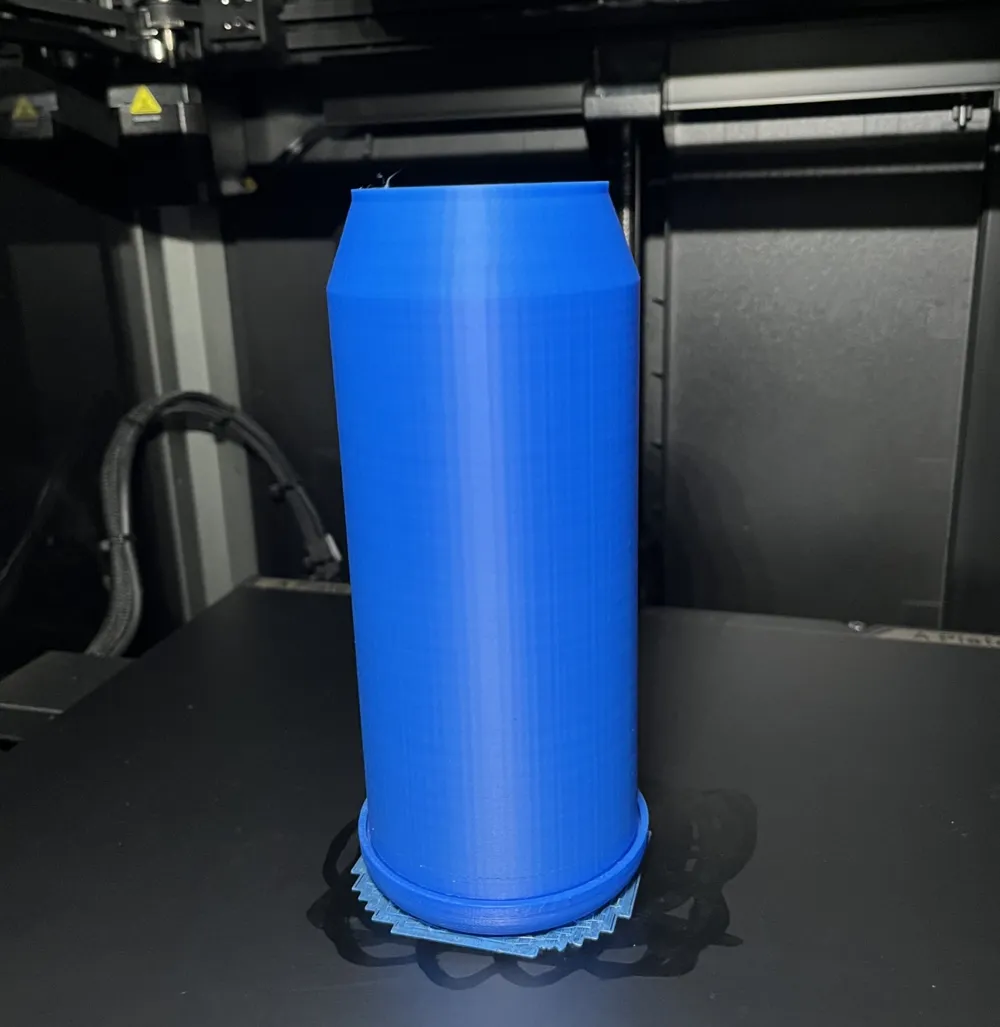

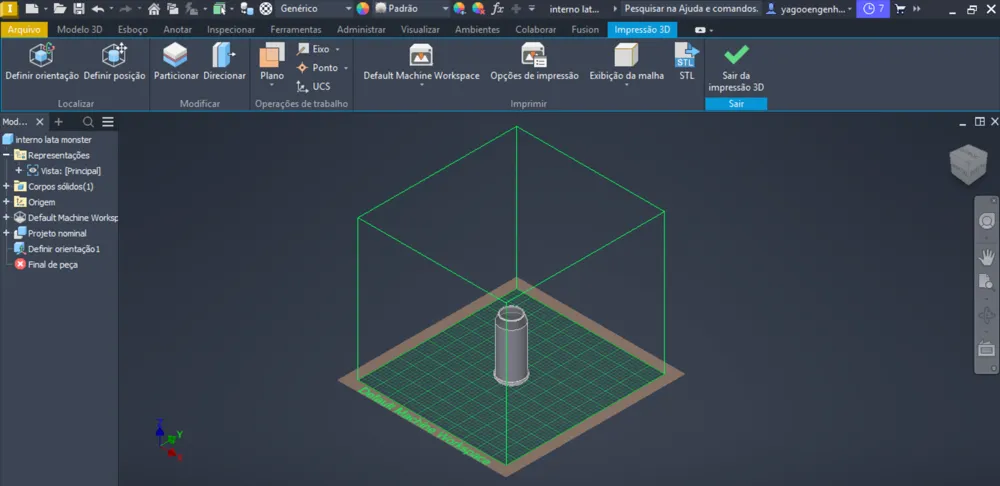

1. Printing: Use ABS or PETG. The model is already in the correct orientation

2. Can Preparation: Sand the top edge until the neck's seal breaks

3. Base Cut: Remove the bottom of the can following the final paint line

4. Extraction: Use a lever from the inside to remove the original neck

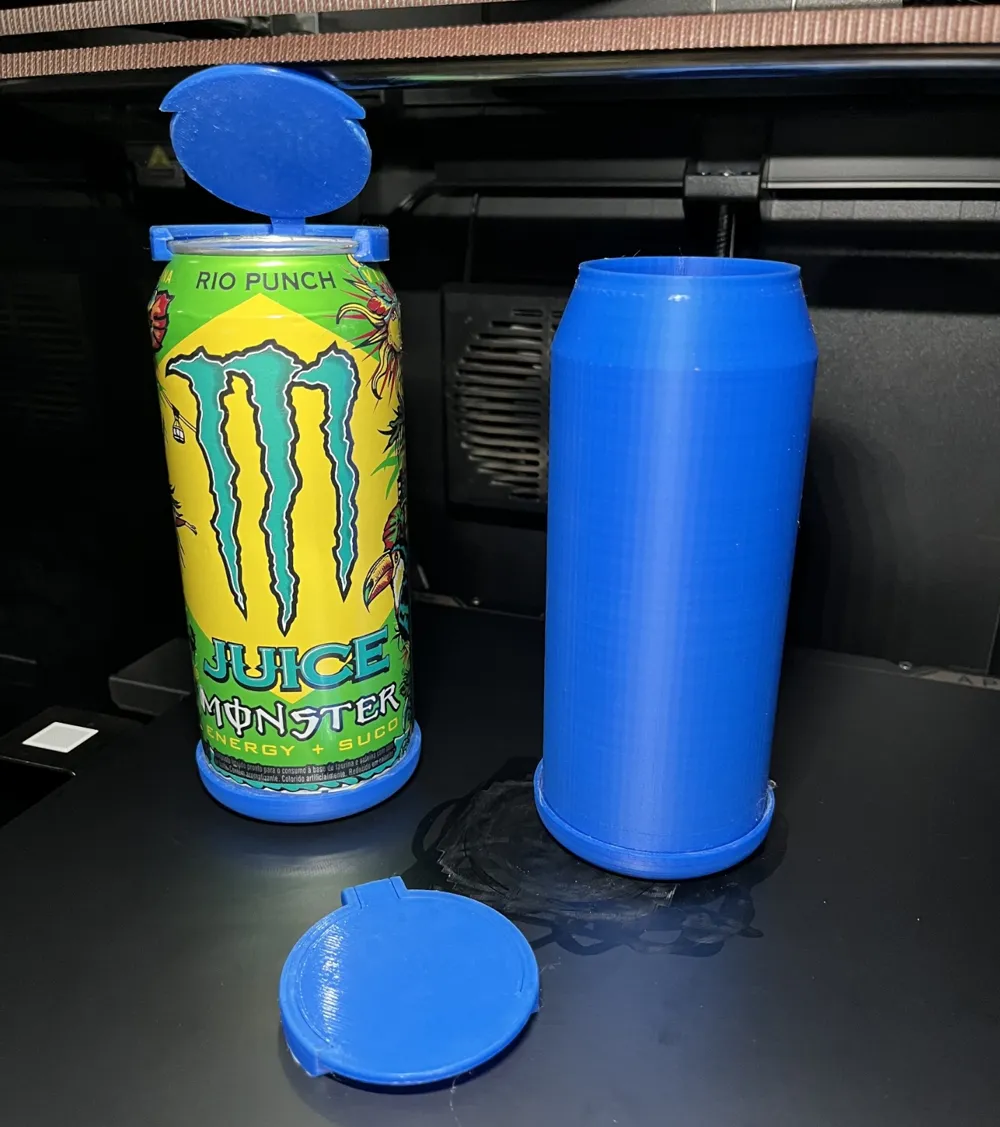

5. Assembly: Slide the can over the reinforcement until it clicks into place. Use cyanoacrylate adhesive for permanent fixation

⚙️ Recommended Print Settings

• Material: ABS (recommended for thermal stability) or PETG

• Layer Height: 0.2mm

• Walls (Perimeters): 3 or 4 to ensure rigidity

• Infill: 15-20% (Gyroid recommended)

• Shrinkage Compensation: If using ABS on open printers, check the scale at 101% if necessary (although the model anticipates standard tolerances)

⚠️ Terms of Use and Intellectual Property

This STL file is authored by Yago Belarmino (@FabricaçõesPlanejadas)

• Standard License: Purchasing this file allows unlimited personal use printing

• Commercial: For selling physically printed parts, please contact us for a commercial license

• Prohibition: Reselling, sharing, or sublicensing the digital file is strictly prohibited

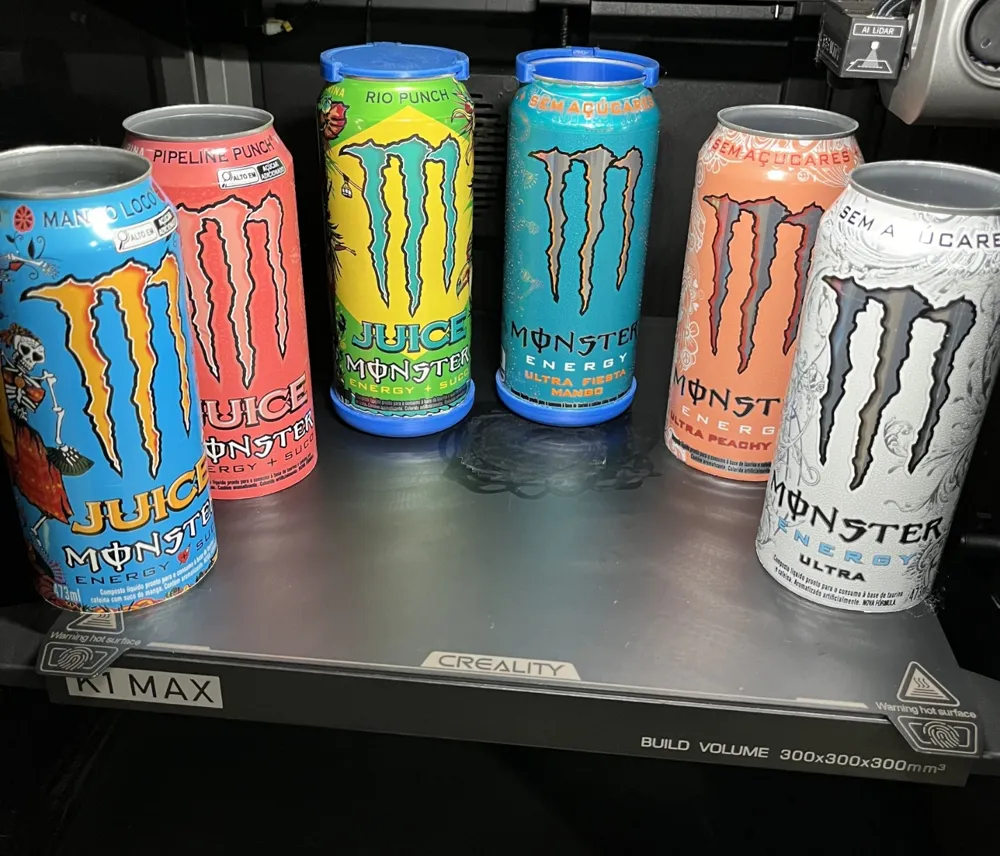

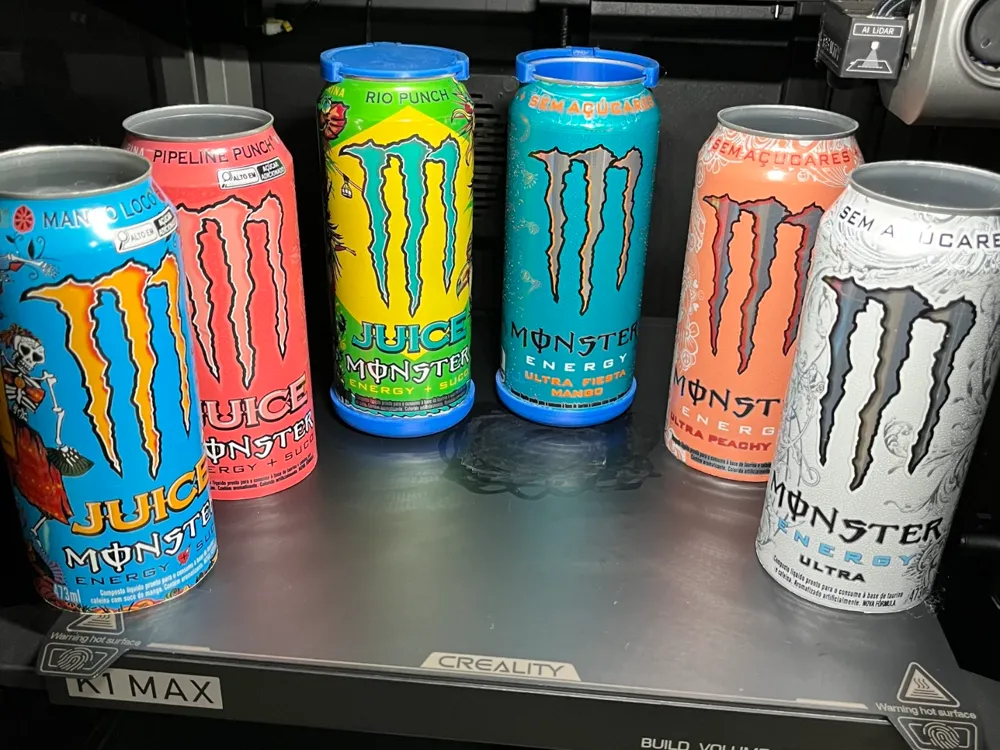

Convert trash into technical art. Show off your print results in photos!

About the Author

Yago Belarmino | Planning and Mechanical Engineering

Specialist in industrial maintenance solutions and high-performance additive manufacturing enthusiast
