Mercedes Benz C-Class S205/W205 Cover Pin
Print Profile(1)
Description

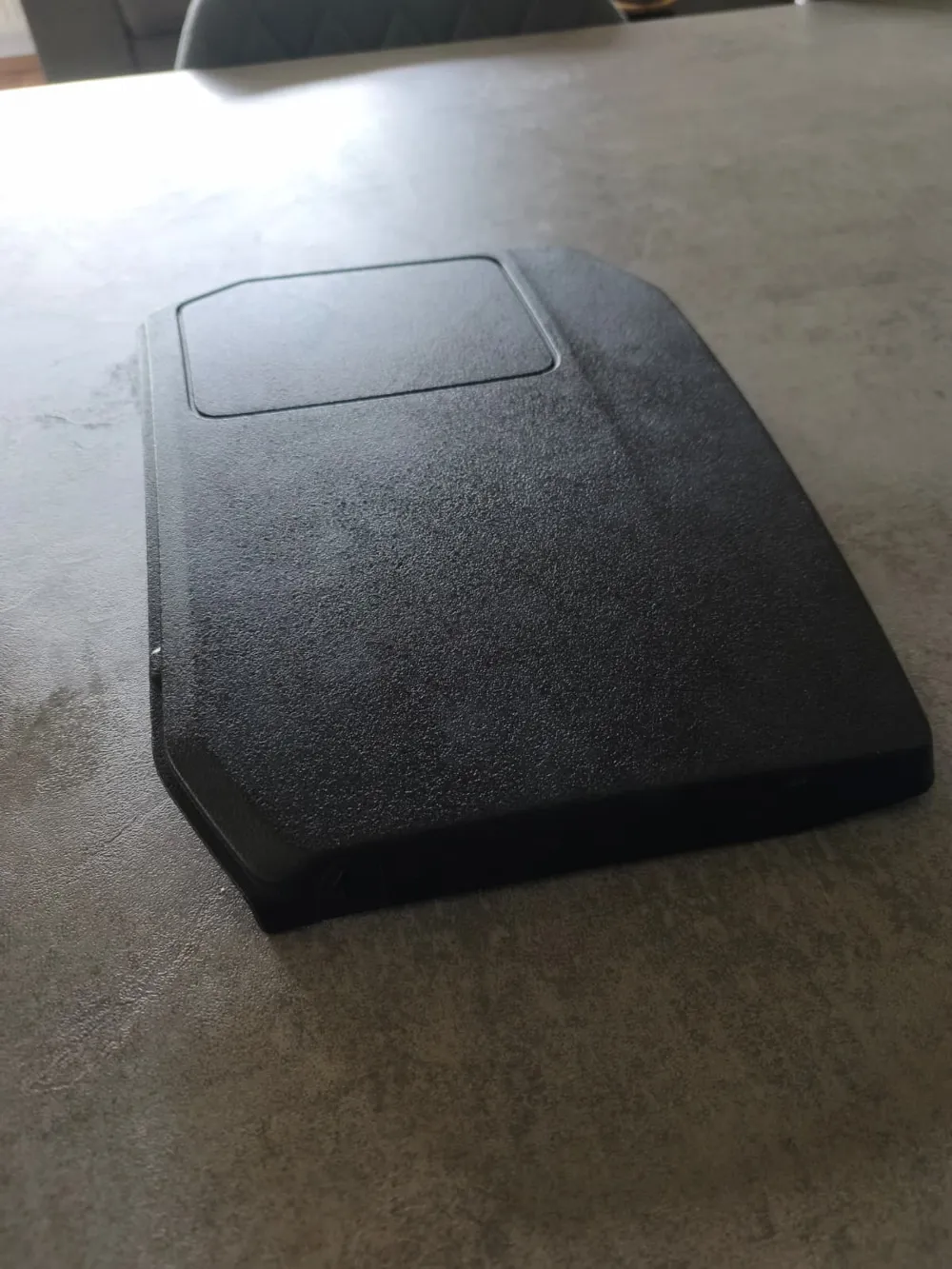

Mercedes Benz C-Class Cover Pin for Engine Cover/ECU Cover
Replacement retaining clips / pins for engine or ECU cover

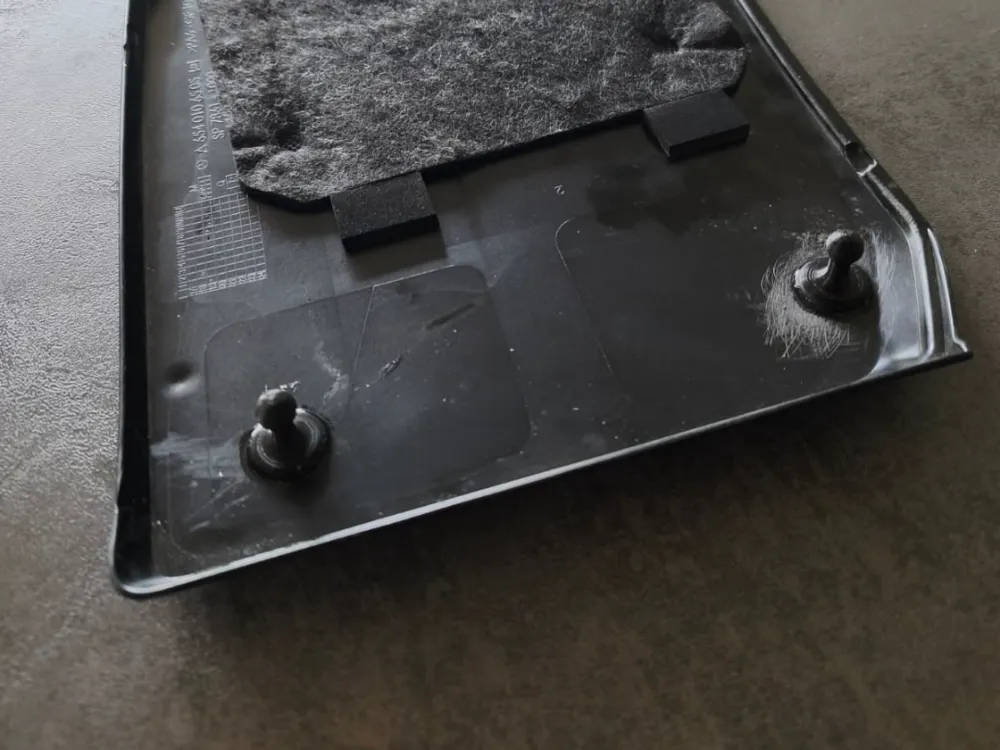

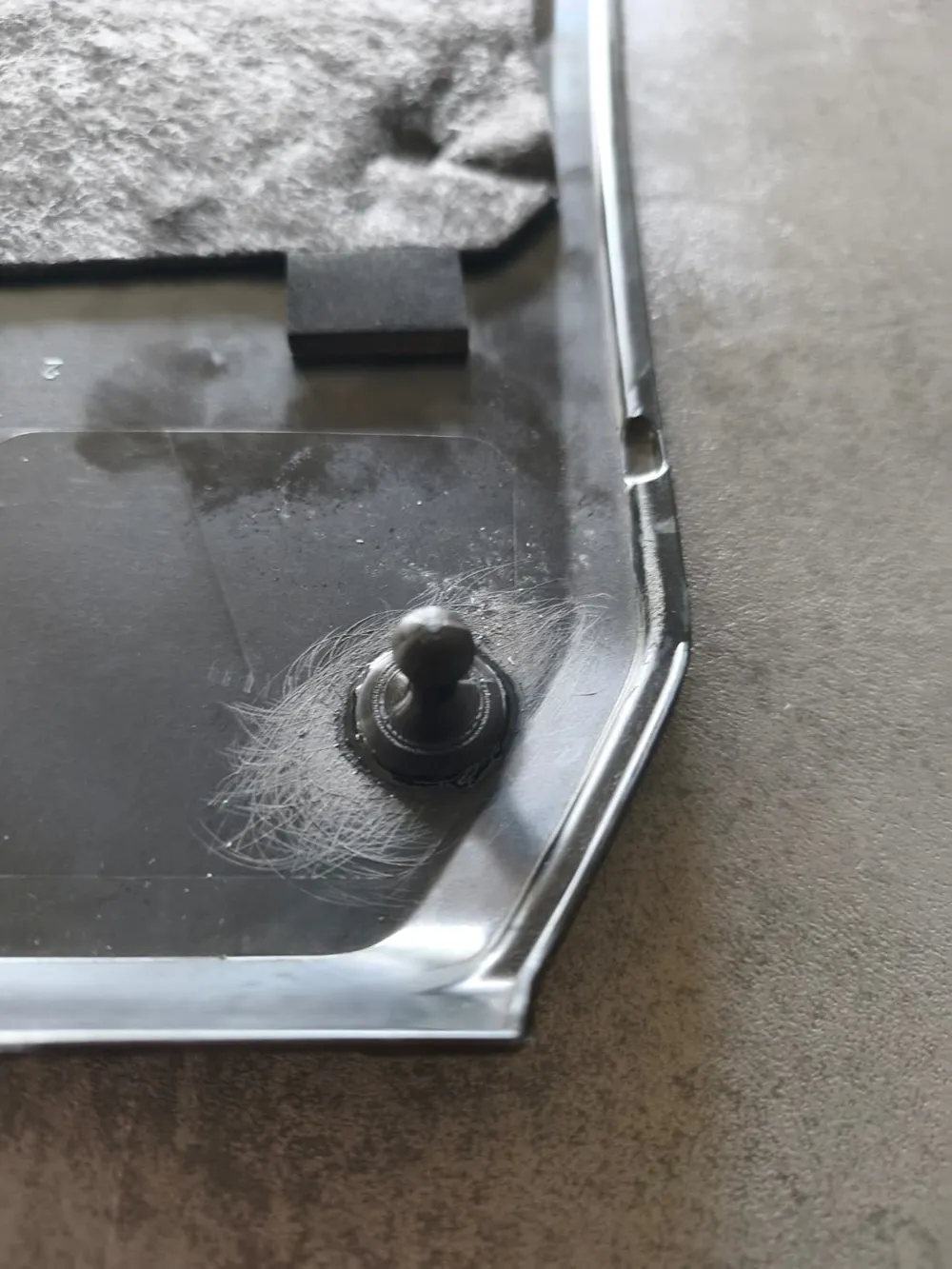

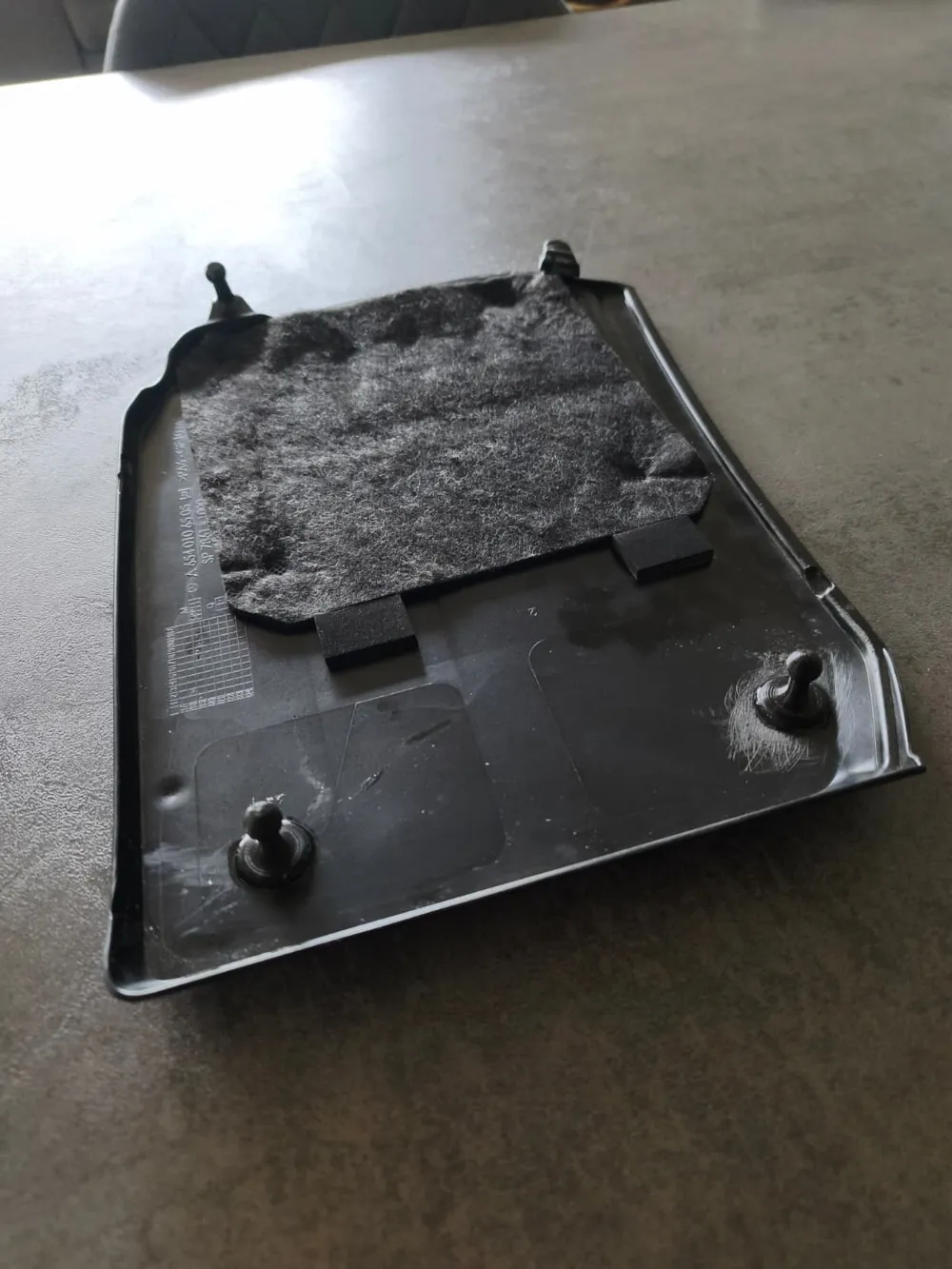

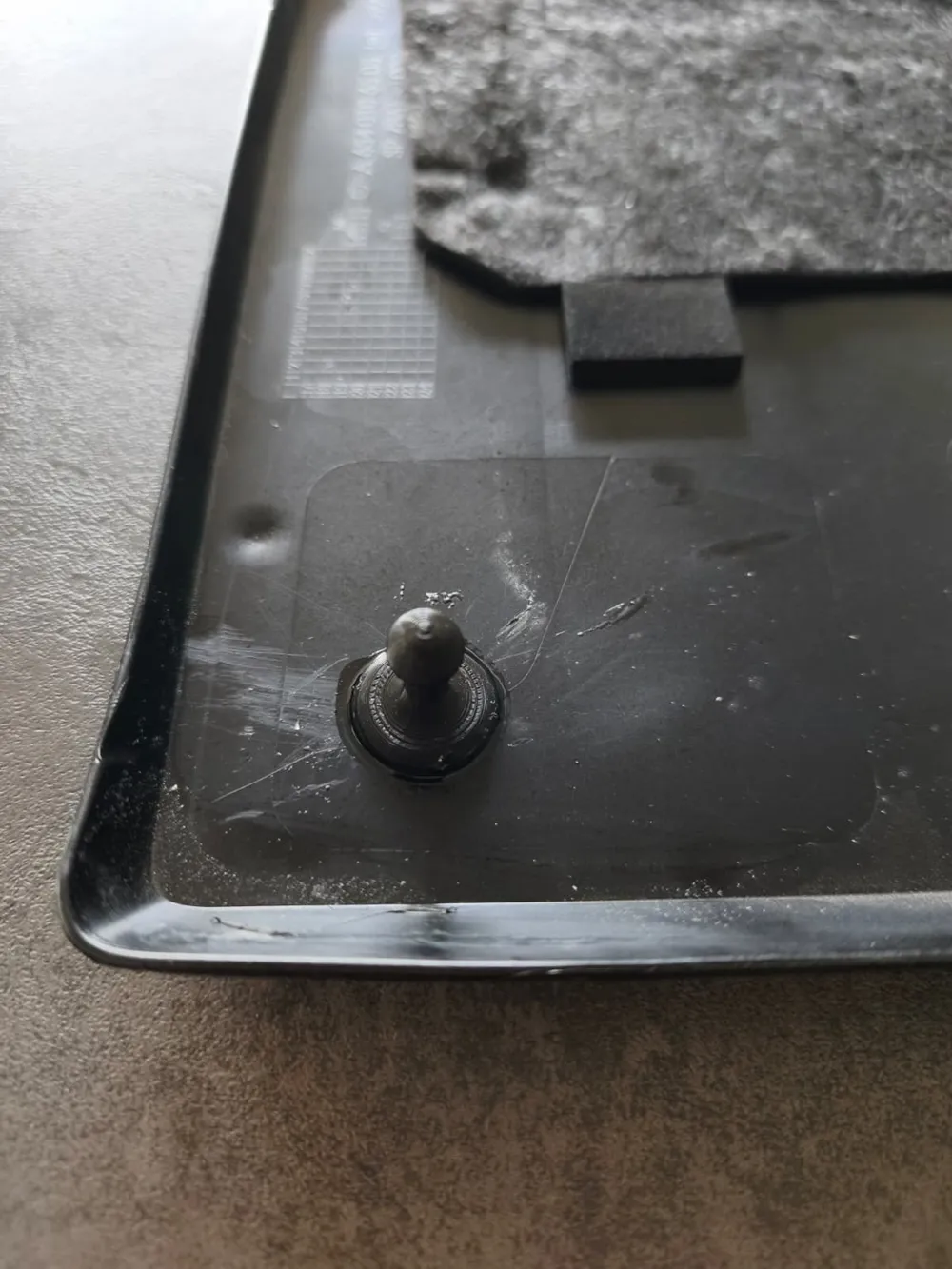

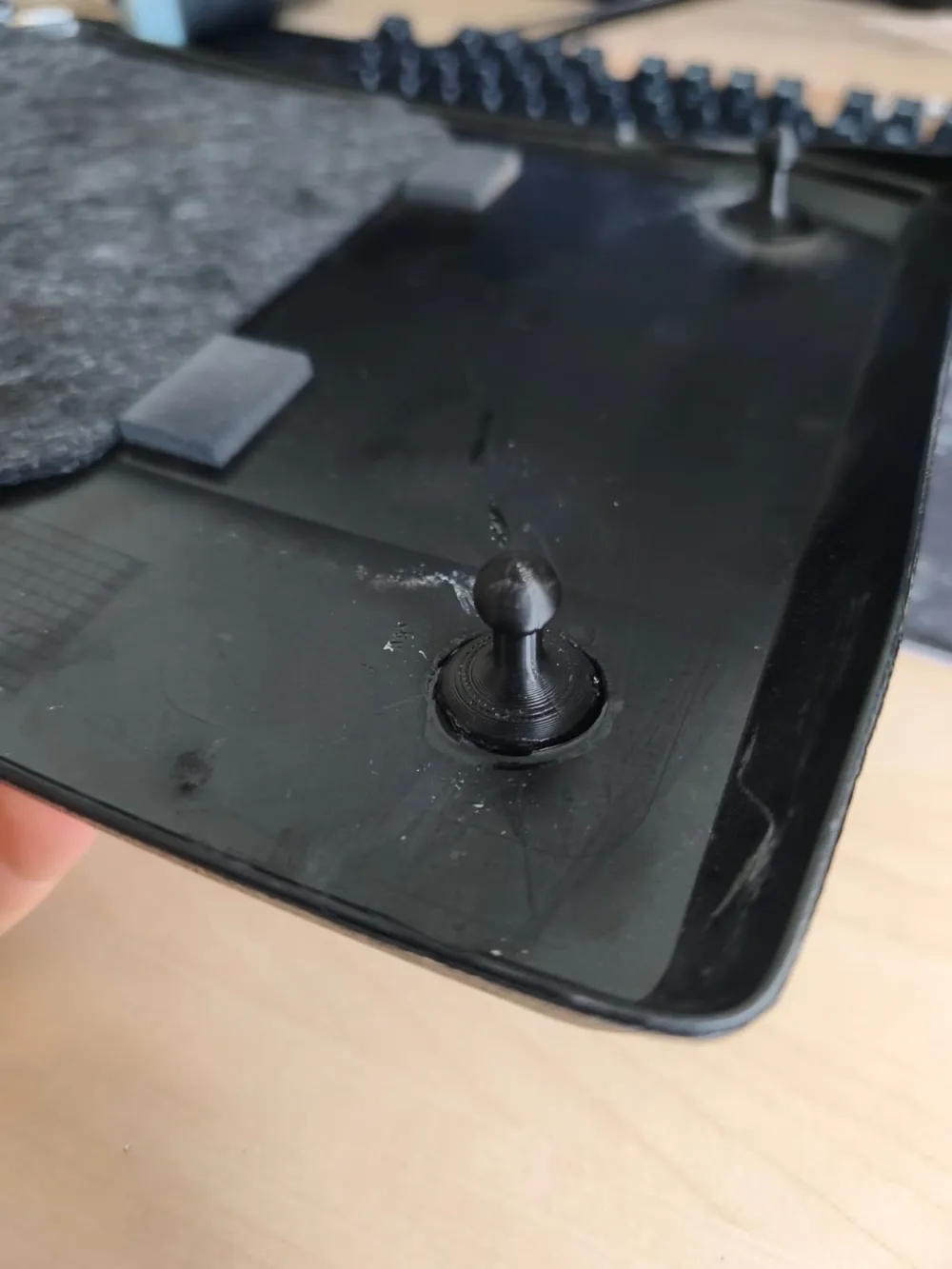

The original retaining pins on my cover broke off, so I designed these replacement parts. They are intended to be glued onto the existing cover to restore proper mounting.
Print recommendations
- Material: ABS recommended
- Use sufficient wall thickness or infill
- PLA is not recommended due to heat exposure
Installation
- Lightly sand the damaged area on the cover
- Clean and degrease the surface
- Lightly sand the printed part as well
- Glue it in place using 2-part epoxy adhesive
- Allow the adhesive to fully cure
Works great for me and the cover is mounted securely again.
Englisch
Replacement retaining clips / pins for engine or ECU cover
The original retaining pins on my cover broke off, so I designed these replacement parts. They are intended to be glued onto the existing cover to restore proper mounting.
Print recommendations
- Recommended material: ABS
- Use sufficient wall thickness or infill
- PLA is not recommended due to heat exposure
Installation
- Lightly sand the damaged area on the cover
- Clean and degrease the surface
- Lightly sand the printed part as well
- Glue it in place using 2-part epoxy adhesive
- Allow the adhesive to fully cure
Works great for me and the cover is mounted securely again.
