Extol Industrial 8791590 & 8791941 Bumper
Print Profile(0)
Description

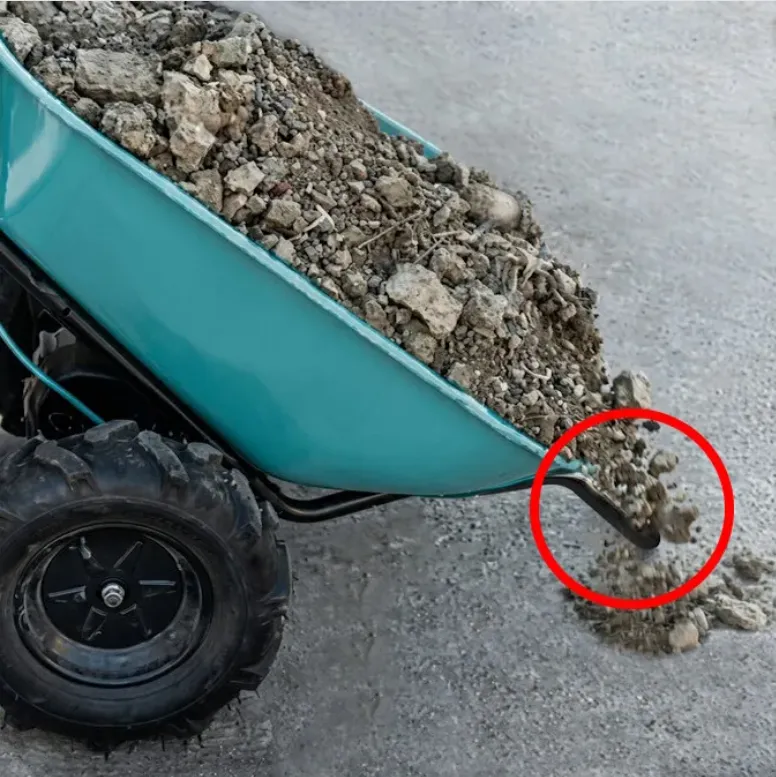

Protective bumper for the tipping frame **8791590D** of cordless wheelbarrows **EXTOL Industrial 8791590 and 8791941**. Designed to prevent scratching of the painted surface during unloading.
The functionality has been tested even with heavy materials such as **16–32 gravel**, including repeated dumping.
**Two versions available:**

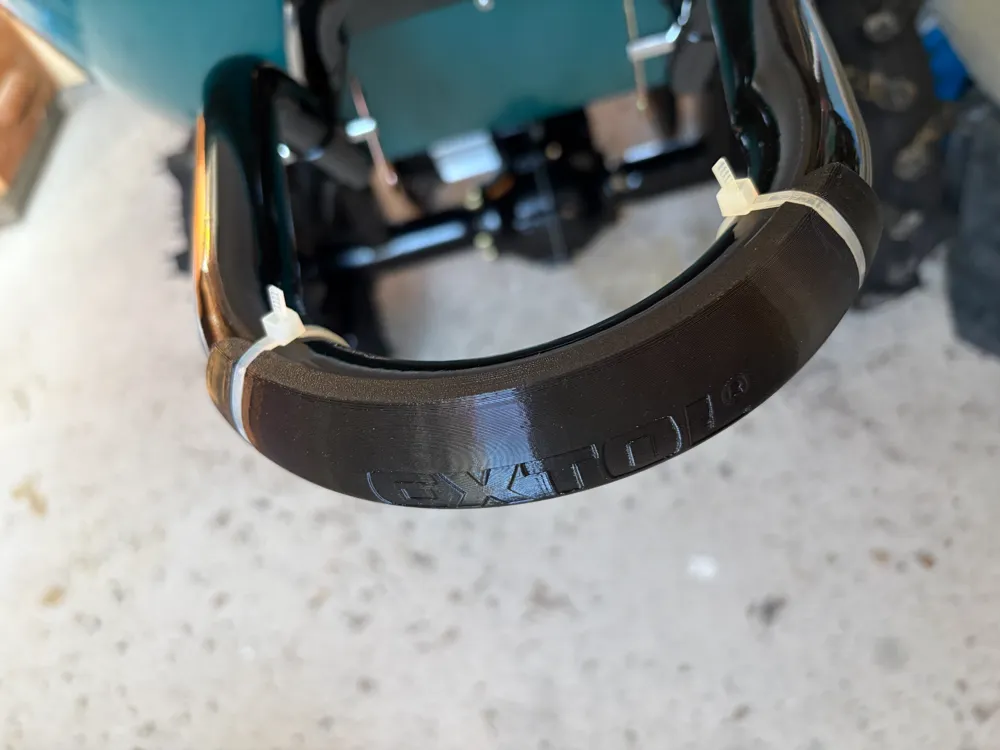

**A)** for fixing with zip ties – no warranty loss. **USE 3 ZIP TIES.**
**B)** for fixing with **3.2 mm blind rivets** – requires drilling into the tipping frame (warranty loss)
Recommended print settings
Material: PETG - very important
Layer: 0.2mm
Perimeters: 3
Solid layers - top: 5
Solid layers - bottom: 5
Infill: 100%
Supports: yes
Recommended support settings

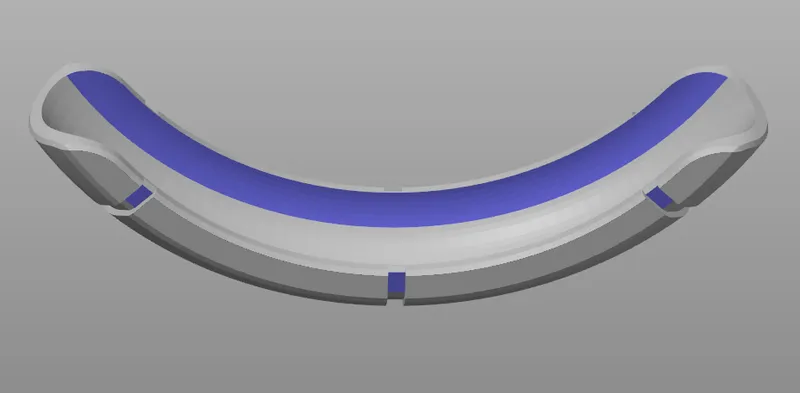

Position of supports
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
