Unimog U5023 metal beam
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 50% infill
Designer
6.6 h
3 plates
Open in Bambu Studio
Boost
0
4
2
0
3
0
Released
Description
Content has been automatically translated.
Boost Me (for free)
2026-5-19 Update: dwg format drawings uploaded

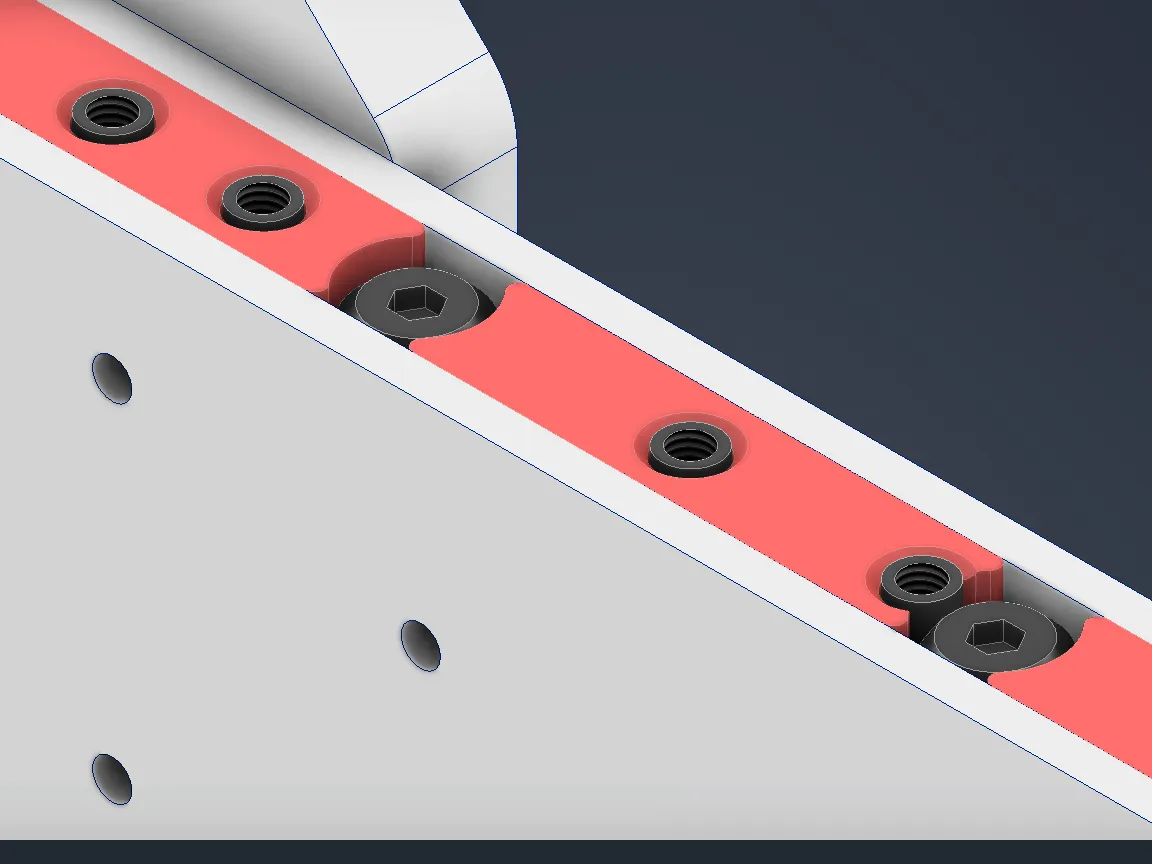

2026-5-15 Update: M2*0.4 hole positions marked

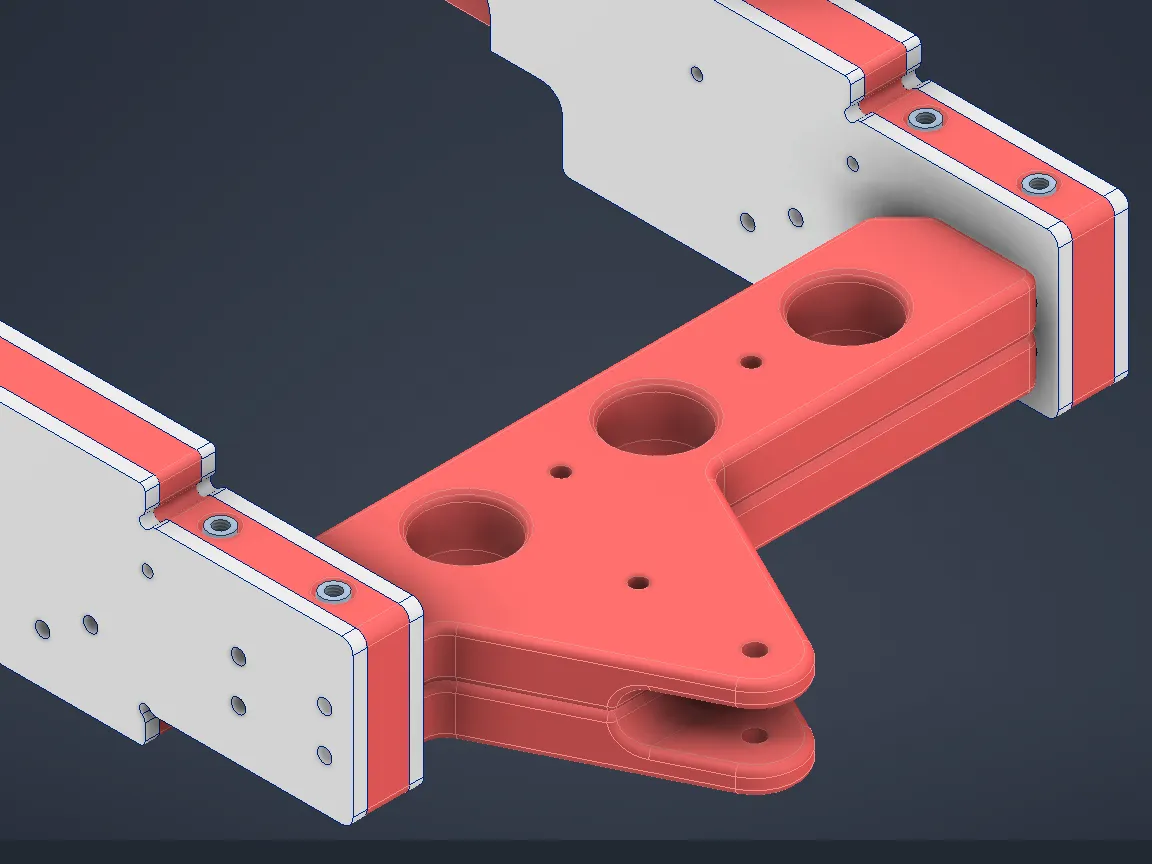

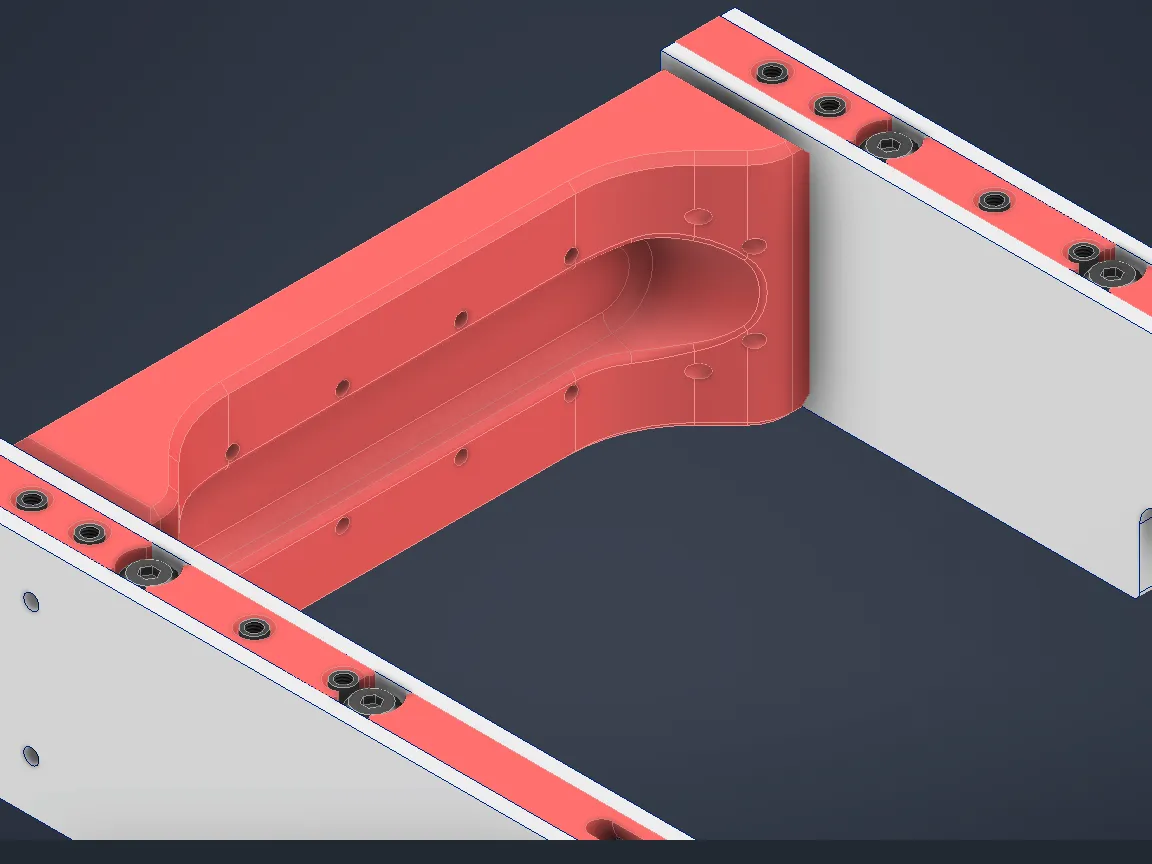

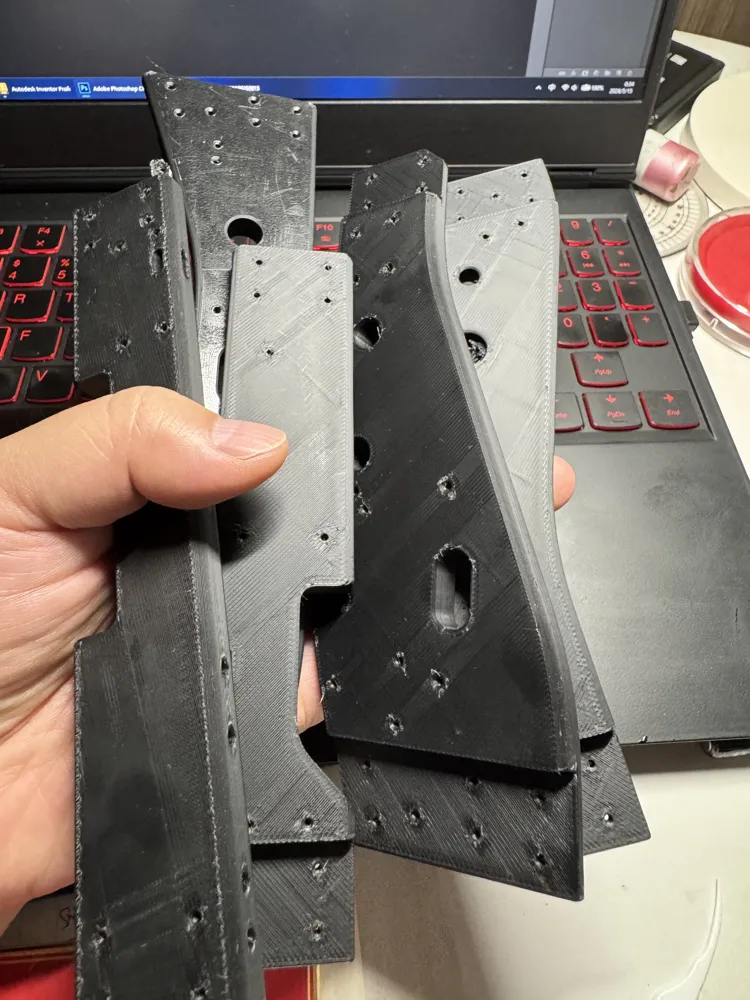

The original main beam lacked rigidity and CNC was expensive, so I designed this semi-metallic solution
This ensures improved strength, vehicle texture, and quality at a lower cost

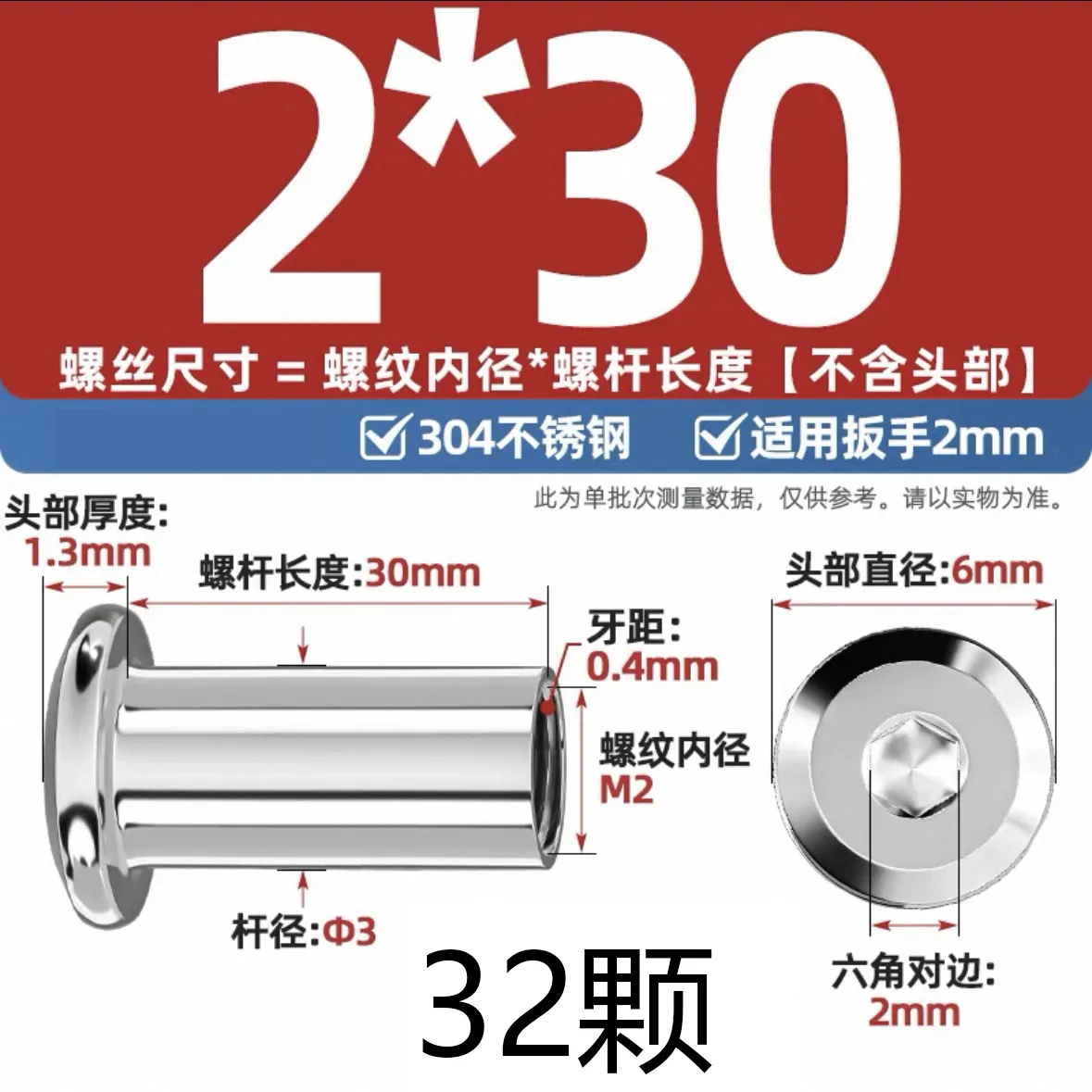

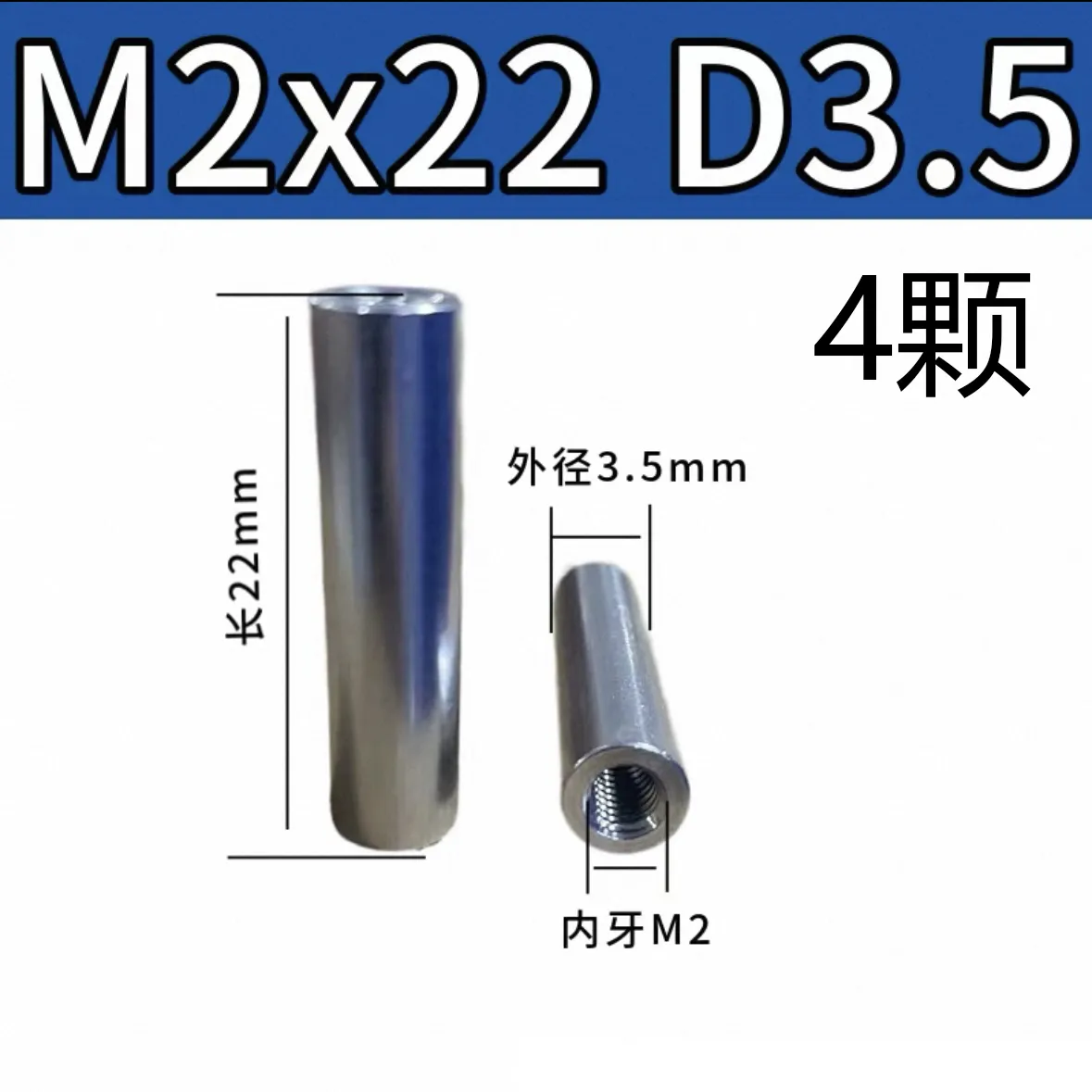

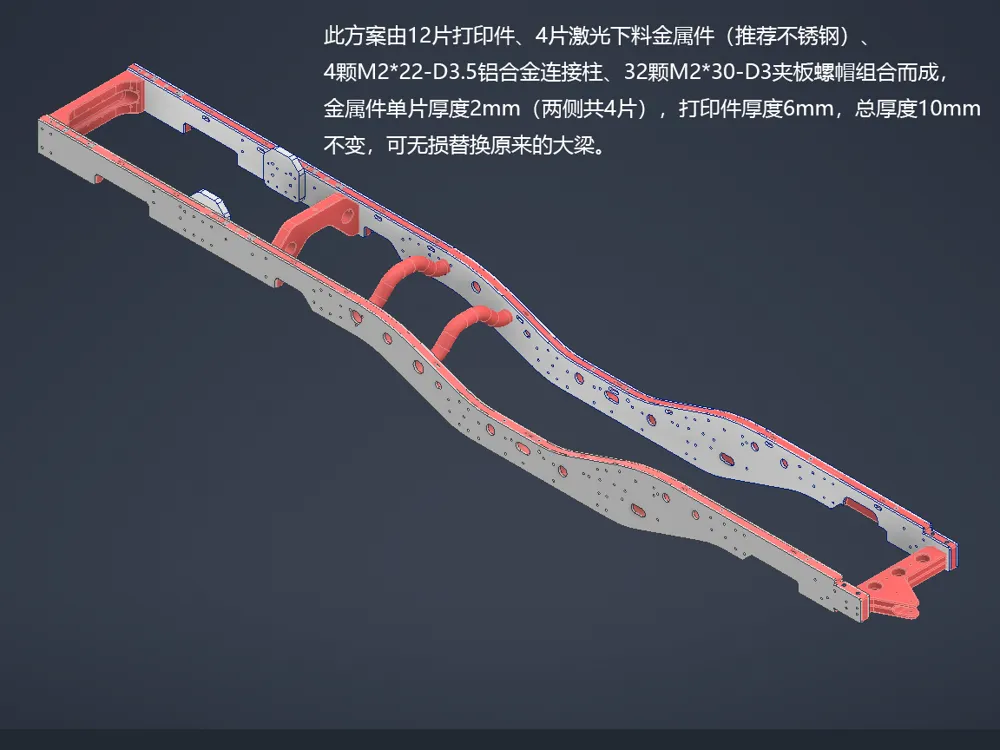

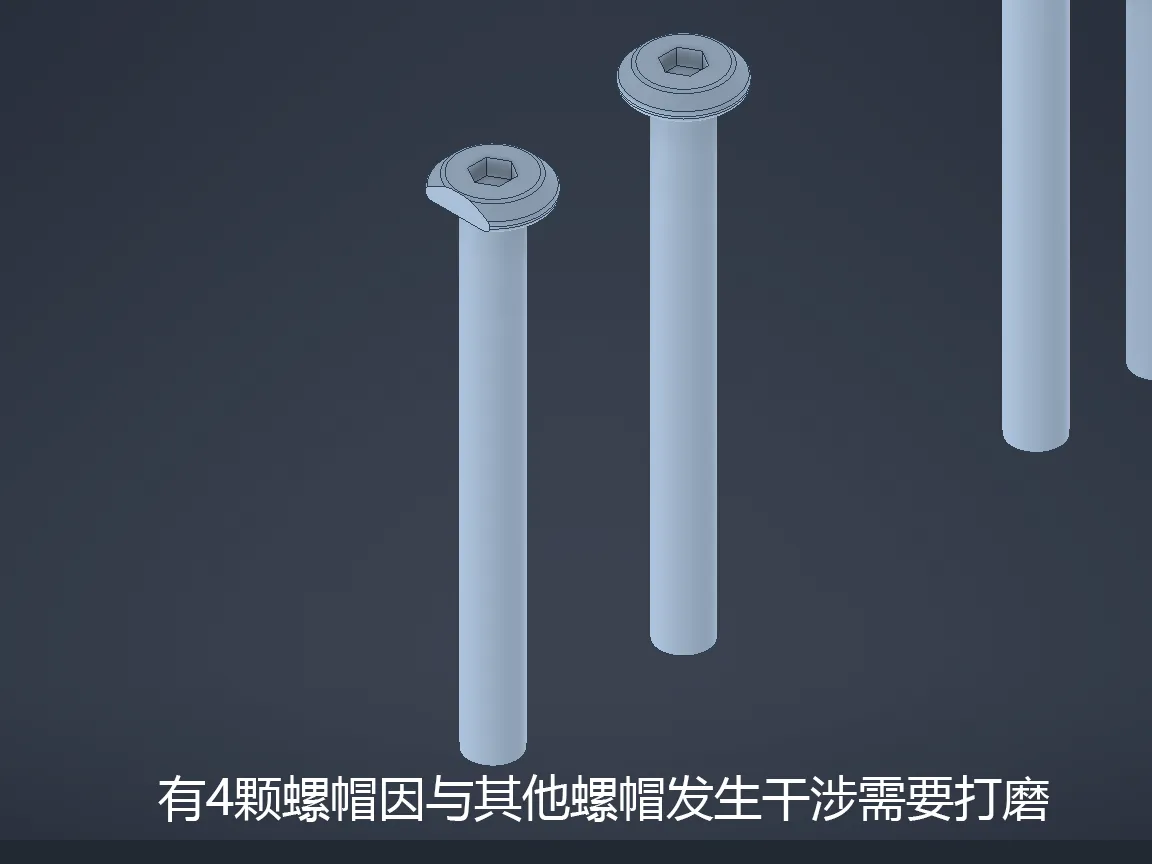

A total of 4 metal parts (laser cut), 4 M2*20-D3.5 aluminum standoffs, and 32 M2*30-D3 clamp plate nuts are needed
Under current conditions, it has been upgraded to metal parts to the maximum extent

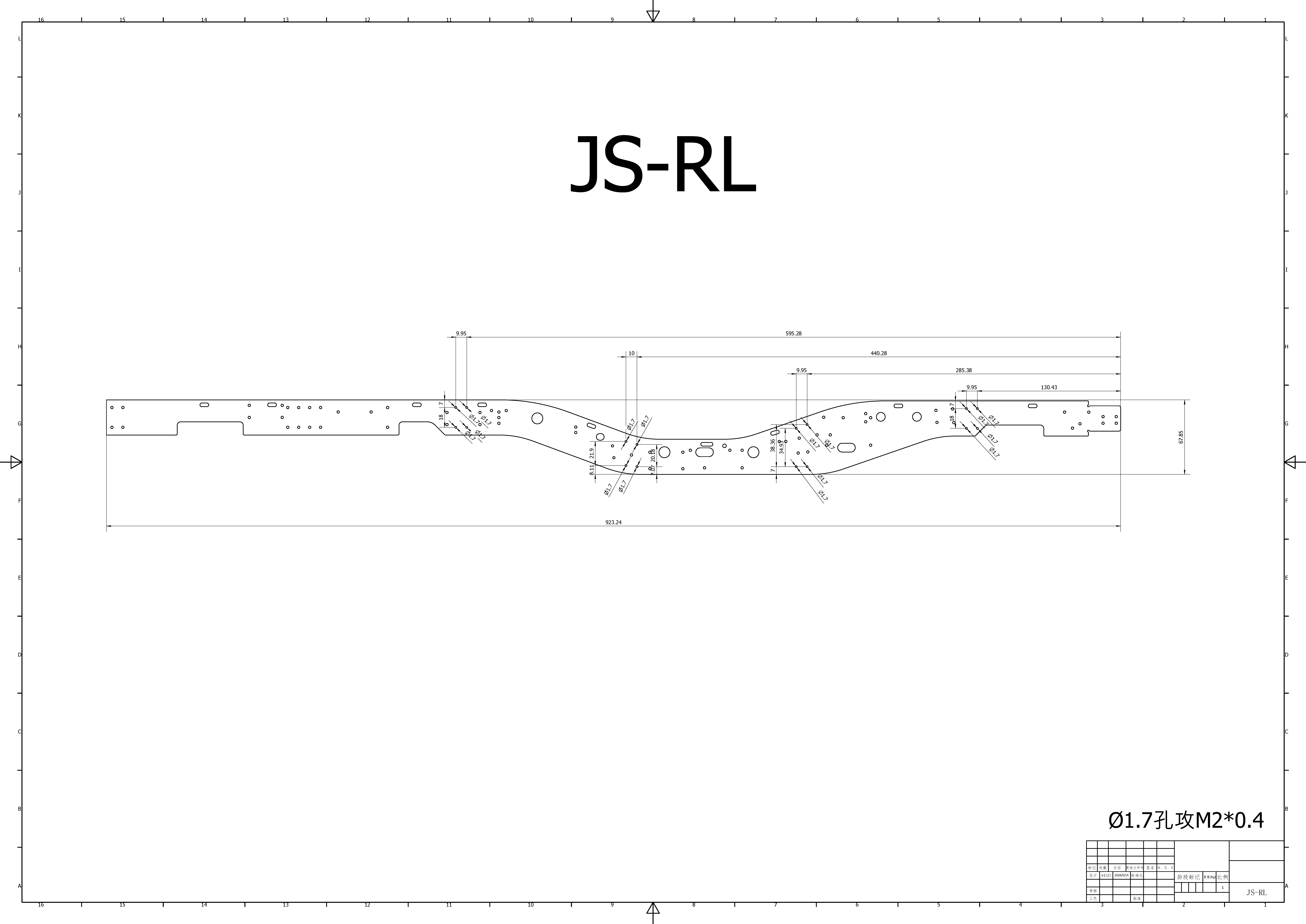

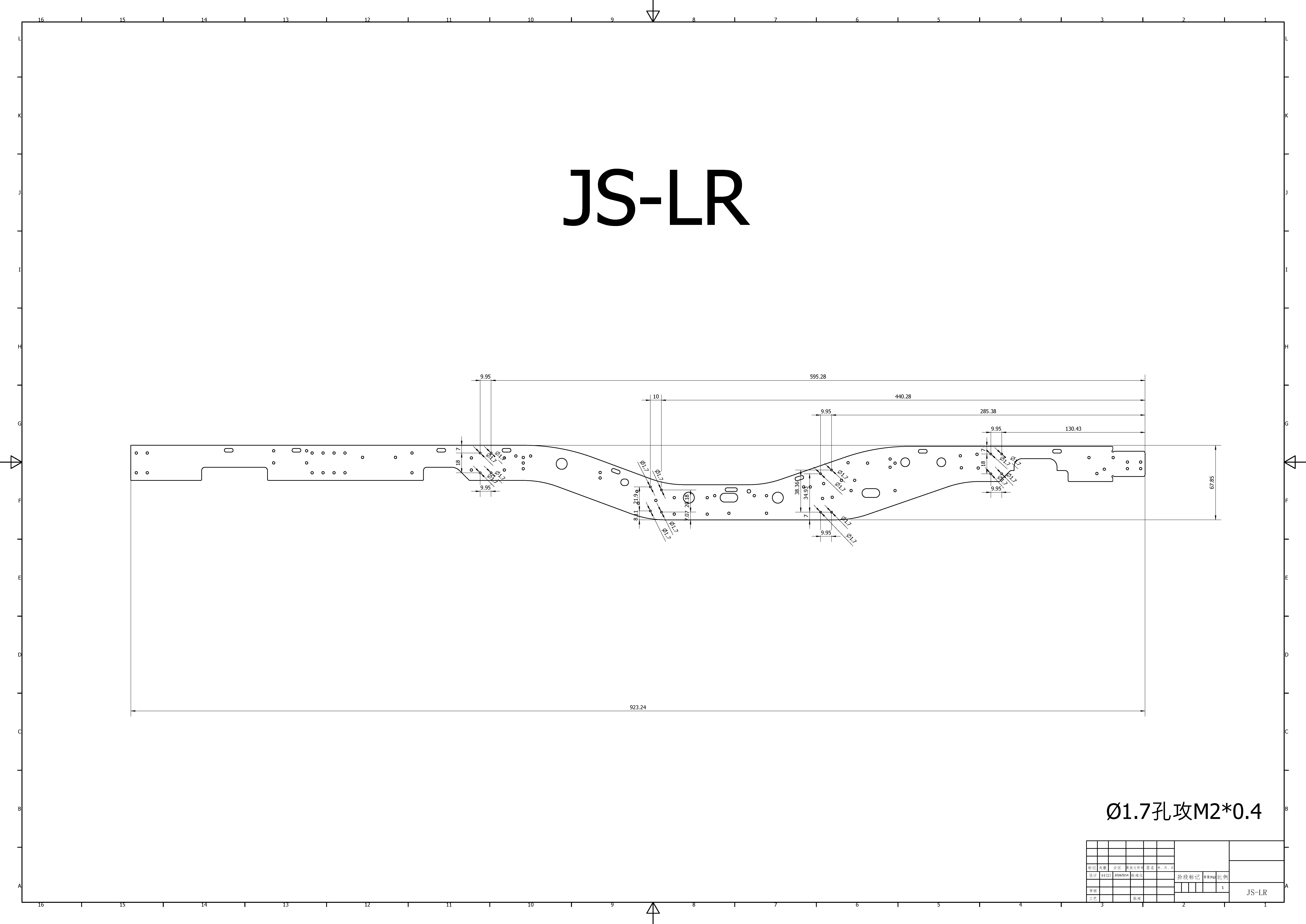

Complete set of drawings in PDF document attached
Documentation (2)
Other Files (2)
全套图纸.pdf
dwg图纸.zip
