Dynamic Toy - Pull-Up Figure

Design Concept

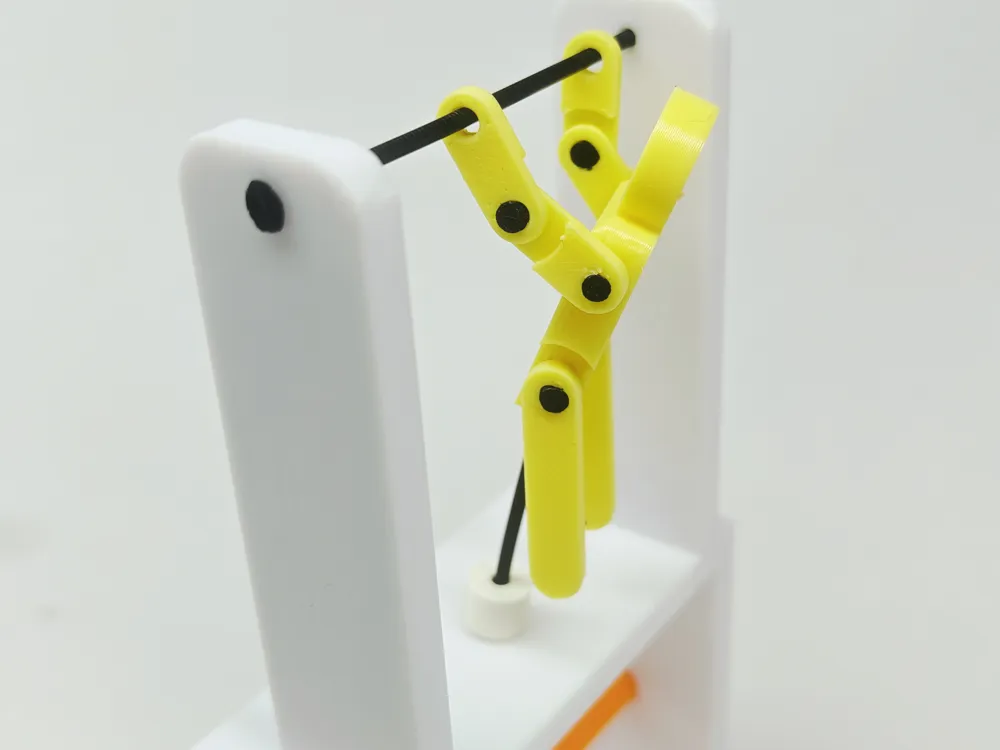

This model features a playful mechanical design, including a dynamic figure that can perform pull-ups. Its bright colors and simple design make it both appealing and easy to operate.

Uses

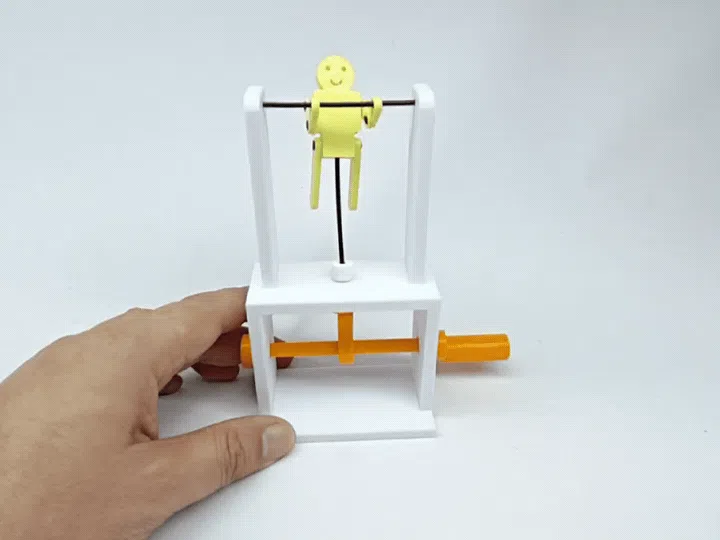

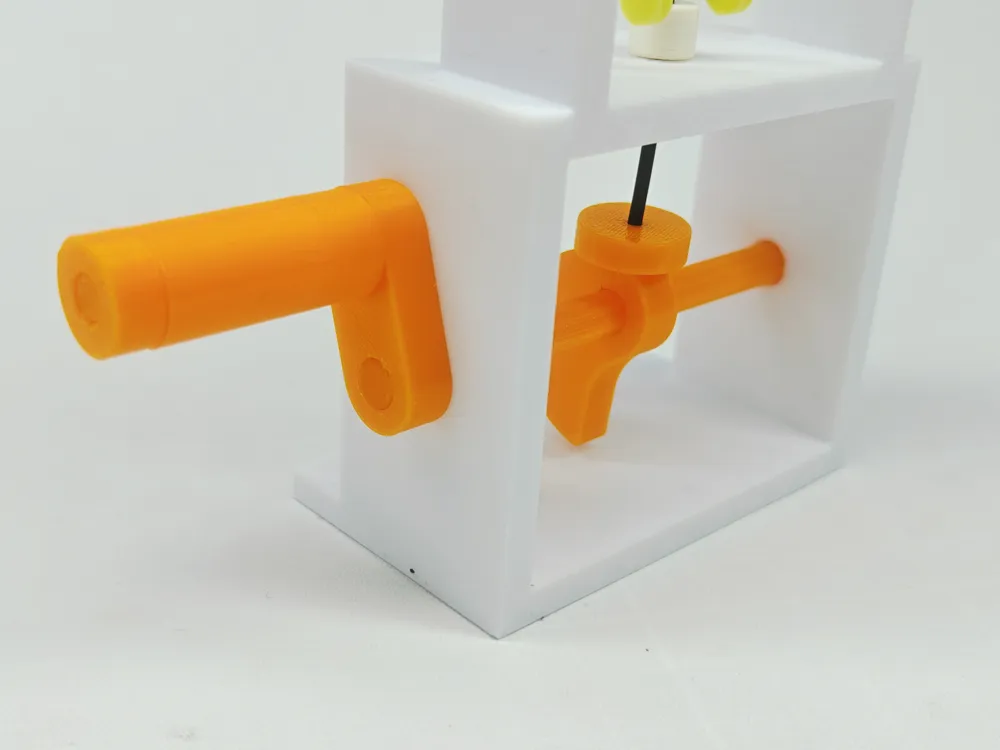

The primary purpose of this model is entertainment, making it perfect for those interested in toy mechanical structures or for demonstrating basic motion concepts with a hand-crank mechanism. It can also serve as a fun desktop decoration.

Printing Suggestions
It is recommended to use PLA material to ensure sturdy and stable prints. Printing with a medium layer height is recommended to achieve smooth surfaces on all mechanical parts, thus ensuring smooth movement.

Assembly Instructions

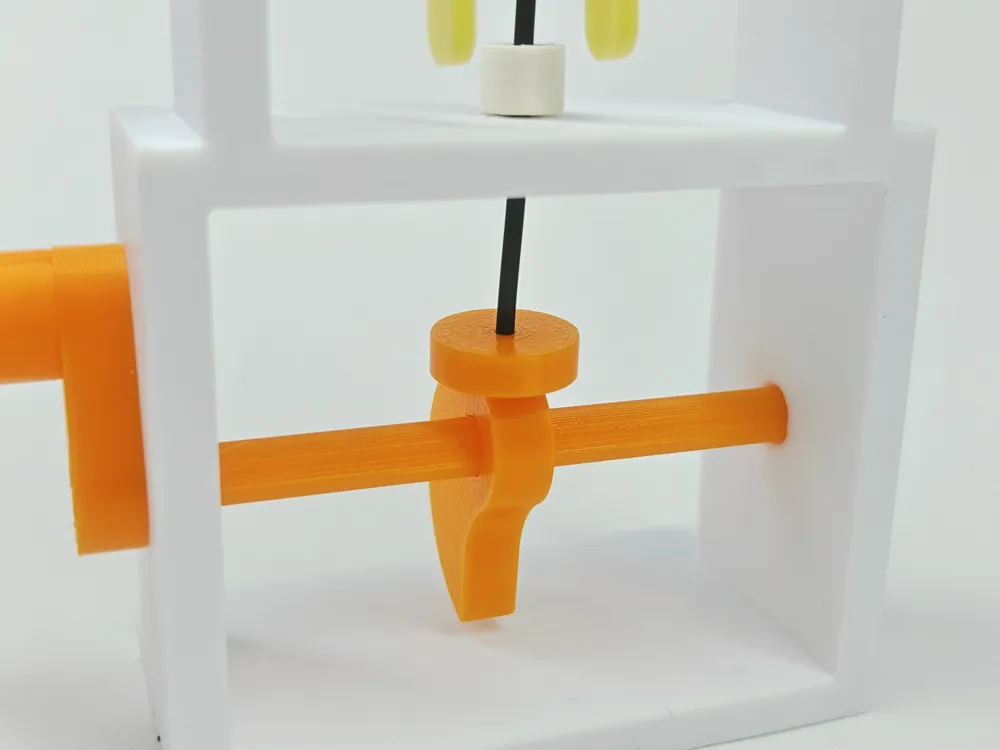

After printing all parts, accessories can be installed as shown in the diagram. Prioritize assembling the figure, the connecting shaft and pull-up bar, and the slider connecting rod, all using filament as accessories. When assembling the figure's hands and feet, cut a piece of filament slightly longer than the connecting joint, insert it into the joint. After heating both ends with a lighter, flatten them to complete the connection. After connecting the slider and the figure to the telescopic rod, leave a longer piece of filament. Determine the exact length after debugging is complete. Once confirmed, some glue can be used for reinforcement.

Tips:

1 Due to differences in materials and printer types, print quality and tolerances may vary. After printing, if you find that the fit is too loose or too tight, you can scale parts of the model as needed.

2 If some connections are loose or fit too tightly, you can use some glue to secure them, or sand down the corresponding parts.

3 Due to variations in materials and printers, perfect compatibility with all models and materials cannot be guaranteed. We appreciate your understanding.
