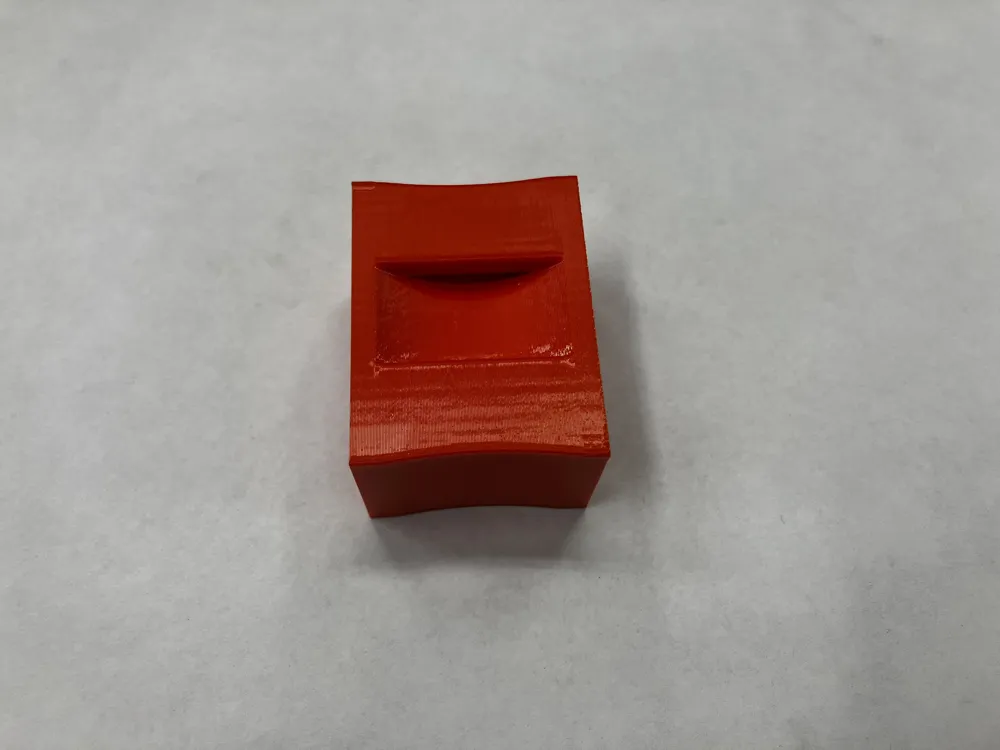

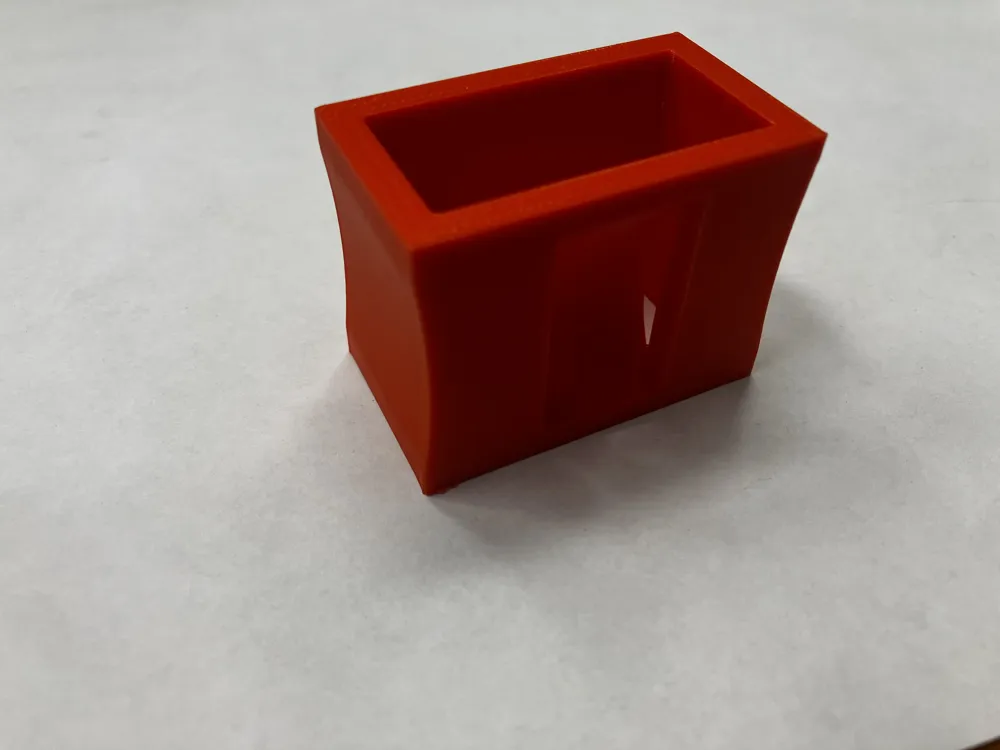

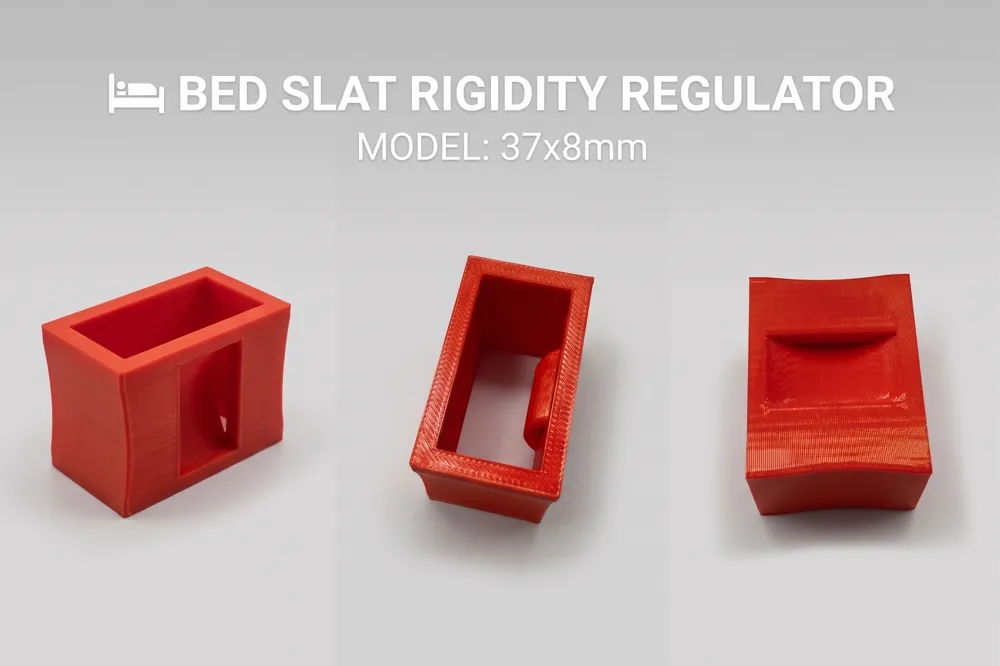

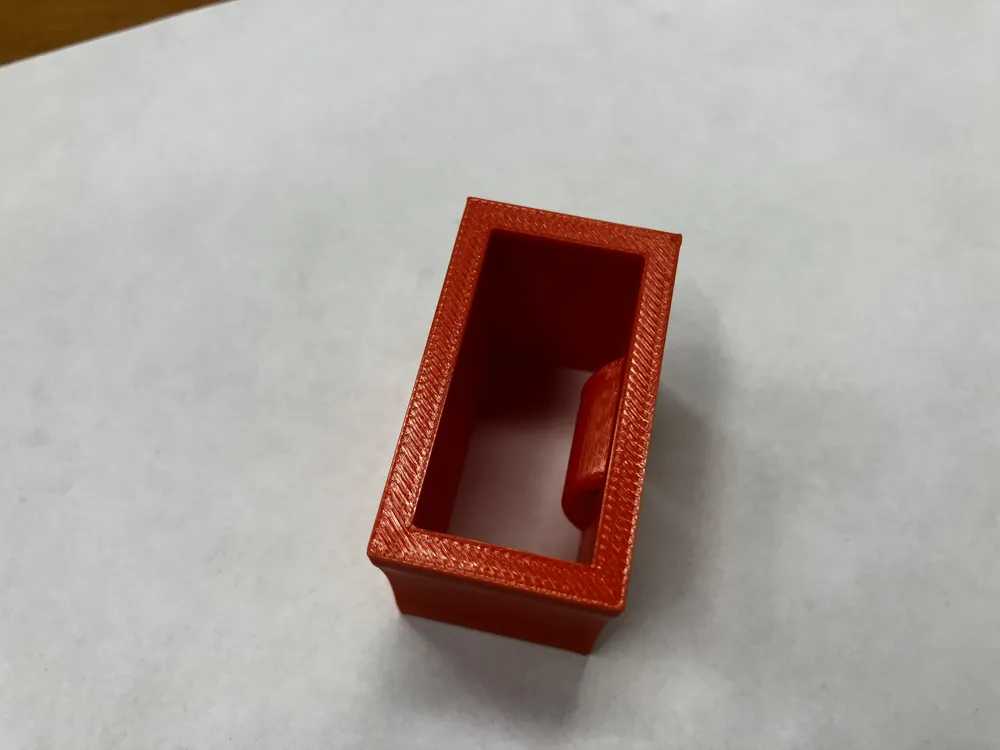

🛏️ Bed Slat Rigidity Regulator / Slider (37x8mm)

Did your original plastic bed slat clips snap? This 3D-printable replacement is a heavy-duty, reinforced alternative designed for maximum durability and easy installation.

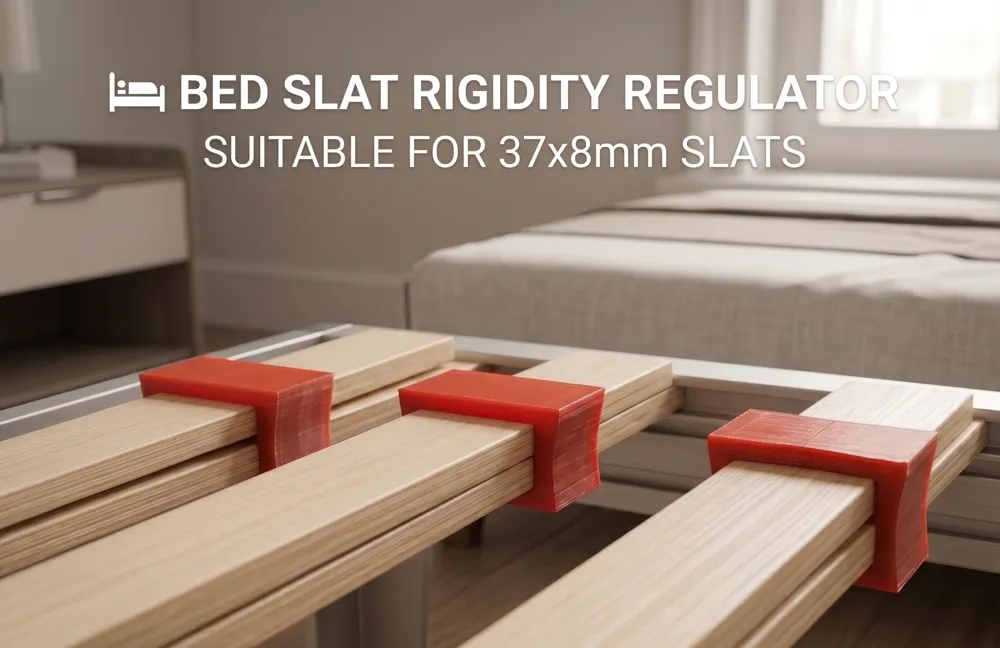

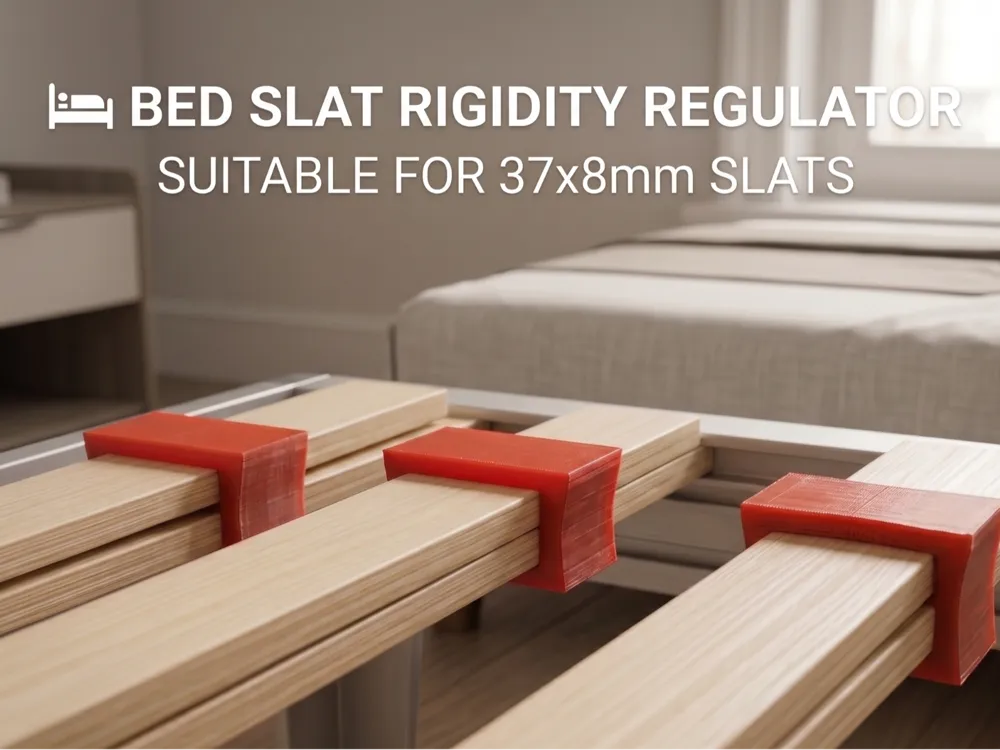

This regulator connects two slats together, allowing you to fine-tune the firmness of your bed's lumbar zone. Slide them toward the edges to stiffen the support, or toward the center for more flex.

🛠️ Technical Specifications

• Slat Size: Designed for 37 x 8 mm slats.
• Capacity: Holds 2 slats stacked together.
• Design: Engineered in Autodesk Inventor with reinforced internal radii to eliminate stress points and prevent cracking.

📦 Optimized Print Profiles

I have prepared three separate print profiles, each fine-tuned for specific material properties. All profiles use vertical orientation to ensure the perimeter strength is high enough to withstand the tension of the slats.

1. 🚀 PLA Profile:
   • Best for a quick fix and maximum rigidity.
   • Optimized for high adhesion and increased wall count to compensate for PLA's brittleness.
2. 💪 PETG Profile (Recommended):
   • The ideal choice for long-term use.
   • Offers the perfect balance between strength and flexibility, preventing the clip from snapping under dynamic loads.
3. 🧬 TPU Profile:
   • For an "unbreakable" solution.
   • High wall count and infill settings ensure it stays firm while providing silent, squeak-free operation.

🔧 Installation Instructions

1. Choose the profile matching your loaded filament.
2. After printing, ensure the inner surfaces are smooth.
3. Slide onto the pair of slats and adjust to your preferred firmness.

🔗 Complete Your Repair

If you are upgrading your bed frame, check out my other matching model designed for the same 37x8mm slat dimension:

• Bed Slat Holder (37x8mm)
  • The perfect companion to this regulator.
  • Replace your broken end-caps with this heavy-duty reinforced holder.

Love this design? Please leave a rating or post a make! As a Verified Designer, your feedback helps me keep improving these functional household fixes.

Tested on Bambu Lab A1 series for perfect dimensional accuracy.
