Pickleball Pick-up Tube - Free 3D Print Model

Description

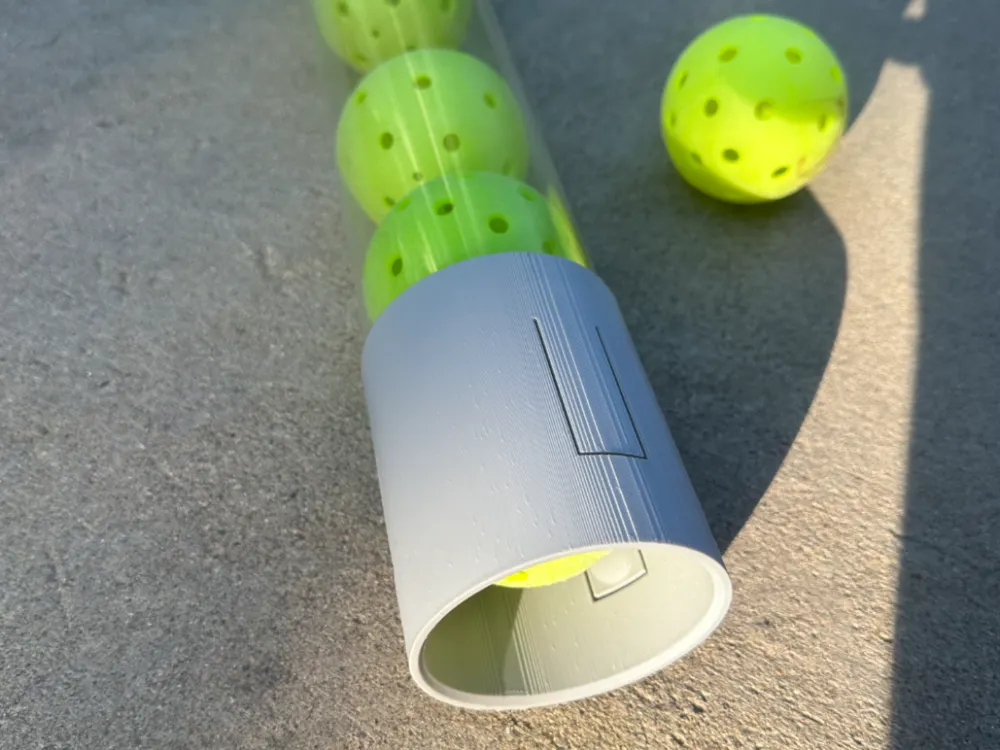

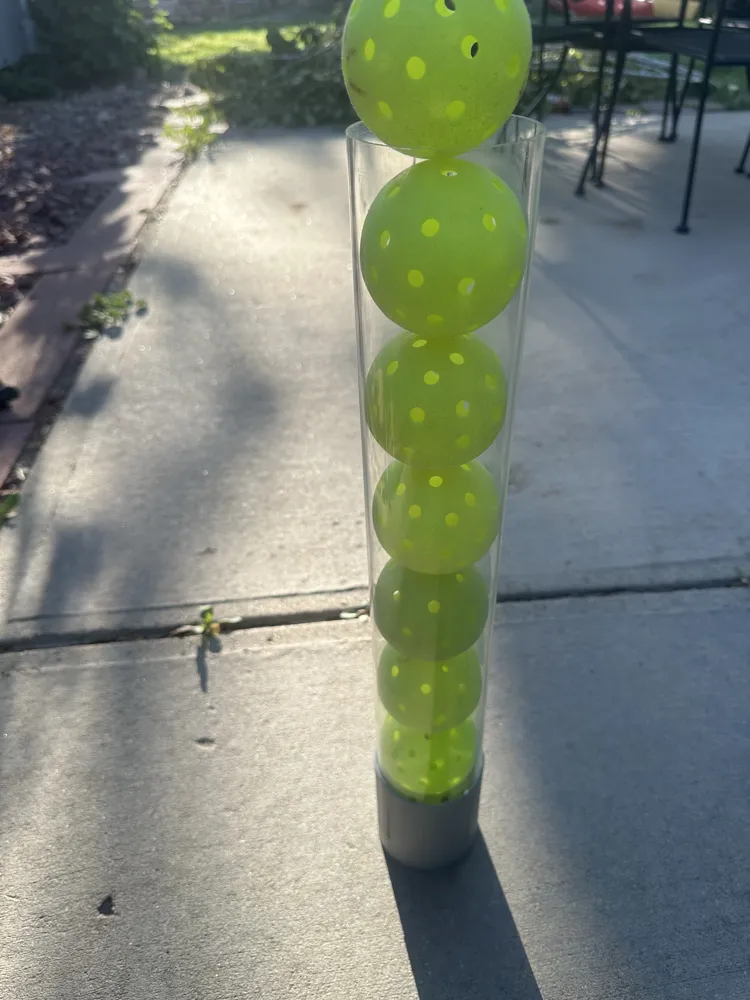

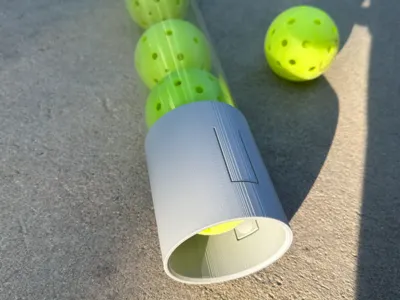

A fully compliant mechanism, pickleball pick up tube. super handy for serving practice, and drilling when you have a lot of balls to pick up. Saves your back. Just push down over a ball to pick it up, and then dump into your serving bucket when the tube is full. I designed it for an interference fit to the acrylic tube. The fit can require a little cleanup, light sanding, or heating to connect, but should connect without the need for an adhesive. I used a tube with the following dimensions. 18" Clear Plastic Rigid Pipe 76mm ID x 80mm OD (3" ID x 3.125" OD), and found it worked well. Printed with Bambu PLA Tough+, 5 walls worked well. I get the best prints with tree support, and printed so one ball pickup tab is pointed directly up away from the build plate.

pickleball

pickleball accessory

pickleball accessories gift

pickleball picker

pickleball picker upper

pickleball addict

pickleball attachment

pickleball accessories

pickleball training
