Carburator gasket plate for 125cc engines
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 100% infill
Designer
15 min
1 plate
Open in Bambu Studio
Boost
2
8
3
0
8
5
Released
Description

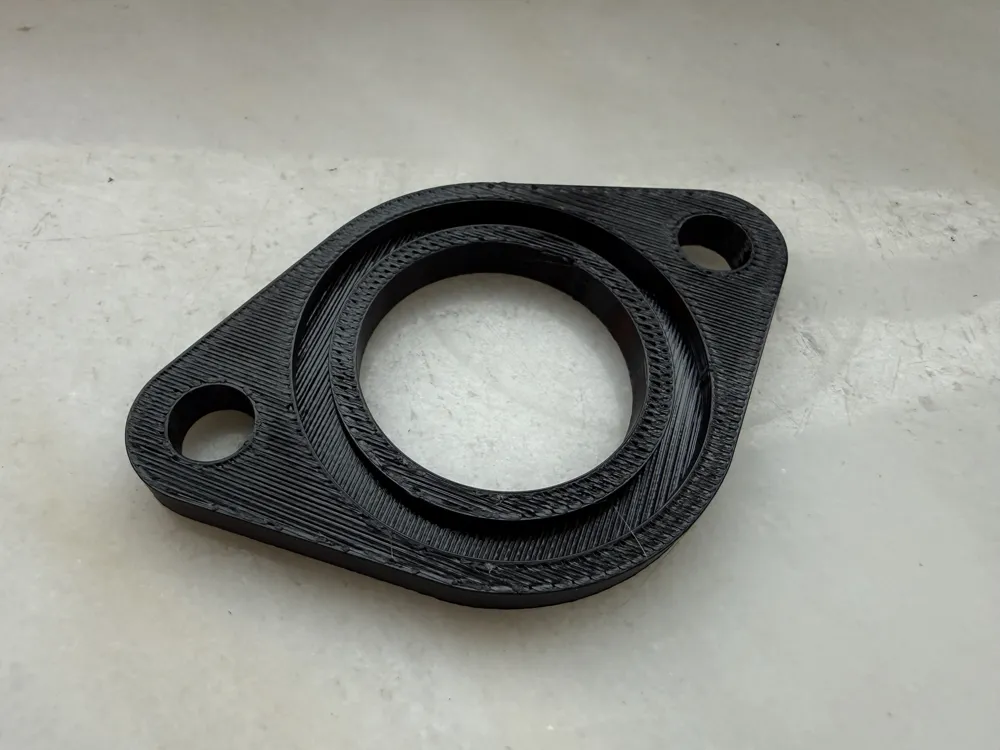

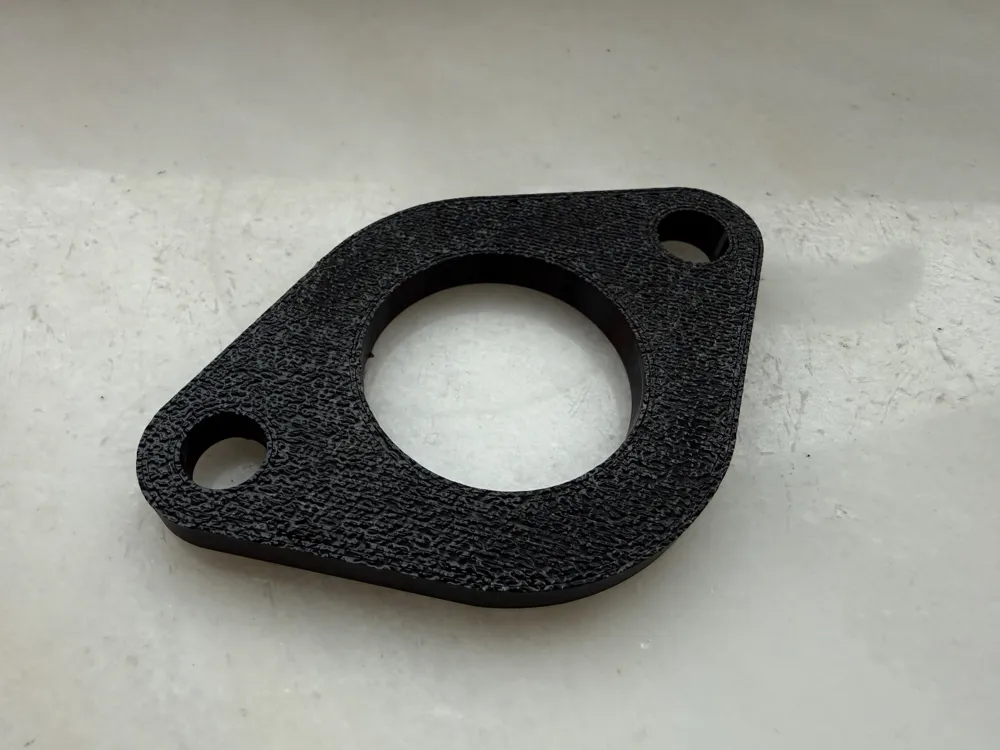

Thermal insulator plate designed for Pitbike/Fiddy engines (110cc, 125cc, 140cc). This spacer acts as a critical thermal barrier between the cylinder intake manifold and the carburetor, preventing heat soak and fuel vaporization issues.

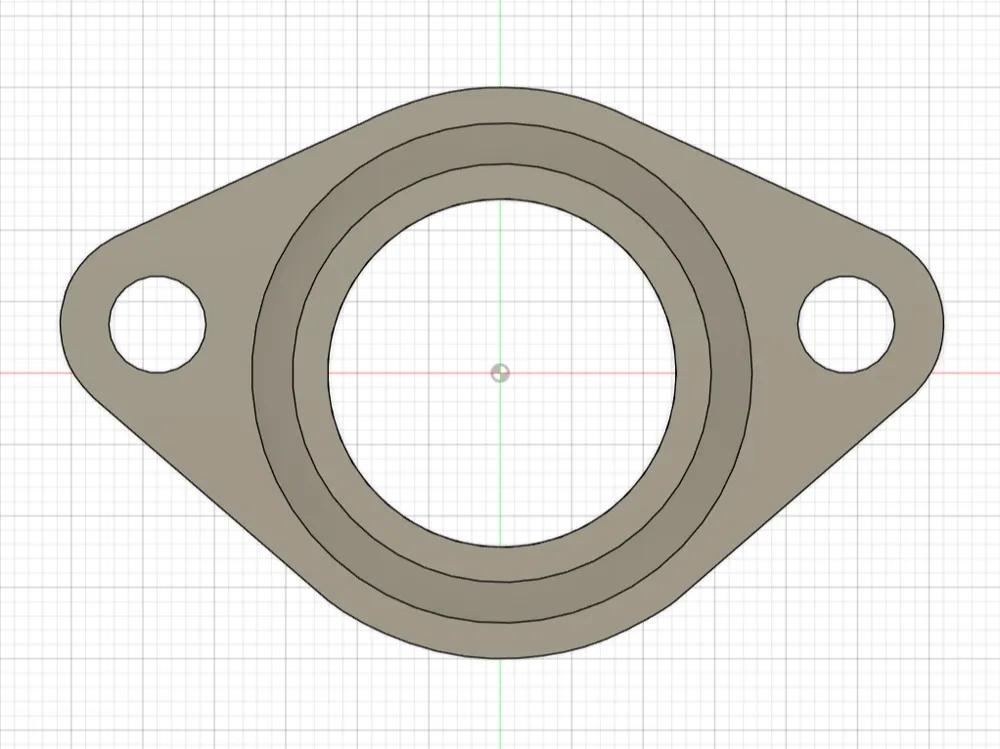

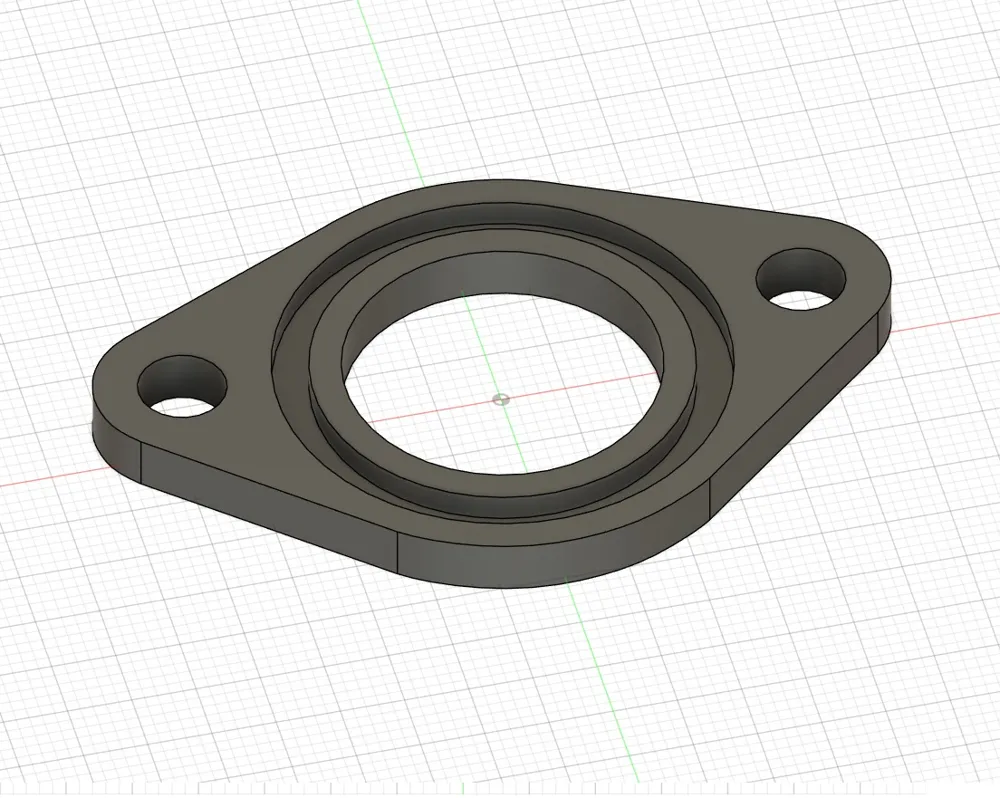

Standard 48mm bolt-to-bolt spacing with a 25mm internal bore, compatible with Mikuni VM22, Molkt, and PZ series carburetors.
Designed to be used with O-rings to prevent vacuum leaks and erratic idling.
Fits most Chinese 4-stroke horizontal engines (Lifan, YX, Zongshen, Orion).
