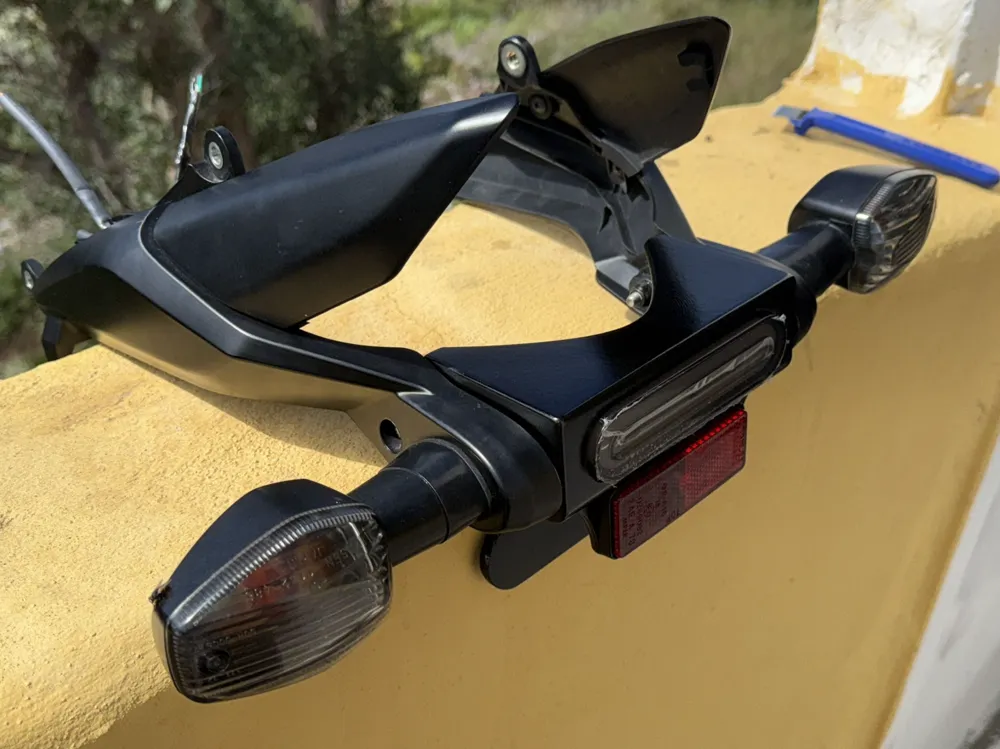

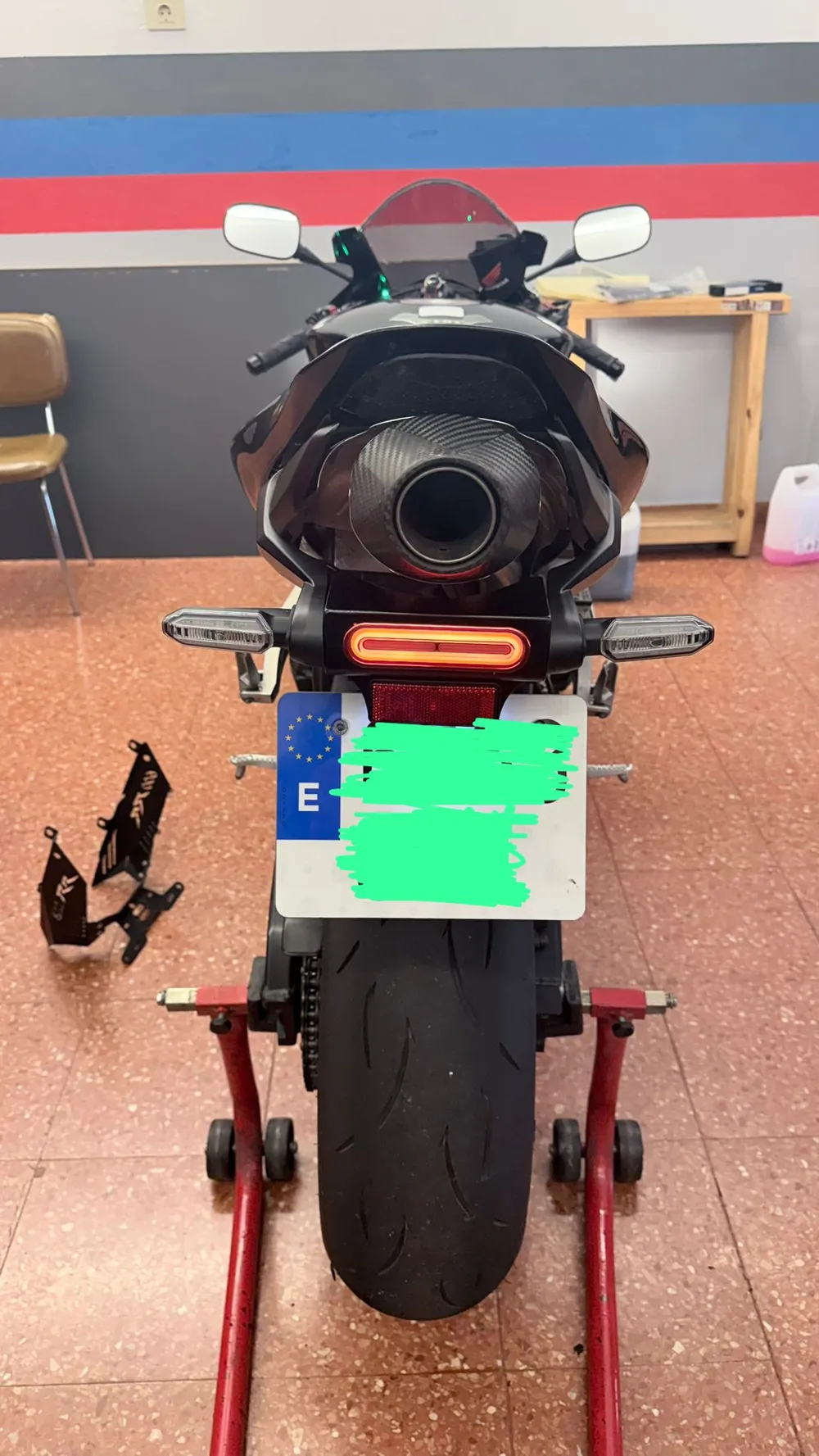

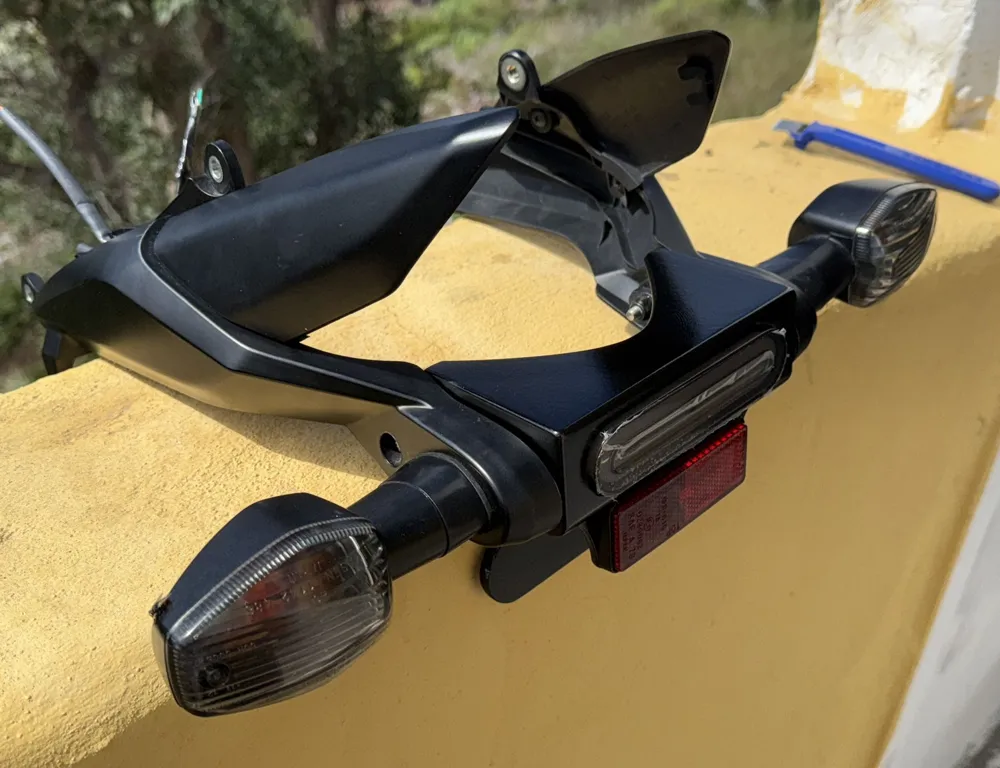

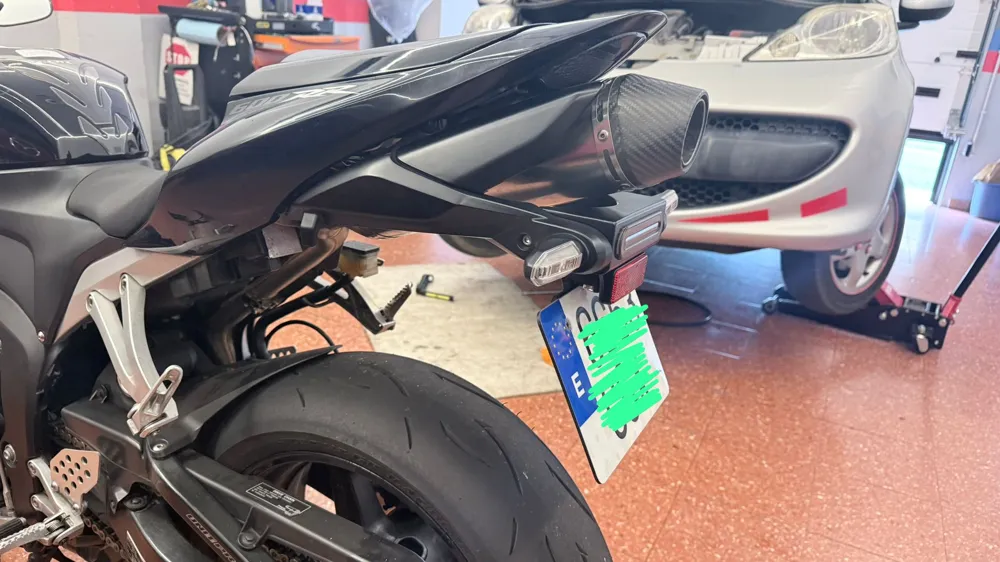

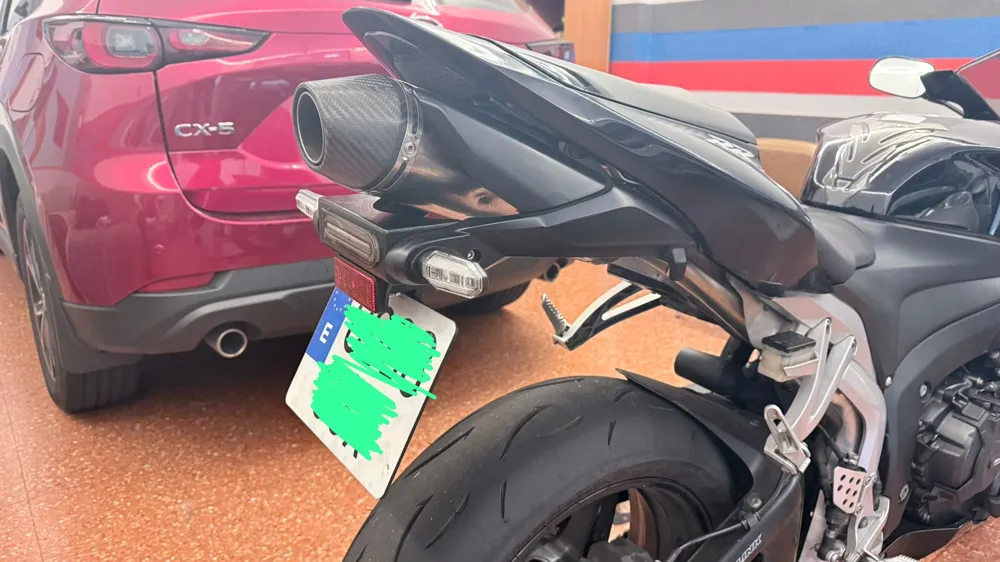

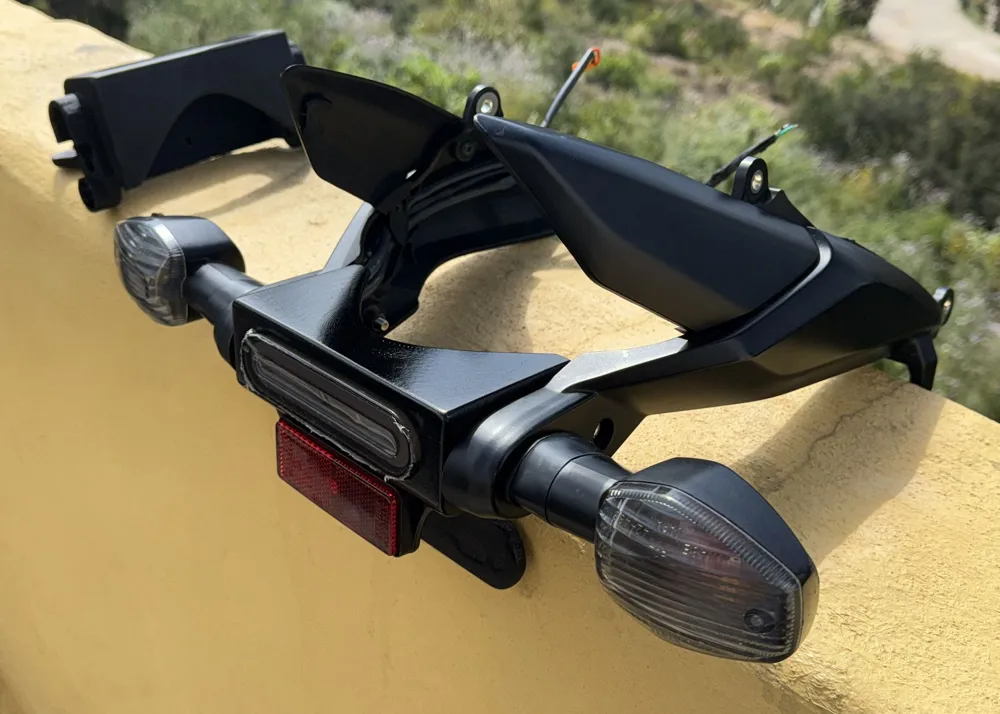

Short License Plate Holder for Honda CBR 600RR 2008 – Aftermarket Light Edition
Give your Honda CBR 600RR a much more aggressive and cleaner look with this short license plate holder (Tail Tidy) specifically designed to be functional and durable.
This model is an improved adaptation of the original design, optimized to integrate perfectly with a very popular aftermarket LED tail light (integrated style), allowing for a professional finish without sacrificing safety.
🛠️ Main Features:
- Light Compatibility: Specifically designed for the LED tail light available on AliExpress (see link below). The mount includes the necessary internal anchor to securely hold the brake light from the inside.
- Stock Components: Allows reuse of the original factory turn signals and side brackets, maintaining OEM visibility and aesthetics.
- Cable Management: Features internal holes designed to hide cables, achieving a clean installation without cables exposed to heat or view.
- All-in-One: Integrated space for the reflector (mandatory for vehicle inspection in many countries) and for the license plate light.
- Road Tested: The design has been thoroughly tested. Thanks to its geometry, it perfectly withstands vibrations and real-world use.
🧵 Print Settings and Material:
- Recommended Material: PETG (Mandatory) PETG-CF (Recommended). Being located near the exhaust outlet of the CBR 600RR, PLA would deform with heat. PETG has proven to perfectly withstand operating temperatures.
- Infill: Minimum 50% (preferably Gyroid pattern) to ensure structural rigidity.
- Walls: 4 or 5 layers for greater strength at the screw points.
- Supports: Supports are required in the areas of the anchors and the light recess.
🔗 Link to Compatible Light:

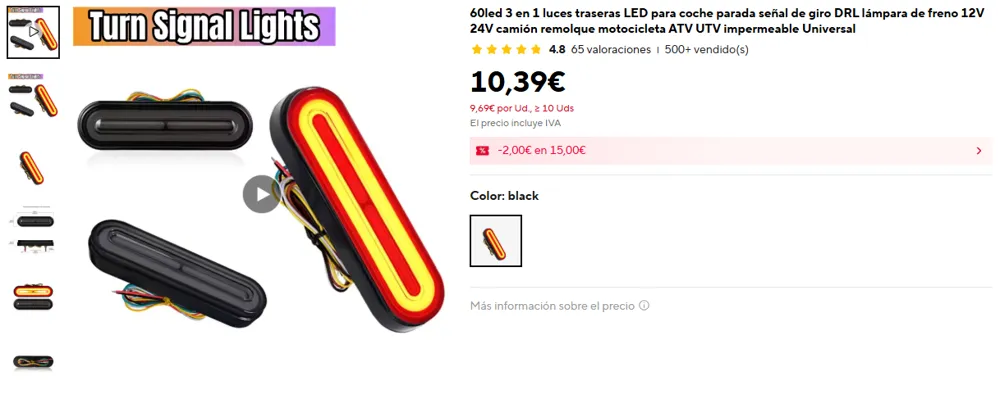

For this design to fit perfectly, it is recommended to use this light: CBR 600RR LED Tail Light - AliExpress
-https://es.aliexpress.com/item/1005008979271414.html?spm=a2g0o.order_list.order_list_main.38.7e93194dxP3GK2&gatewayAdapt=glo2esp
Installation Notes:
- Route the cables through the internal conduits before securing the license plate light.
- Make sure to tighten the screws of the original turn signals firmly in the included side brackets, and slightly longer screws than the originals will be needed on both sides.
- It is recommended to use washers at the connection points with the subframe to better distribute pressure on the printed part.
Do you like the design? Don't forget to upload a photo of your bike and leave a comment if it was useful!
