Secure your data with this heavy-duty storage solution for 3.5" Hard Drives.

This model is a functional remix of the popular Rugged Box, specifically resized and optimized to house standard 3.5" HDDs. It provides maximum protection against impacts and static when used with the appropriate internal padding.

Requirements for Assembly:

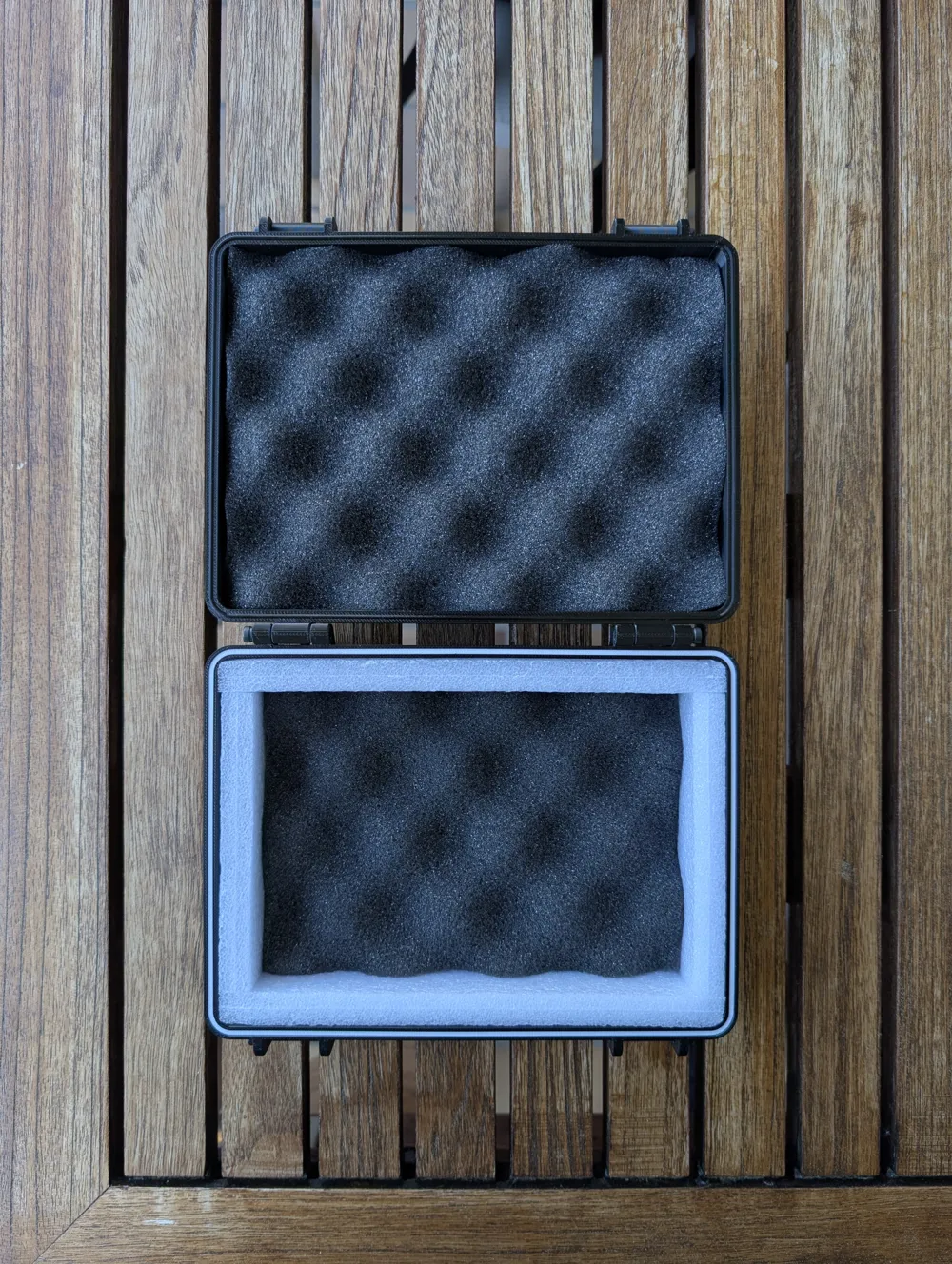

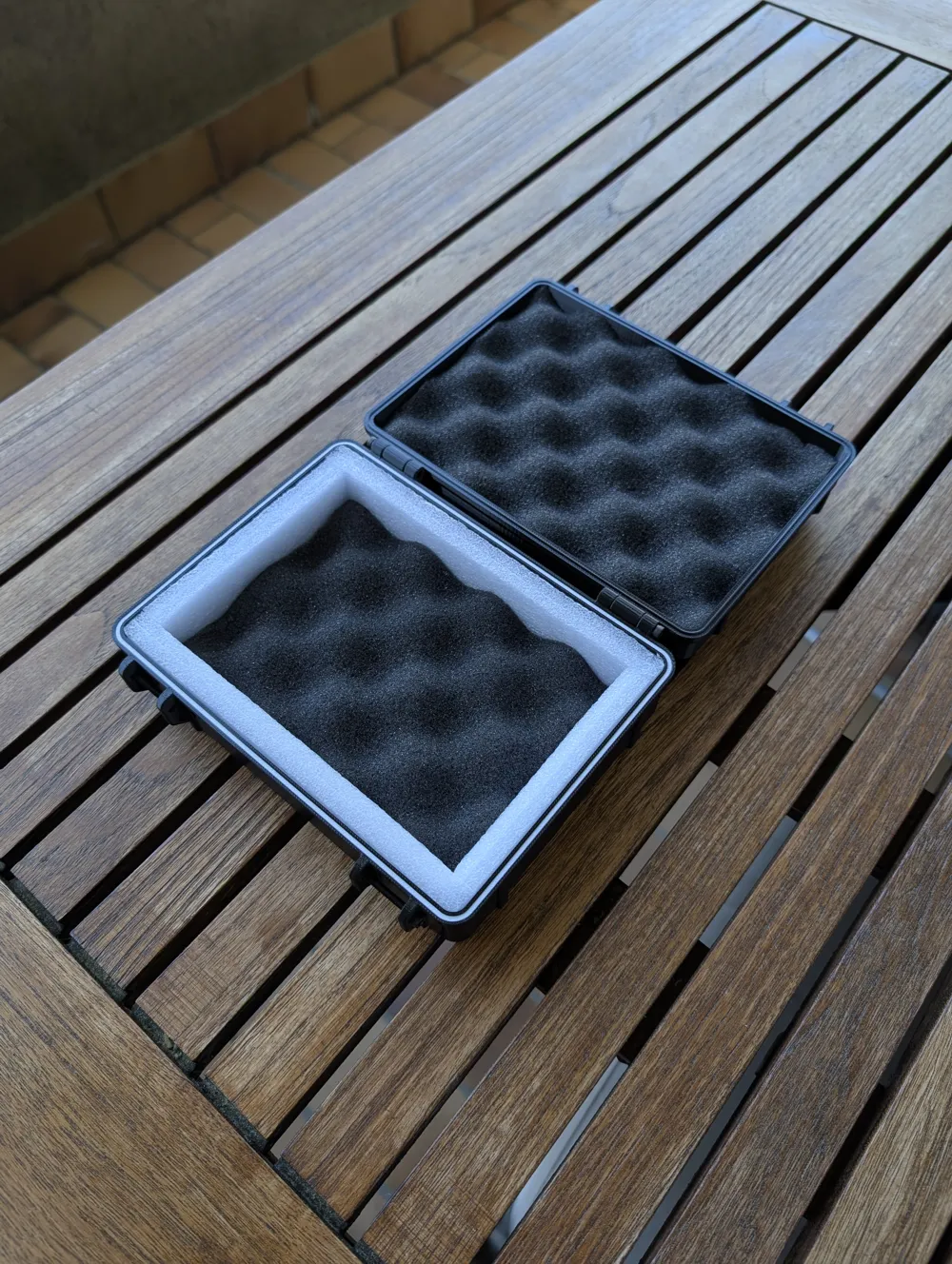

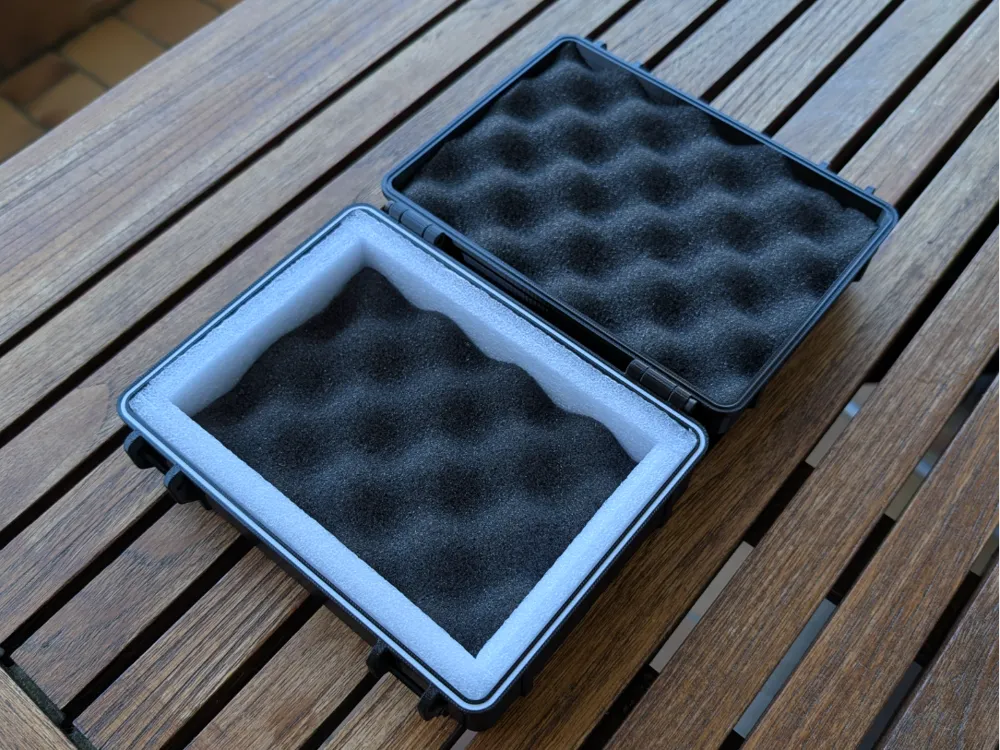

To achieve the fit seen in the photos and ensure your drive is fully protected, you will need:

  • Side Walls: 11mm foam padding.
  • Top & Bottom: 10-20mm soft acoustic foam or similar shock-absorbing material.
  • Screws: 6x m3 screws, 25mm long.

you can also print the screws from here: m3x25mm

Key Features:

  • Custom HDD Fit: Specifically dimensioned for 3.5" drives.
  • Rugged Design: Features a reinforced hinge and latch system for secure closure.

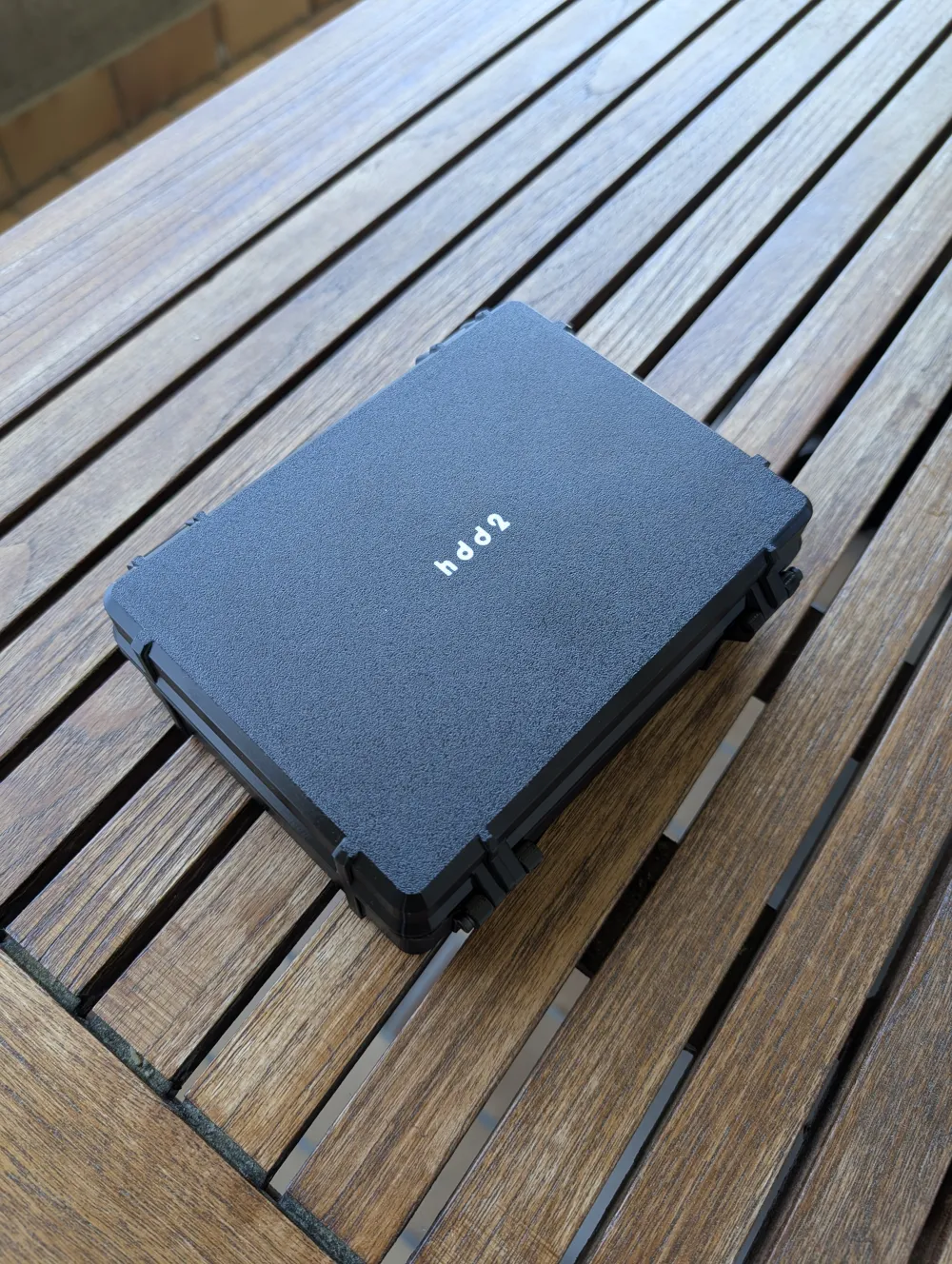

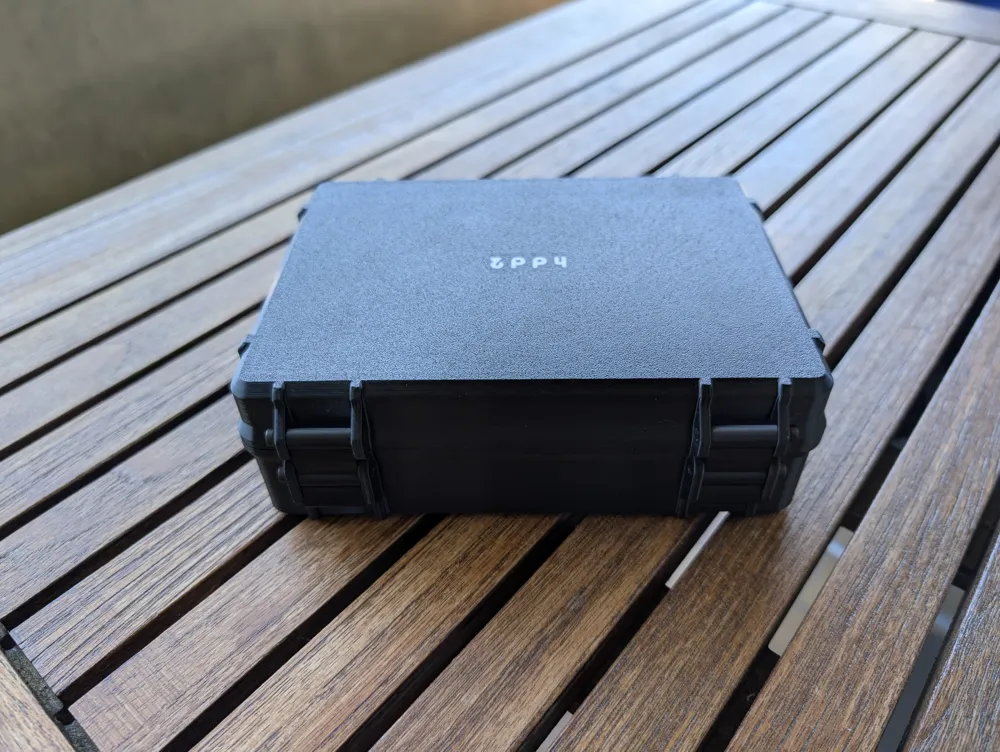

  • Professional Finish: The top cover includes a clean "HDD" label for easy identification in your archives.
