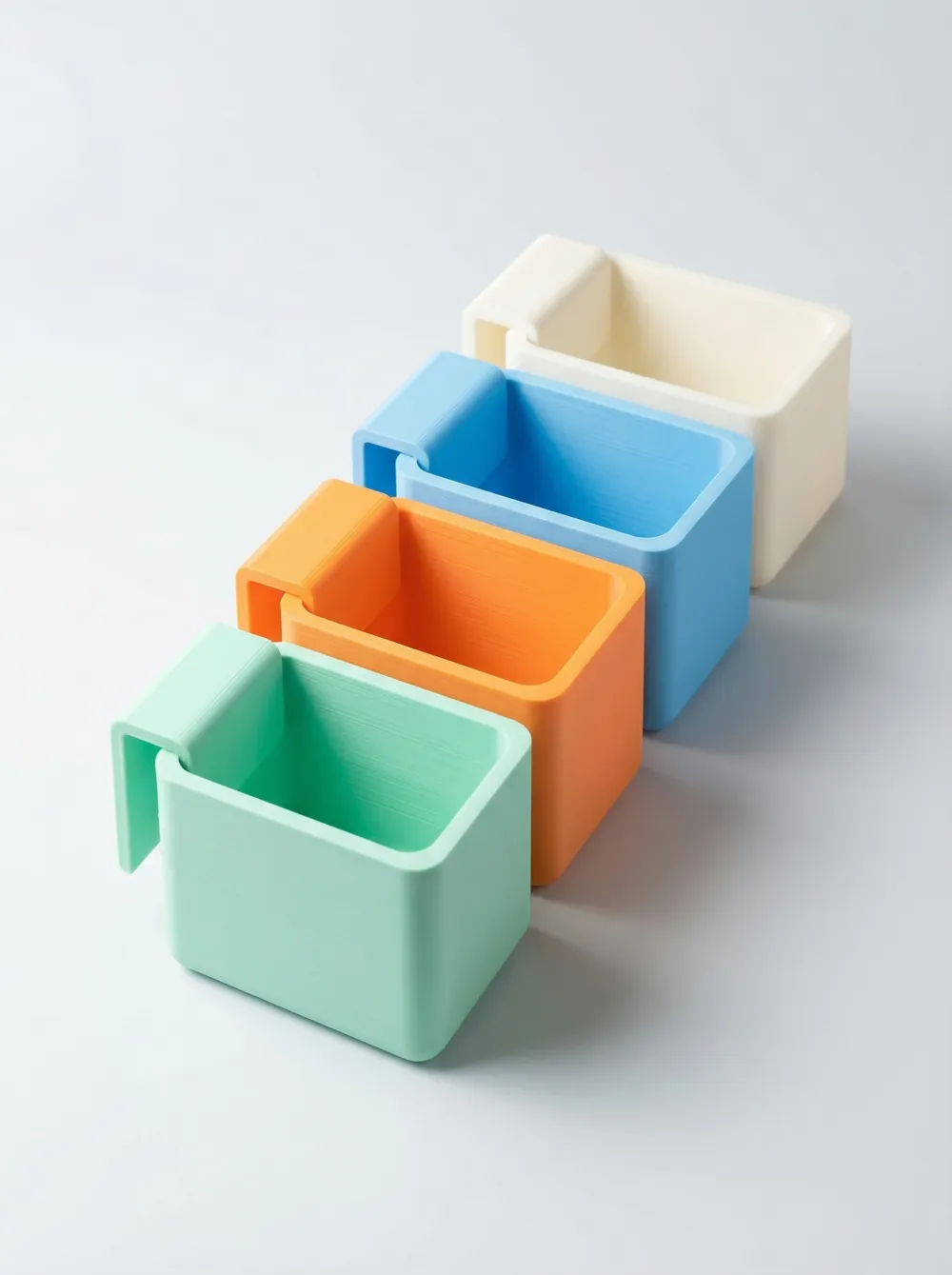

[Parameterized] Universal Add-on Box: The Ultimate Modular Solution

Most hanging boxes on the market are "one-time fit" – once you change the cart, the box becomes trash. This design achieves the physical separation of the box body and the hook through its core buckle logic. This means: the box is eternal, while the hook can be replaced at any time to suit any future scenario.

✨ Key Highlights of This Version (Parametric V1.0)

• Deep Parametric Customization: This is the 1.0 version of the parametric design. You can freely define the box's length, width, height, and wall thickness. Whether storing slender paintbrushes or large photography accessories, it can be "tailor-made."
• High-Strength Modular Architecture: Printing the hook separately from the box body not only significantly enhances the tensile strength of the hook part but also avoids printing defects caused by complex supports.
• Truly "Universal" Adaptation: No longer limited to IKEA RASKOG or VESKEN. By decoupling the hook design, you only need to replace the rear hook module, and it can hang on any trolley, square tube, round tube, or shelf edge.
• Future Outlook (Roadmap): This is just the first step in the system's evolution. Subsequently, I will release dedicated parametric hook designs, allowing you to automatically generate "universal buckles" that fit any object based on different pipe diameters and thicknesses.

🛠 Printing and Material Suggestions

To ensure durability under heavy loads, please refer to the following settings:

• Preferred Material: PETG (possesses excellent toughness and long-term load-bearing stability, less prone to creep).
• Secondary Material: PLA+ (strong structural rigidity, excellent surface texture).
• Printing Parameters: If load-bearing capacity is required, it is recommended to enable 3 or more walls, and the infill rate for the hook part is suggested to be set to 30% or higher to ensure strength.
• Surface Texture: It is recommended to print with a textured build plate or carbon fiber textured build plate to achieve a more industrial aesthetic for the finished product.

If you're too lazy to generate your own dimensions, you can simply use the standard sizes I have already generated. Here is the link
