Bosch GWS 12V Plunge Sled for FSN
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 20% infill
Designer
3.3 h
1 plate
Open in Bambu Studio
Boost
55
191
1
0
30
12
Released
Description
Content has been automatically translated.

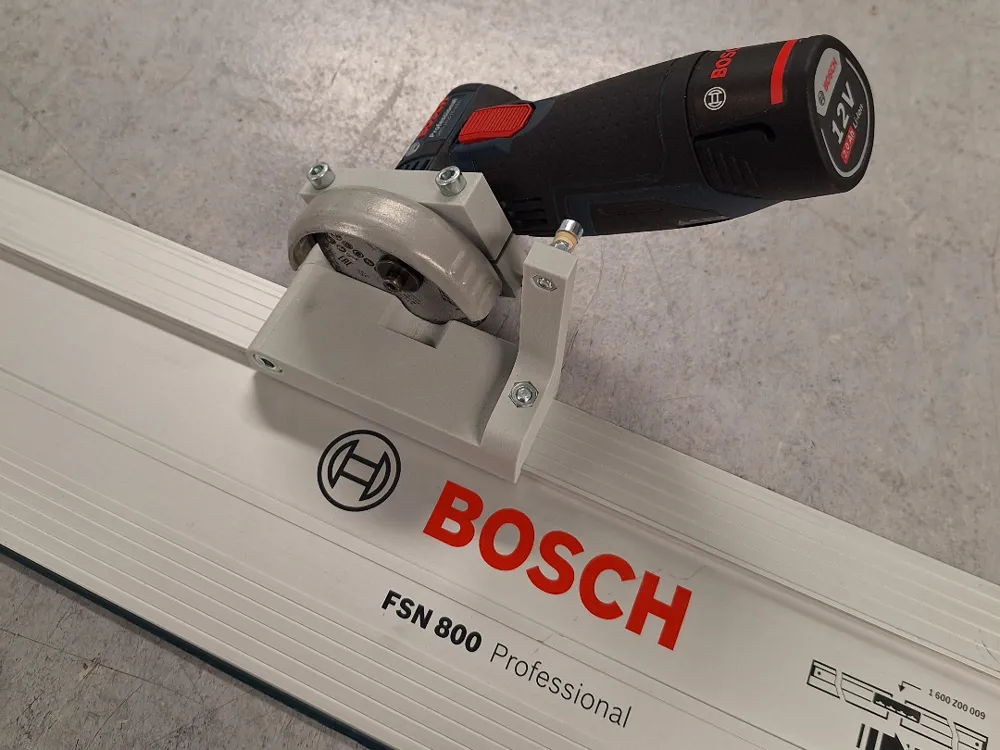

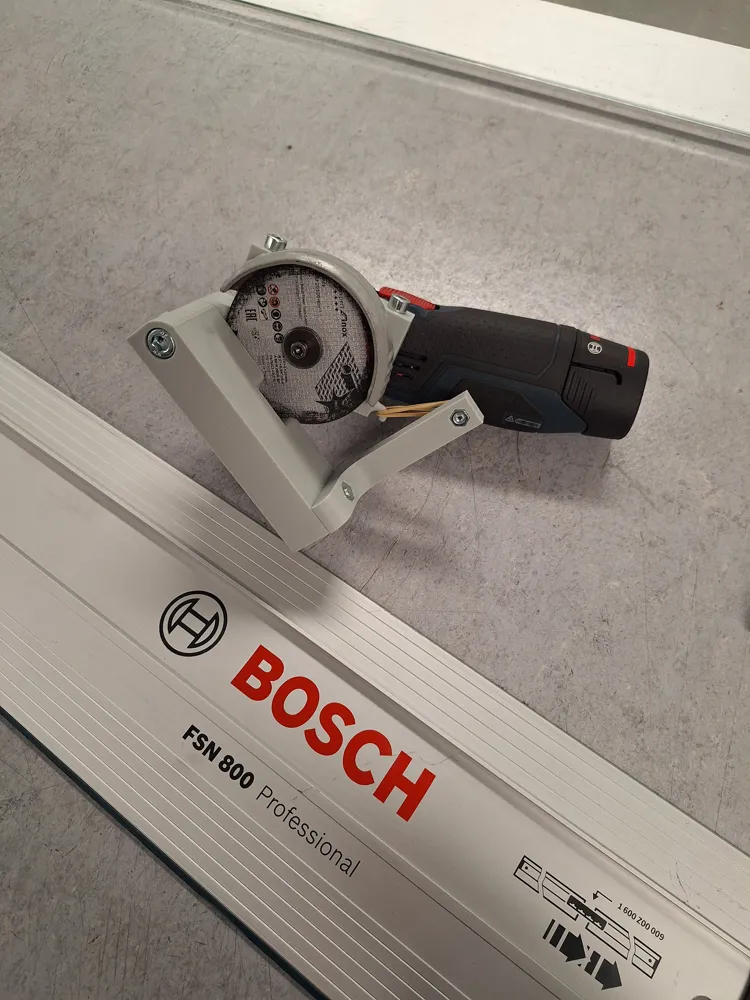

For plunging with the small Bosch GWS12-76 on the FSN rail.
Ideally print in ABS-GF or, for simple applications, PLA.
Note the heat generation near the cutting blade!

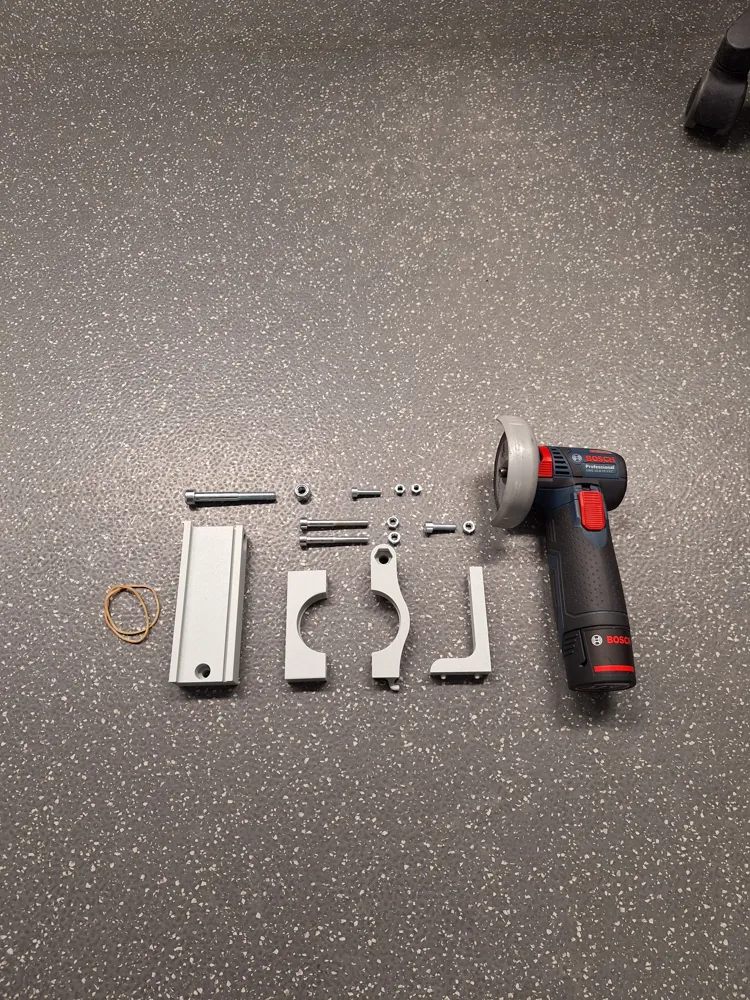

Additional standard parts + purchased parts required:
1x M8x60 DIN912 + 1x M8 DIN985 nut (self-locking)
2x M6x50 DIN912 + 3x M6 DIN934
1x M6x20 DIN912
1x M5x20 DIN912 + 2x M5 DIN934
1-3 rubber bands (depending on type)
