18mm / 15mm Cabinet Assembly Kit: T-Joint

Stop struggling with misaligned panels! The VEXTIS Precision Assembly Kit is a professional-grade duo designed for DIY enthusiasts and makers who build furniture using standard 18mm boards. These "3rd hand" tools hold your panels perfectly in place so you can focus on drilling and fastening without needing an assistant.

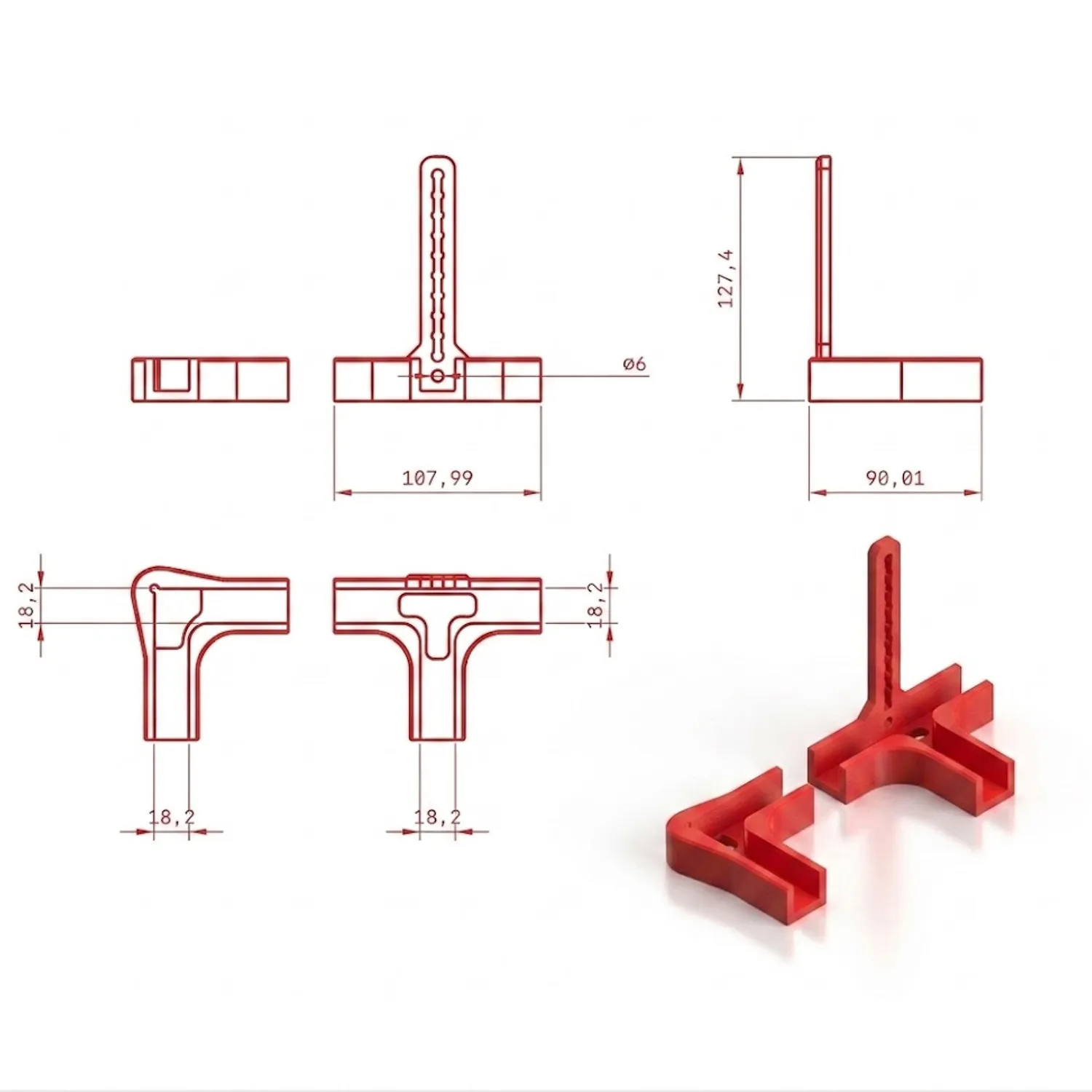

What’s Included in This Set:

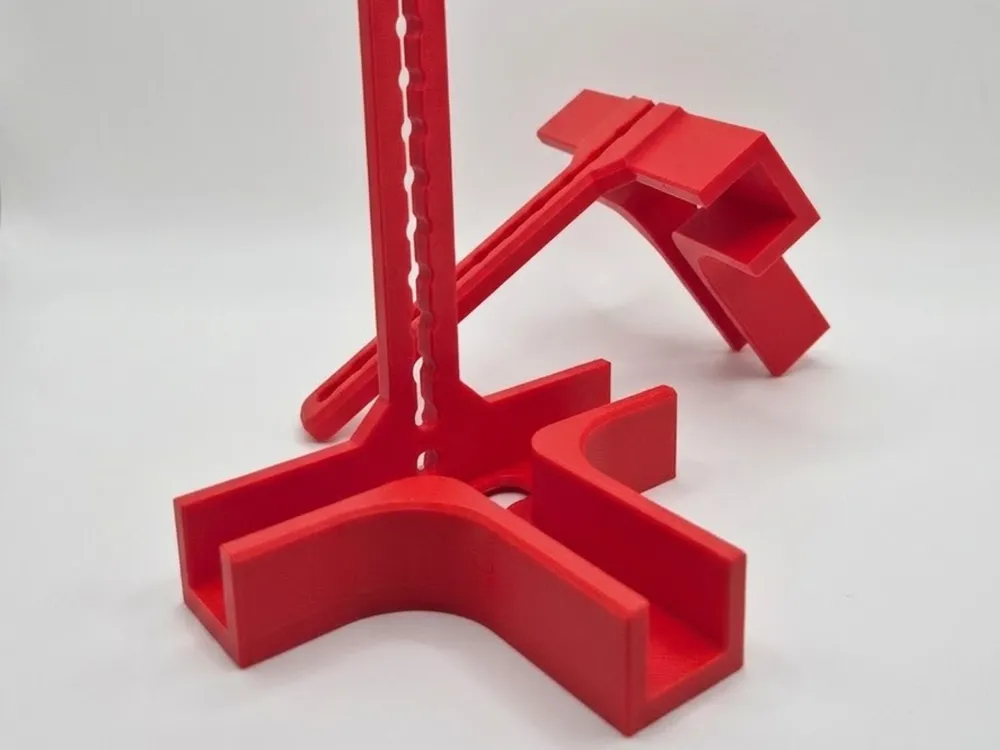

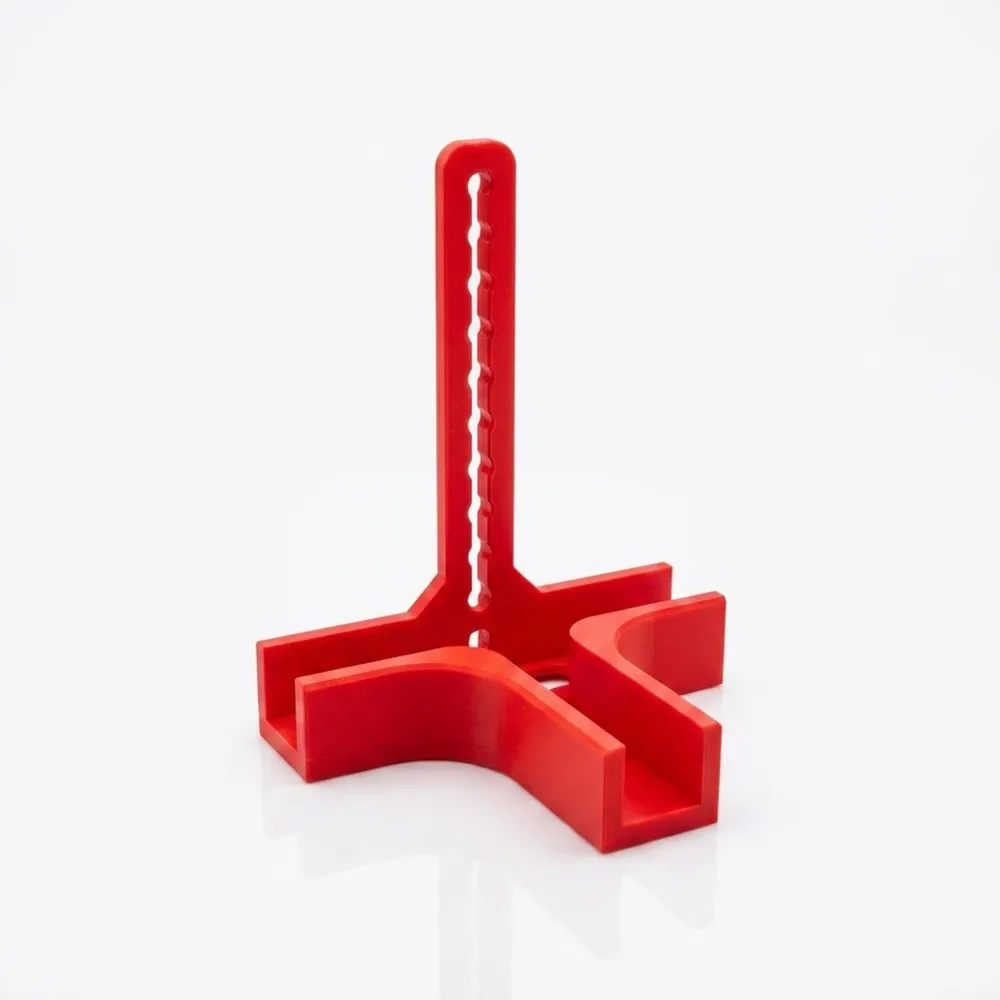

1. The T-Type Jig: Essential for installing middle shelves and internal partitions. It keeps the vertical board rock-steady at a 90° angle.
2. The Corner Support: Ideal for assembling the outer frame of your furniture. It ensures tight, square corners for every joint.


Why Choose This Model?

• Perfect Fit for 18mm: Specifically engineered for the most common European furniture board thickness.
• Solo-Friendly: Acts as an extra pair of hands, allowing you to complete complex assemblies alone.
• Built-in Guides: Features precision slots for easy drilling and marking.
• Studio Tested: These models are used daily in our 3D printing studio for professional furniture assembly.

Verified Print Settings (Optimized for Strength)

• Printer: Bambu Lab Series
• Material: PLA Basic (Tested for daily workshop use)
• Layer Height: 0.24mm (Standard)
• Wall Loops: 4 (Crucial for structural stiffness)
• Top/Bottom Shells: 4 Top / 3 Bottom
• Infill: 10-15% (Rectilinear or Gyroid)
• Supports: No supports required


Note: Despite the 10% infill, the 4-wall perimeter makes these jigs incredibly tough and reliable for holding heavy panels.

Usage Instructions

1. For T-Joints: Slide the T-jig onto your base board and insert the vertical partition into the slot.
2. For Corners: Place the corner support at the junction of two panels to lock them at a perfect 90° angle.
3. Pro Tip: Use the integrated VEXTIS branding side as your reference face for consistent alignment.
