19" Keystone Patchpanel (24 Port)
Print Profile(1)
Description
Short intro

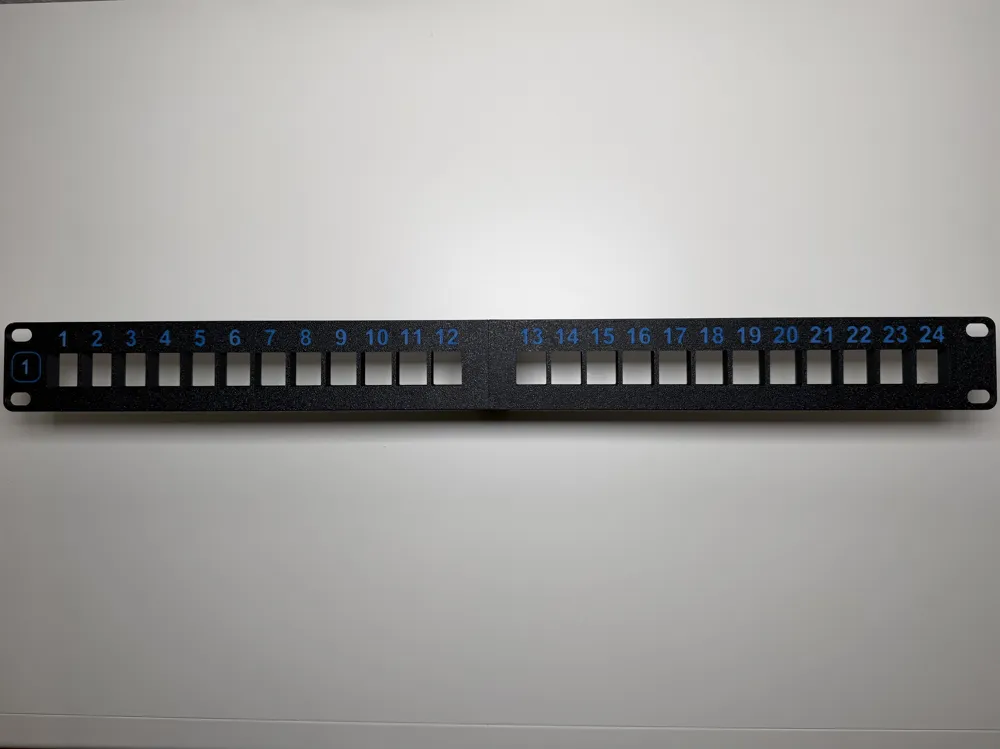

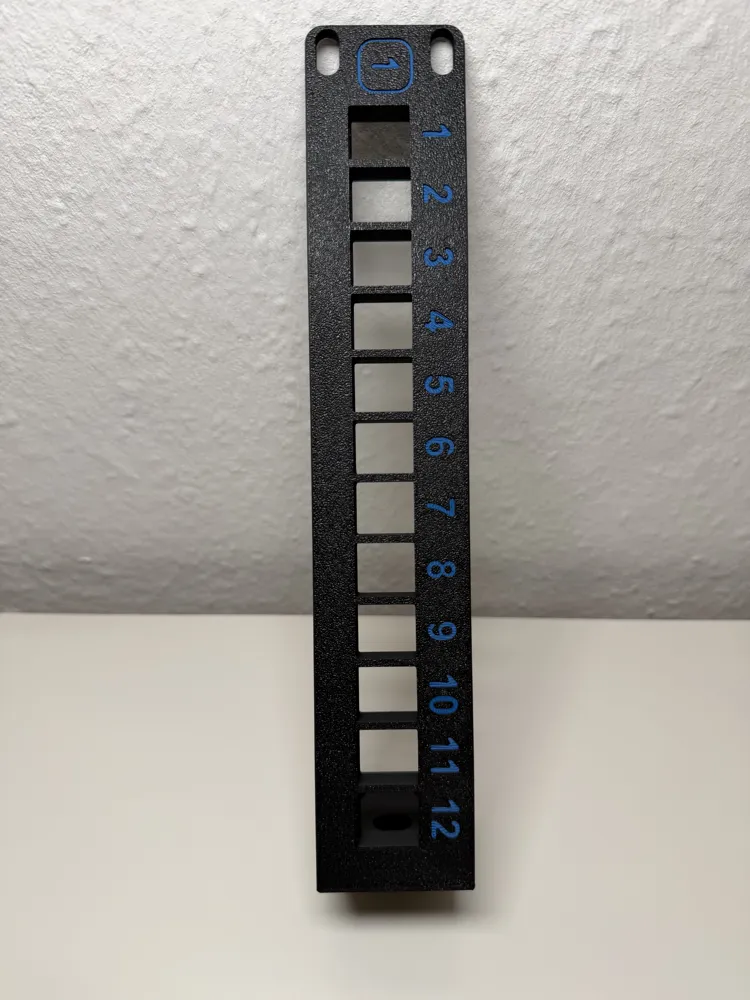

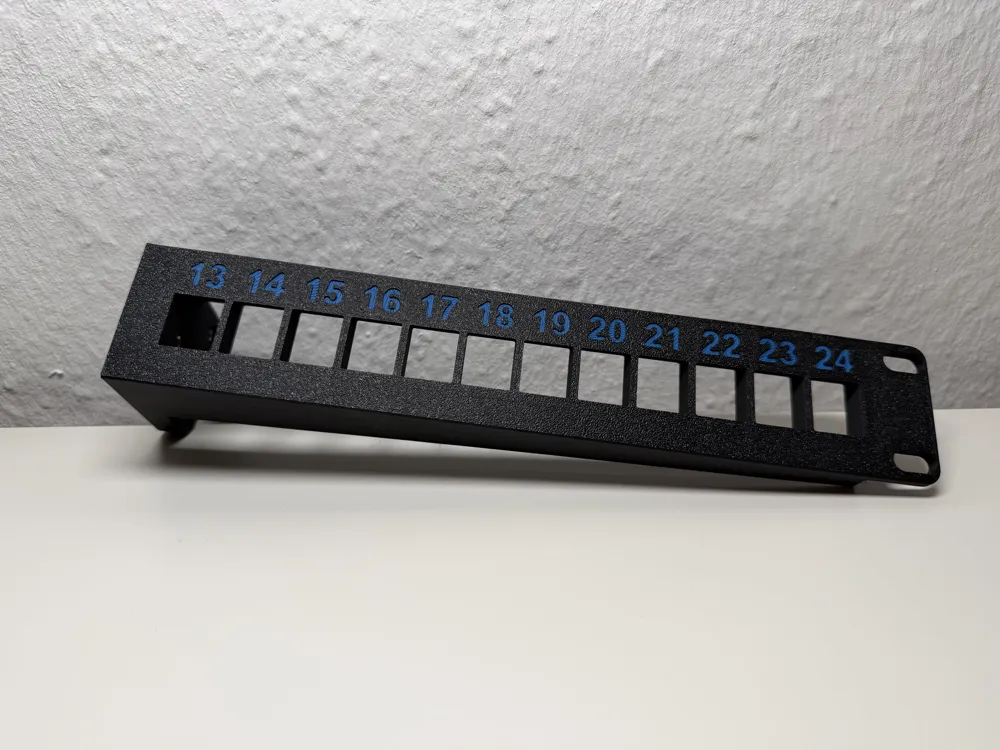

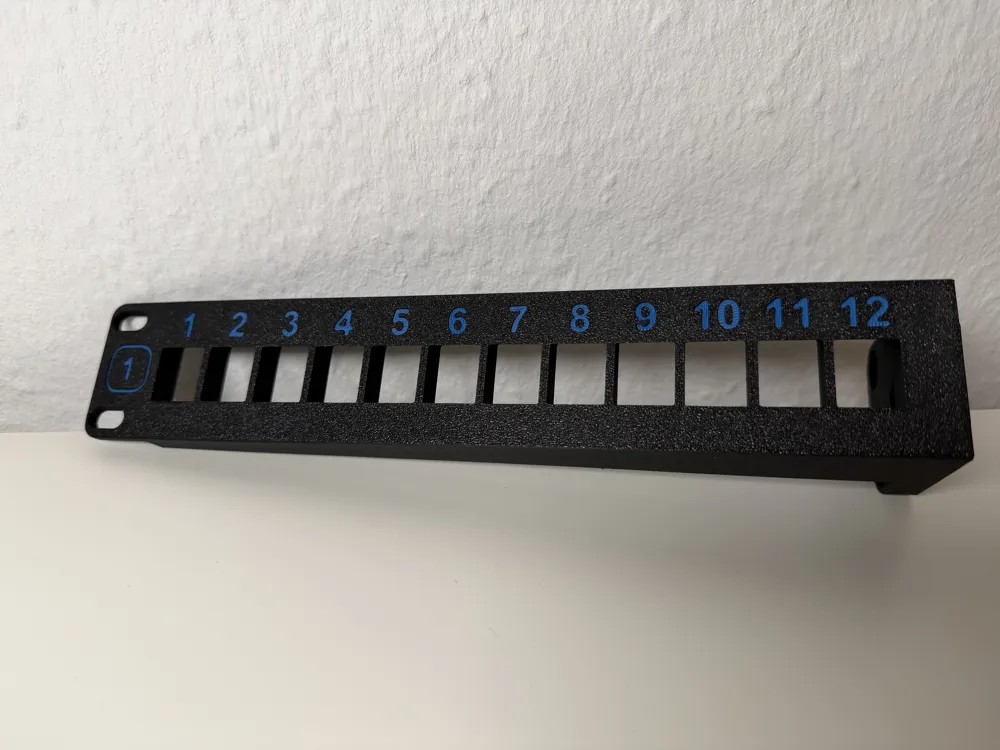

This 19" Keystone Patchpanel (24 port) is a modular, 3D-printable rack front designed for standard server cabinets. It accepts 24 keystone modules (RJ45, HDMI, USB, etc.) and pairs precise manufacturing with clear, functional labeling—suitable for HomeLabs.
Key features
- 📏 19-inch standard: fits common 19" racks and enclosures.
- 🔌 24 keystone ports: flexible for RJ45, HDMI, USB or custom inserts.
- ⚙️ Left Panel number is adjustable via Bambu Studio at slice time.
- 🔢 Fixed, legible numbering for quick identification.
- 🎨 Selectable label color—change via filament choice or multi-material printing.
- 🧱 Robust, precision-engineered design for secure module seating.
- 🧰 Clean cable management simplifies wiring and maintenance.
Why this model
Built for users who require a reliable, tidy and configurable rack front. The 24-port layout and the ability to set the left start number in Bambu Studio reduce post-print work and streamline assembly. Fixed numbering aids rapid mapping; customizable label color supports visual grouping in larger setups.
Notes
- 🔩 Assembly requires 3 M5 inserts (max 7 mm insertion depth) and 3 M5 x 12 mm screws.
- 🖨️ Printing: ensure accurate printing so keystone modules fit/snaps correctly; adjust tolerances if necessary.
- 🧪 Material choice: PETG or ABS for higher durability; PLA for low-stress applications.
- 🎨 Label color: achieved via filament selection
