DJI Mini 5 Pro Bracket
Print Profile(1)
Description

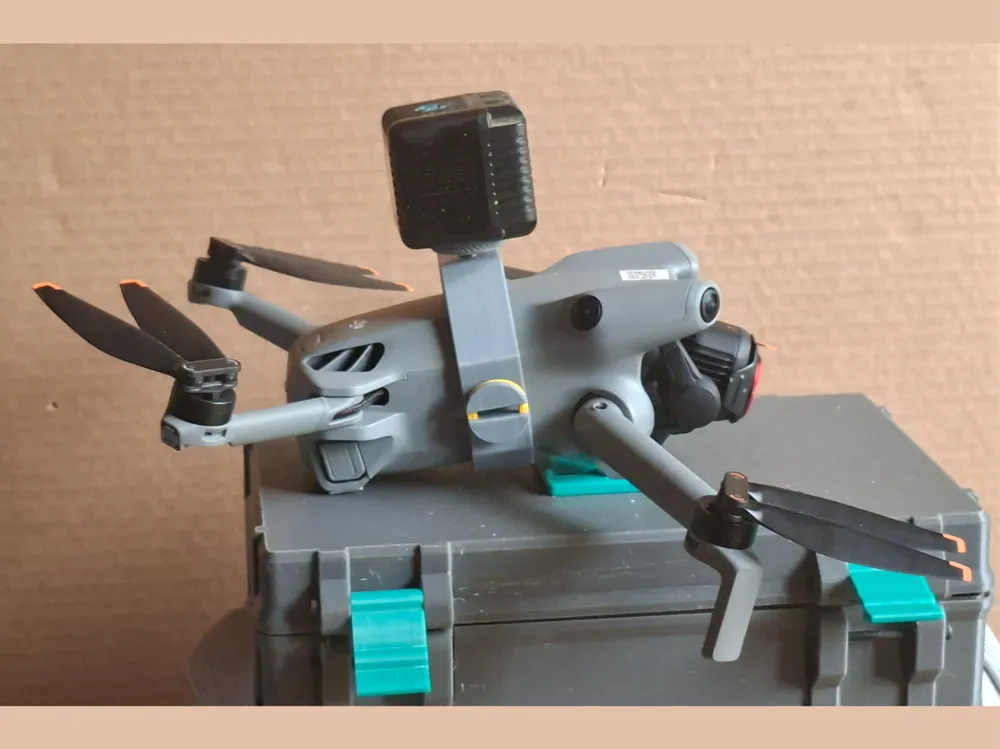

Attach anything (light) with a 1/4-20 UNC threaded hole on top of the drone.
(LumeCube, 360° camera, etc.)

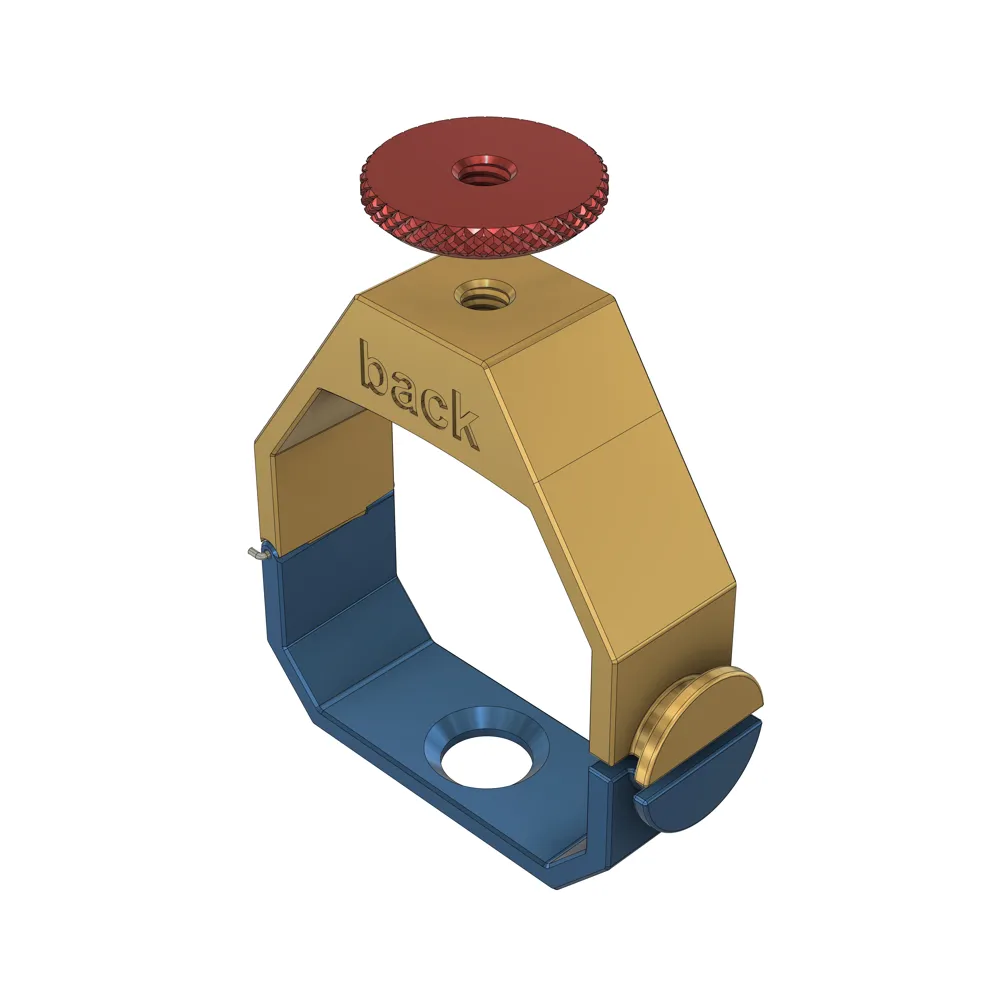

Push a straightened paper clip through the hinge holes, bend the two protruding ends 90°, and cut off at approx. 2 mm.
Hardware:
1 pc
10pc UNC/UNF 10#-24/32 1/4-20/28 to 1/2-13 304 Stainless 12.9 Black Steel Hex Hexagon Socket Allen Cup Point Grub Bolt Set Screw
https://aliexpress.com/item/1005005148074518.html
Size: 1/4-20
Length: 5/8" (10pcs)
Color: 304 stainless steel
1 pc
Small Paper Clip ø0.9mm (for the hinge)
1pc
Rubber Band
