Parametric Universal Bike Floor Stand

“Update as 19/06/2026”

Added a print profile for printing the floor support bases, this is for smaller footprint printers like the A1, P1, P2, X1 etc. you can join the legs with 8 10x3mm magnets, or just super glue the parts together.

“Update as 07/06/2026”

NOW YOU CAN 100% PRINT ALL PARTS!!!

Added a print profile so you can print 100% of all the parts needed, in this print profile you´ll find the legs (4) and spacers for 30mm, 55mm and 75mm width tires, all is in different plates, so you only need to print the legs and the spacers you need.

DESCRIPTION

Keep your bike stable, organized and ready to ride.

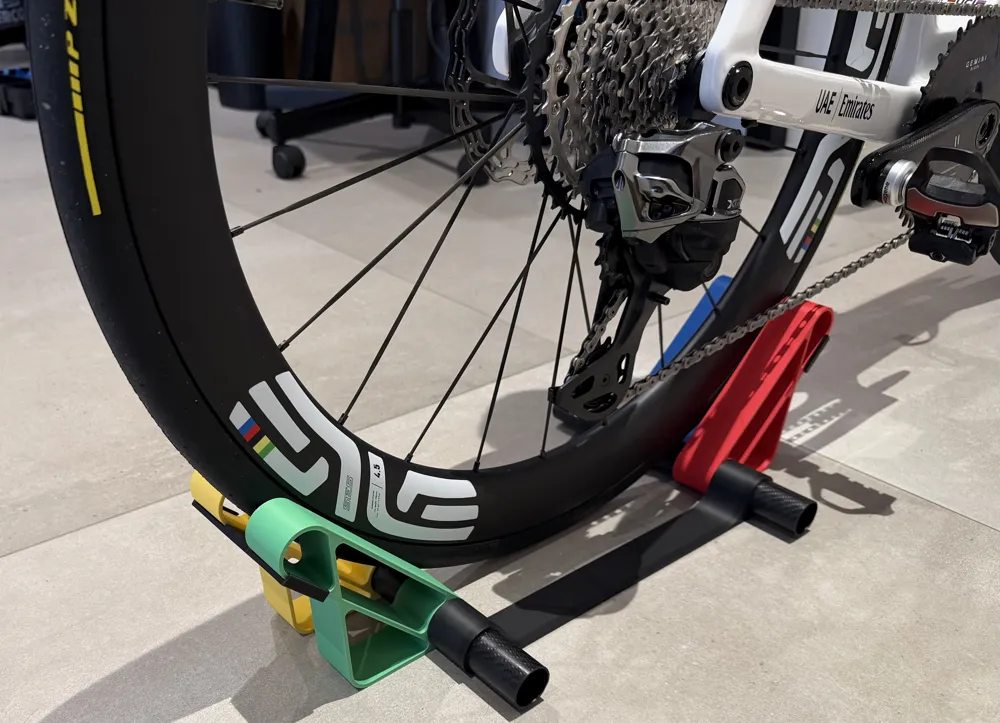

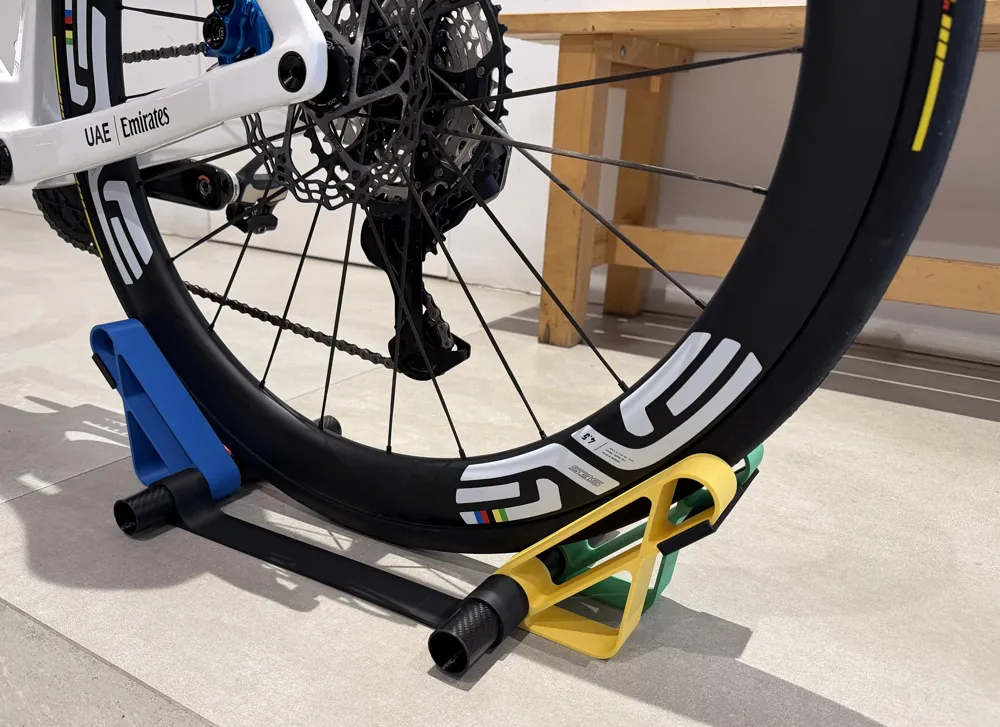

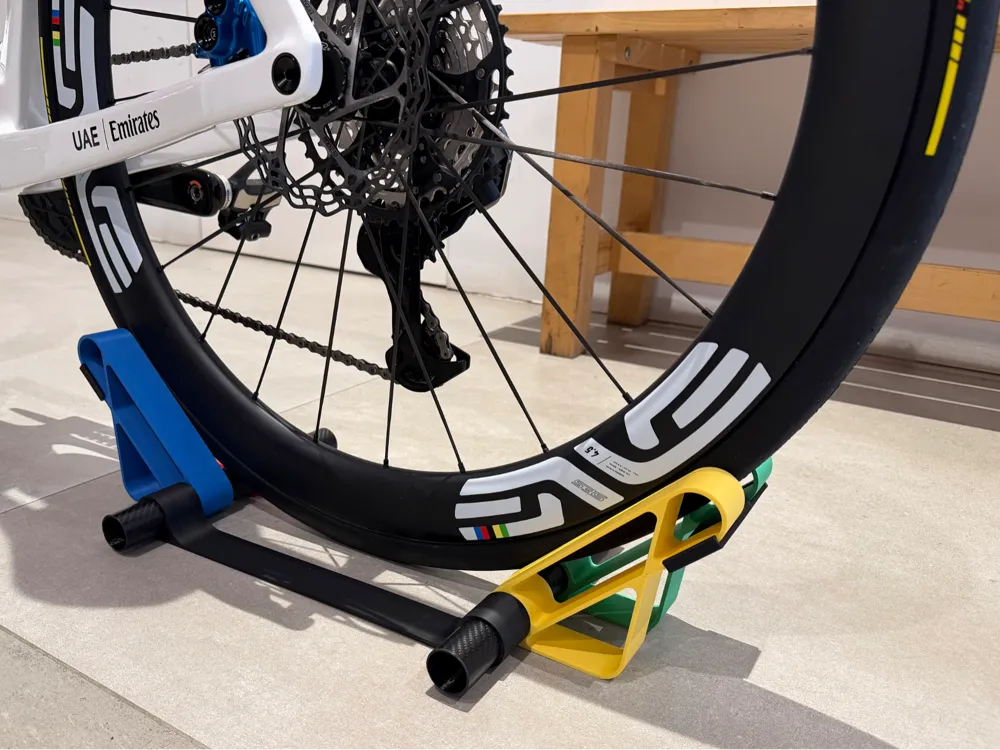

This is a modular floor stand designed to hold your bike by the wheel without touching the frame. It is ideal for road bikes, gravel bikes, MTB and e-bikes, and works great for home storage, workshop use or display.

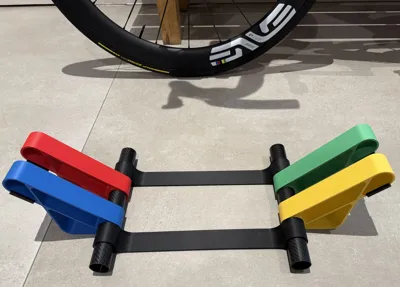

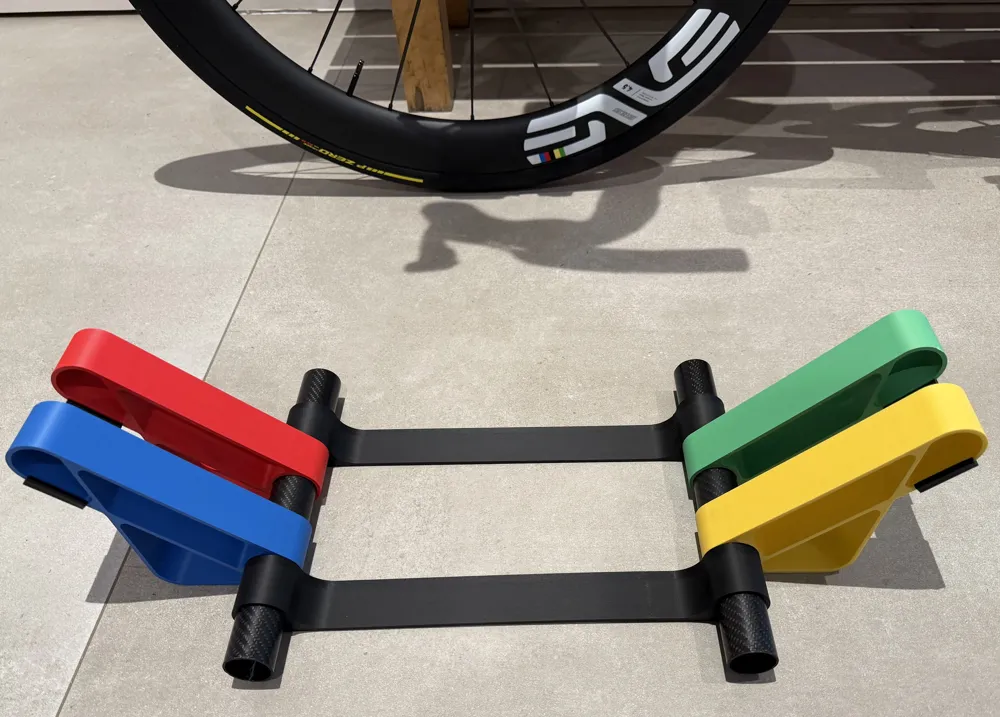

The design combines 3D printed parts with 30mm carbon fiber tubes, resulting in a strong, lightweight and premium-looking stand.
The open structure allows easy wheel insertion and removal, while the wide contact area keeps the bike stable and secure.

FEATURES

• Universal bike floor stand
• Holds the bike by the wheel (no frame contact)
• Modular design
• Clean and minimal aesthetic
• No supports required
• AMS-friendly (multi-color optional)
• Fast print optimized for large nozzles
• Stable and compact


PRECISION AND FIT

Designed with 30.3 mm internal diameter hole to ensure a precise friction fit with standard 30 mm carbon fiber tubes, but since it's parametric, you can choose your tube size from 20mm to 31mm.
Optimized for:
• 0.6 mm nozzle
• 0.30 mm layer height
This combination provides a strong structure and fast print time while maintaining excellent dimensional accuracy.

REQUIRED HARDWARE

• 2x Carbon fiber tubes
• Outer diameter: from 20mm to 31mm
• Length: 500mm
Alternative: PVC or aluminum tubes can also be used.

PRINTING RECOMMENDATIONS

• Material: PLA, PLA Matte or PETG
• Layer height: 0.20 – 0.30 mm
• Walls: 3–4
• Infill: 20–30%
• Supports: Not required
For heavier bikes (MTB / e-bike), PETG is recommended.

COLOR SETUP

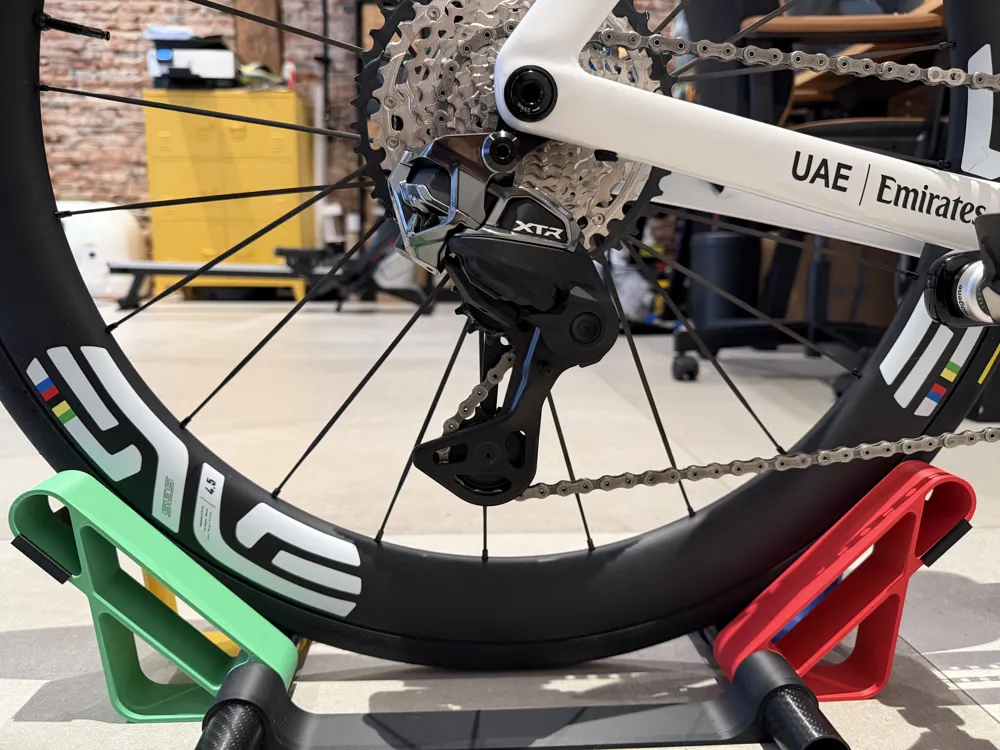

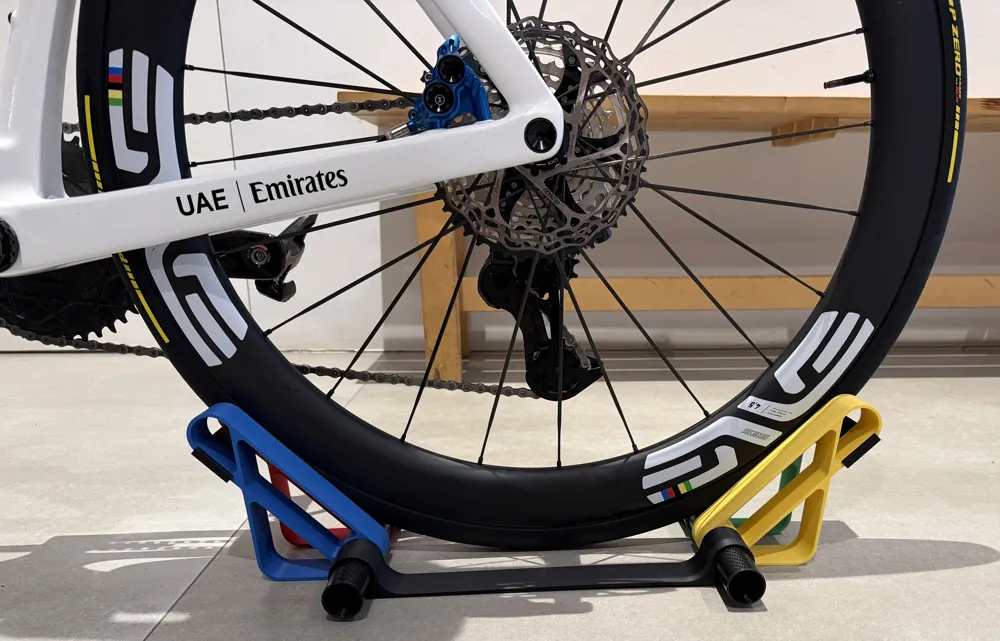

Printed in UCI World Champion colors to match my bike, but each part is printed separately, so you can easily customize colors without AMS waste.


ASSEMBLY

Parts are designed for a tight friction fit.

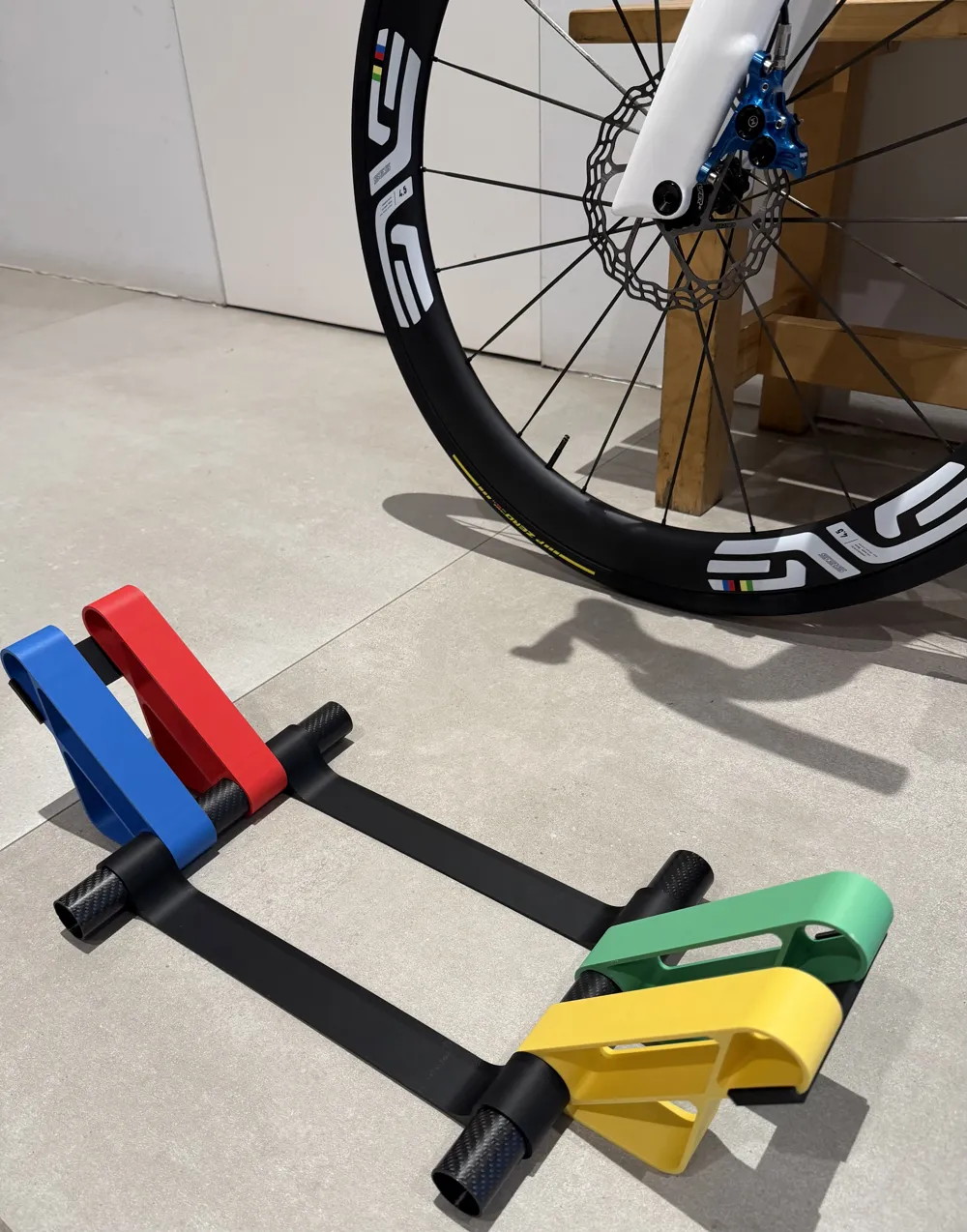

Simply insert the tubes into the side supports.
No screws or glue required.


COMPATIBILITY

• Road bikes
• Gravel bikes
• MTB / e-bikes

You really don't need to change any settings, all is accounted for, only change colors if you want to, is quite an easy to print model, and shouldn't give you any trouble.

I have uploaded 3 print parameters, number one includes all you need for tires up to 30mm, then the other 2 are only the 2 spacers needed, one for up to 55mm and another one for up to 75mm tires, or you can change parameter on the parametric version to suit best to your needs.

DISCLAIMER

If you decide to play with parameters, there are only 2 parameters to change, the tube width from 20 to 31mm (you need to add .3mm to the diameter for printing tolerances) and the tire width from 24 to 80mm (you need to add 5mm to the diameter and divide by 2, in the settings parameters are the instructions)

Have a blast printing it!!!
