Ultimate Bee CNC Independent Z Dust Boot 80mm

Description - 80mm Spindle Version

I wanted a Z Independent Dust Boot for my Ultimate Bee CNC but there was not a lot of options when I went looking. I adapted a few options meant for other machines but none of them were what I wanted, so I designed my own.

Please note the following

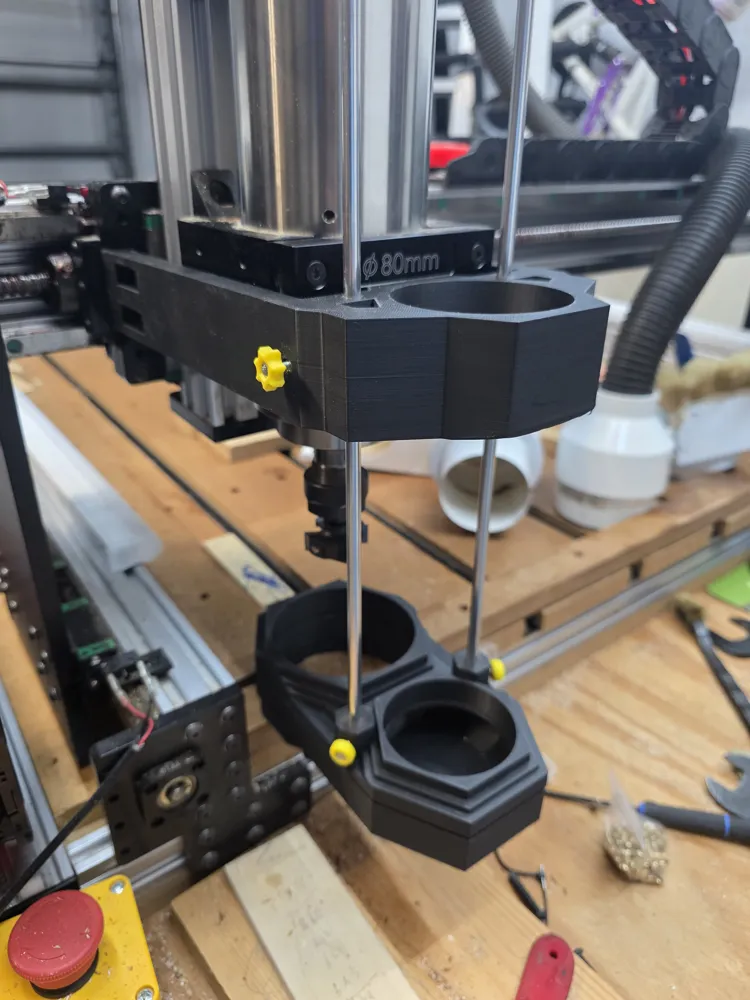

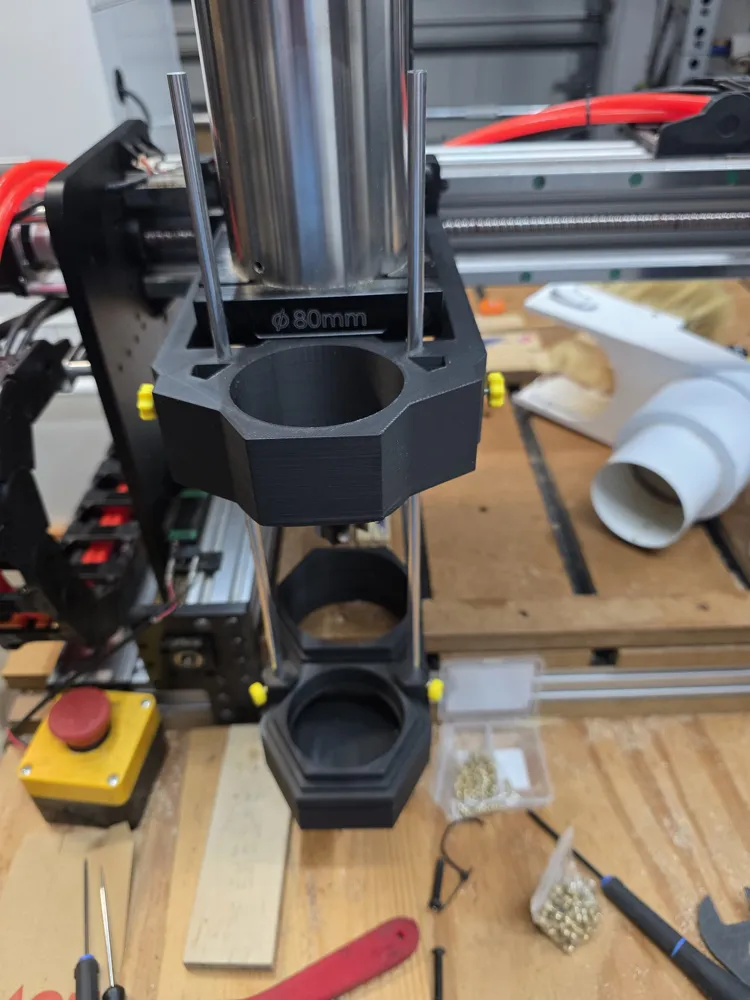

• This is designed for the 80mm Bulkman Square Mount
• I recommend printing the main bracket and then the Test Dust boot file to check for fitment of your specific machine before you go further.  I will try to release updated files as requested for the different offsets that people might have.
• This should work on the Queen Bee CNC as well as it looks to have a similar X axis Mounting plate.

  My criteria for my new dust boot:
  • Low or no loss of X axis travel
  • Easy to adjust to the work piece height
  • Useable with any of my bits
  • Printable on my 3D Printer

So this is what I came up with for my design, I am still refining it and making improvements but thought I would share with the community to get some feedback and ideas from others.

What you will need to make this work:

• 2 x 6mm Aluminum Rod
  • https://www.amazon.ca/dp/B0C495BFV2?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_4
• 4 x M5x30mm Button Head screws
  • 25mm screws might work but you may need washers
  • To secure the main bracket to the X axis carriage
• 2 x M3 Heatset inserts
  • Install into the main bracket to secure the rod in place to set the dust boot height
• 2 x M3x30mm bolts
  • To secure the rod in place to set the dust boot height
• 2 x M3x8mm bolts
  • Retaining screws to secure the 6mm rod to the dust boot

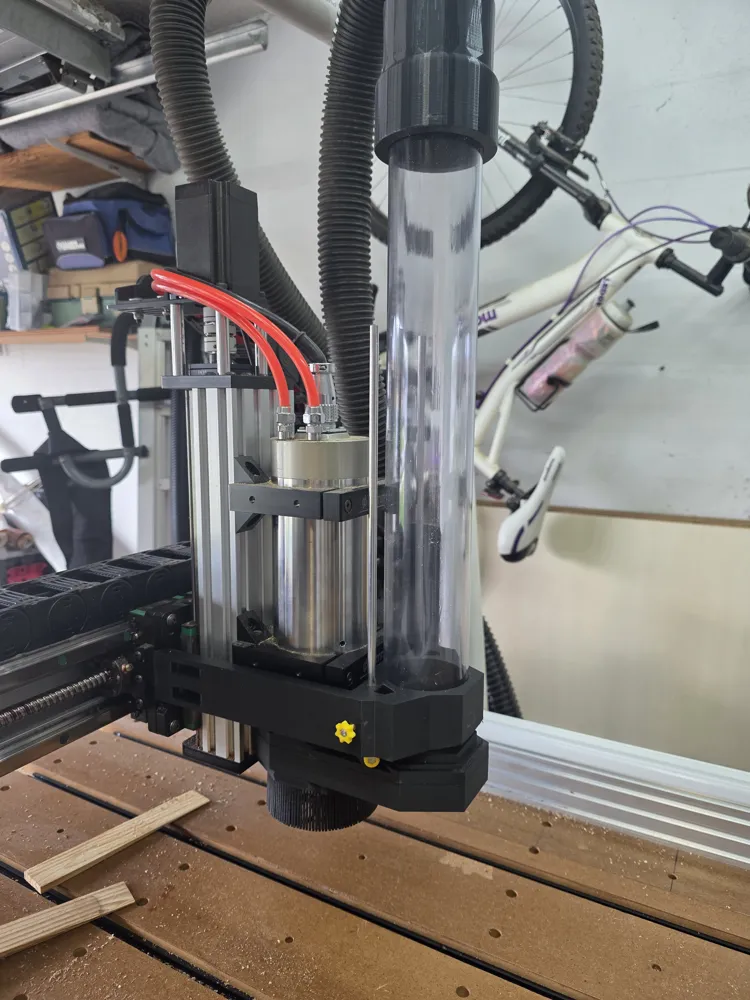

• Length of 2.5" or 63.5mm Clear dust tube
  • Carry dust from the Dust boot up to the dust hose above your machine
• 24 x 6x4 mm Magnets  **I might have used to many :)
  • https://www.amazon.ca/dp/B07C6CYPLR?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_6

I printed all parts using PTEG with 0.4mm nozzle @ 0.2 mm layer height

• 5 walls
• 5 top and bottom layers
• 35% 3D Honeycomb Infill
• Supports shouldn't really be needed on any part other than the main bracket arms
  • I used auto Generated Tree Support just be careful around the screw holes for the rod retention screw, its hard to get the supports out of there.

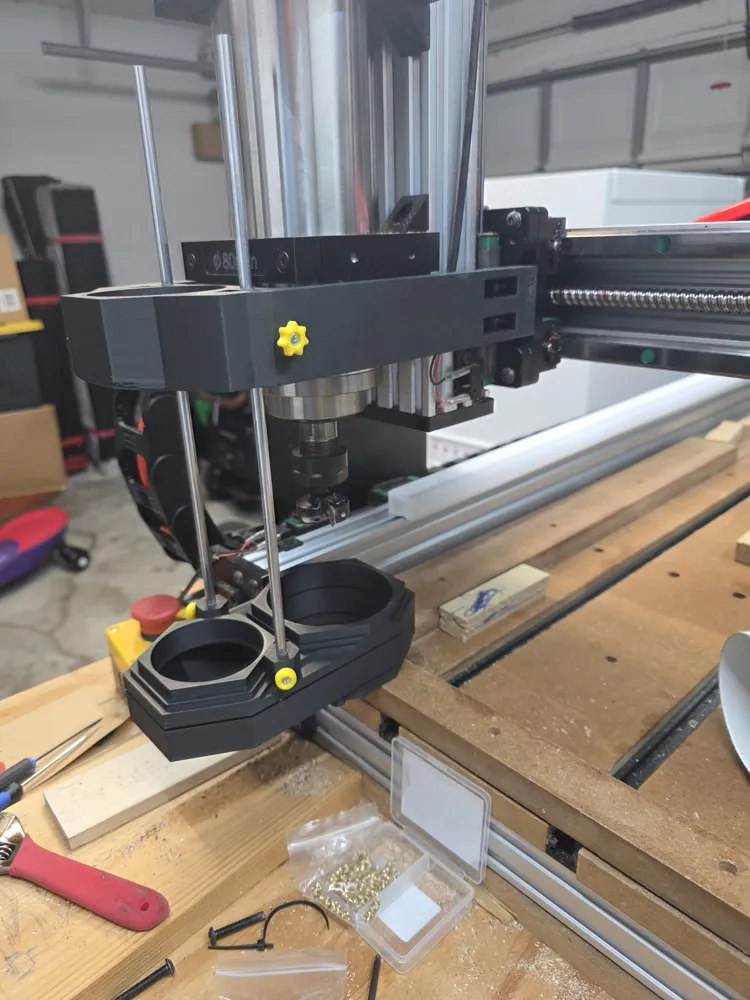

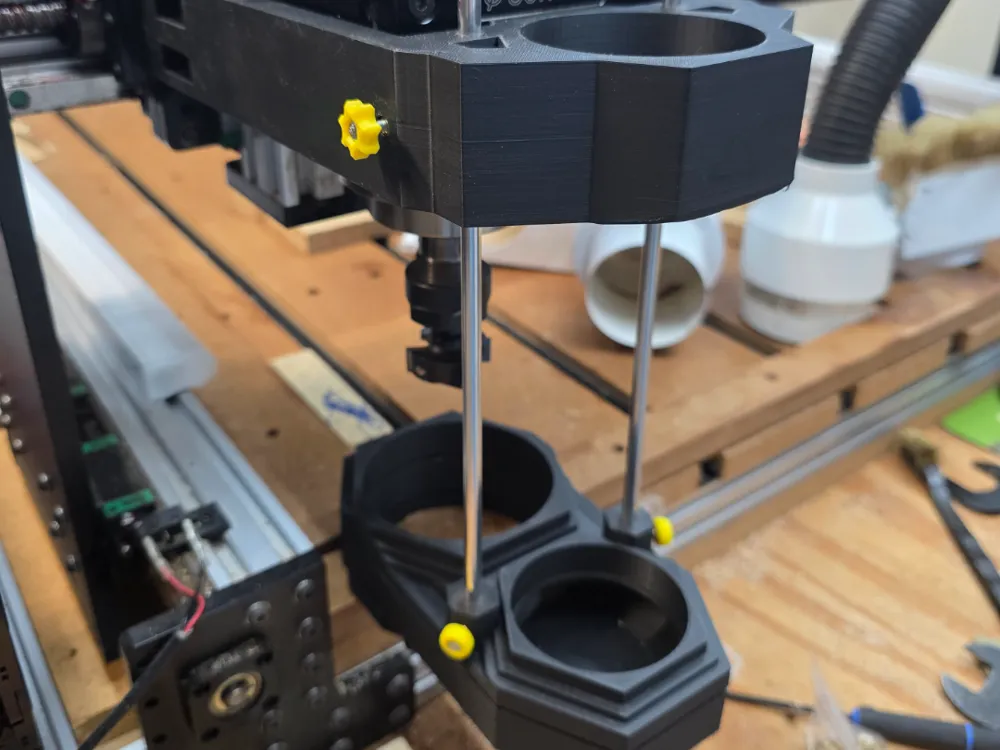

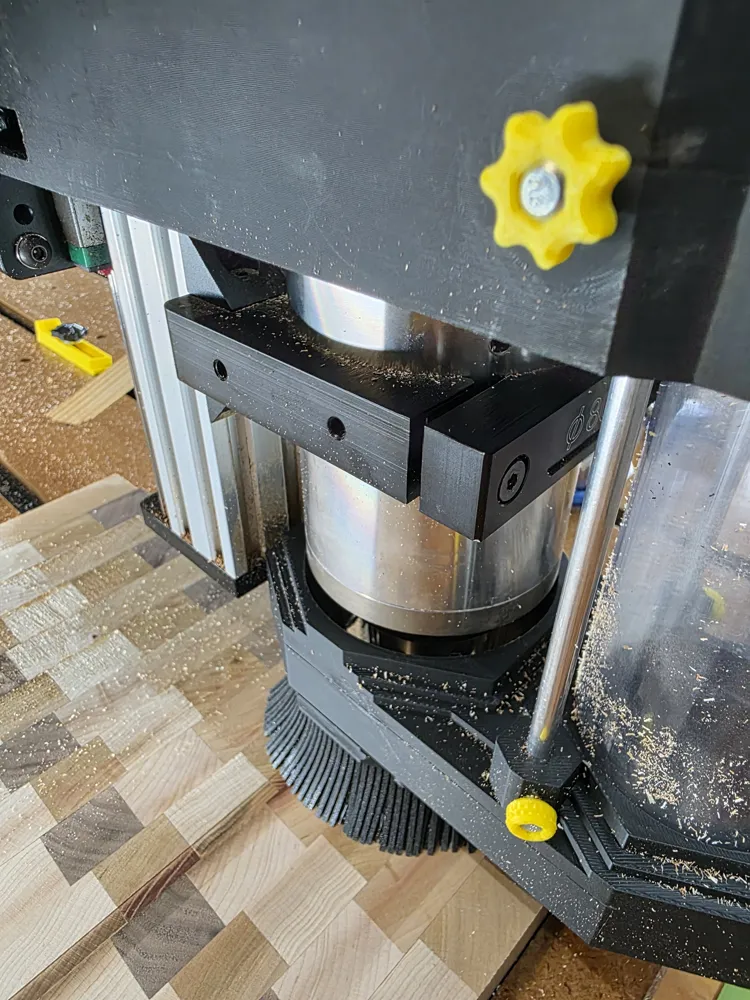

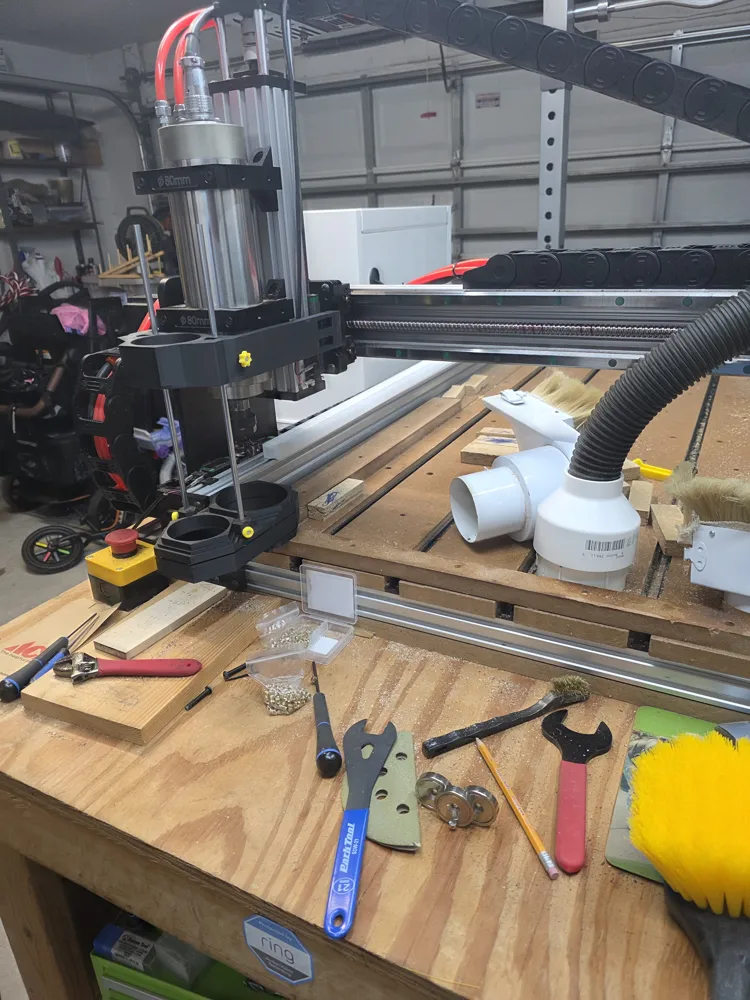

Ultimate Bee CNC Dust Boot Assembly
https://youtu.be/SeHY7p-rnd4
