Snap-Fit Cover for NEMA 14-30R Dryer Outlet Plate
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description

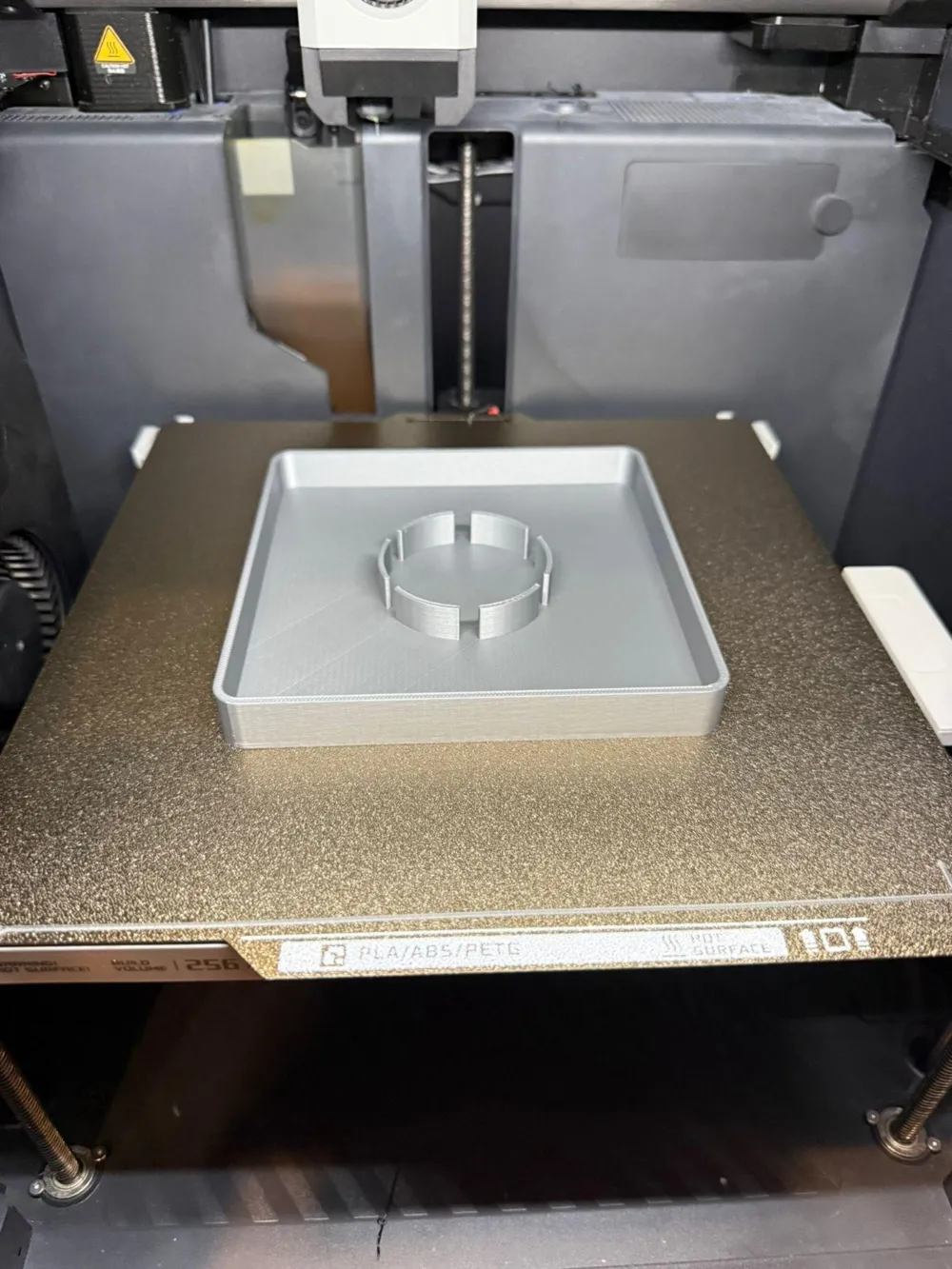

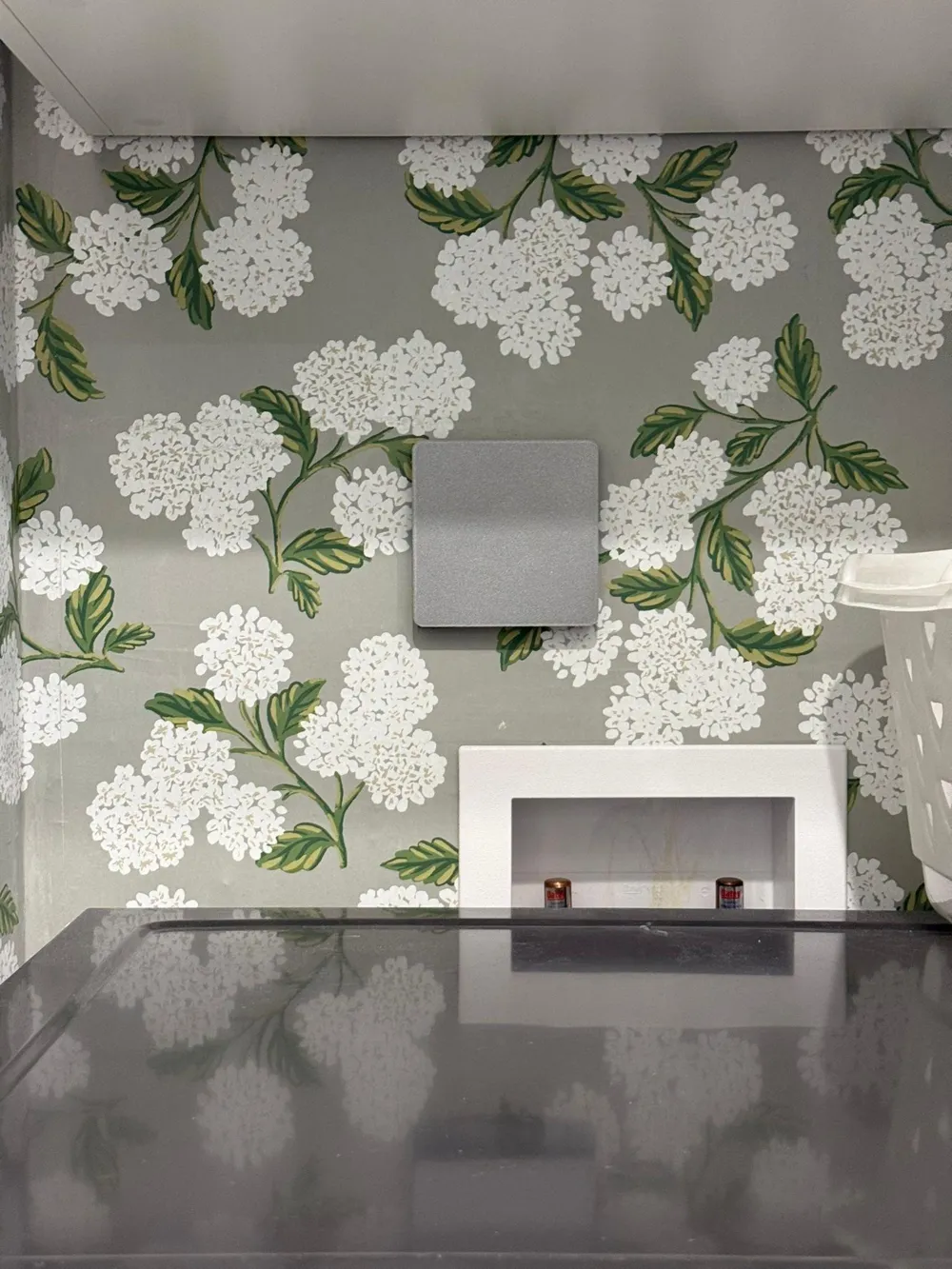

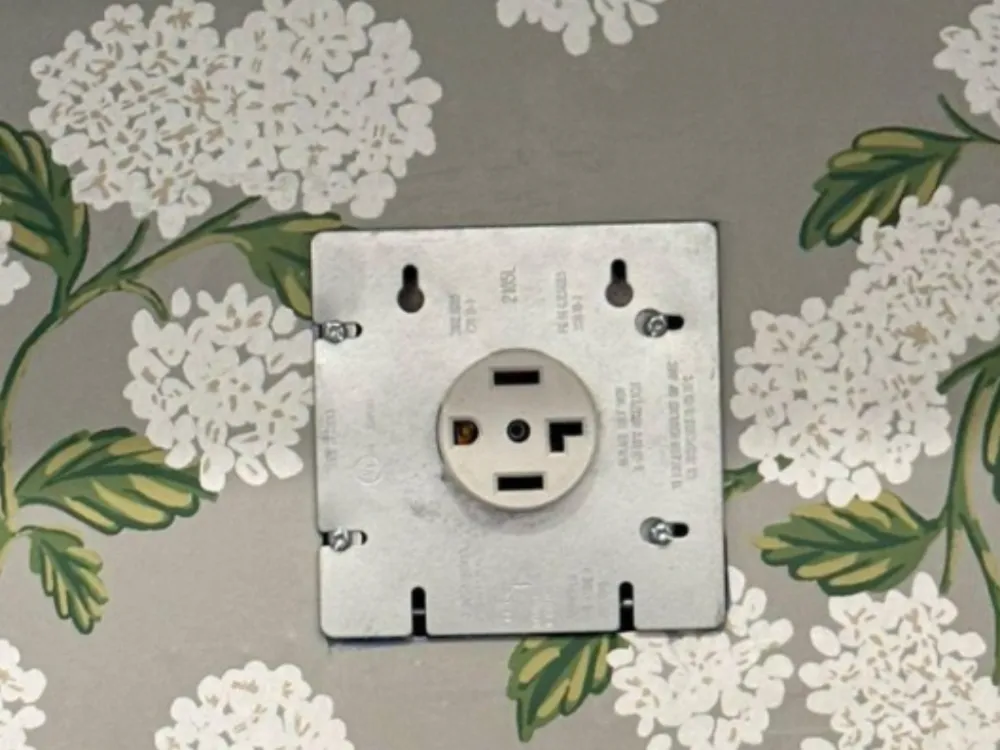

Simple snap-fit cosmetic cover for exposed NEMA 14-30R dryer outlet metal plates. Designed to fully hide the oversized metal backing plate while leaving the outlet accessible.
Features:
- 140mm x 140mm front cover
- Rounded minimalist design
- Rear perimeter skirt to hide plate edges and wall gaps
- Segmented snap-fit mounting ring
- No screws or adhesive required
- Prints flat without supports
Designed around:
- 53.8mm outlet body diameter
- Protruding round outlet body
- Standard North American NEMA 14-30R dryer outlets
This is a cosmetic cover only. It is not an electrical safety component and does not replace approved electrical hardware.
