Case for 20-cigarette Pack + Clipper

Case for 20-cigarette pack and clipper lighter

Overview:

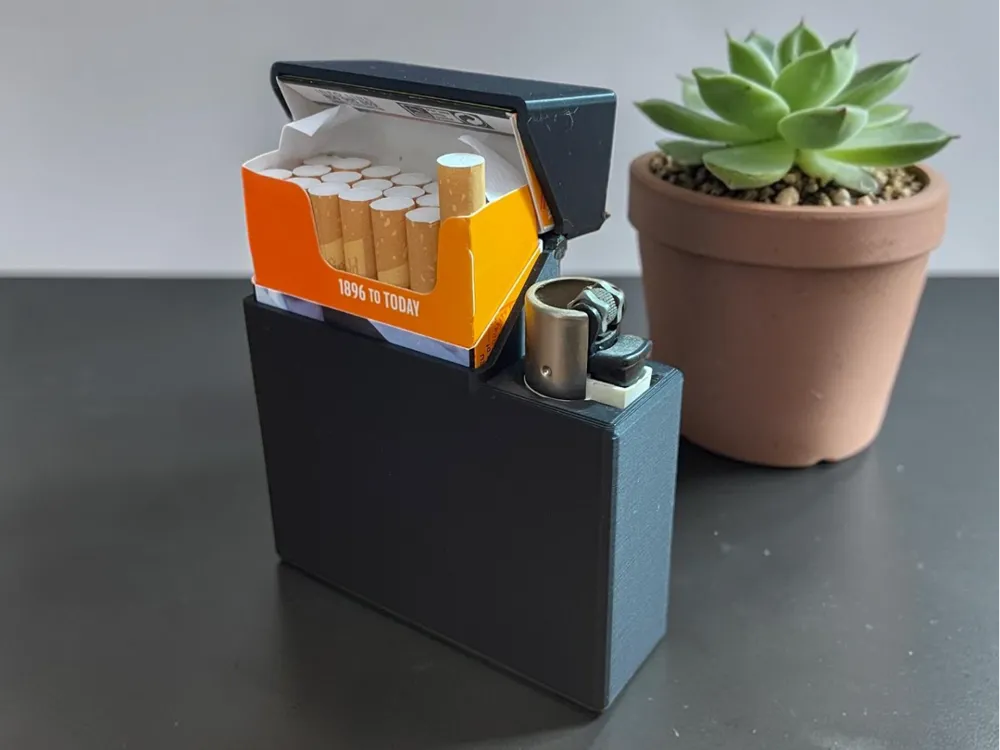

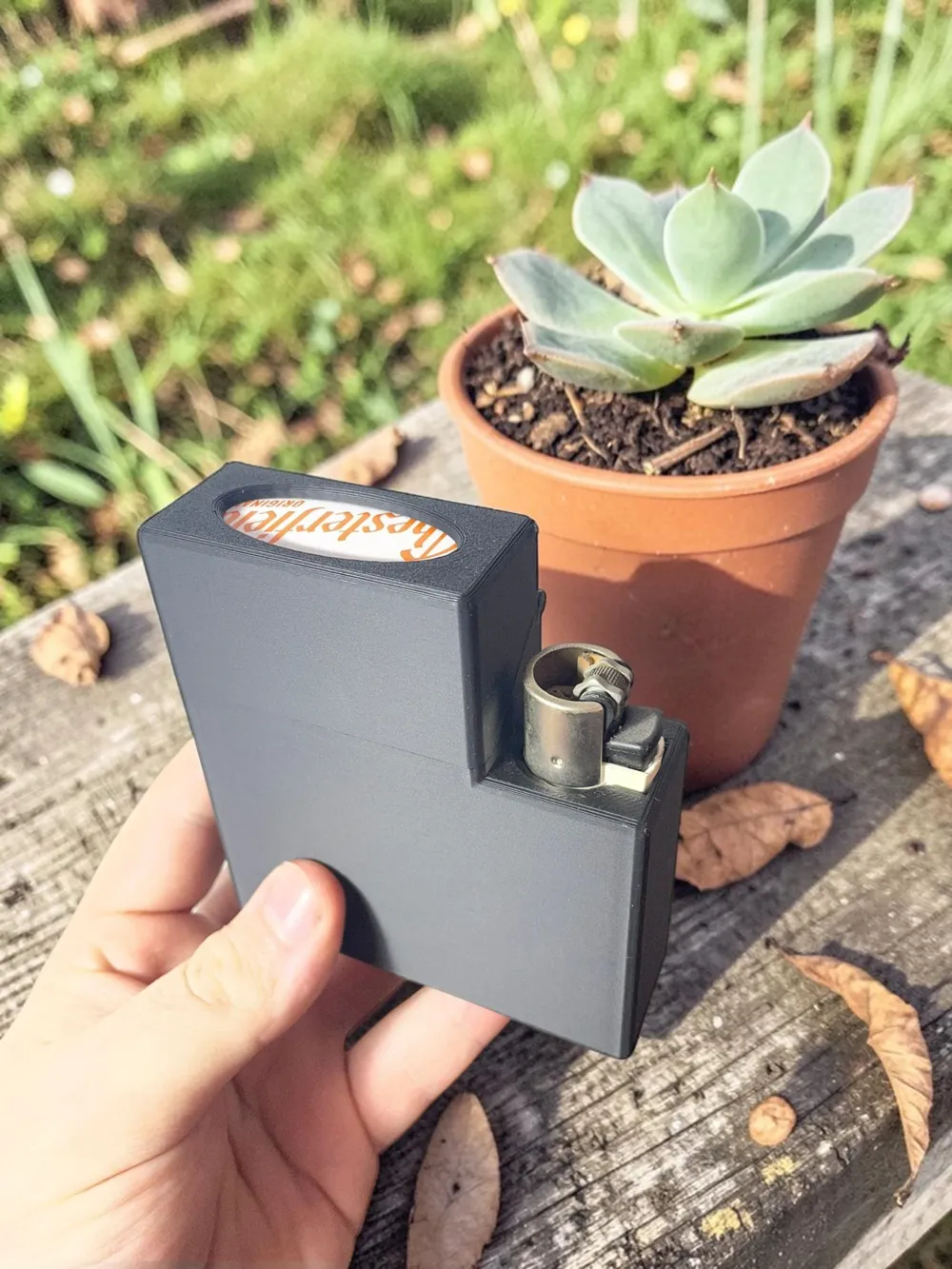

This 3D printable case is designed to securely hold a standard clipper lighter along with a pack of 20 cigarettes.

Features:

• Closure: no closing mechanism, due to the strong and resistant joints and the resistance of the cigarette pack itself. It provides smooth and elegant tactile feedback and ensures that the case remains closed during transport.
• Ergonomic Design: The case is contoured for a comfortable grip, with smooth edges and a compact form factor suitable for pockets or bags.
• Robust Construction: Designed for FDM 3D printing, the case is robust and can withstand daily use.

Printing Recommendations:

• Material: PLA for durability and ease of printing.
• Layer height: 0.2 mm for an optimal balance between detail and print time.
• Supports: No supports needed.
• Infill: 5% for a sturdy but lightweight structure.

Assembly:

After printing, minimal assembly is required.

• Tools required: Lighter and 70 mm of filament of the same color, or a different color for a chromatic effect.

• Procedure: Insert the filament. Connect the two parts together. Insert the filament into the aligned holes (if difficult, sand or pare with a utility knife), leaving 3-4 millimeters at the ends. Heat one end until it's about to melt, hold the other end still, and with the lighter, press the heated filament onto the hinge. Repeat on the other flap.
