GU10 Desk Lamp
Print Profile(3)
Description
📦 Overview

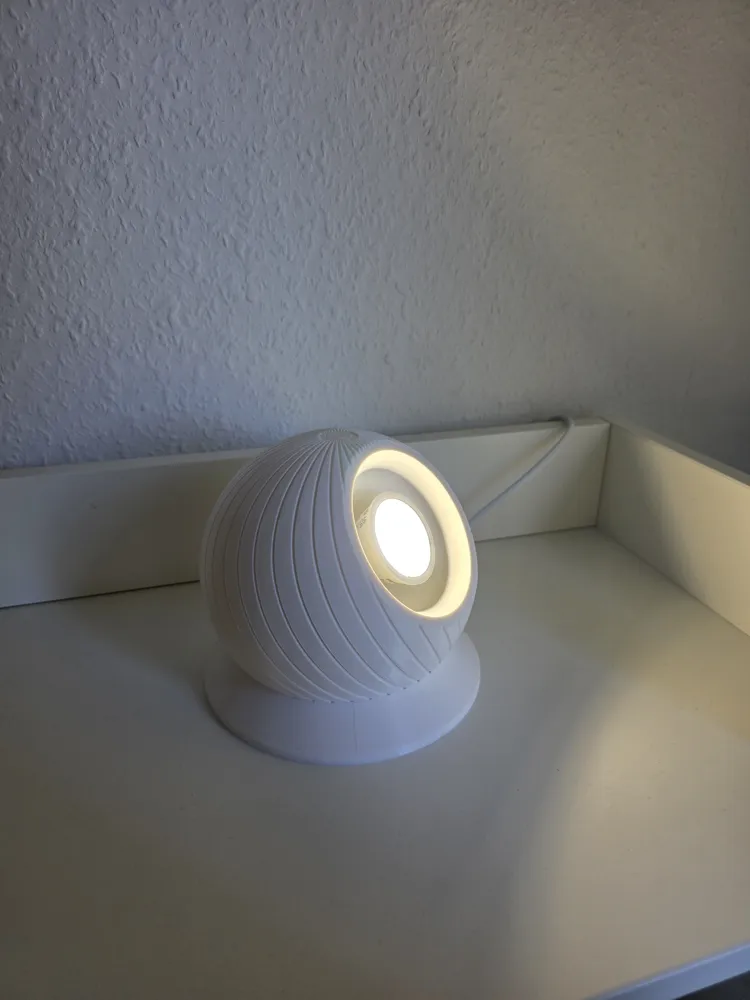

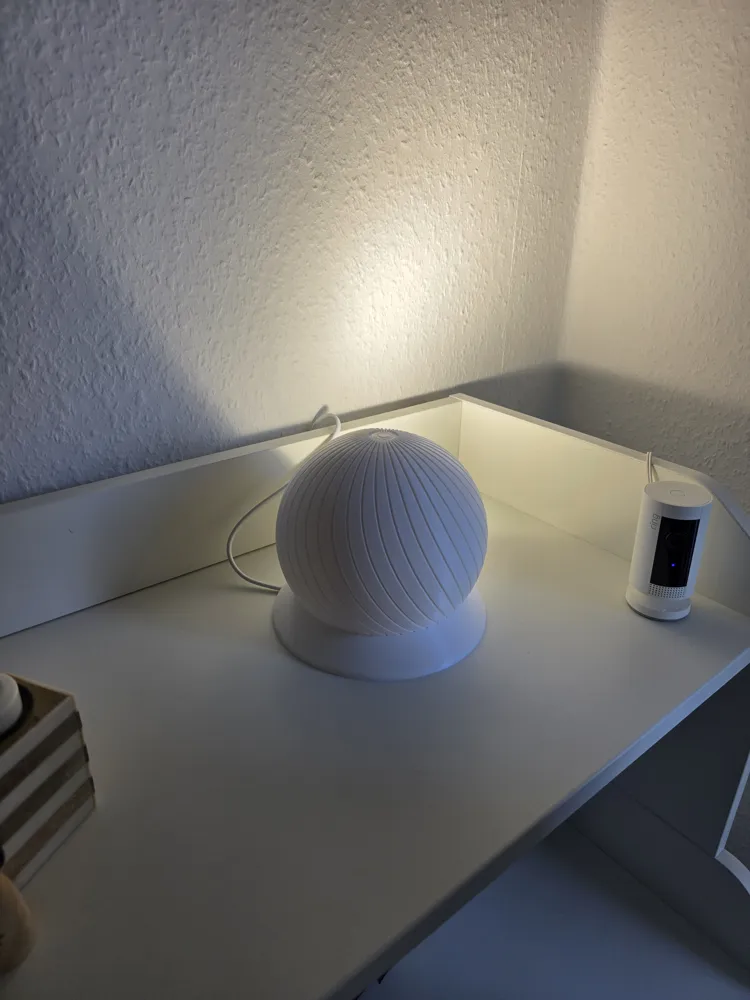

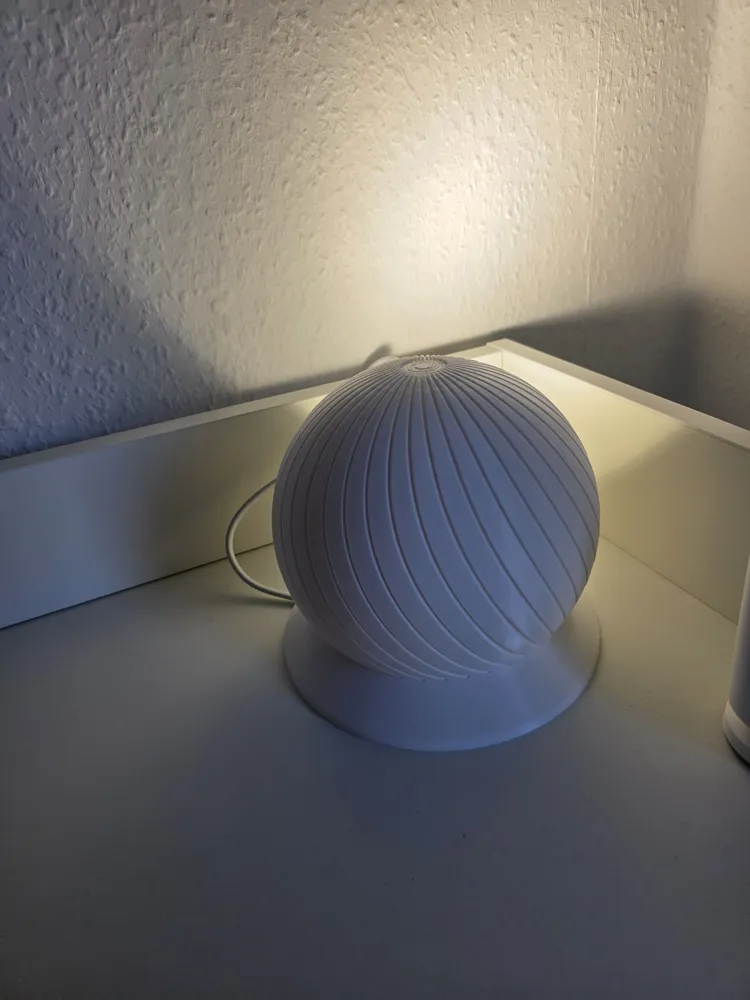

This is a modern 3D printed lamp designed for a standard GU10 socket and GU10 spotlight bulbs.
The lamp was tested using a Philips Hue GU10 bulb together with a standard GU10 socket.
The design includes integrated cable routing, space for WAGO connectors, and a built-in strain relief for a clean and secure installation.
Three different versions of the lamp are included, each with the strain relief positioned differently.
This allows choosing the cable exit direction depending on personal preference or the intended placement location.
✨ Key Features
- Designed for standard GU10 sockets
- Compatible with Philips Hue GU10 spotlights
- Integrated cable management inside the base
- Dedicated compartment for WAGO connectors
- Built-in strain relief for the power cable
- Multiple cable exit position variants included

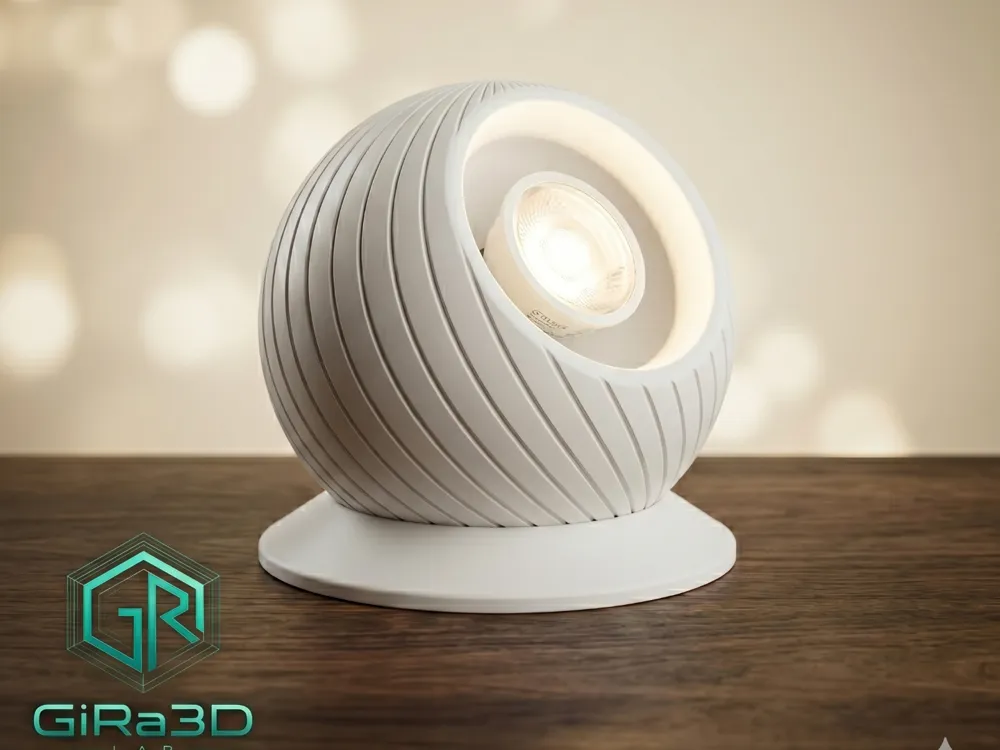

- Modern ribbed outer design
- Clean and minimal appearance
🧩 Assembly
- Insert the GU10 socket into the lamp body
- Install the GU10 bulb
- Route the cable through the base
- Connect the wiring using WAGO connectors

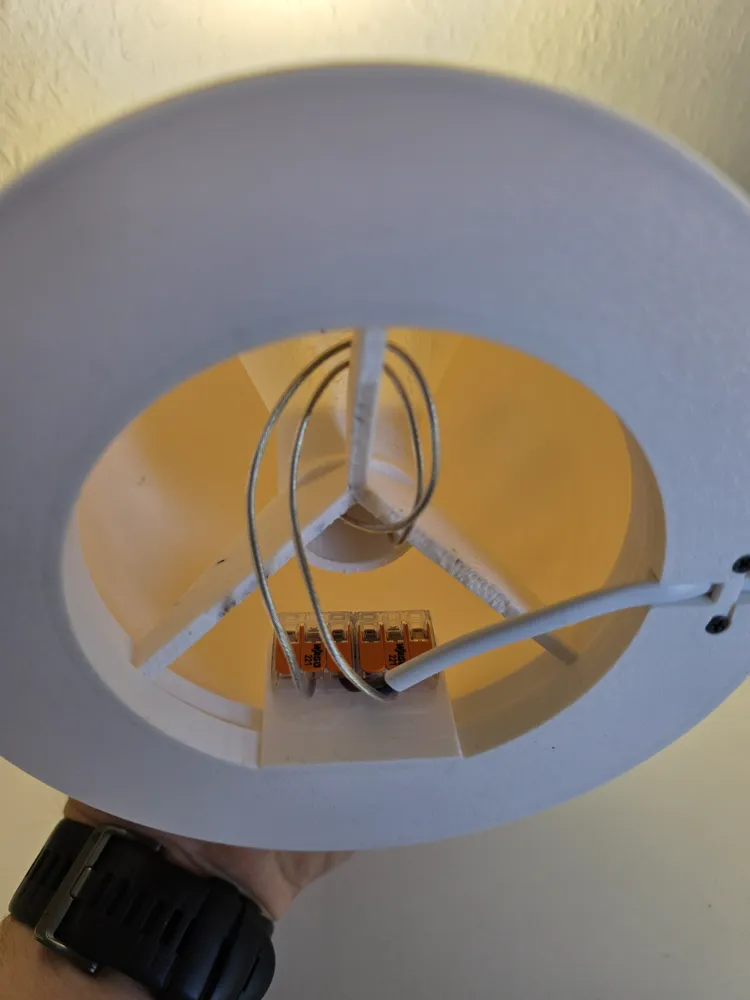

- Place the WAGO connectors into the integrated holder inside the base
- Secure the cable using the built-in strain relief

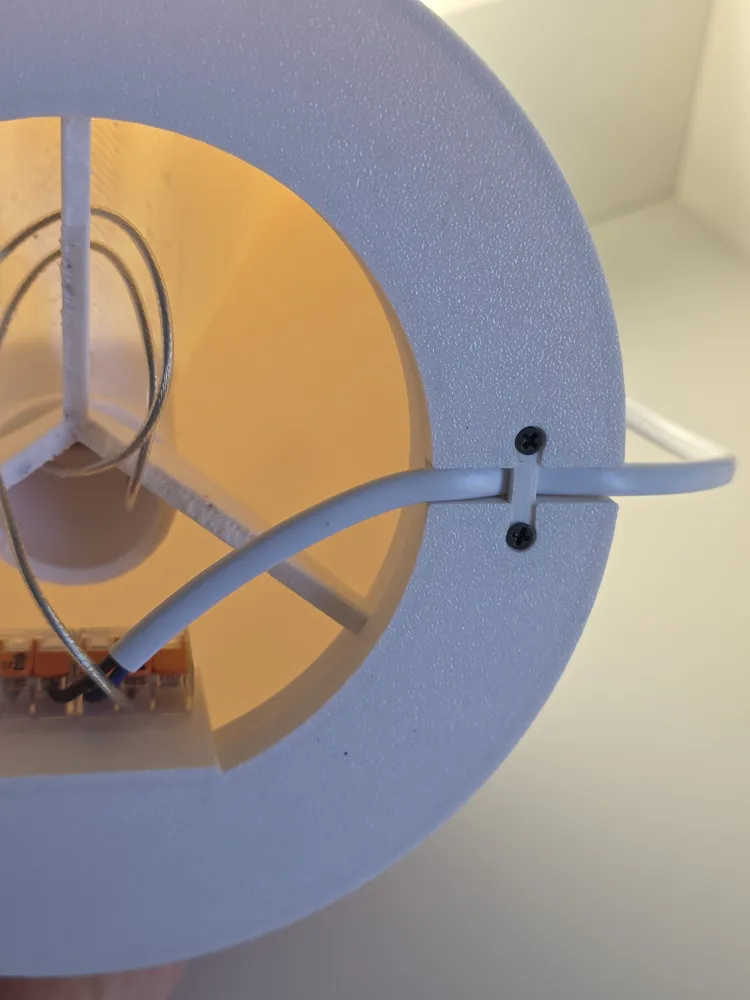

The strain relief is fastened using an M2.5x10 screw.
For easier assembly, I additionally re-drilled the strain relief holes using a 2 mm drill bit before inserting the screw.
Originally, the WAGO connectors were glued directly to the base plate.
The updated version now includes a dedicated holder area for easier positioning, although adhesive fixation is still recommended.
🖨️ Printing Recommendations
- Layer height: 0.2 mm
- Nozzle: 0.4 mm
- Infill: 15–20 %
- Supports: Not required
- Orientation: Print parts flat on the build plate
🧪 Tested Material
- PLA ✅
- PETG recommended for improved heat resistance
⚠️ Electrical Safety Notice
- Electrical work should only be performed by qualified persons
- Always disconnect power before assembly
- Verify proper insulation and secure wiring before operation
- Use only suitable LED GU10 bulbs to minimize heat generation
⚠️ Notes
- Designed as an independent original model
- Not affiliated with or endorsed by Philips or WAGO
- Some adhesive may still improve WAGO connector retention inside the base
💬 Feedback
If you like this lamp, please leave a 👍 and share your make.
Suggestions for improvements are always welcome!
