Keep your interdental brushes clean, organized, and protected — at home or on the go.

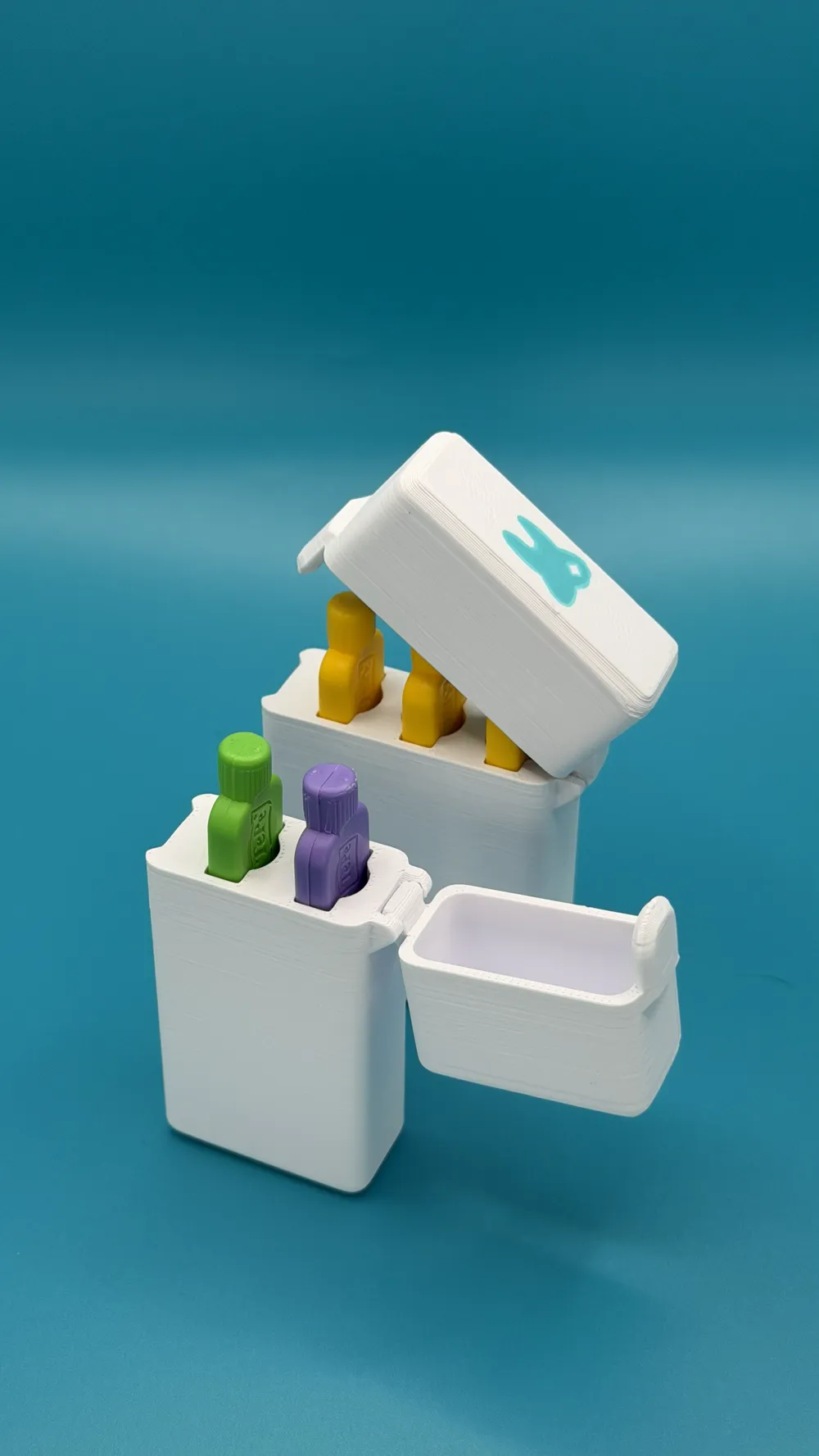

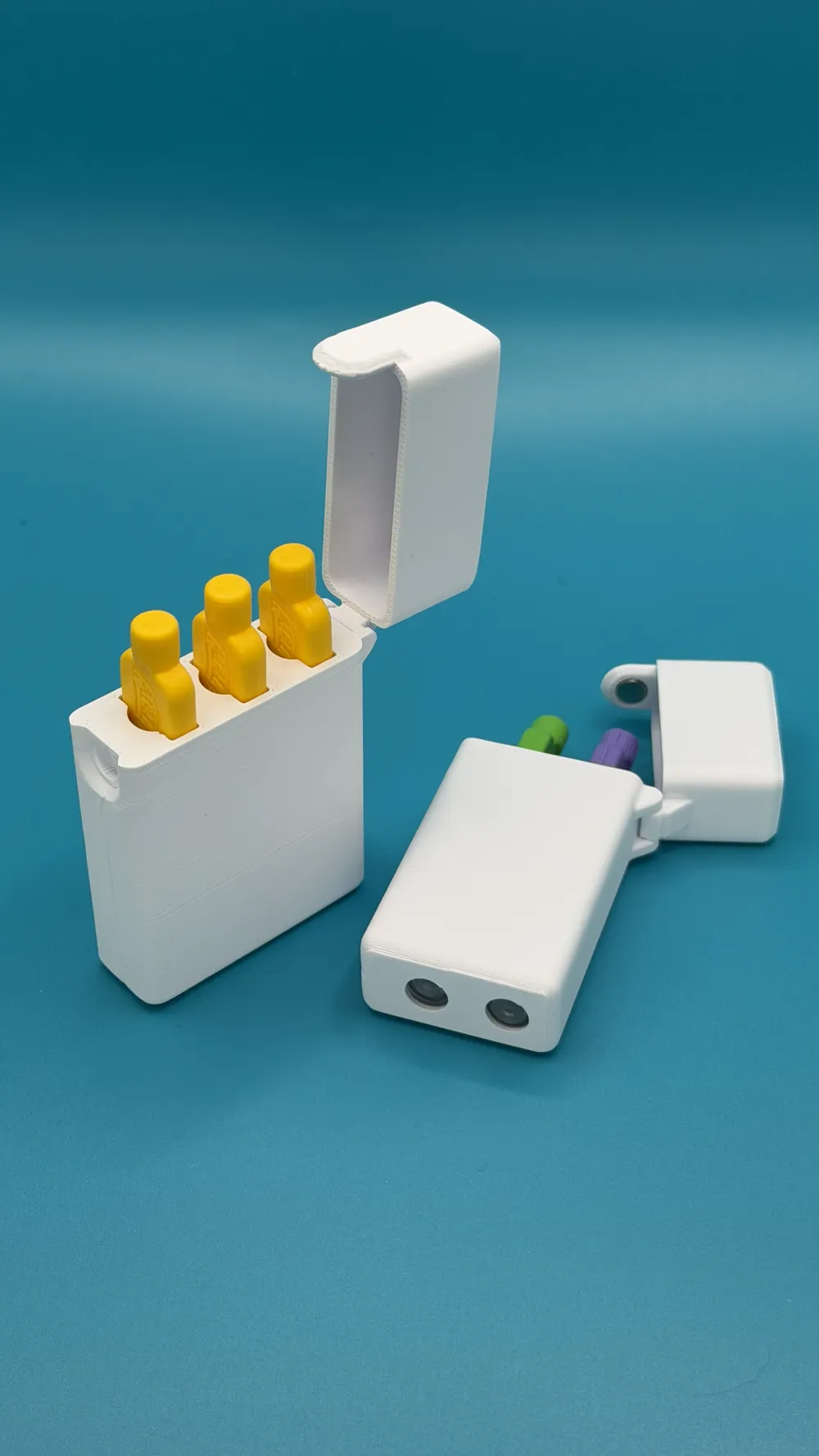

This parametric storage box is specifically designed for TEPE interdental brushes, allowing you to customize the number of slots depending on your needs.
🔧 Features
- Parametric design → adjust the number of brush slots easily
- Includes ready-to-use profiles for:
- Number of brushes: 1, 2, 3, 4
- With or without a tooth image on the top
- Compact and practical for travel or daily use
- Integrated magnetic closing system using 2 magnets (6mm x 2mm)

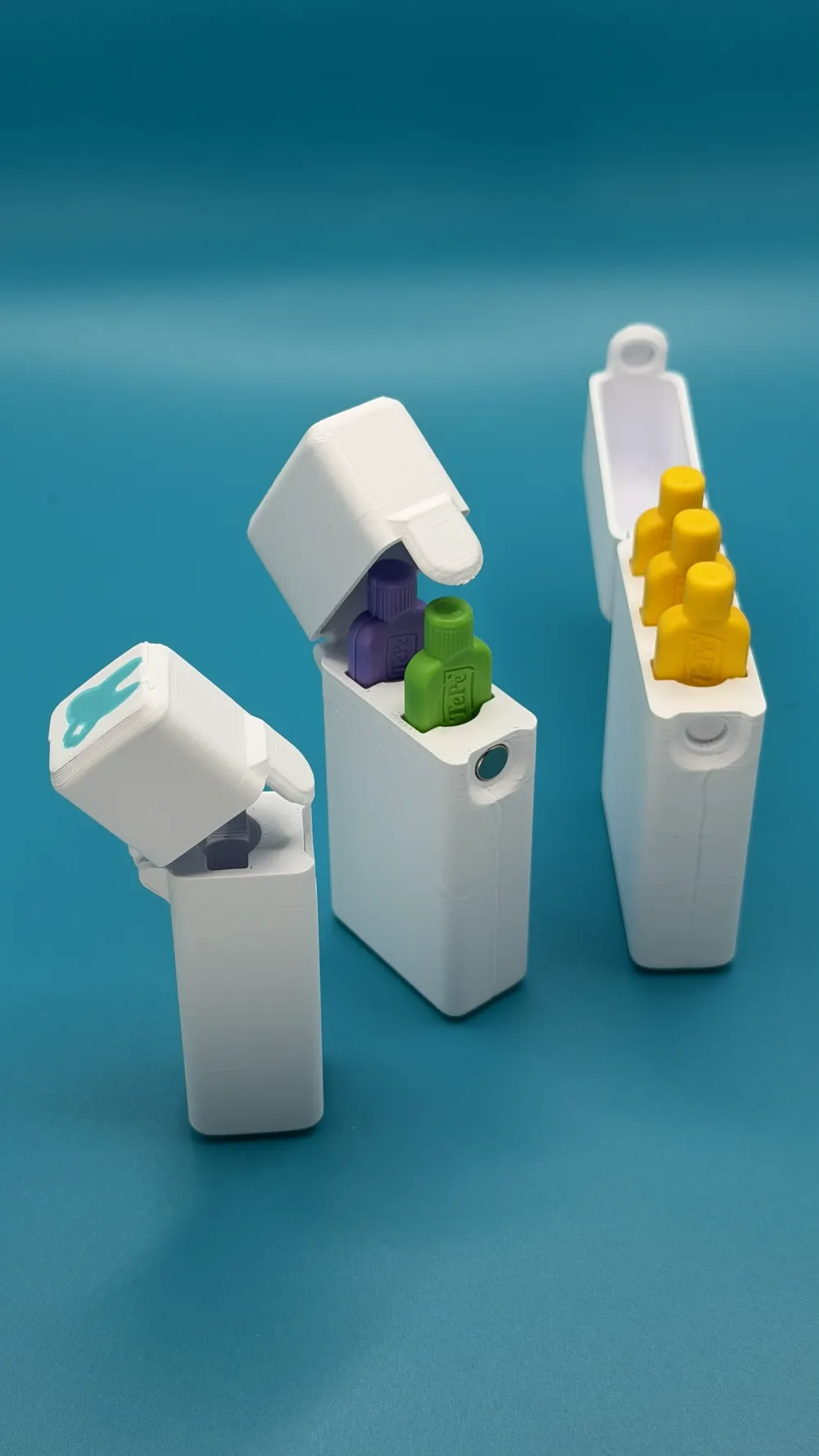

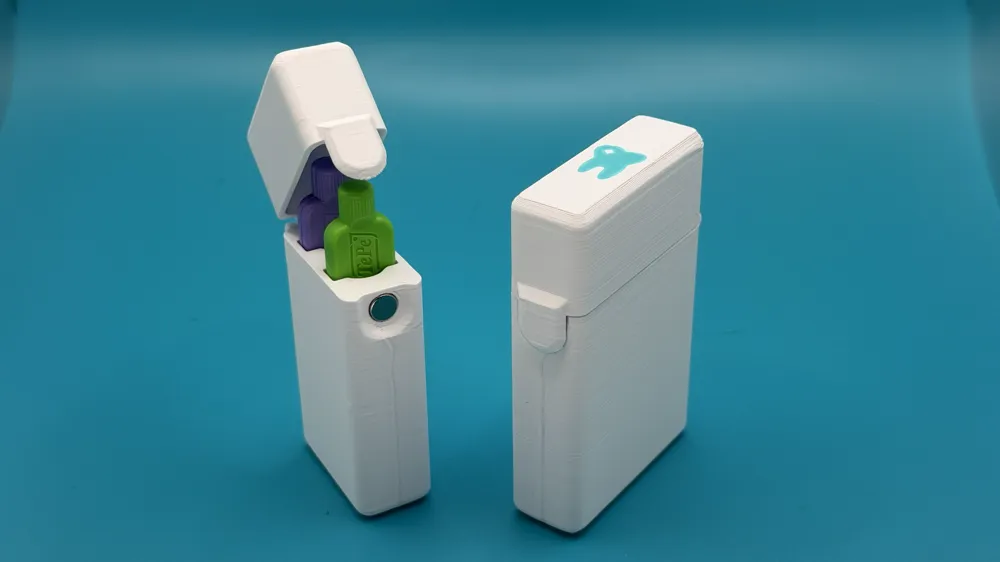

🧲 Magnetic Closure
The case features a magnetic locking system for a clean and secure closure.
- Simply insert two 6mm x 2mm magnets into the dedicated front button slots
- No glue is normally required — the magnets should fit tightly in place
🧩 Design Details
The case consists of:
- a base
- a lid
Both parts are printed separately on the same build plate.
🔒 Assembly

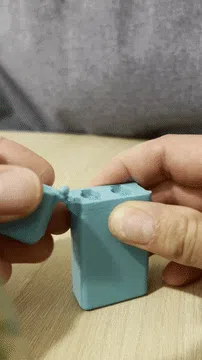

- The lid attaches to the base using small pins
- These pins fit into matching sockets for a tight, secure fit
- ⚠️ Assembly requires a bit of force — insert carefully to avoid breaking the pins
- To install the rear clip used to attach the hinge, insert it gently and slightly diagonally for easier assembly and to avoid damaging the part

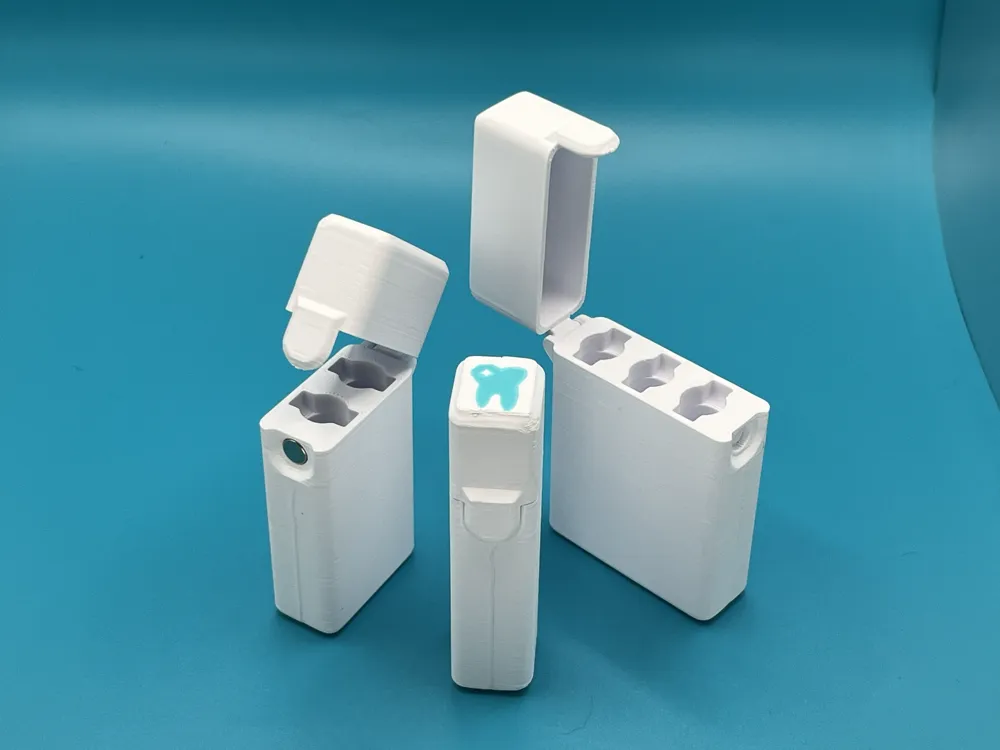

🪥 Brush Compatibility
Each slot is designed to hold:
- the interdental brush
- its protective plastic cap
🔄 Smart Removal System

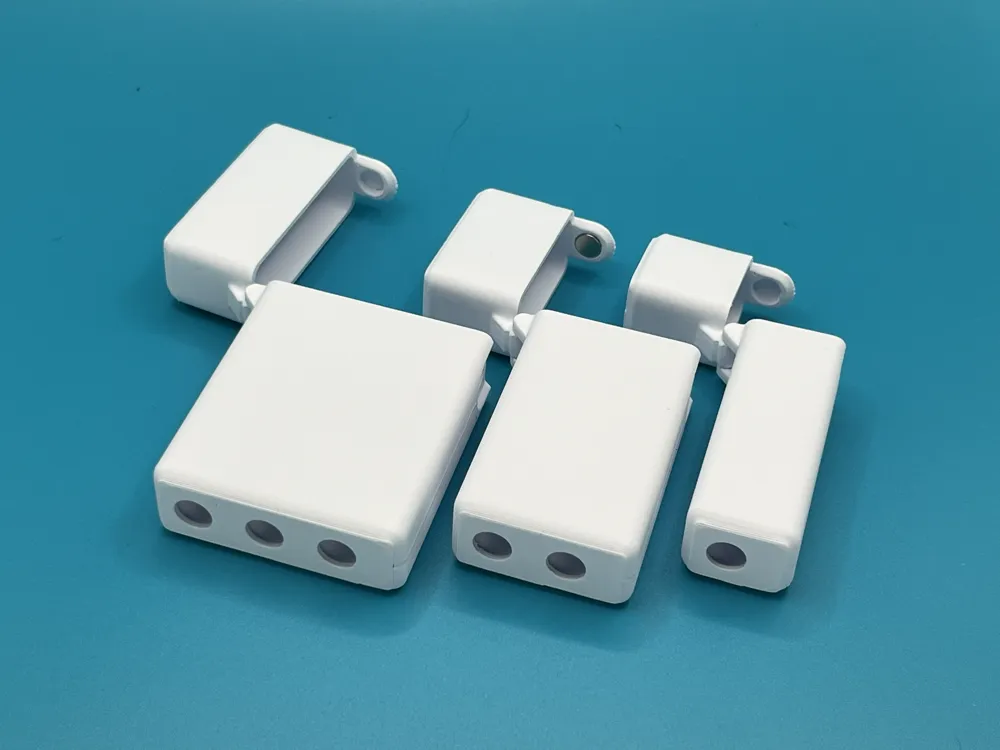

Small holes under the base allow you to push out the plastic caps easily.
Simply use the top button of a brush to push through the hole and release the cap.
✈️ Use Case
Originally designed for travel, but perfectly suited for everyday organization.
