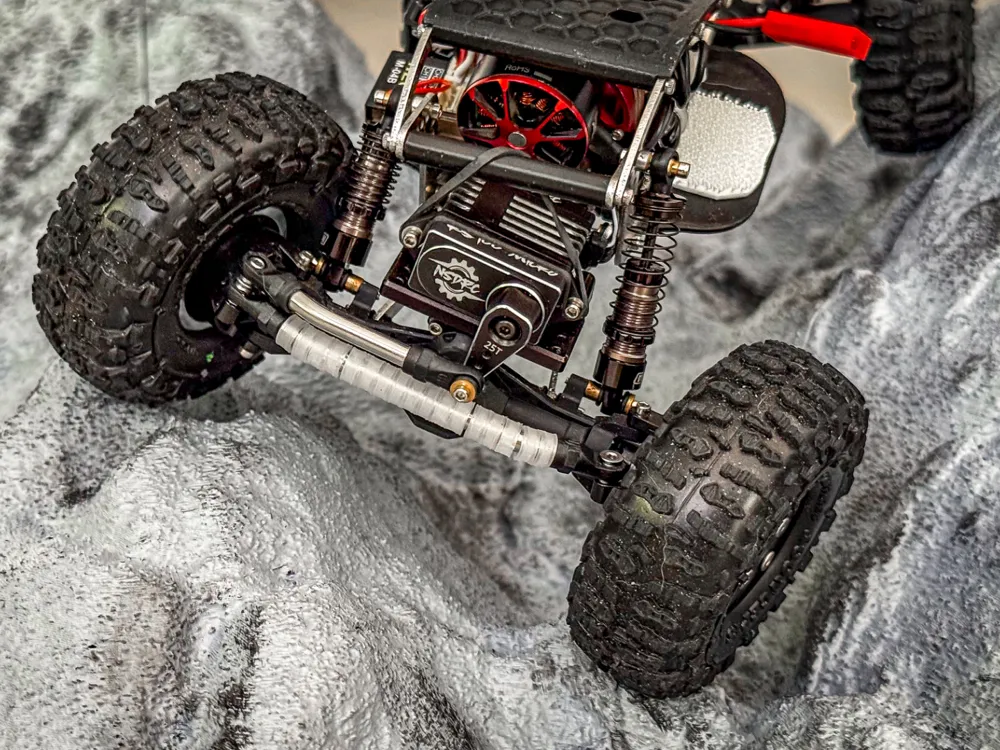

In my typical fashion, I've designed a simple and inexpensive workaround for some steering link rollers. If you're rocking Meus ISO axles for your SCX24 and have issues with the steering link getting snagged, look no further! These have just enough clearance to roll freely on the link which giving clearance on the outside to not come in contact with the upper steering link. The inside edges are chamfered to eliminate binding when rollers touch each other and to slide over the bends in the link. You can use dry PTFE lubricants to make them roll like butter too! Roller breaks or becomes damaged? Just print more! The benefit of these in my scenario is that they don't add noticeable weight.



Applications: SCX24 Meus Racing Isokinetic Axles (might work with other brands/steering links - these fit a 3.5mm rod)

Count: 17 needed for SCX24 Meus Racing Isokinetic Axle Steering Link (other brands/steering links may require more/less)



The print profile is how I printed these, I do believe a 0.20 nozzle would result in cleaner, even smoother rolling rollers (too lazy to swap nozzles at the moment).
