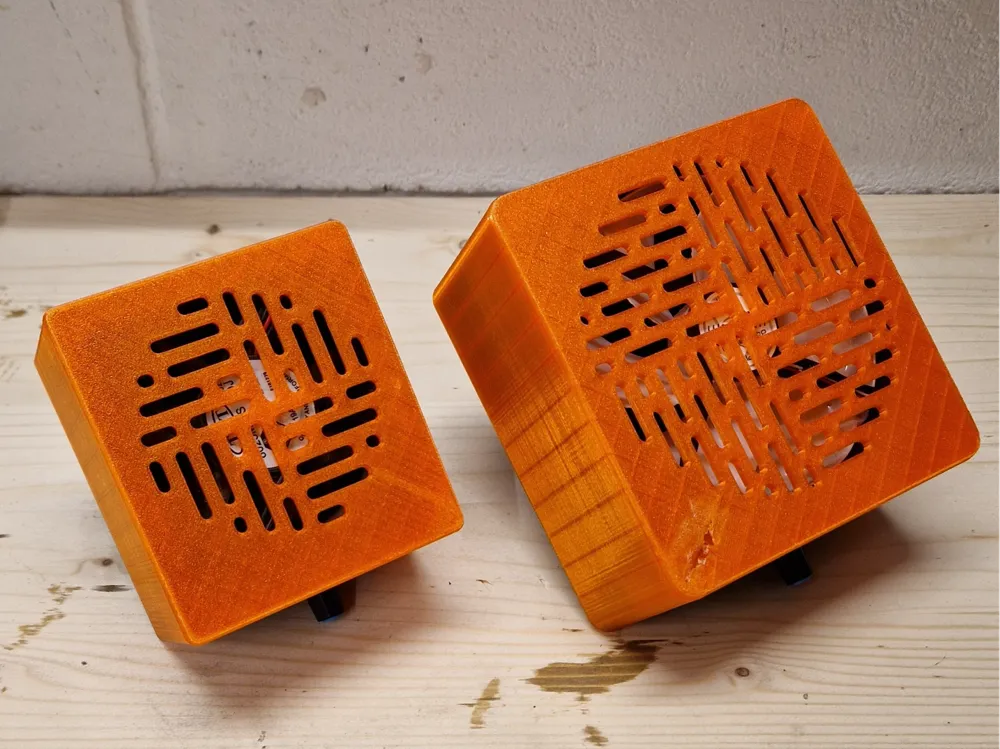

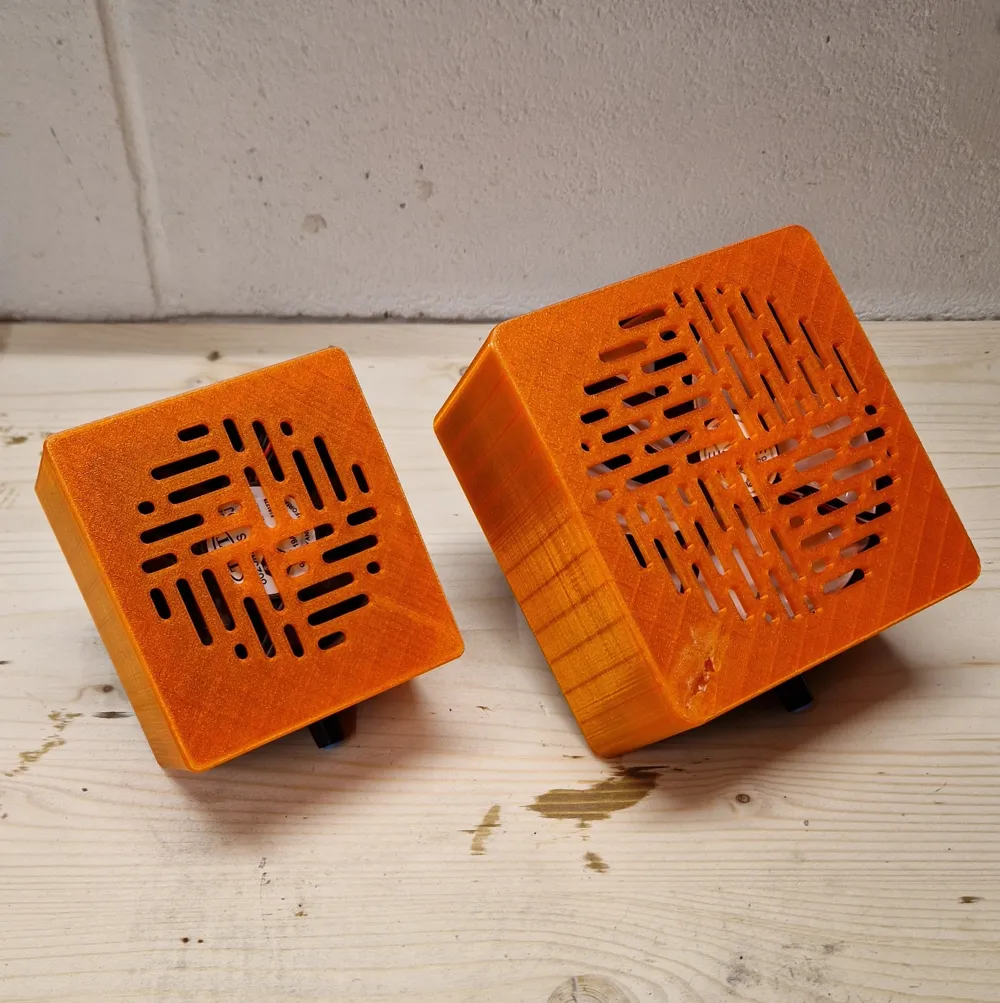

Aycubic Airpure 120/80mm with activated carbon

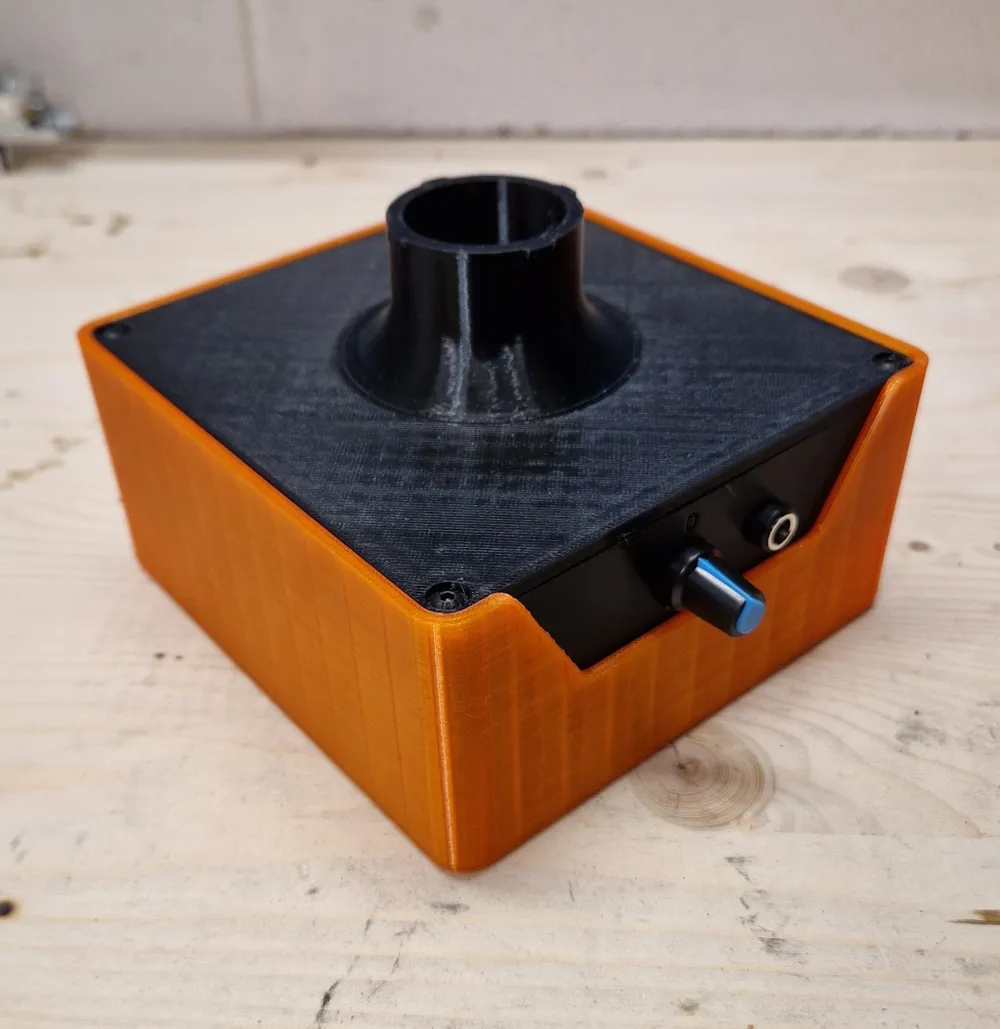

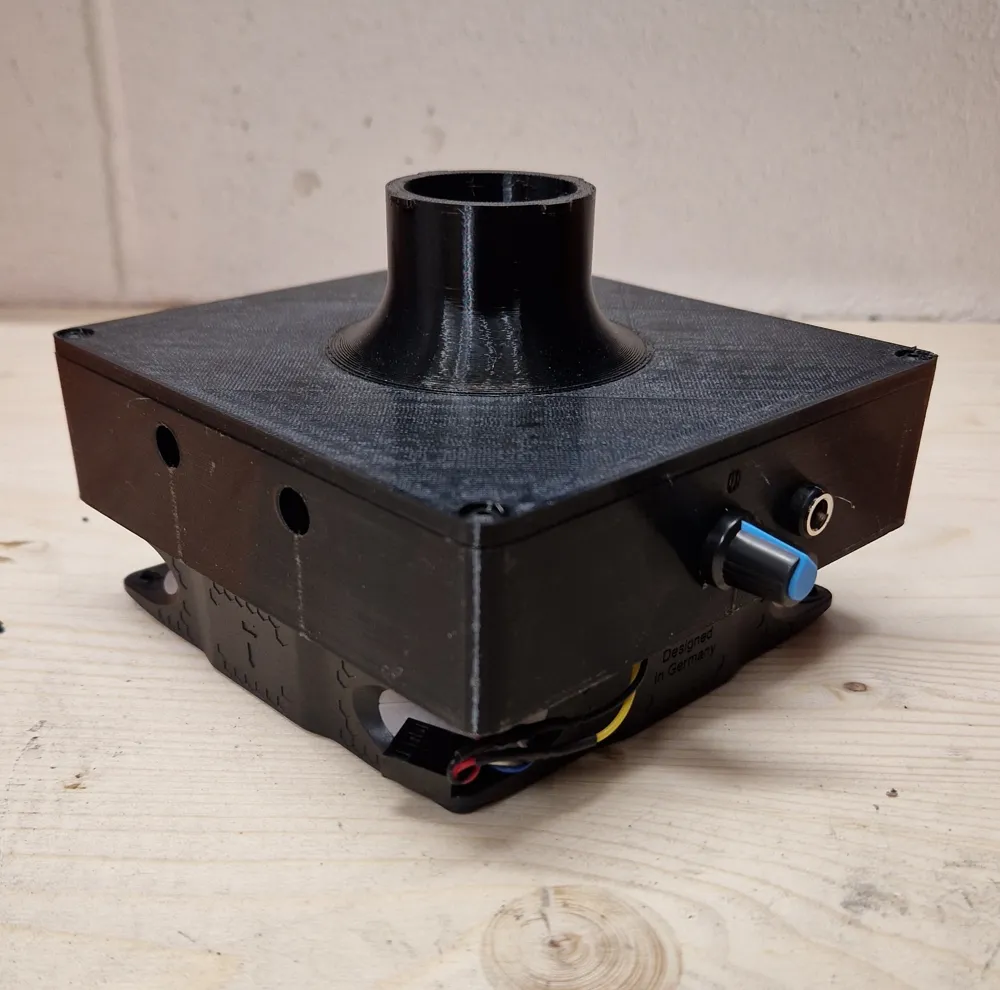

This product with a pwm fan and carbon activated filter can directly purify the polluted air which came out from the 3d printer instead of only exhaust it through a pipe.

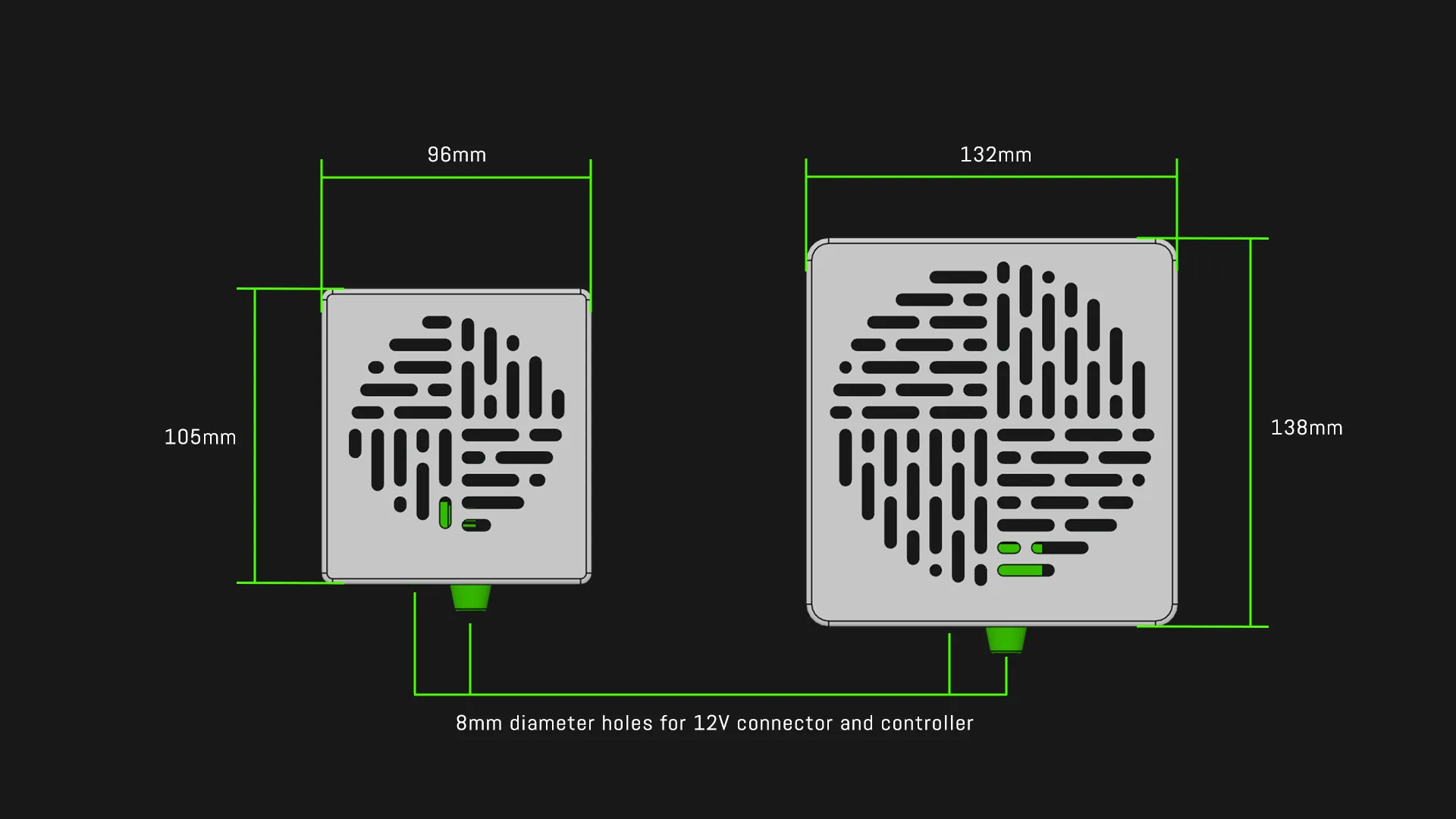

• 2 versions, 120 and 80mm computer fan compatibility.

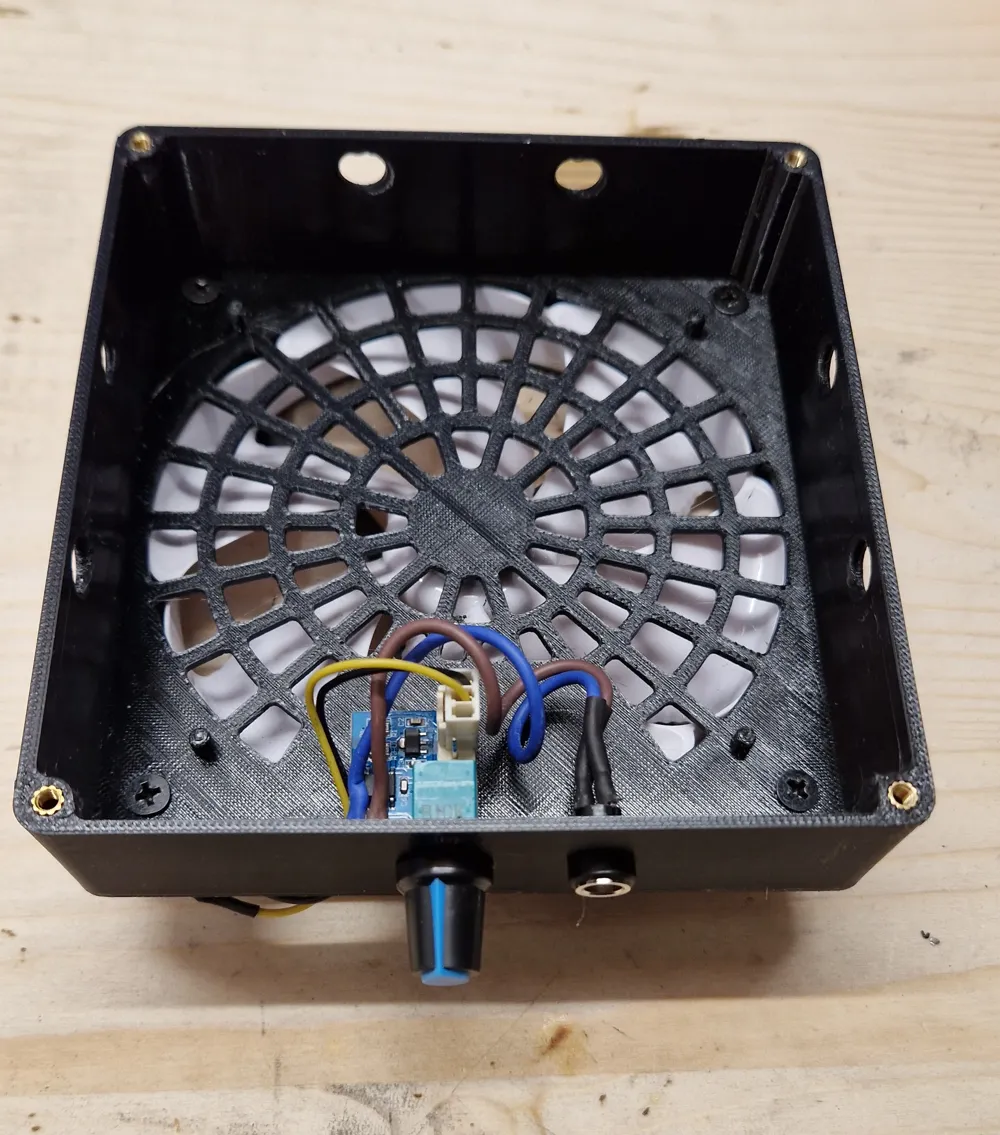

• It has a 12V female connector which supply current to a 4 pins PWM fan controller with a dimmer which also works as power switch.

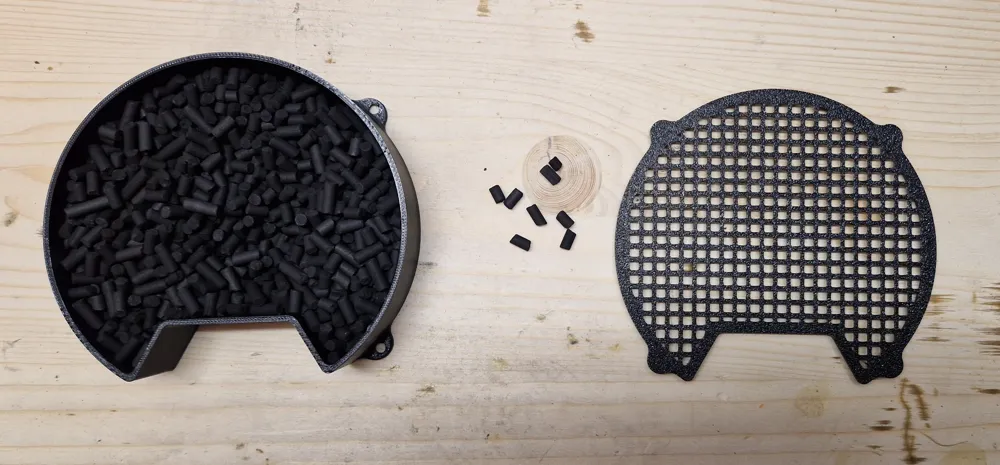

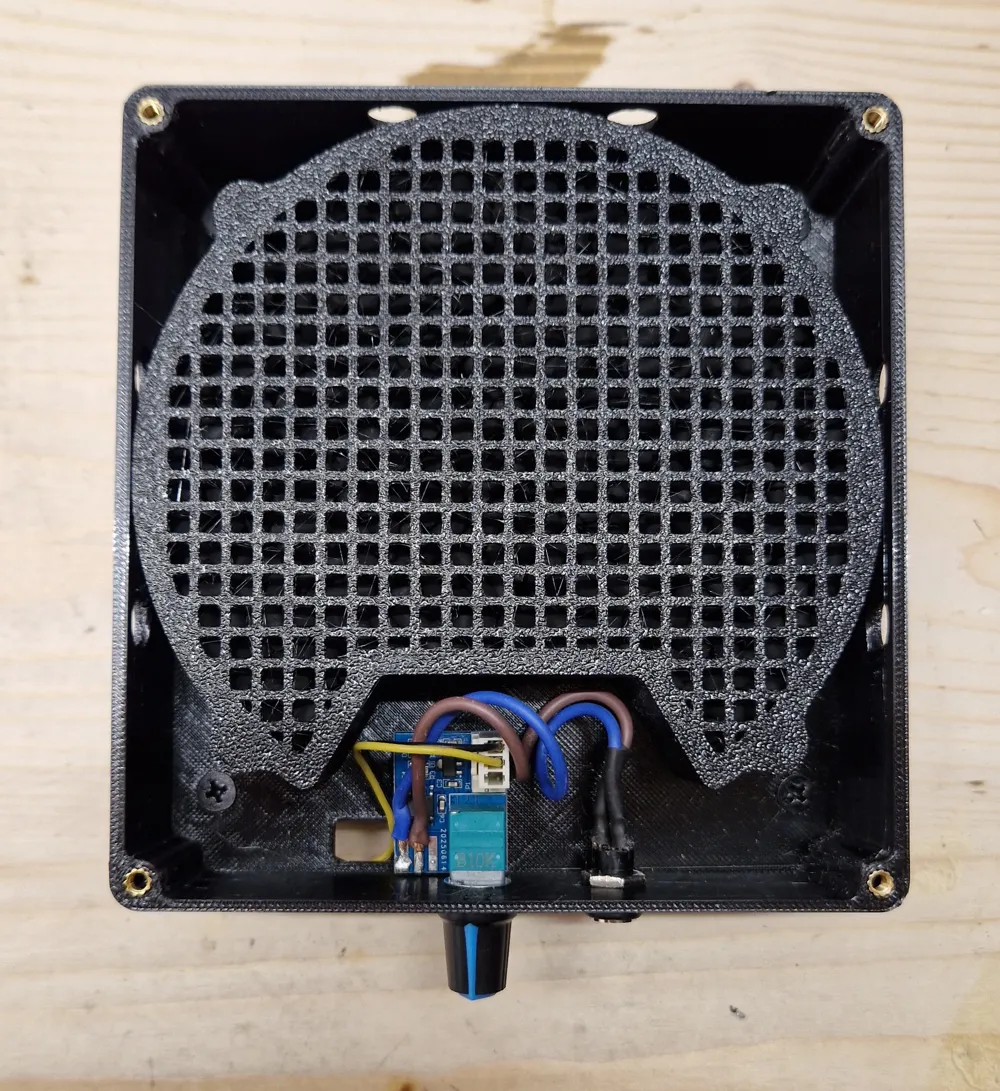

• With only 4 M3 screws you can open it and change the carbon once it's outdated.

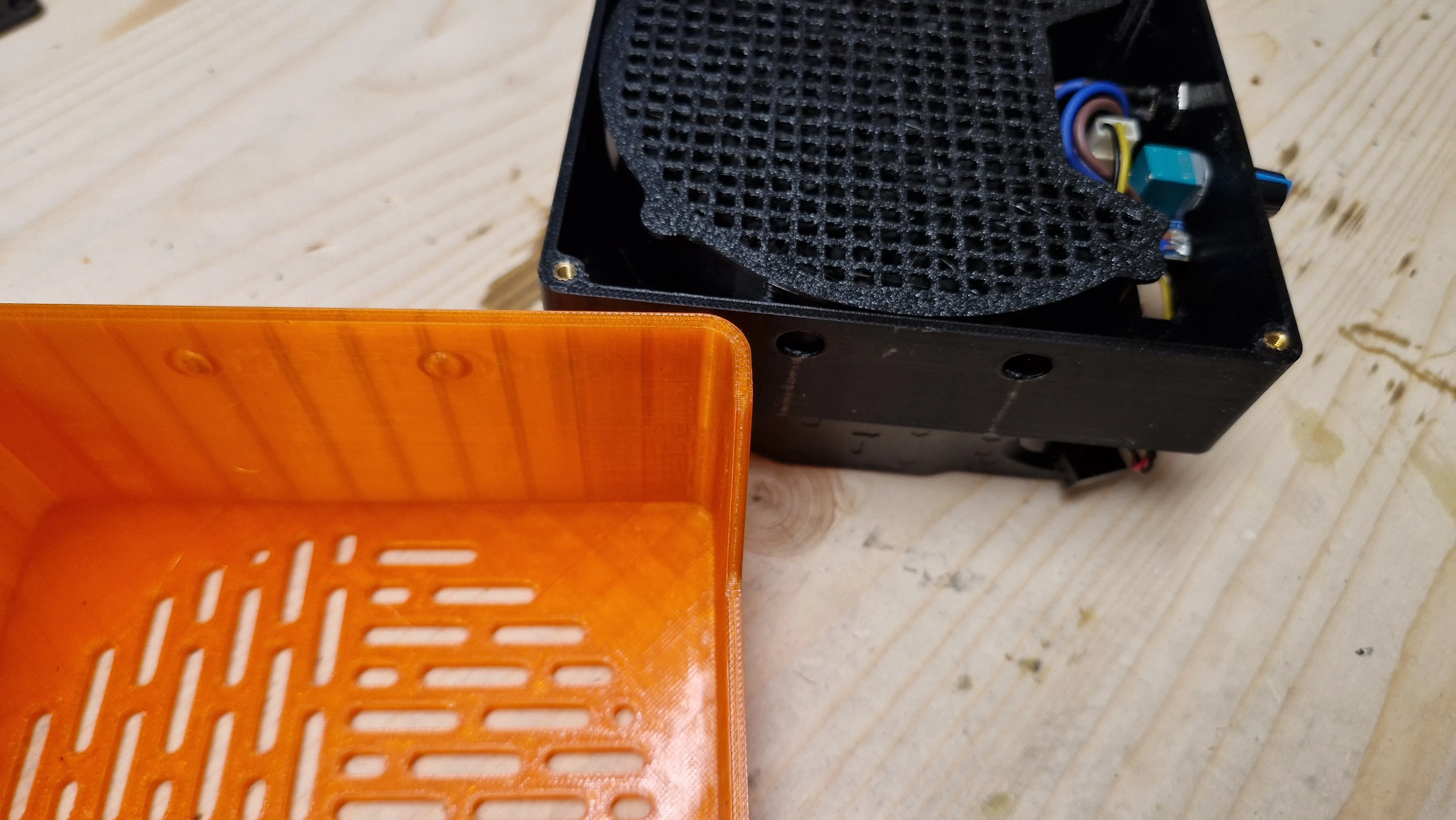

• The cover slide on the chassis and locks automatically. To remove it you can simply pull the cover out.

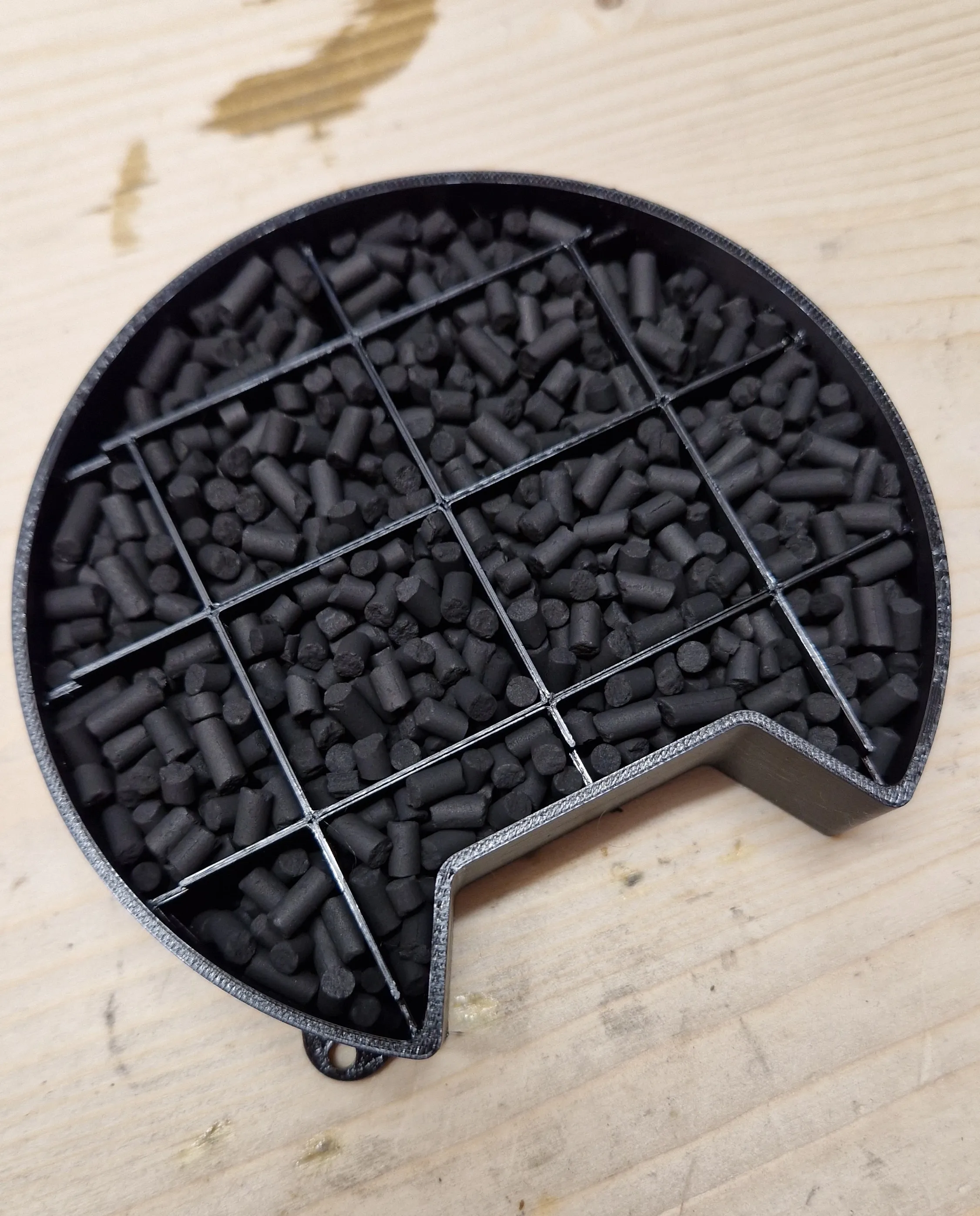

• the bucket holes are squares of 2x2mm

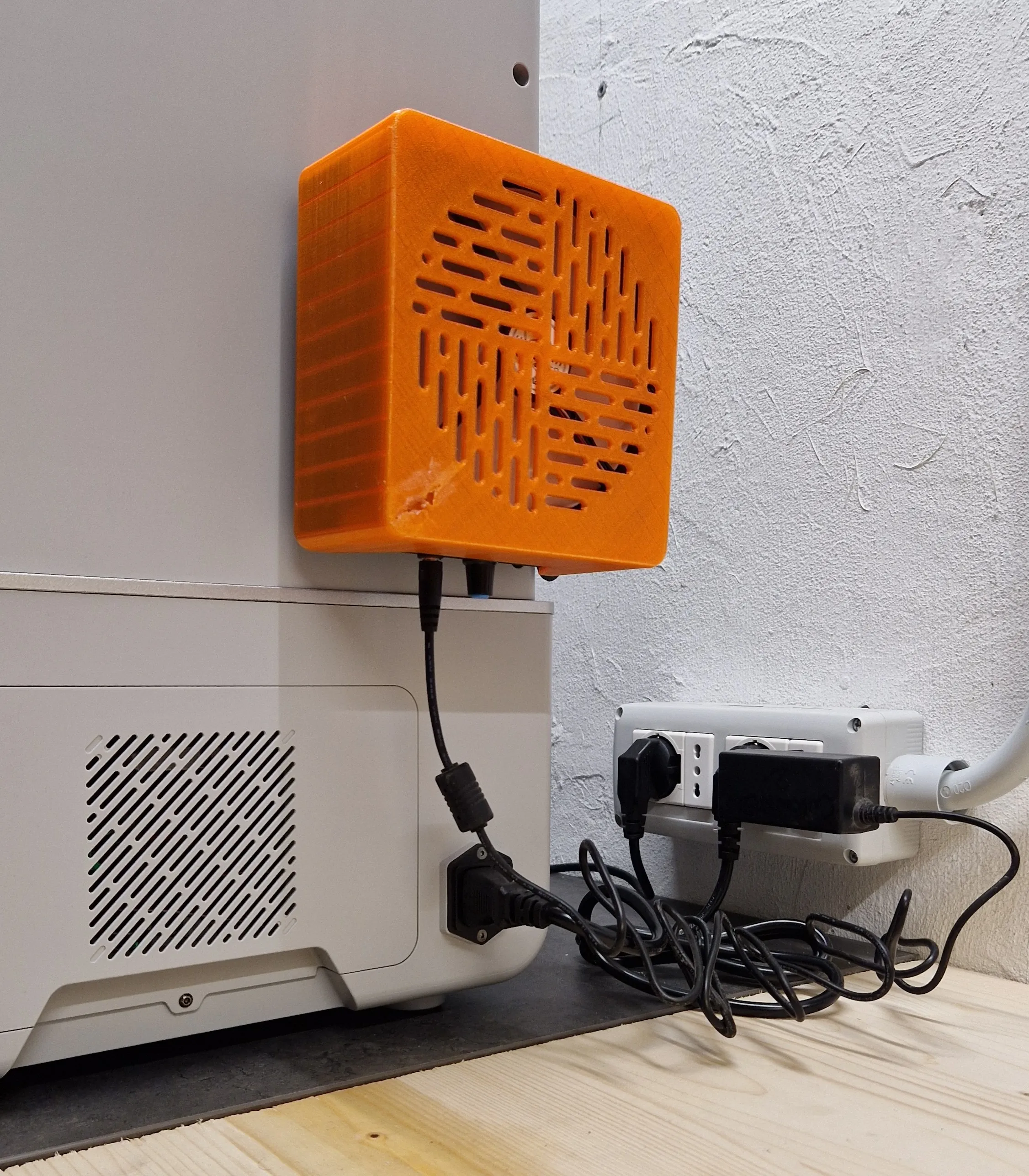

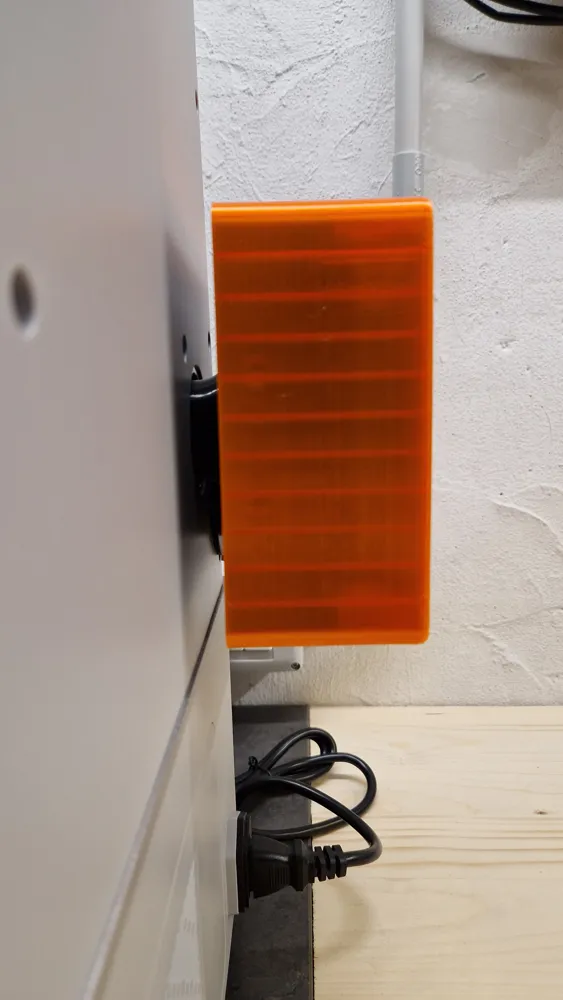

• It uses the Anycubic Airpure 2.0 connection so it has the same 3d printers compatibility.

  https://wiki.anycubic.com/en/air-pure-2/assembly

  https://anycubic.it/products/airpure-2-0?variant=53144993759596

   If you want to mount it to any other 3d printer, you only need to design the connection plate.

• it's recommended to mount an high static pressure fan
• It's recommended to plug the power supply into a smart wifi 230V socket so you can remotely turn it on only when you are printing.

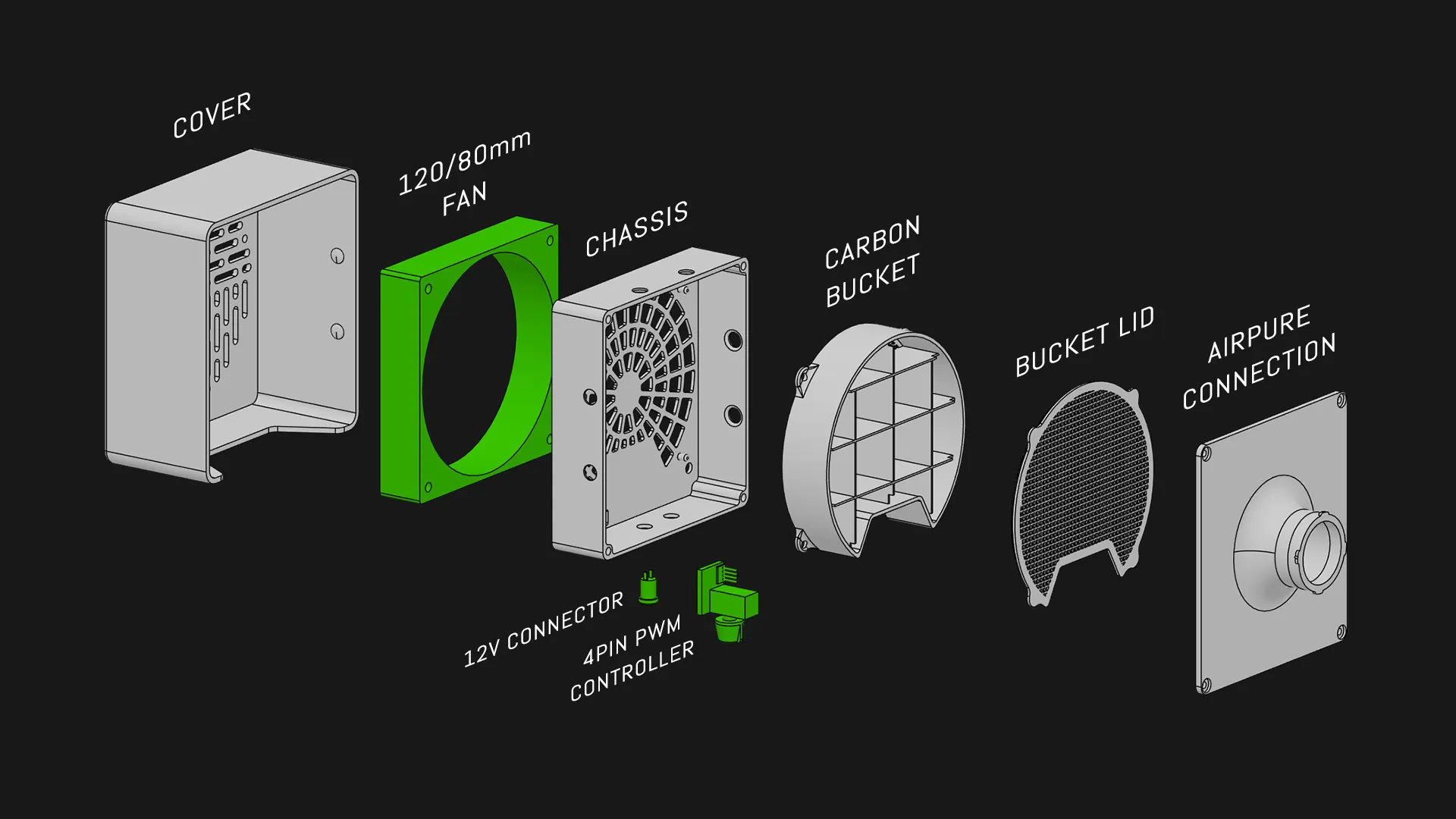

    Hardware:

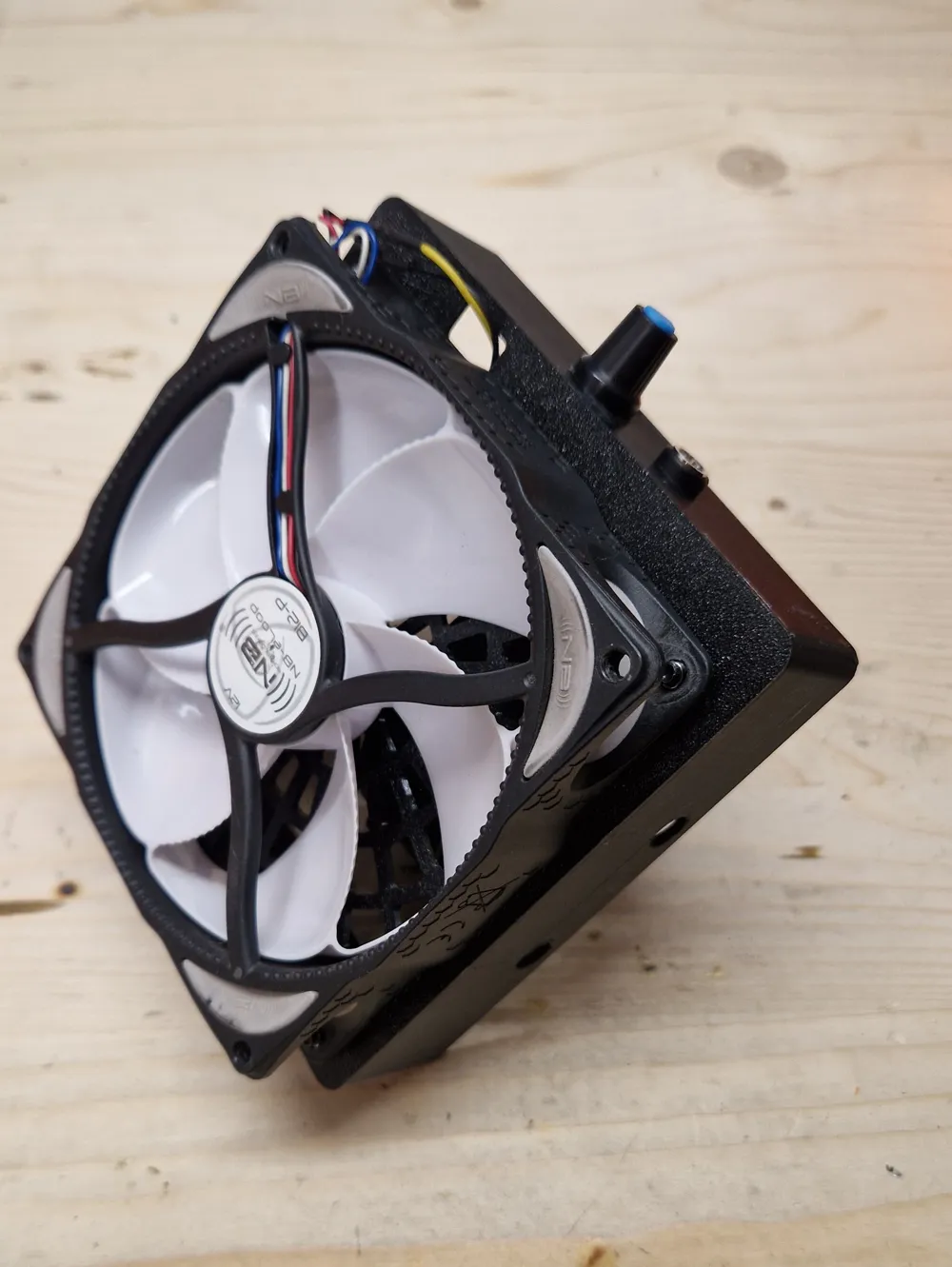

• 1x 120 or 80mm PWM fan (high static pressure fan recommended)

                                    https://www.amazon.it/ARCTIC-P12-Pro-Cuscinetto-Idrodinamico/dp/B0DJDC74BP

                                    https://www.amazon.it/ARCTIC-Max-prestazioni-controllata-ottimizzata/dp/B09VDNGW8K

• 4x fan screws
• 4x M3 4mm screws
• 4x M3 threaded inserts (in the chassis for the m3 screws of the connection plate)
• Activated carbon   https://www.amazon.it/dp/B01HY983US?ref=ppx_yo2ov_dt_b_fed_asin_title
• 1x 12V female 5.5 2.1mm connector    https://it.aliexpress.com/item/1005007211080553.html
• 1x 4 pin pwm controller    https://www.amazon.it/gp/product/B0D8PRTCV7
• 1x 12V power supply      https://www.amazon.it/Edision-ALIMENTATORE-ORIGINALE-UNIVERSALE-PICCOLLINO/dp/B07VCTTNWR
• OPTIONAL 1x 230V smart plug      https://www.amazon.it/TP-Link-Tapo-P105-Intelligente-Compatibile/dp/B0B2PXGM56

     Print settings:

• 0.20 layer height
• 2/3 wall lines
• 10% infill density\
• no supports
• 1 plate for all 80mm pieces

• 2 plates for 120mm pieces

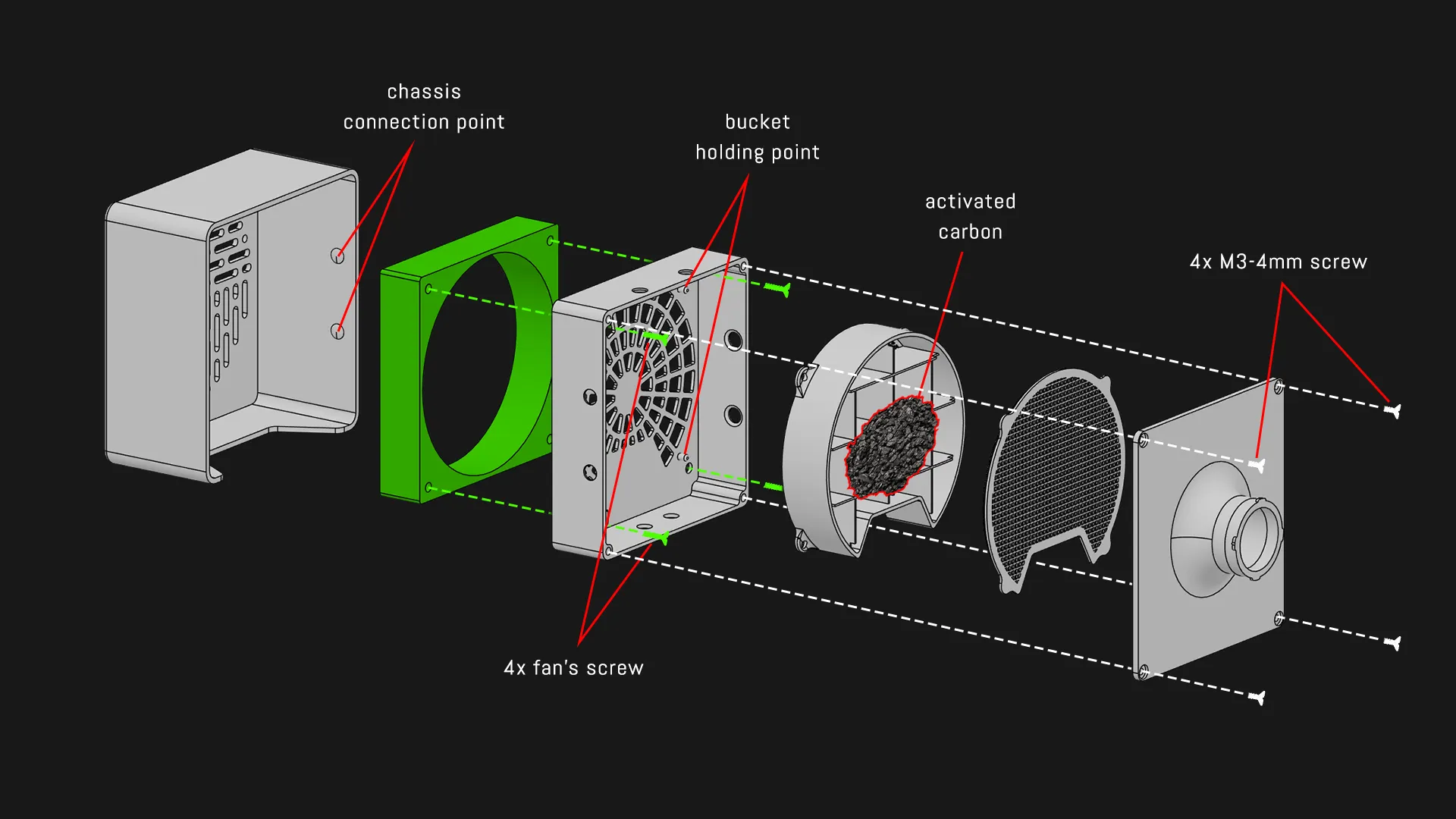

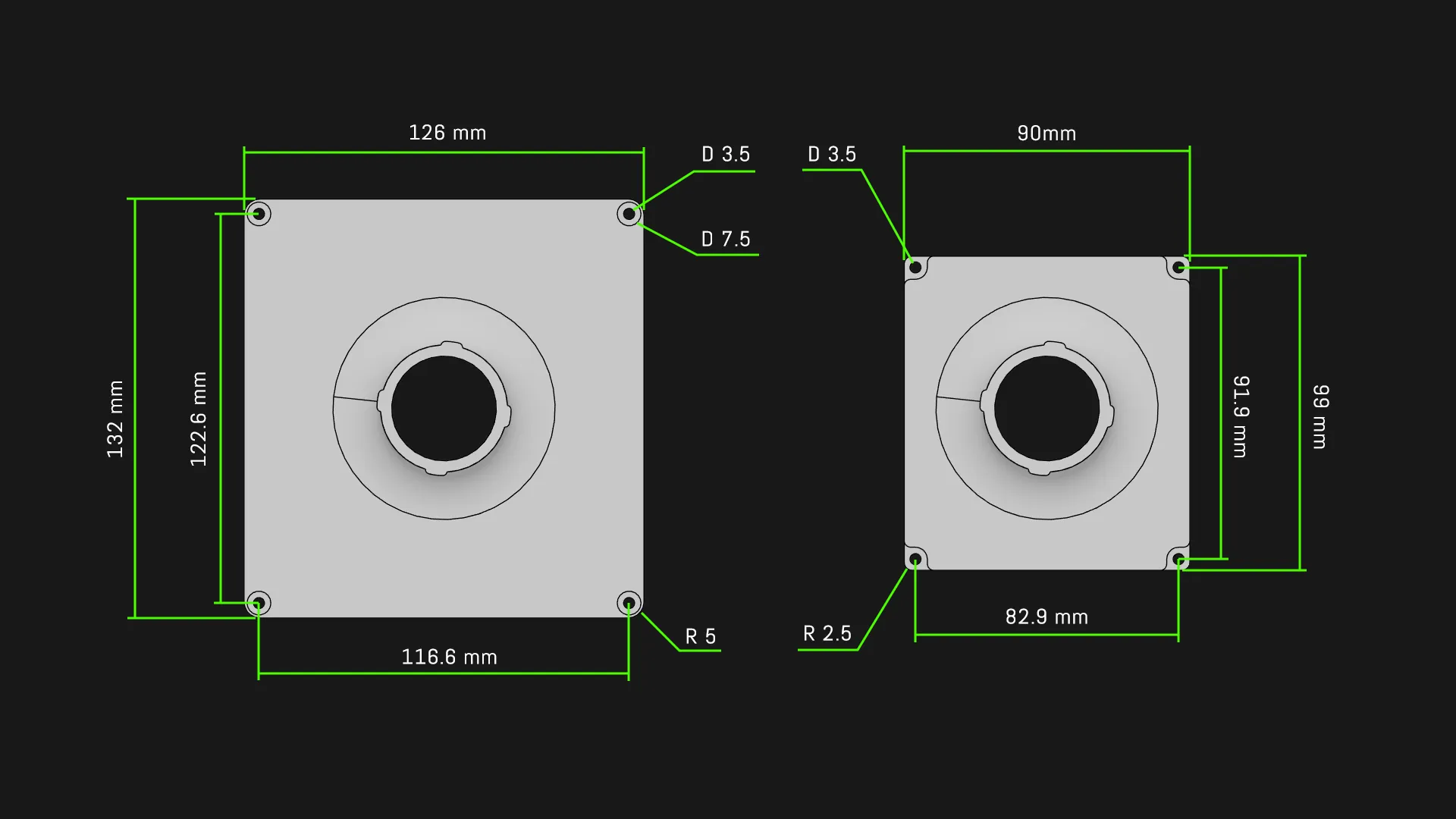

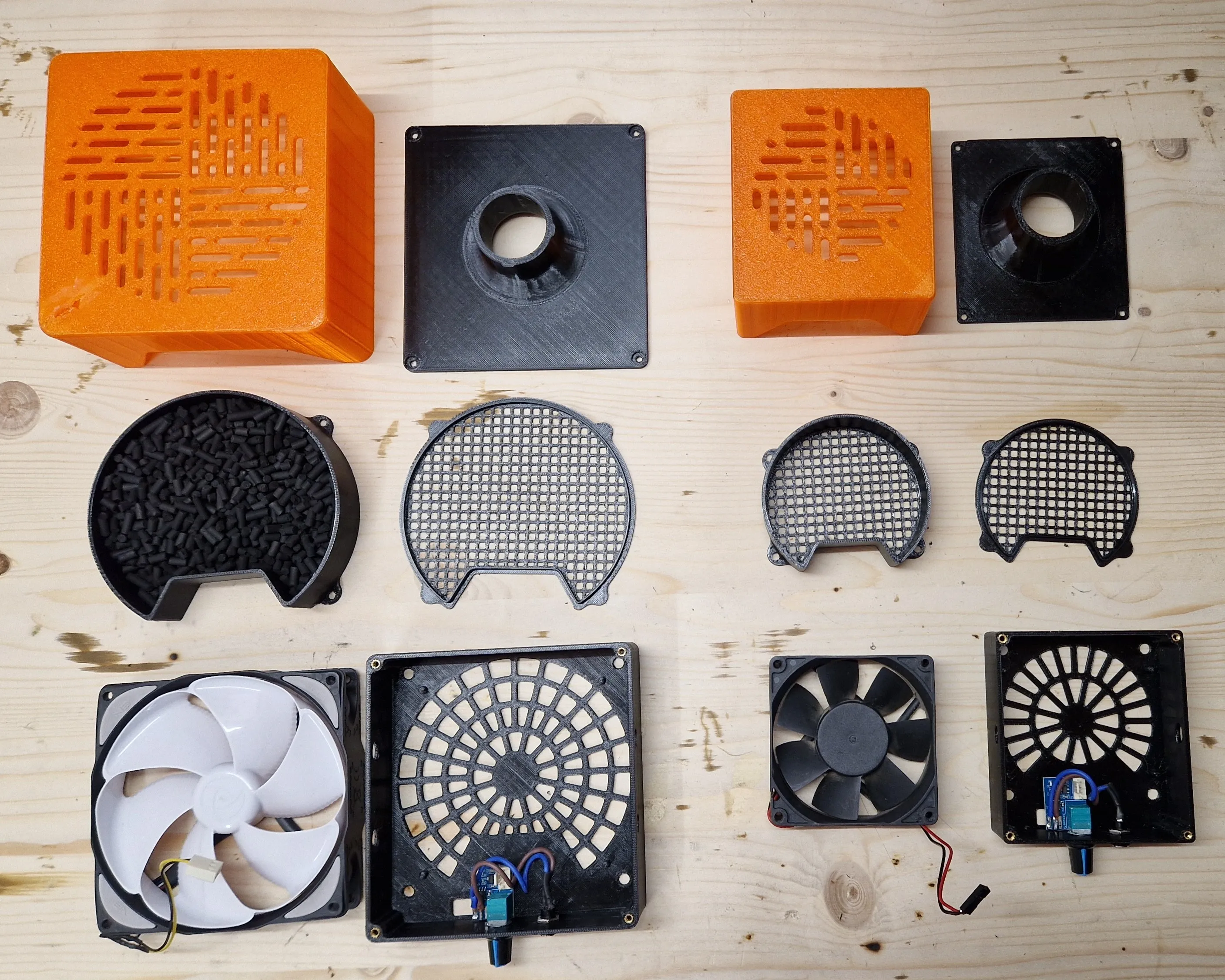

Use the next photo to redesign the connection plate with different connection for other 3d printer.

YOU'RE DONE!!

If you've printed and assembled it, let me know in the comments what you think about it and share some photos of your setup.
