Elecrow 7" HMI Basic Display Case
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
3.4 h
2 plates
Open in Bambu Studio
Boost
3
9
1
0
10
7
Released
Bill of Materials
List other parts
- M3 Socket Head Screws - 12mm x 4:

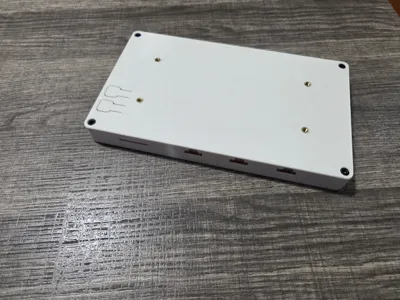

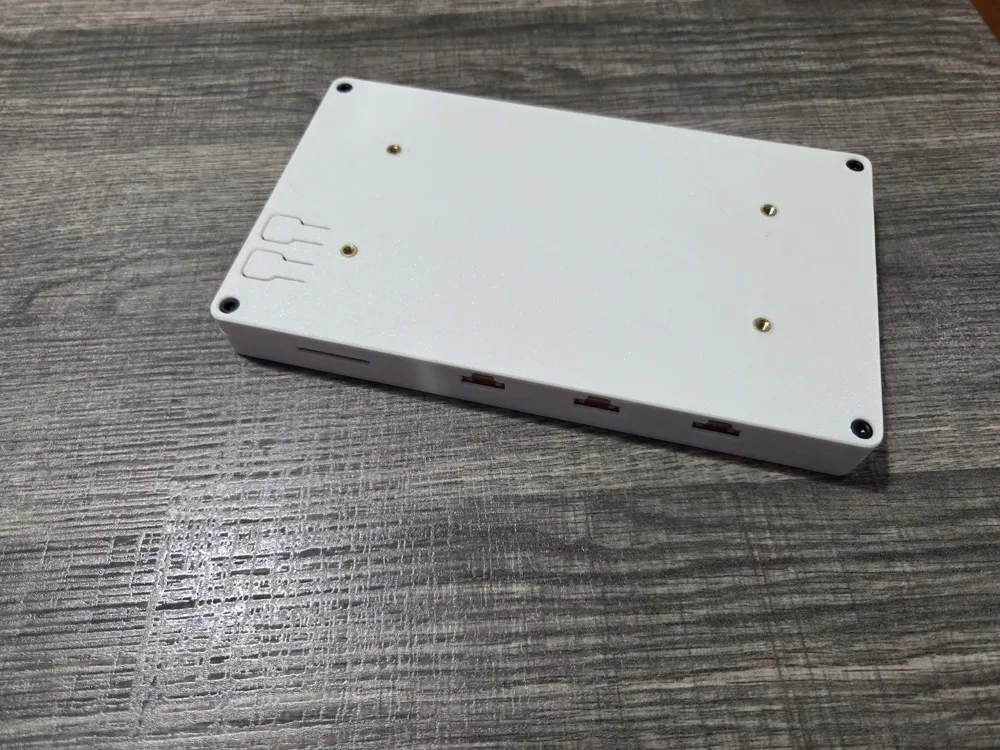

- M3 Heat Set Insert x 8: Only 4 are needed if you leave off the mount ones in the back.
Description

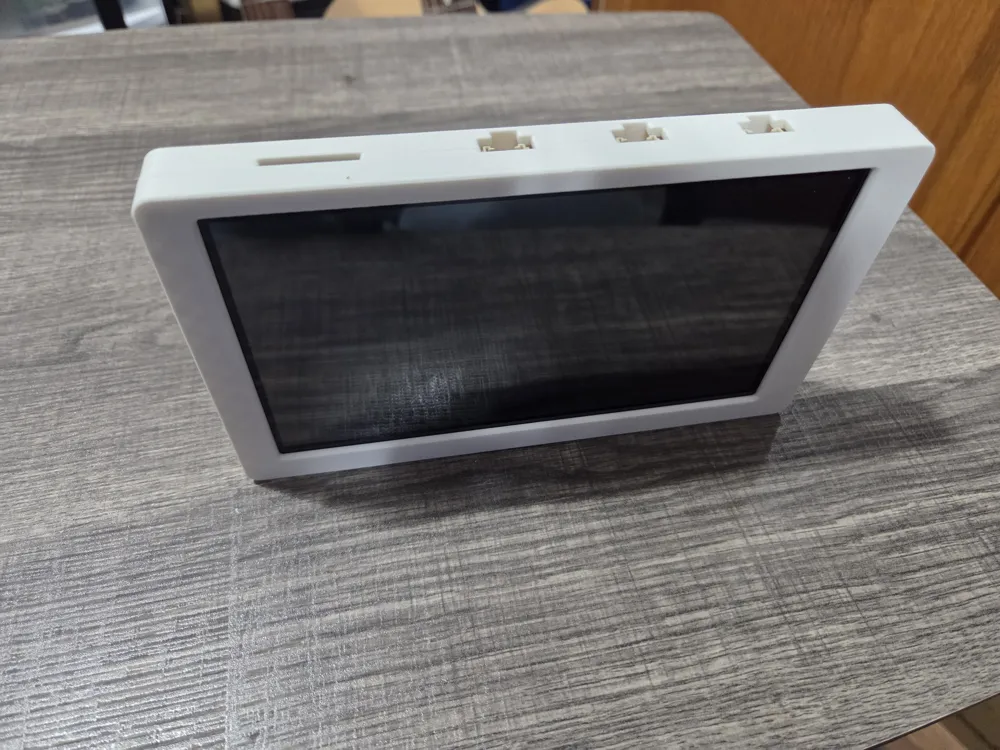

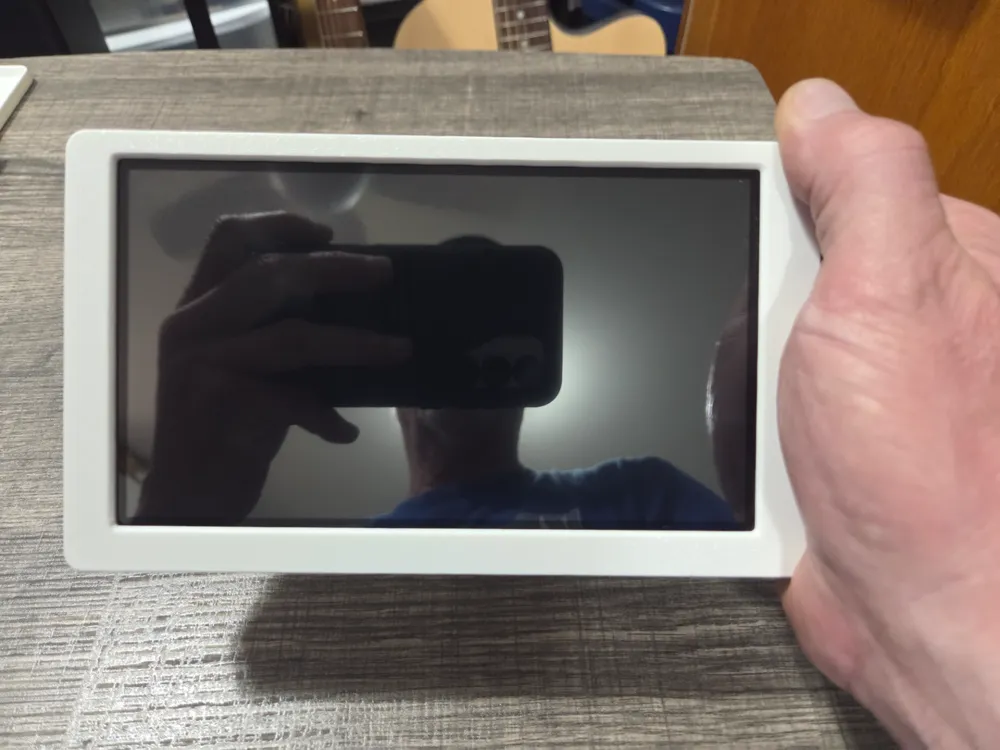

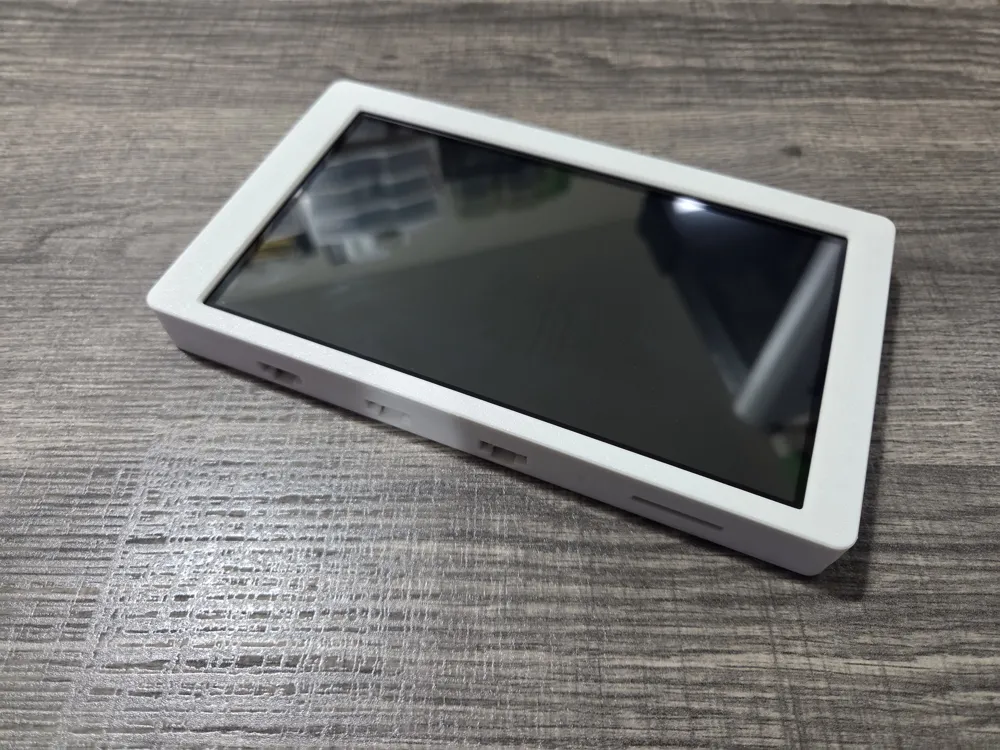

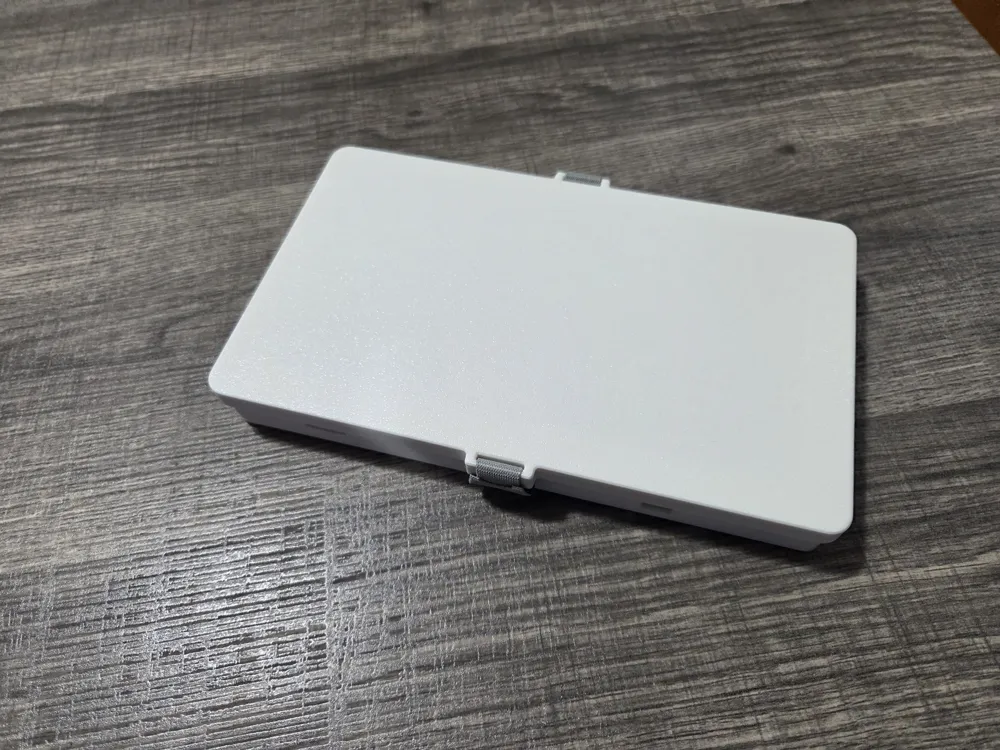

This is a protective case for the Elecrow 7" HMI ESP32 S3 Basis display. I included a protective cover because I like to travel with my hobby. The case uses heat set inserts to allow for easy reassembly. All ports on the board are exposed so they can be accessed and I included button cutouts so the reset and boot buttons could be used without any hassle.
