Schellenberg Insect Screen Corner Premium

🇬🇧 English

Replacement corner connector for Schellenberg INSECTSYSTEM PREMIUM insect screen frames, models 70044(120×140 cm) and 70045 (120×240 cm).

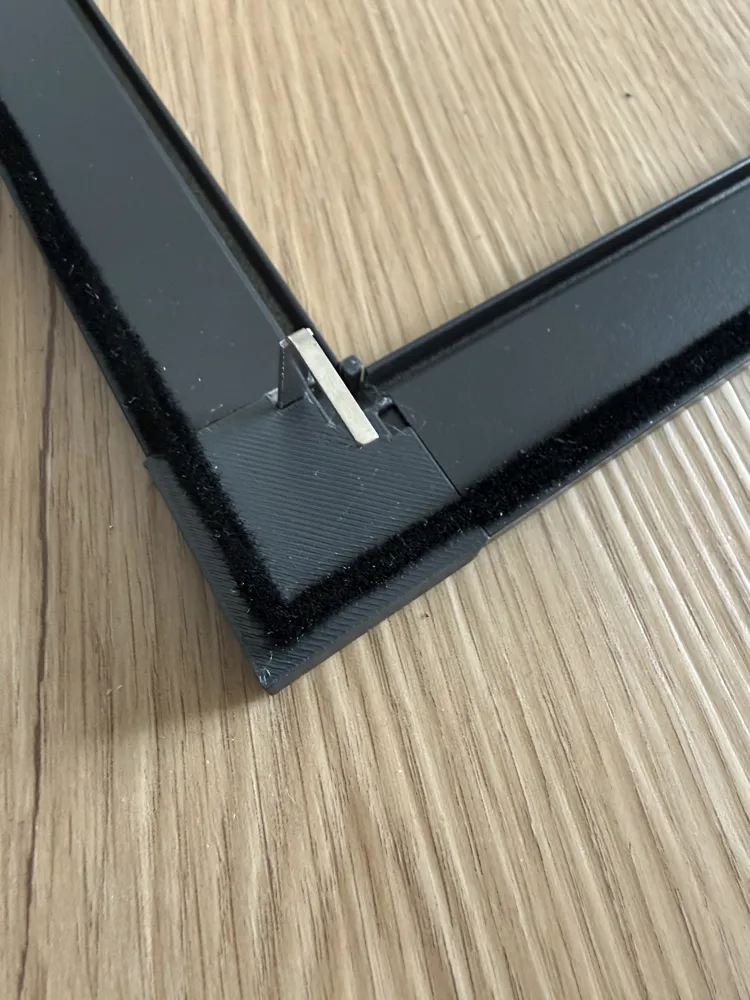

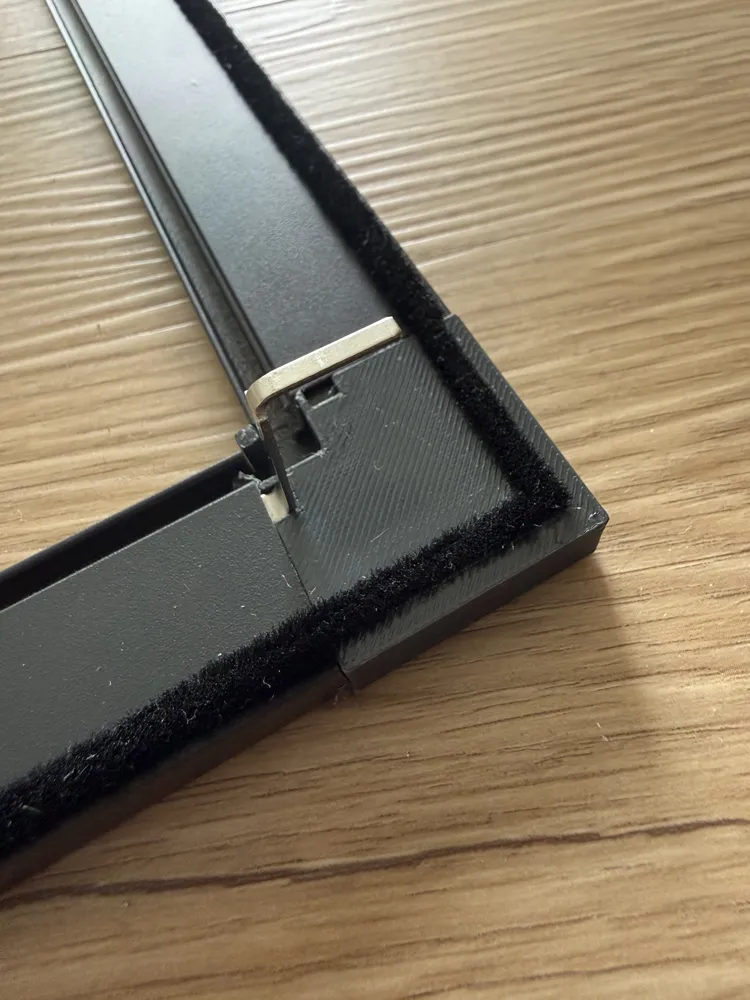

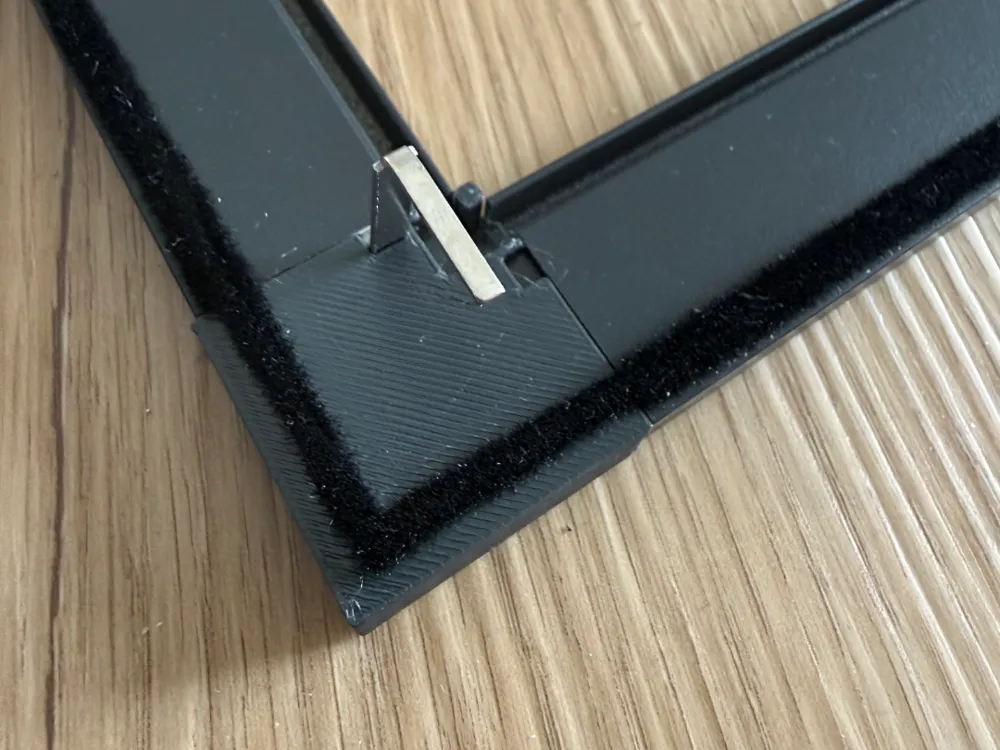

This is a 3D-printable reproduction of the original corner piece that joins two aluminum profiles at a 90° angle. Dimensions match the original: 34 × 34 mm footprint, 10.5 mm height, designed for 30 mm wide aluminum profiles. Includes the locking tab for secure snap-fit into the profile grooves.

Use this as a replacement for broken or lost corner connectors, or to build custom-sized insect screen frames. 4 pieces are needed per frame.

Print settings:

• Supports required
• Layer height: 0.2 mm
• Wall loops: 6
• Infill: 25%
• Material: PETG
• Color: RAL 7016 (Anthracite Grey) to match original Schellenberg frames

Note: This is a third-party reproduction, not an official Schellenberg product. Test fit with your profiles before printing all pieces. Not compatible with model 70033 (different profile system).

🇩🇪 German

Replacement corner connector for Schellenberg INSECTSYSTEM PREMIUM insect screen frames, models 70044 (120 × 140 cm) and 70045 (120 × 240 cm).

This is a 3D-printable reproduction of the original corner piece that joins two aluminum profiles at a 90° angle. The dimensions match the original: 34 × 34 mm footprint, 10.5 mm height, suitable for 30 mm wide aluminum profiles. The locking tab for secure snap-fit into the profile grooves is included.

Suitable as a replacement for broken or lost corner connectors or for building custom-sized frames. 4 pieces are needed per frame.

Print settings:

• Supports required
• Layer height: 0.2 mm
• Wall loops: 6
• Infill: 25%
• Material: PETG
• Color: RAL 7016 (Anthracite Grey) to match the original Schellenberg frames

Note: This is a reproduction, not an official Schellenberg product. Test fit with your profiles before printing all pieces. Not compatible with model 70033 (different profile system).
