WarMachine – XIAO C5 + C6 wardriving setup
IP Report
Print Profile(3)
0.2mm layer, 2 walls, 15% infill
Designer
2 h
1 plate
0.2mm layer, 2 walls, 15% infill
Designer
2.4 h
3 plates
0.2mm layer, 2 walls, 15% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
3
4
0
0
2
0
Released
Description
WarMachine

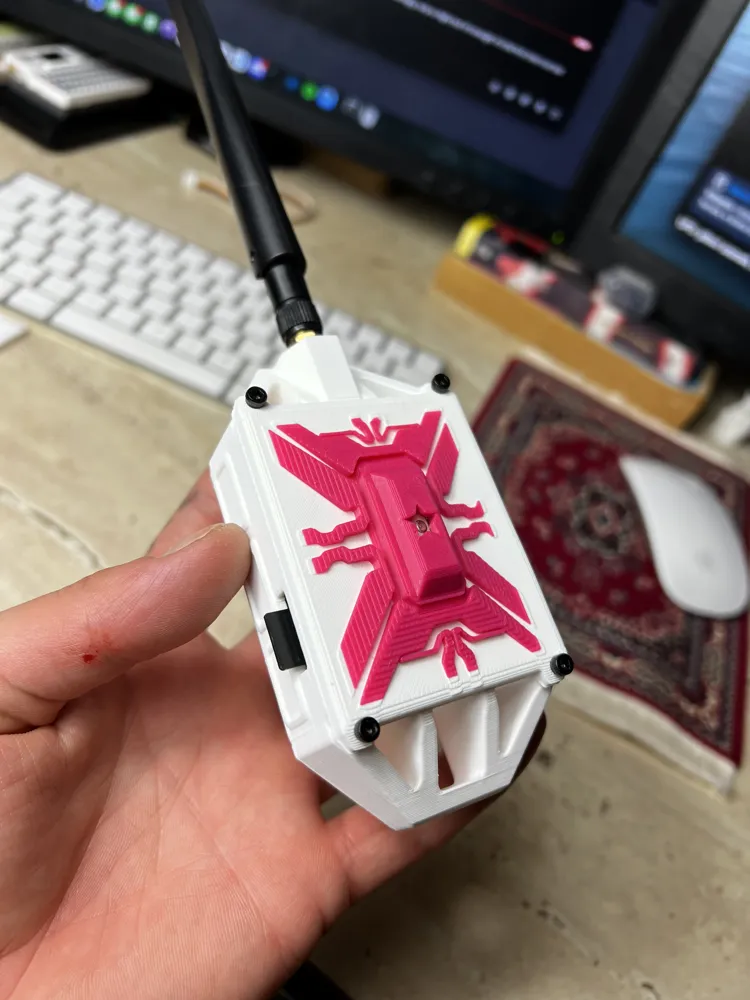

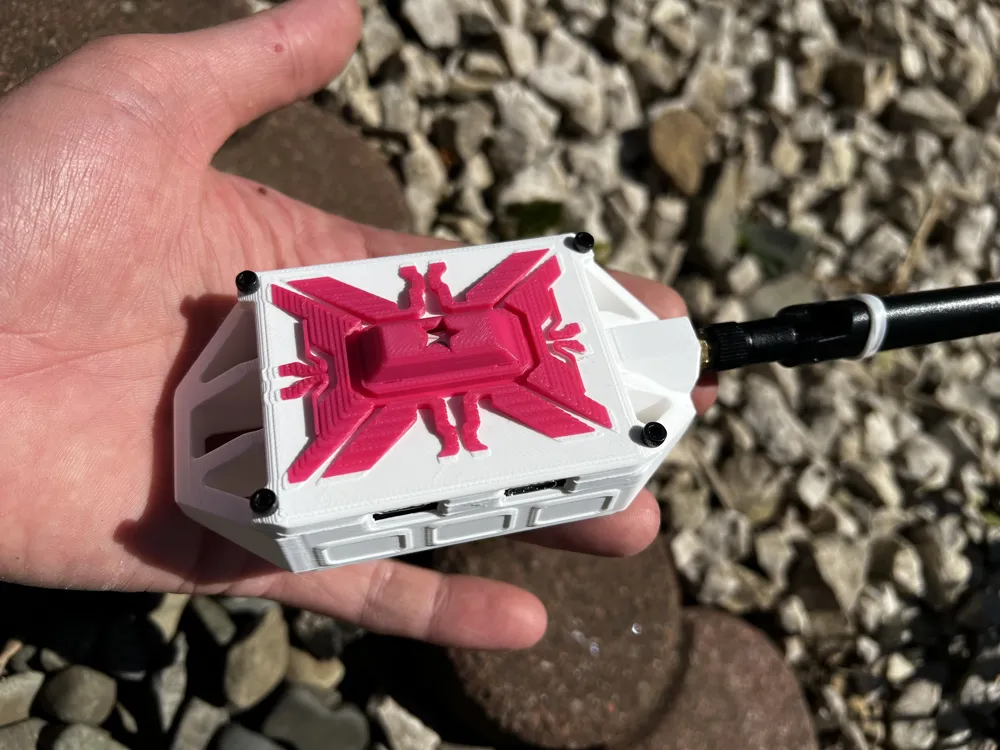

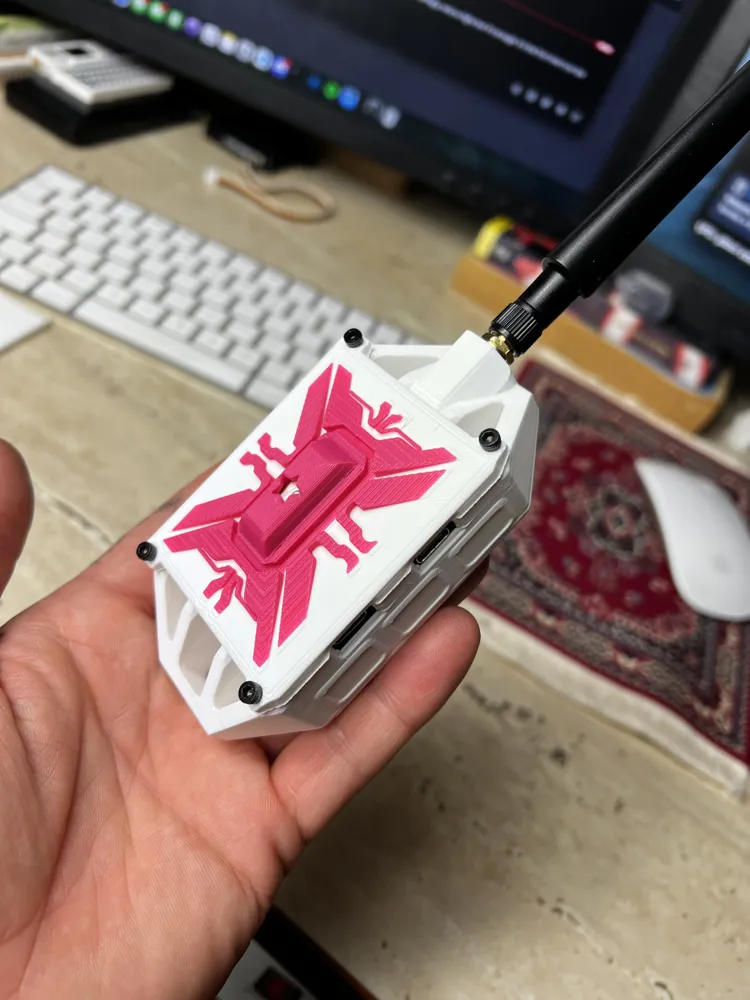

A compact enclosure designed for the WarMachine - wardriving platform based on dual XIAO ESP32 boards, GPS and SD card.
- ESP32-C5 for Wi-Fi scanning and SD logging
- ESP32-C6 as a GPS bridge controller
The system generates WiGLE-compatible wardriving logs in a compact portable form factor.
🔥 Features

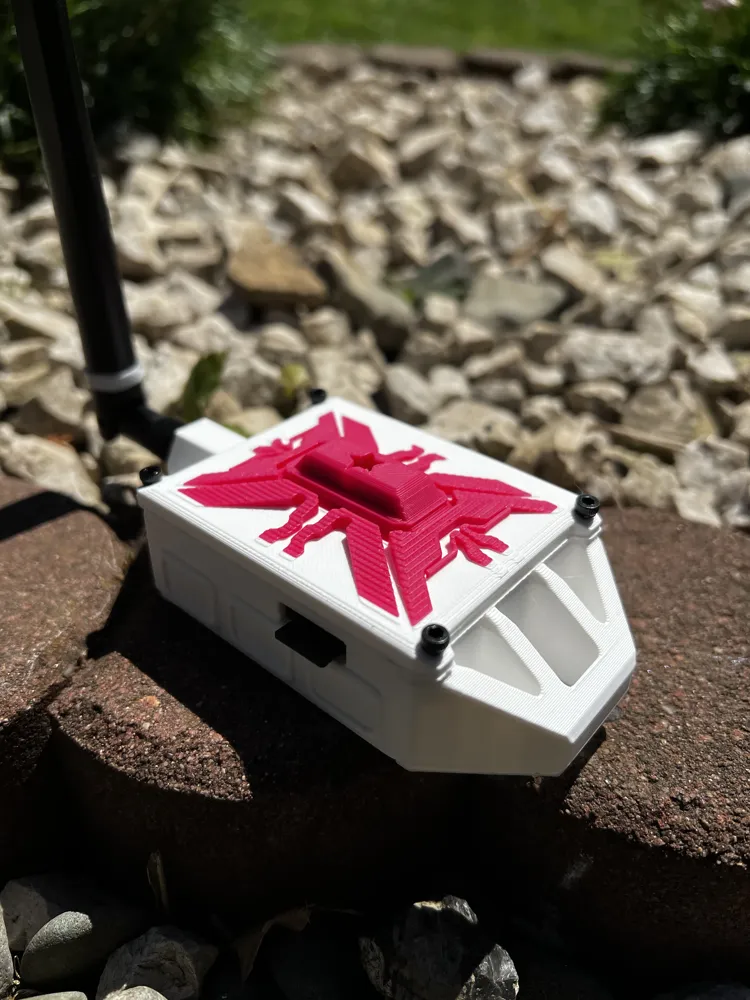

- Integrated SMA mount for external Wi-Fi antennas

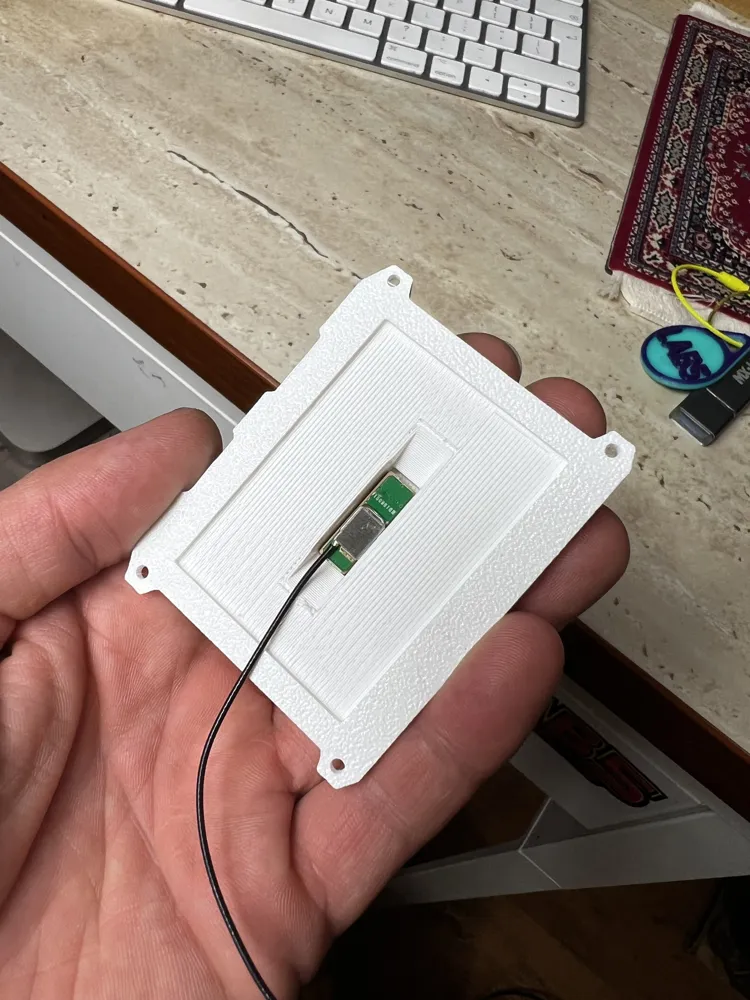

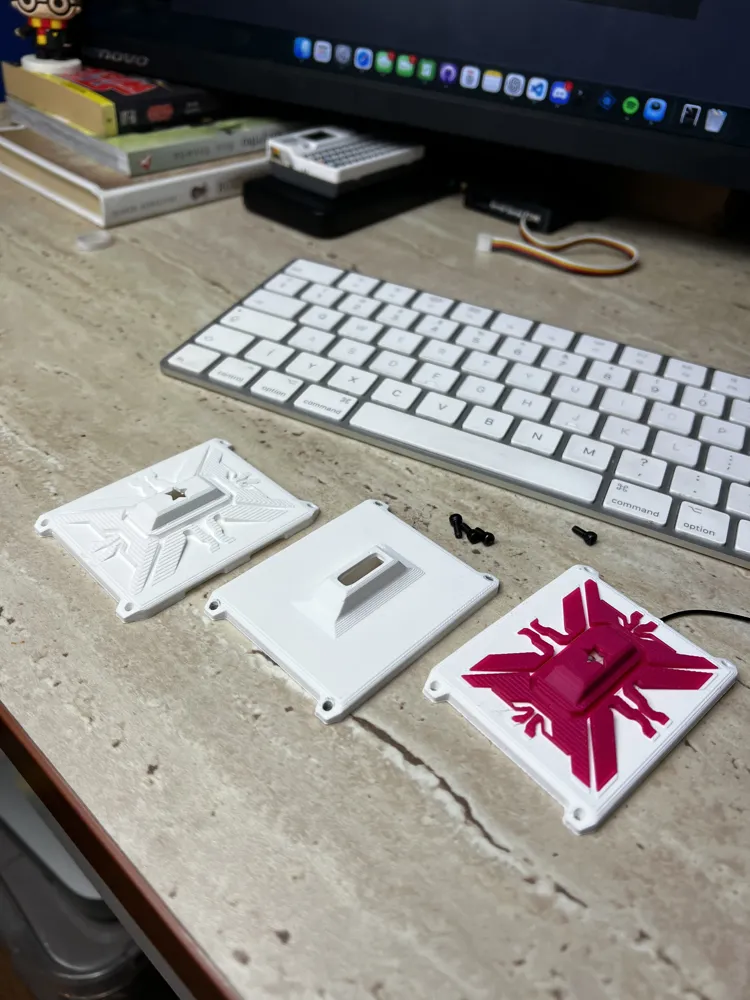

- Dedicated top GPS antenna compartment for improved satellite reception
- Compatible with standard 40x60mm prototype PCBs

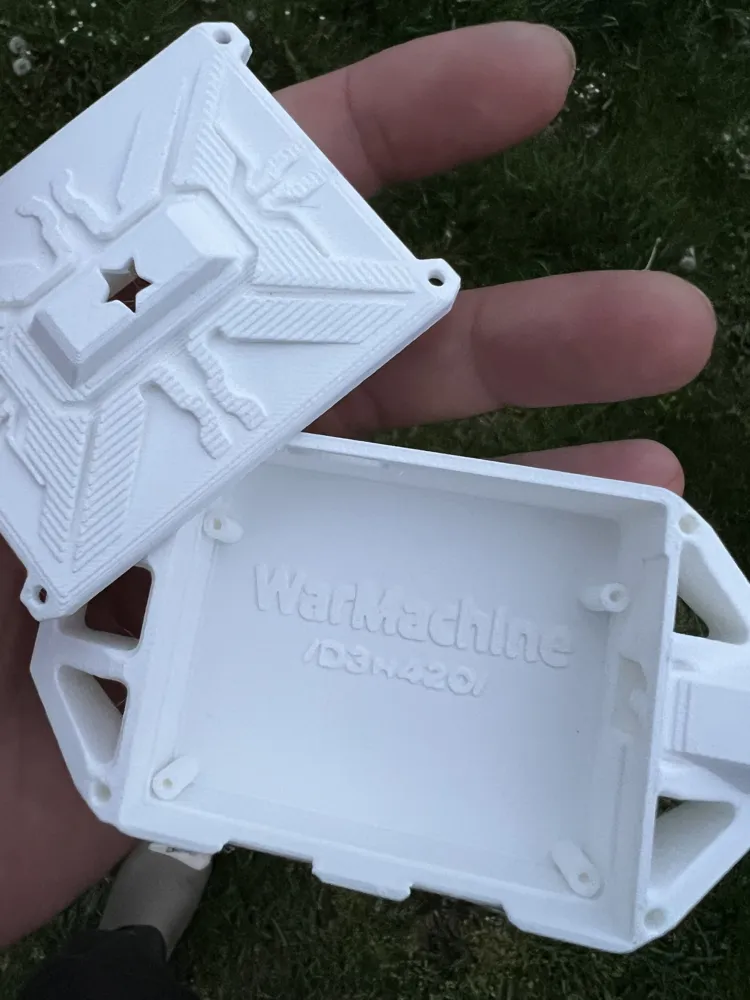

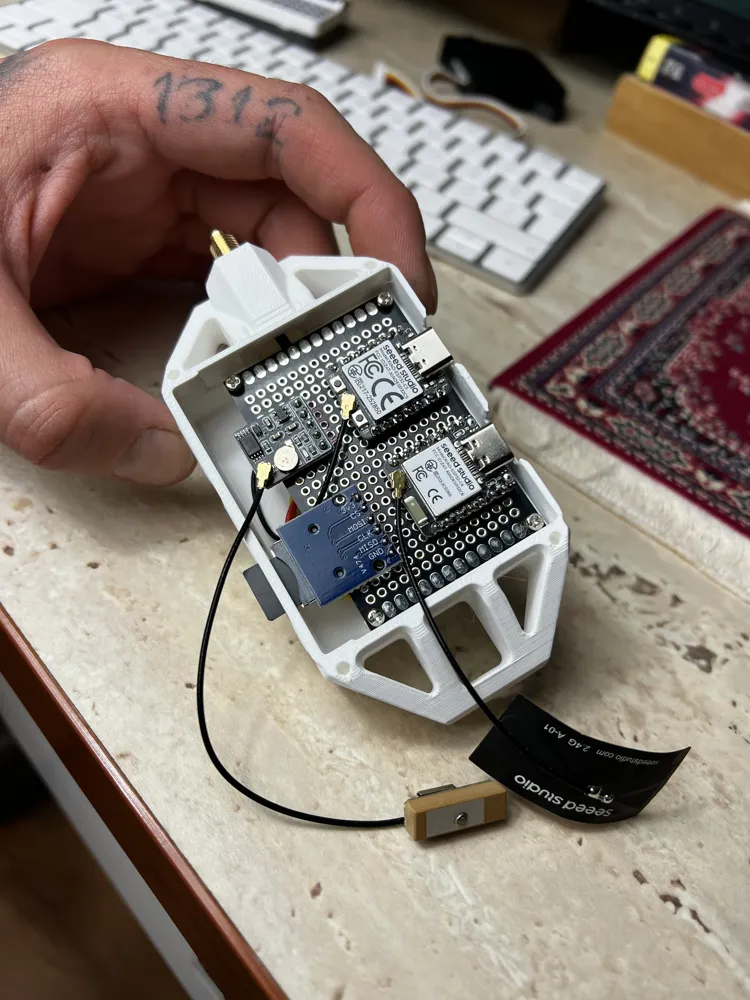

- Internal mounting points for dual XIAO boards, GPS and SD modules
- M2.5 screw-mounted top cover for secure assembly
Boost Me (for free)
U can boost me up if You like my designs ;)
📦 Suggested BOM
- Seeed Studio XIAO ESP32-C5
- Seeed Studio XIAO ESP32-C6
- 40x60mm prototype PCB
- GPS module
- MicroSD SPI module
- SMA to IPEX/U.FL pigtail
- External Wi-Fi antenna
- M2.5 screws
