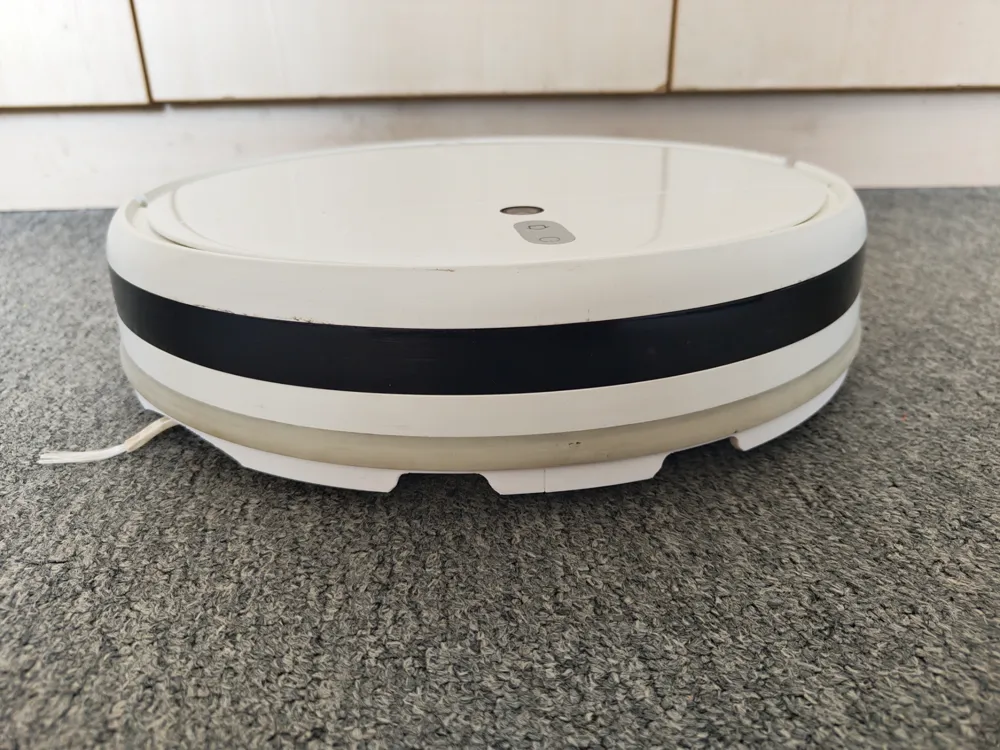

Lower bumper for Mi Robot Vacuum Mop 1C

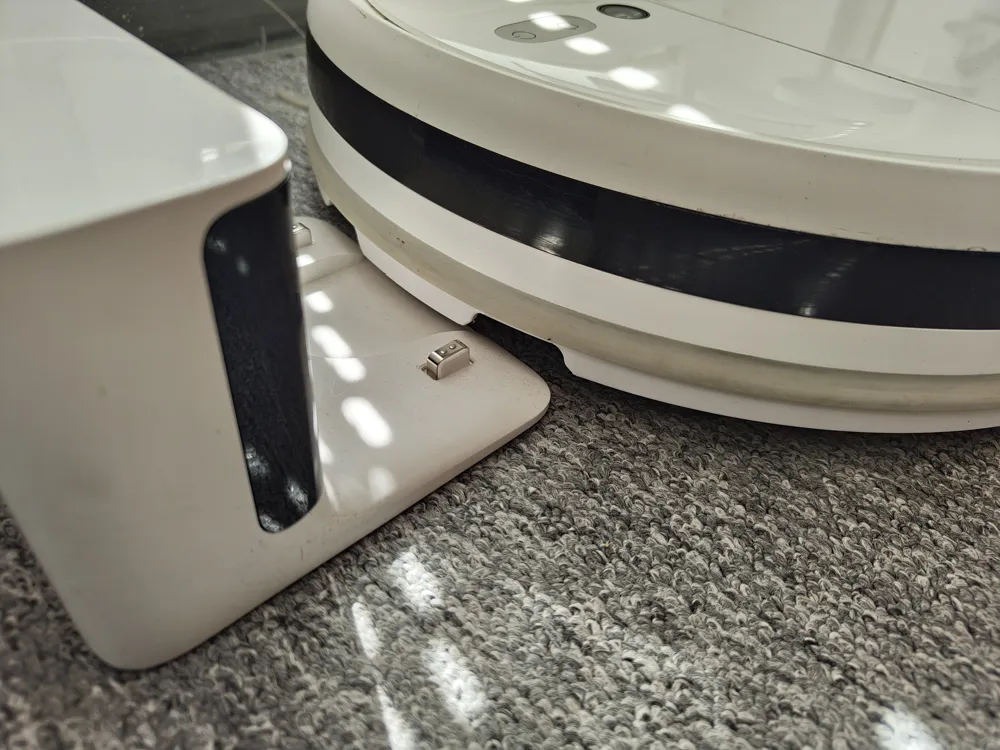

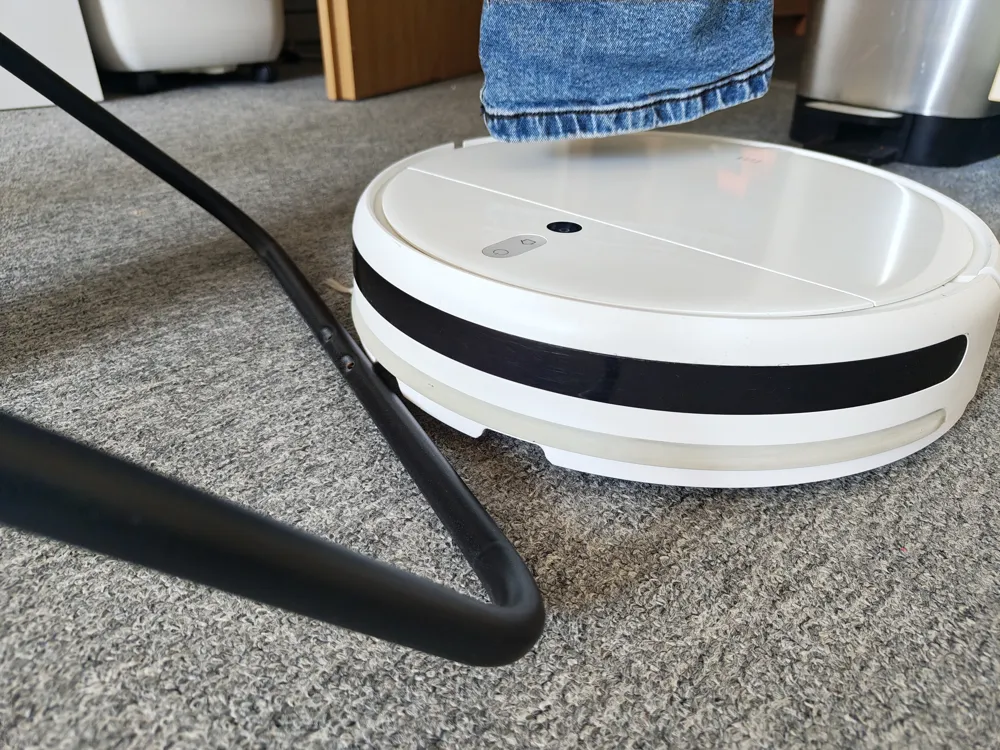

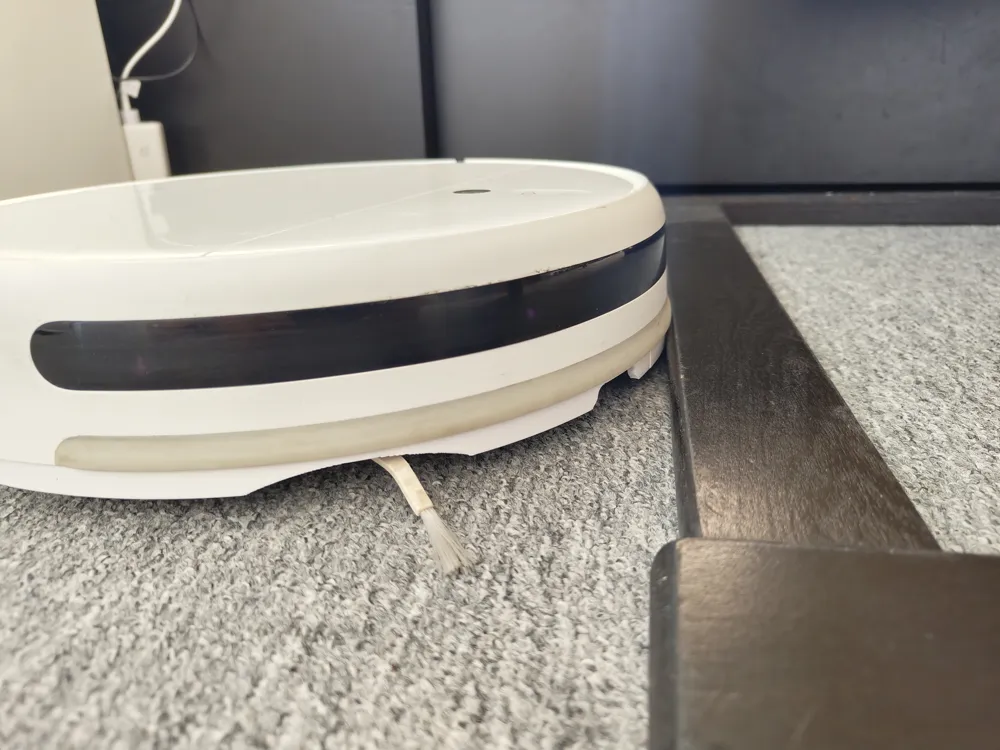

For anyone still using this robot vacuum, I’ve designed a lower bumper extension to prevent it from getting stuck on obstacles like IKEA Poäng chairs, drying racks, and similar furniture.

Installation:

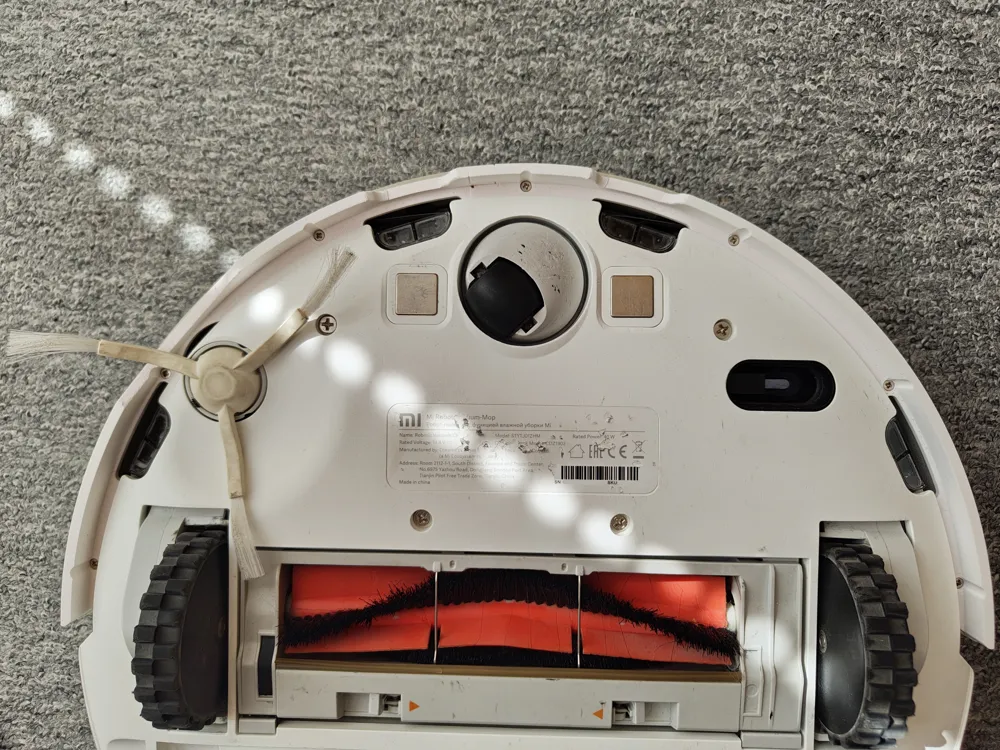

1. Unscrew the bottom cover of the vacuum.
2. Unscrew the original semi-circular casing from the bumper.
3. Screw the right part of the bumper into its place.
4. (Optional) You can use a drop of superglue to join right part and left part together, not strictly necessary.
5. Screw the left part of the bumper into its place.
6. Screw the bottom cover back on, and you’re done!
