Cuktech No. 10 Ultra Desktop Charging Station Enclosure, screw-free mortise and tenon, optimized for heat dissipation, 3-port 100W retractable cable, supports watch wireless charging expansion.
Print Profile(1)
Description
Boost Me (for free)

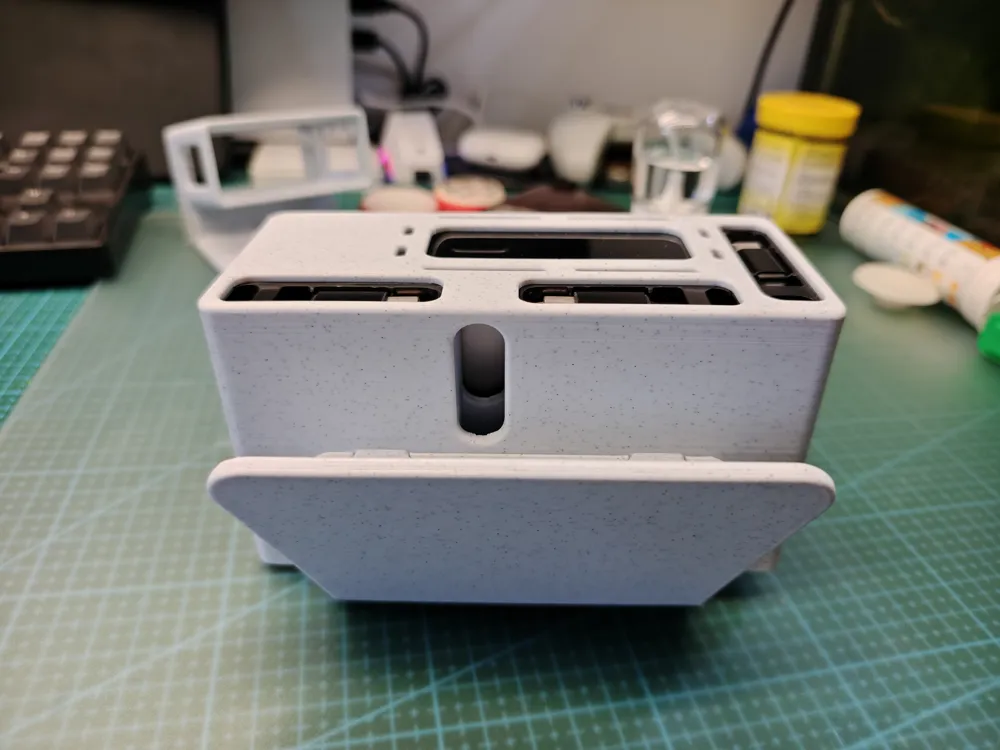

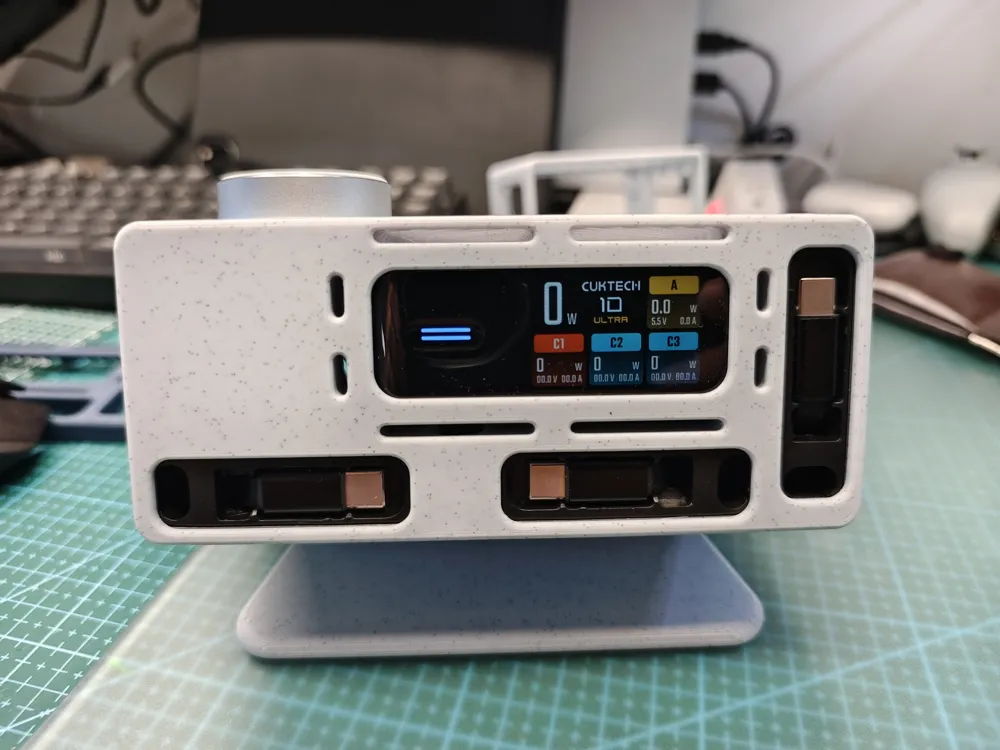

This is an integrated desktop charging station enclosure designed for the CukTech No. 10 Ultra charger, which addresses the pain points of high-power charger overheating, messy cables, and scattered desktop charging devices, creating a minimalist desktop solution that integrates fast charging, storage, and wireless charging
🔧 Key Design Details
- Extreme Heat Dissipation Optimization

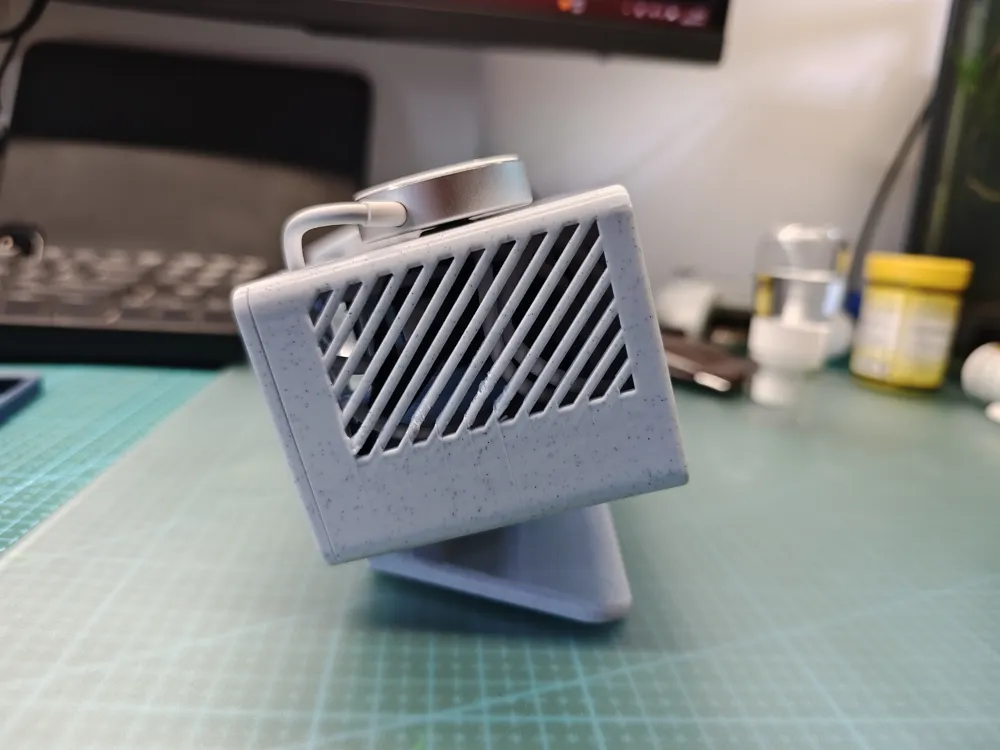

- The enclosure features numerous hollow vents around its body, and the charger body is suspended, creating a natural convection airflow channel that significantly reduces heat buildup during prolonged high-power output, preventing down-frequency protection triggered by high temperatures
- Integrated Charging Solution

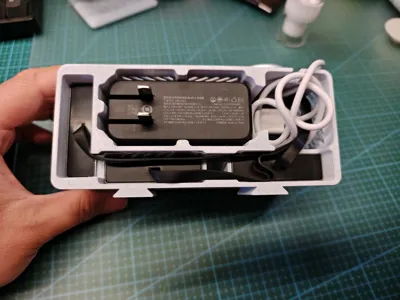

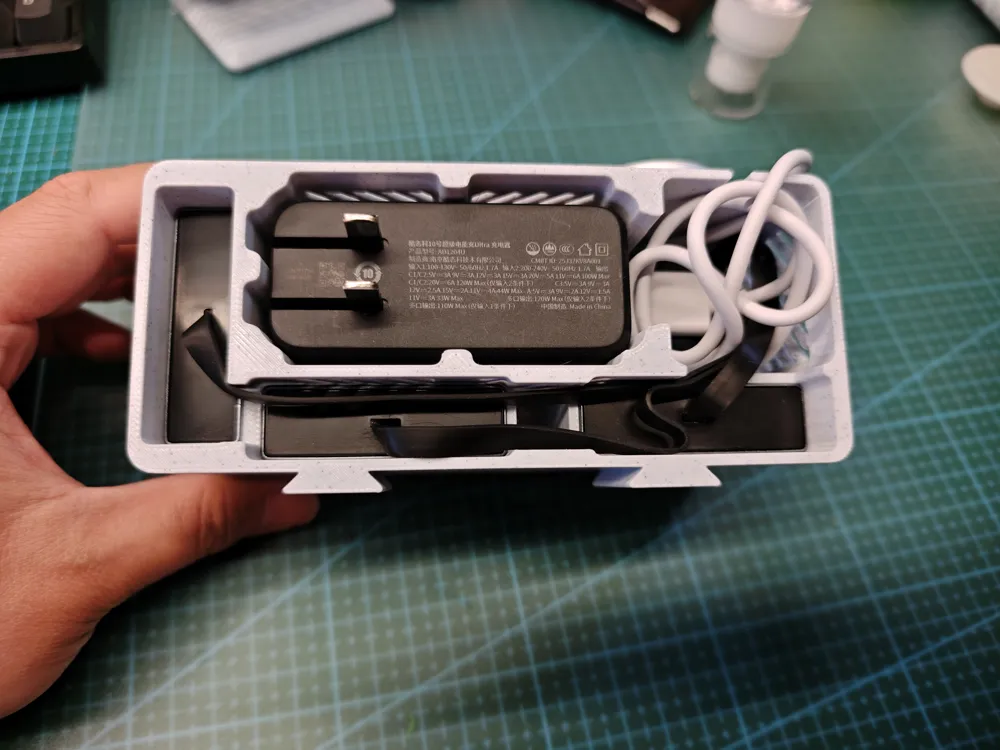

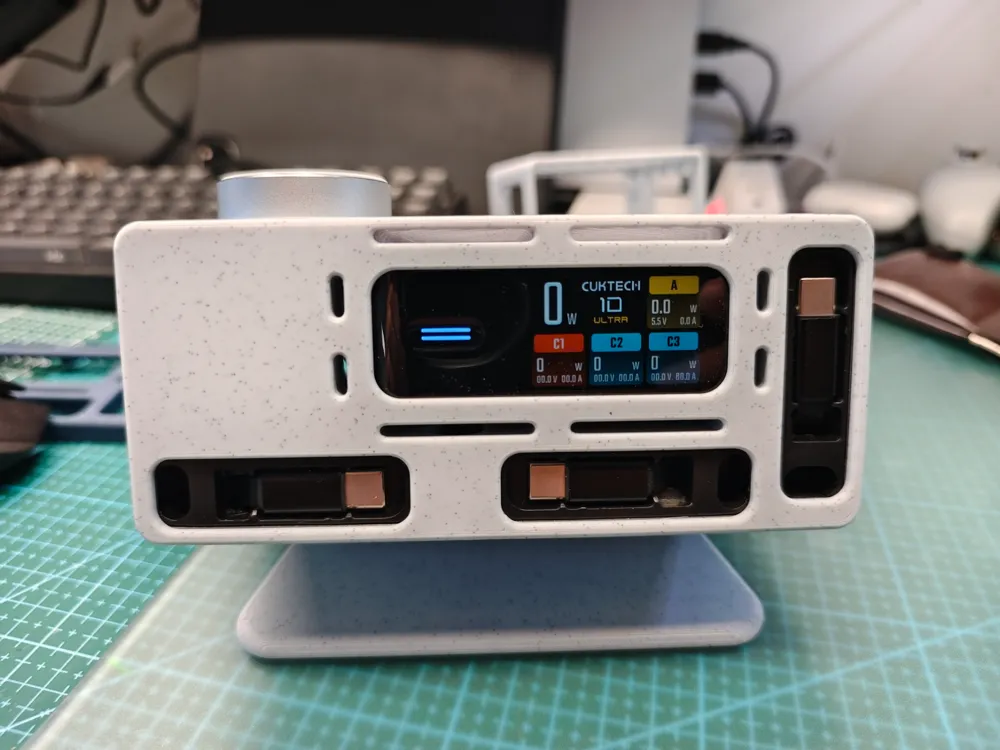

- Built-in 3 retractable charging cables correspond to the charger's C1/C2/C3 ports, eliminating desktop cable clutter, allowing for pull-out use, and convenient storage

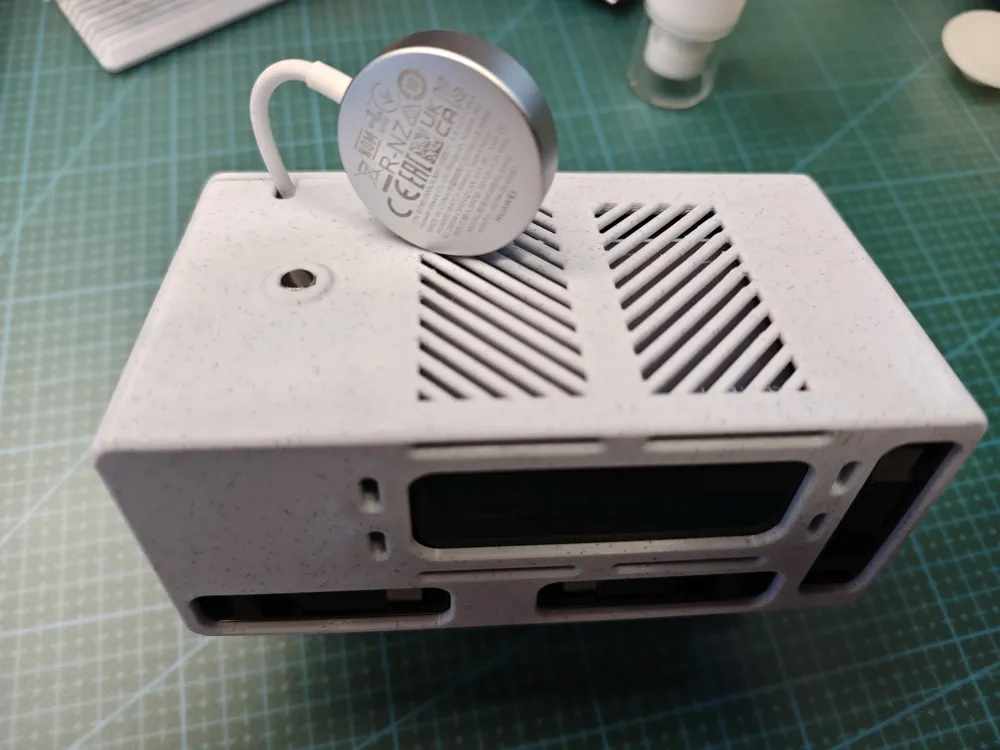

- A magnetic suction slot is reserved on the top surface for attaching a Huawei Watch wireless charger (which has its own magnetic suction at the bottom); only one additional 6×2mm strong magnet is needed for fixing, achieving integrated wireless charging for watches
- Print and Assembly Friendly

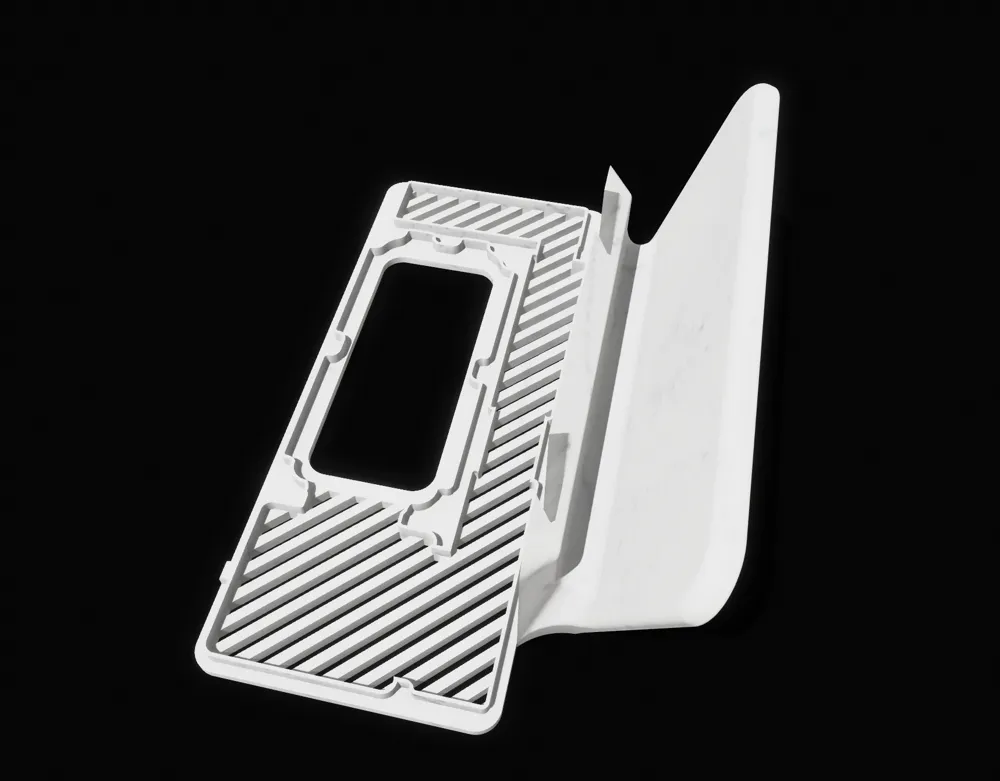

- Adopts a two-piece mortise and tenon structure design, requiring no glue or screws; simply snap together after printing for immediate use
- The total filament is only 154g, and print time is approximately 5 hours, making it friendly to both equipment and filament costs
- Recommended to print with PETG material, as its heat resistance and toughness are more suitable for long-term desktop use, but PLA can also be used for printing based on needs
📦 Accessories Preparation
- CukTech No. 10 Ultra charger body

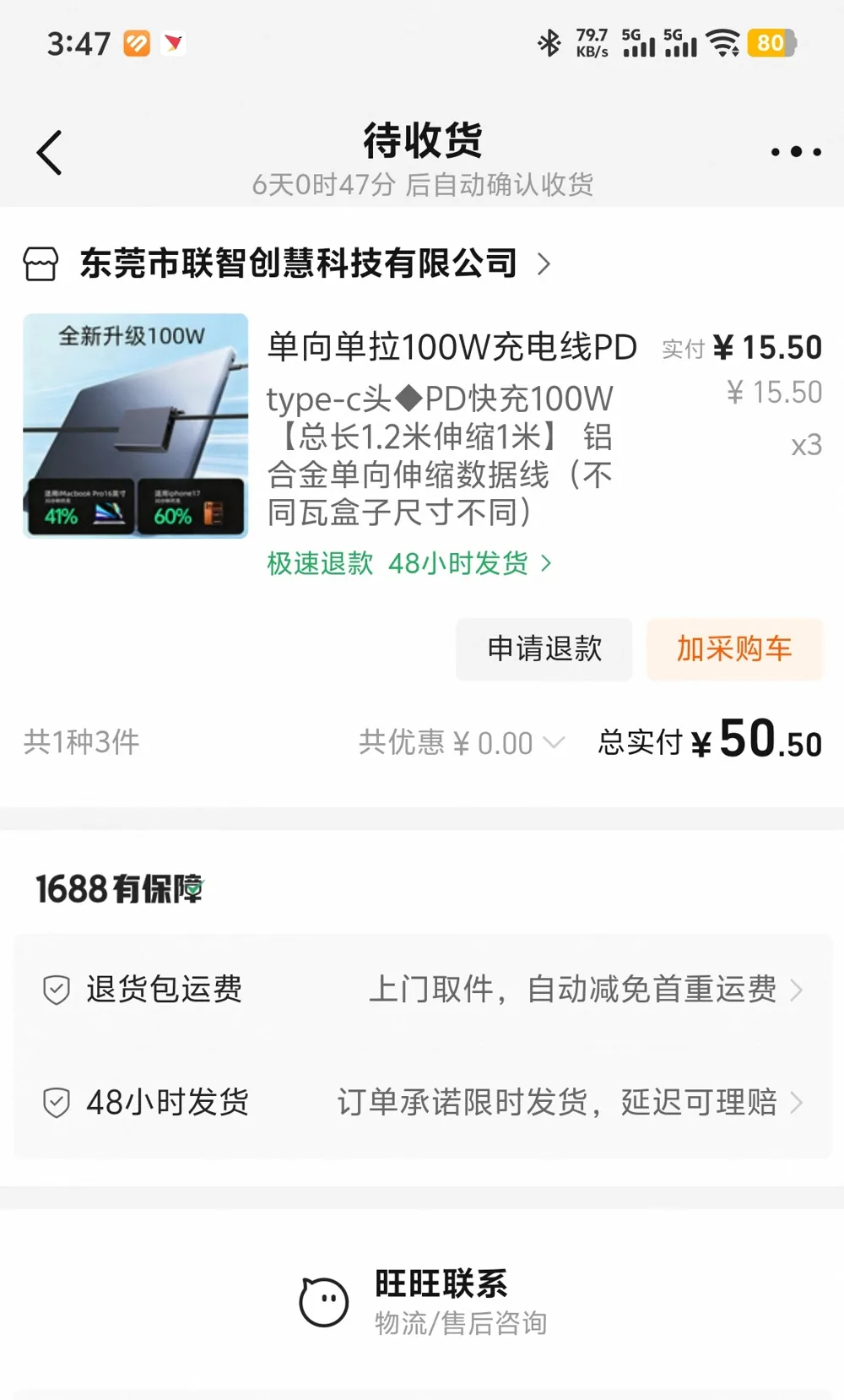

- 3-way retractable charging cables (store information with screenshot attached)
- 1 piece of 6×2mm strong magnet (for fixing the magnetic wireless charger on the top)
- Huawei Watch wireless charger (with its own magnetic suction at the bottom)
