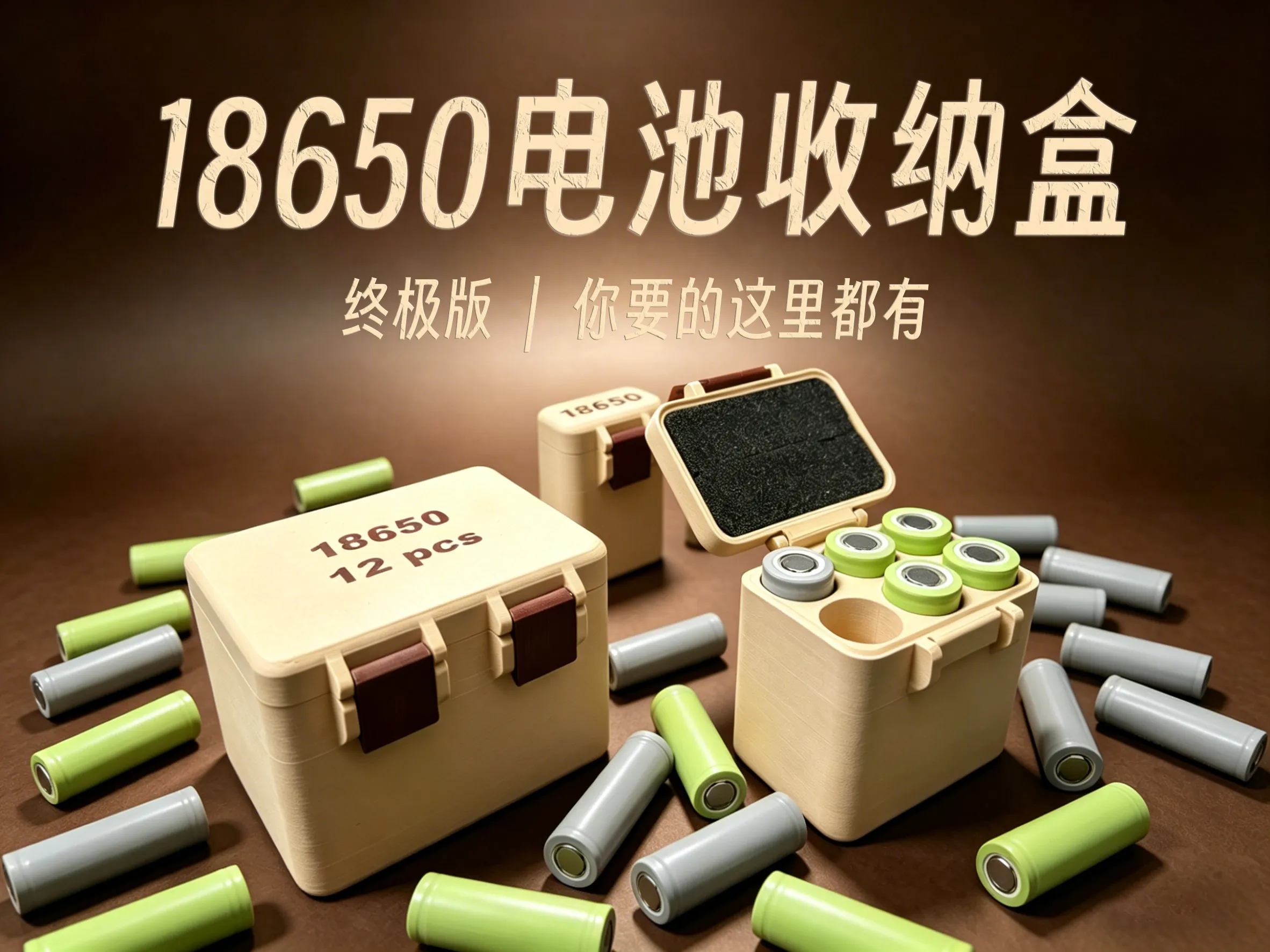

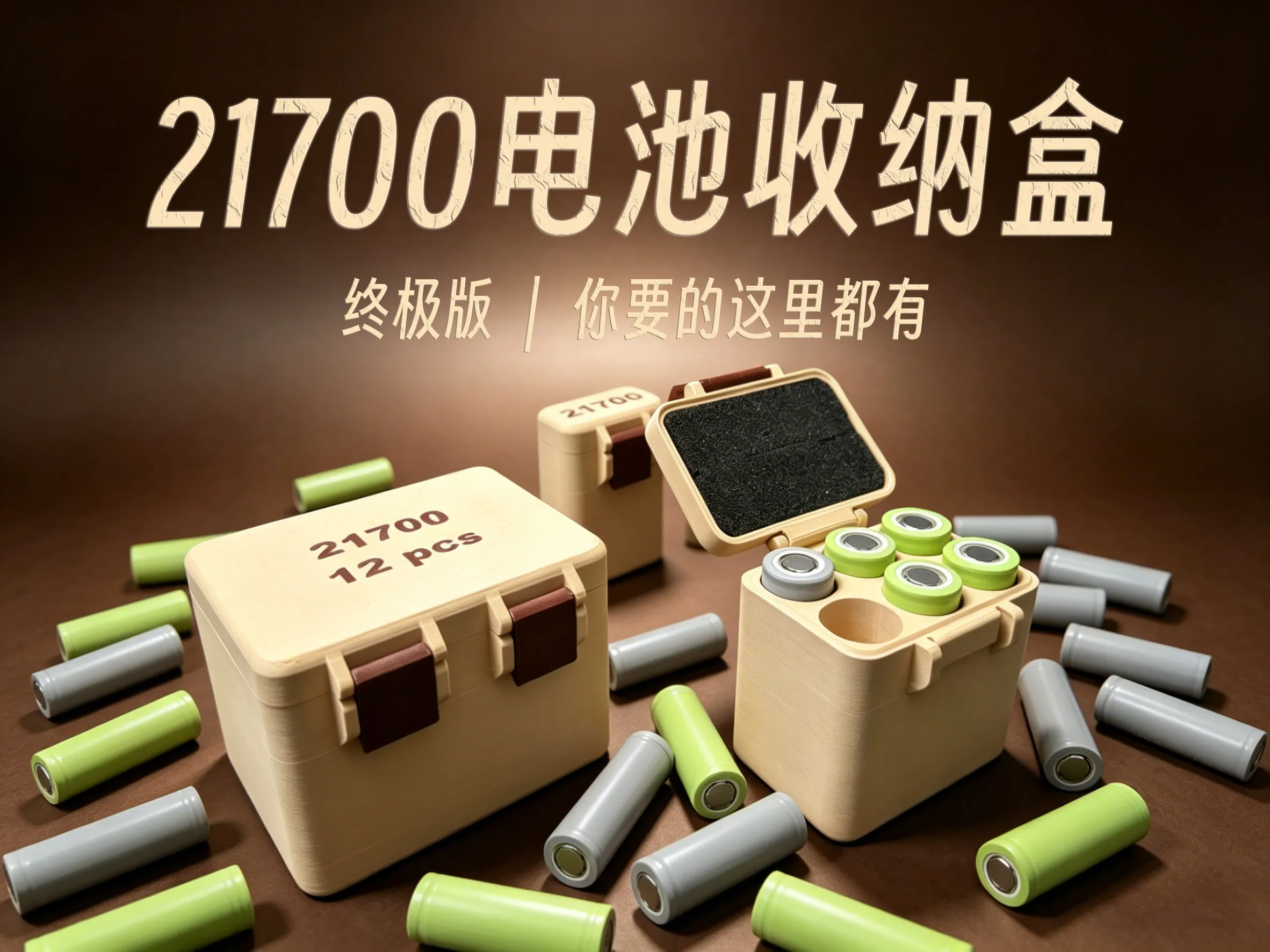

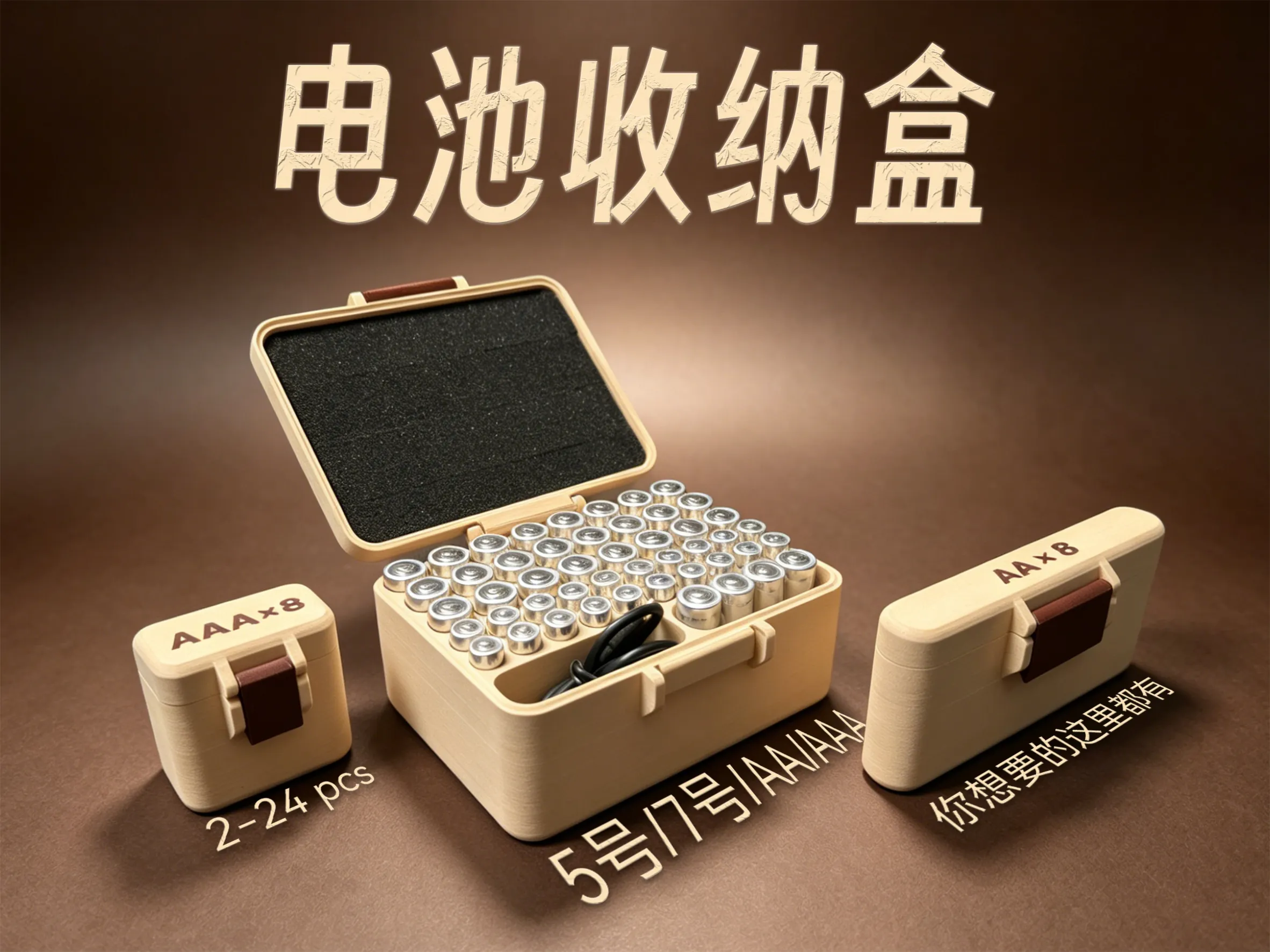

21700 Battery Box	18650 Battery Box	AA/AAA Battery Box
Button top / with protection board / 18650 compatible 2-12 cell capacity / supports mixed storage	Button top / with protection board 2-12 cell capacity	2-24 cell capacity / mixed storage

For the highest print quality, please print the box and lid on separate plates to avoid cooling lines

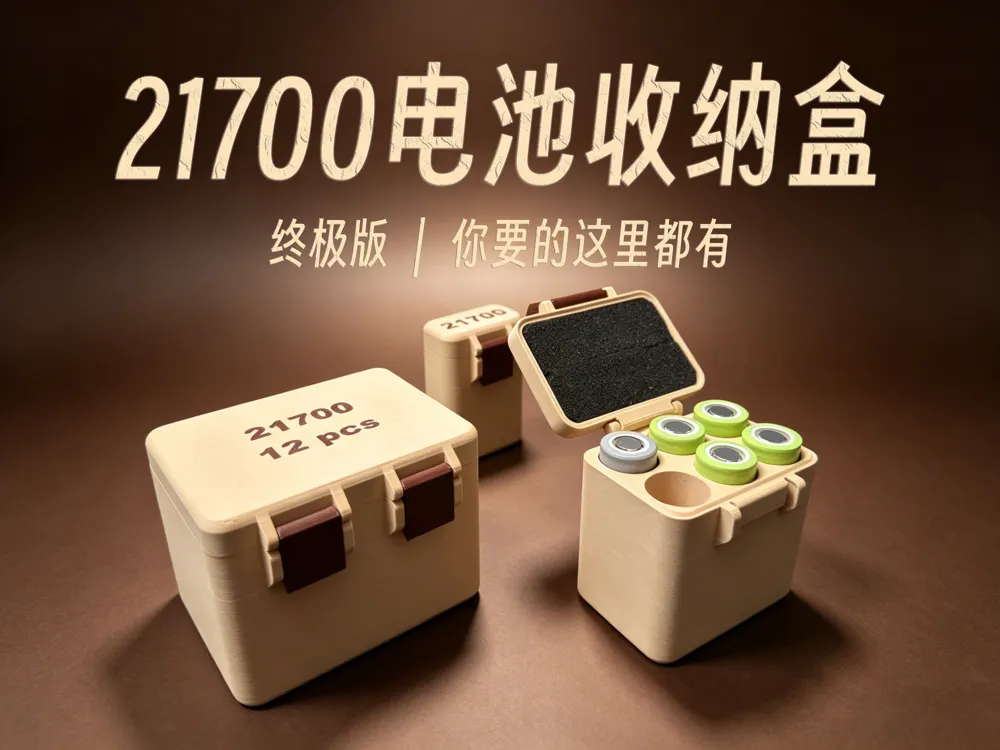

🔋21700 Battery Box｜Ultimate Edition

📖Preface

Recently, I've become obsessed with flashlights and bought many 21700 batteries. I realized it's quite dangerous to carry them around without a suitable box when going out (due to potential compression and short-circuit risks if bare terminals touch conductive metal). So, I planned to print two boxes for my own use, but still encountered various problems with existing designs. Therefore, I redesigned one myself and made it open source. The main issues with battery boxes currently on the market are:

1. 📏 Insufficient Diameter Clearance: While a 22mm diameter can fit most 21700 batteries, some still don't fit due to reasons such as: secondary heat shrink wrapping (modified button top), brand-specific thickening, or users not calibrating filament shrinkage
2. 📐 Insufficient Height Compatibility: Many battery boxes are designed only for original 70mm flat-top batteries, meaning 73mm small button-top, 74mm large button-top, and 75mm protected batteries do not fit
3. 🧽 No Internal Cushioning: Batteries can easily rattle inside the box, potentially leading to outer wrapper damage over time
4. 🧩 Not an All-Printed Design: Requires purchasing hardware such as screws and hinges, making it less flexible for printing and use
5. 🖨️ Not Optimized for 3D Printing: Many models are not specifically optimized for FDM 3D printing characteristics, making them not simple enough to print
6. 🔄 Insufficient Flexibility in Use: Cannot meet special needs such as mixed storage of 18650 and 21700 batteries

✨Design Highlights

1. 📐 Excellent Size Compatibility: Compatible with batteries up to 22.5mm in diameter and 76mm in height (covering almost 100% of 21700 batteries)

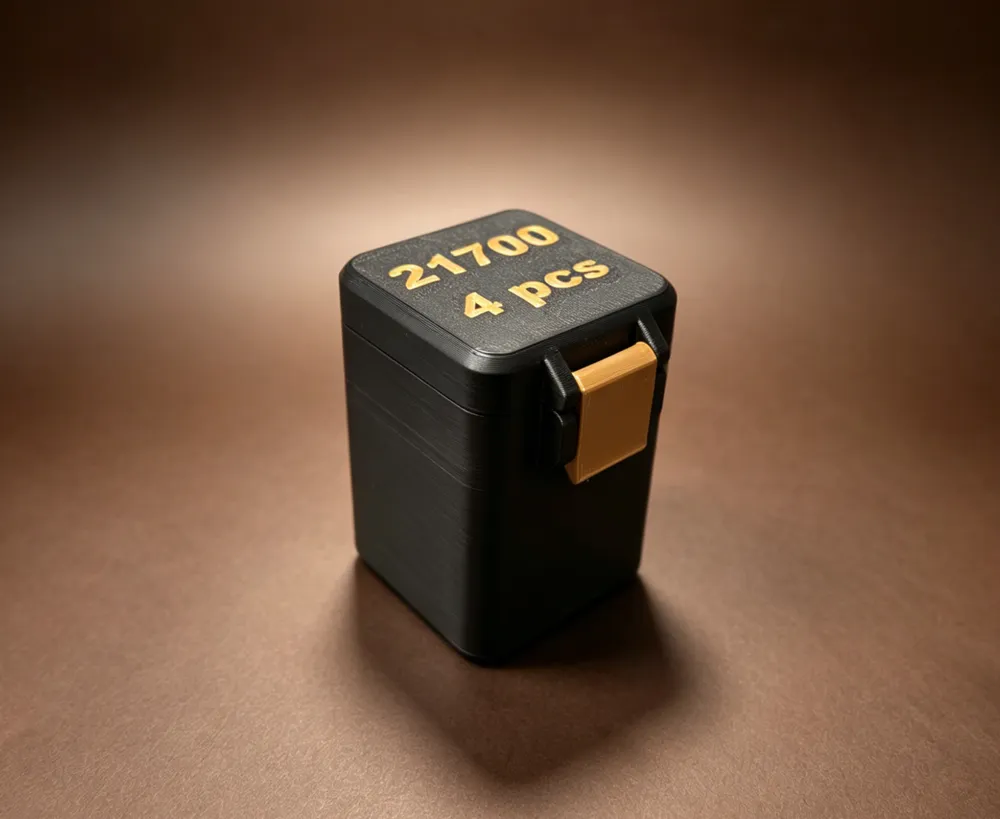

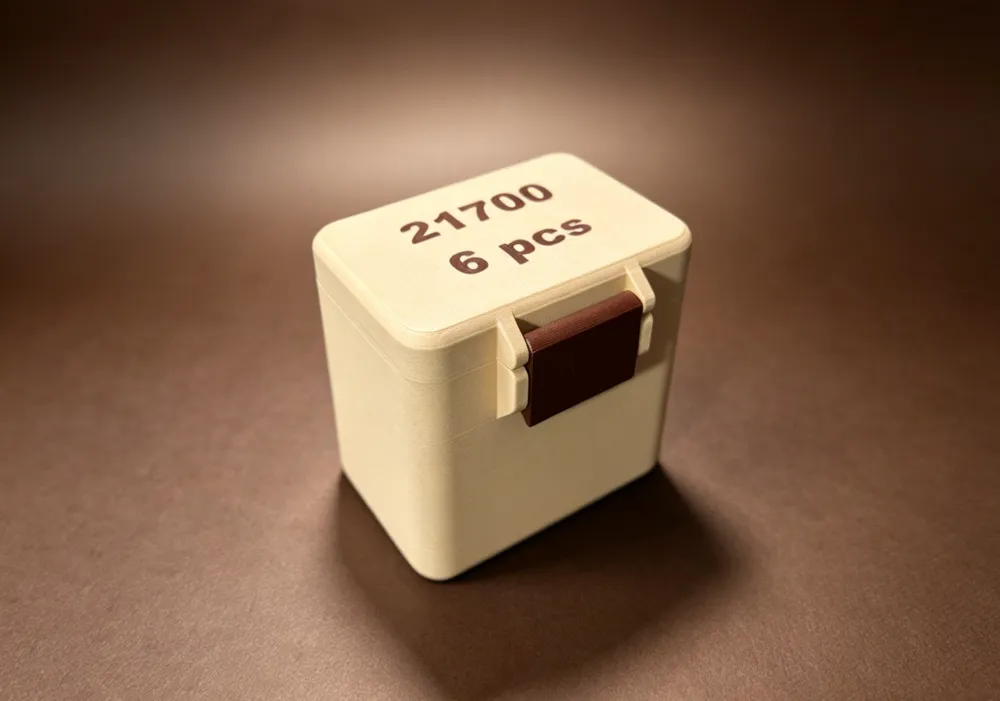

2. 🔢 Multiple Capacity Options: Available in 2-12 cell capacities
3. 🖨️ 3D Print Optimization: No supports, no hardware, easy assembly
4. 📏 Includes Cushioning Pad Template: Easy to cut suitable cushioning foam, protecting batteries
5. 🧩 Flexible Usage Design: Additional adapter modules are included to meet special needs such as mixed storage of 18650 and 21700 batteries, and batteries with slight size variations

🎨Offers three versions: dual-color (with text), single-color (with text), and single-color (without text)

📘Instructions for Use

1. If there are special usage requirements, you can print size adapter shims. For 18650 adapters: height reduced by 5mm, diameter reduced by 3mm. Each circular shim adds 1mm to the height

2. It is recommended to purchase PU self-adhesive foam to stick inside the lid, with dimensions of 25mm wide * 5mm thick. Actual tests show that 8mm thick can also close; if you prefer a very snug fit, you can choose 8mm

   ⚠️ Do not purchase EVA foam, pearl cotton, etc. Foam that is too hard may damage the lid hinge. You must buy PU (polyurethane) foam!

   ⬇️🛒Click image to jump to purchase link🛒⬇️



3. Size versions are backward compatible; for example, the 76mm version is compatible with all batteries shorter than 76mm. However, a too-large gap can cause excessive rattling, so it's recommended to choose the most suitable version based on your existing batteries or print shims to increase height for installation

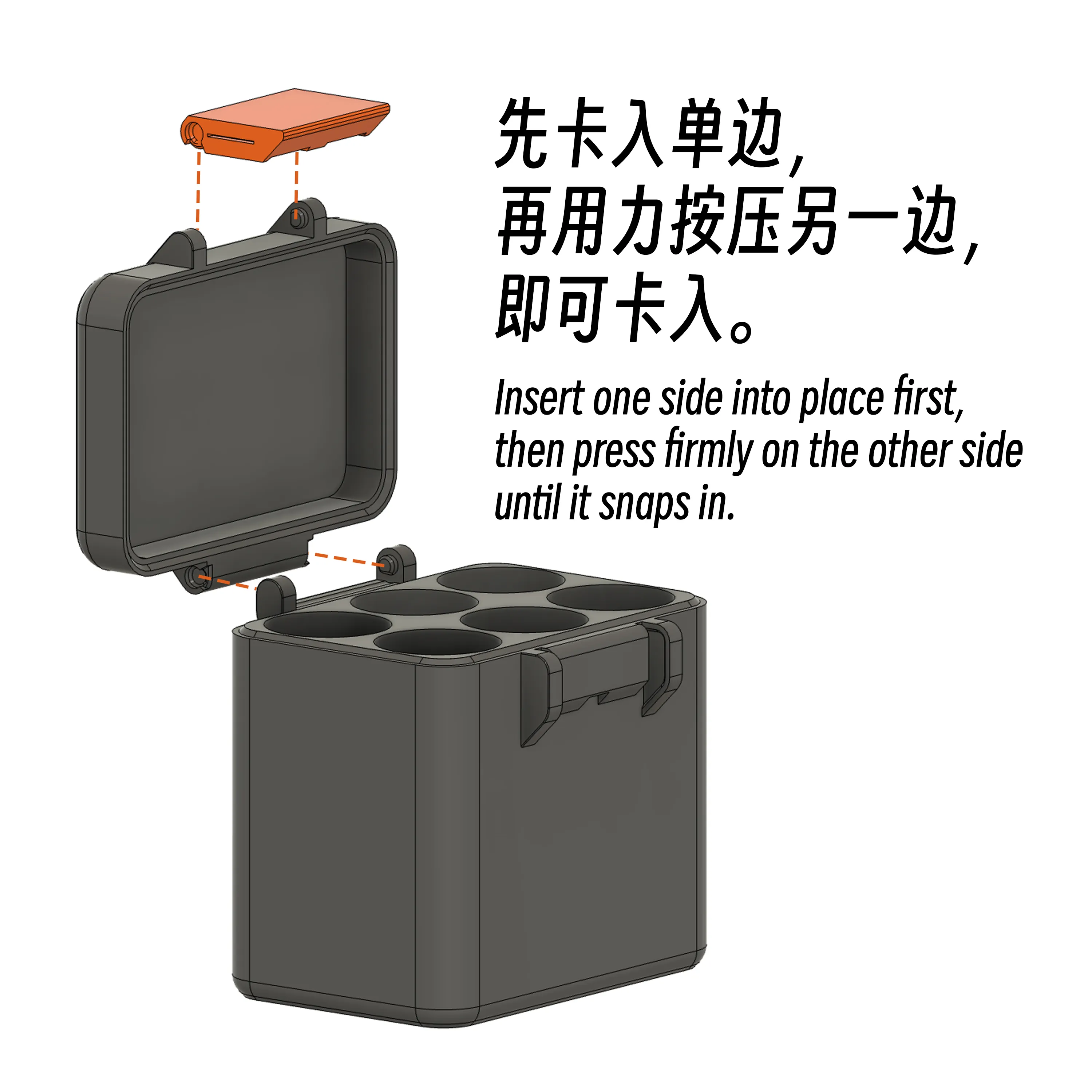

🛠️Installation Diagram
