Large MeshCore / Meshtastic Solar Repeater
Print Profile(1)
Description

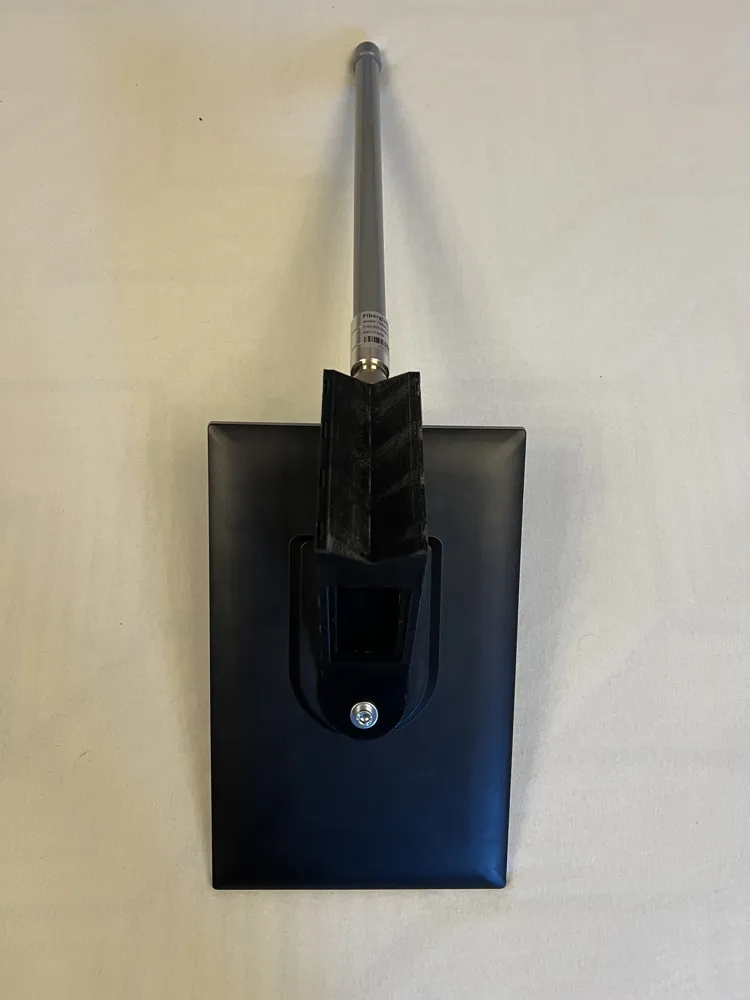

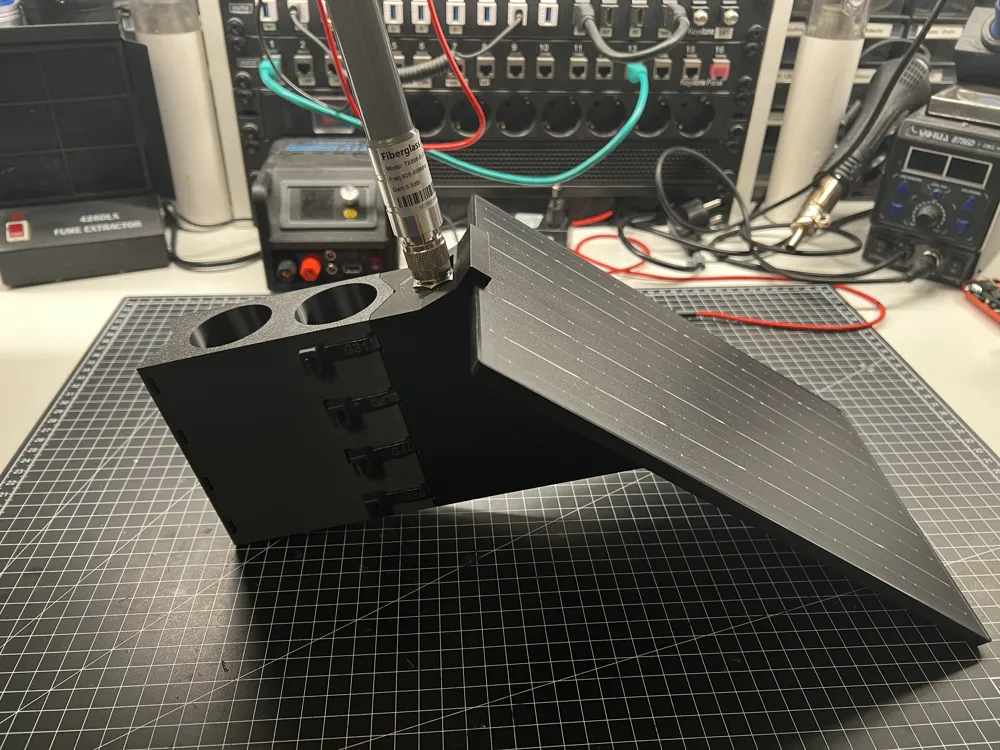

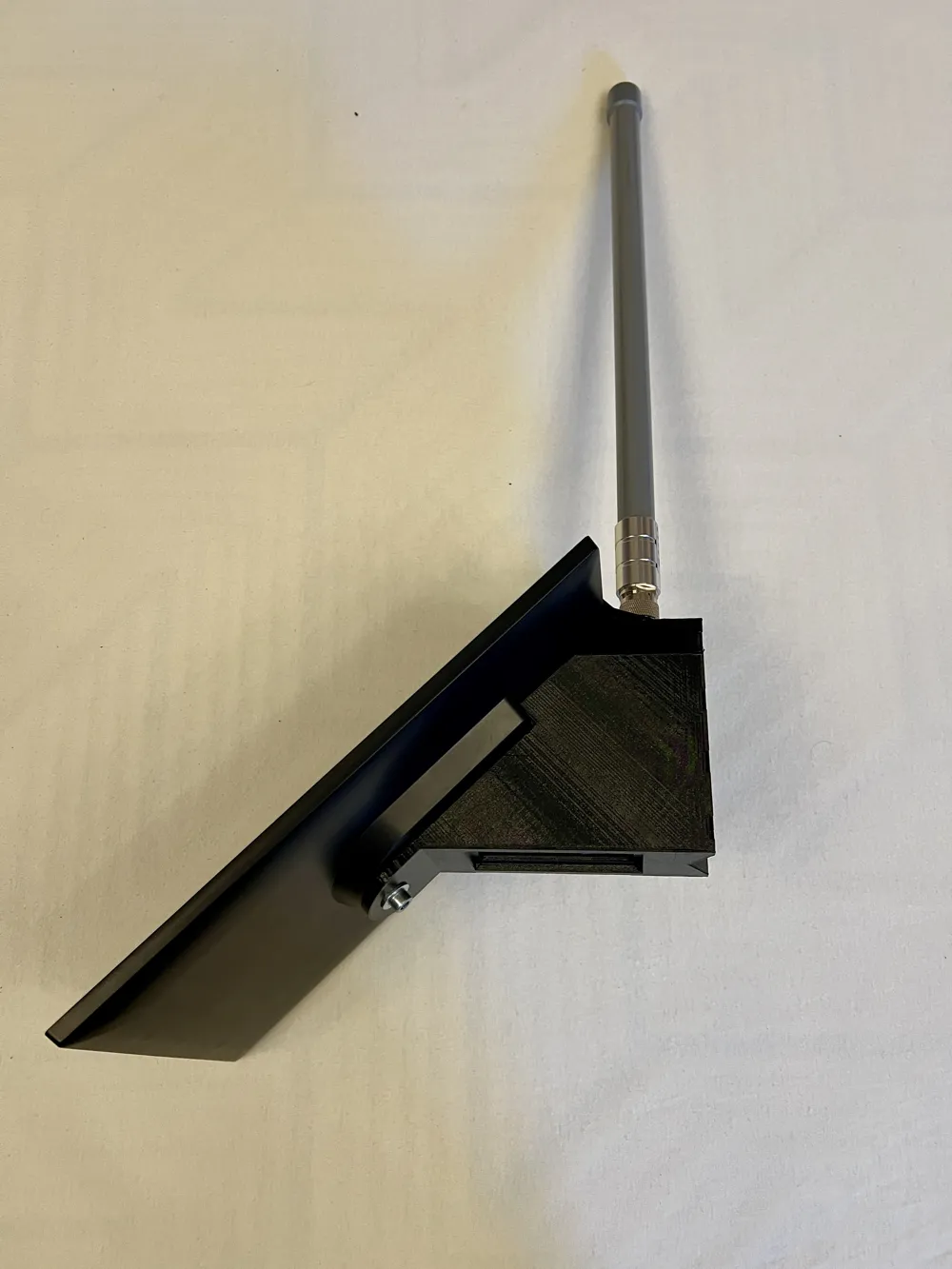

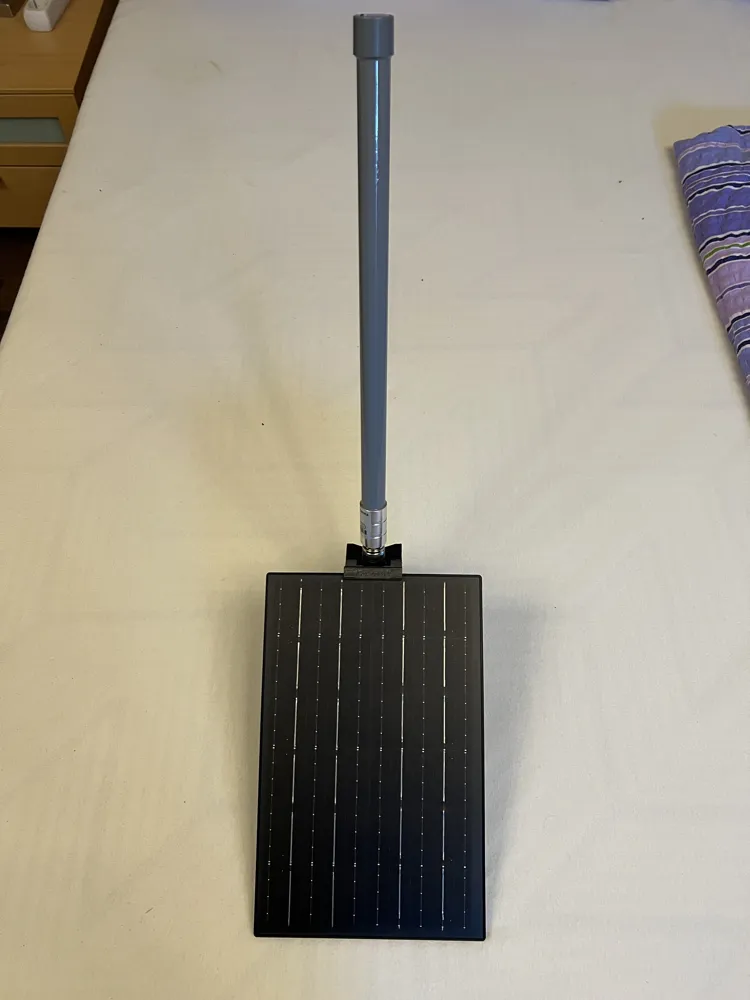

Proven design for a large solar-powered MeshCore/Meshtastic repeater with sufficient space for electronics. The XIAO nRF52840 & Wio-SX1262 Kit, an MPPT solar charge controller, and 2×18650 Li-Ion batteries are recommended.

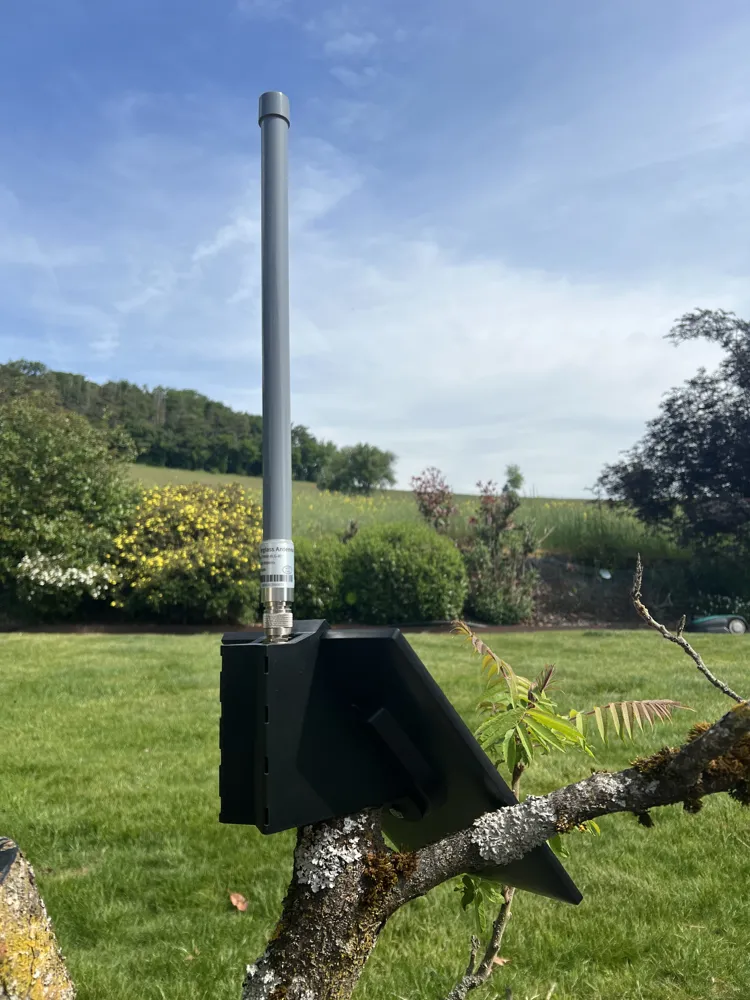

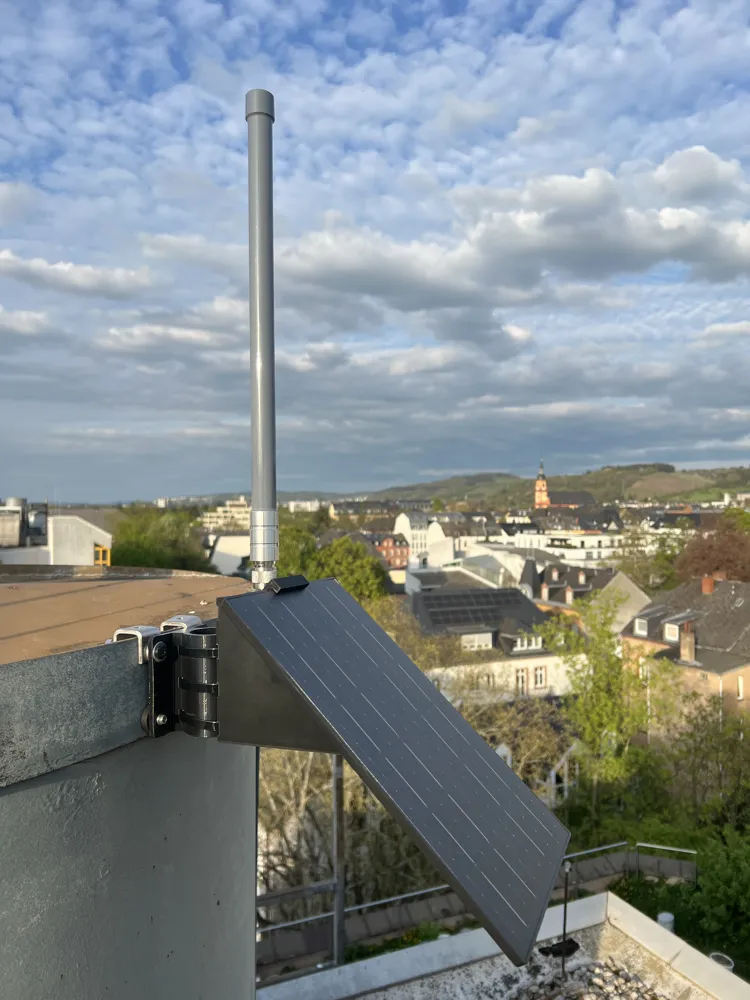

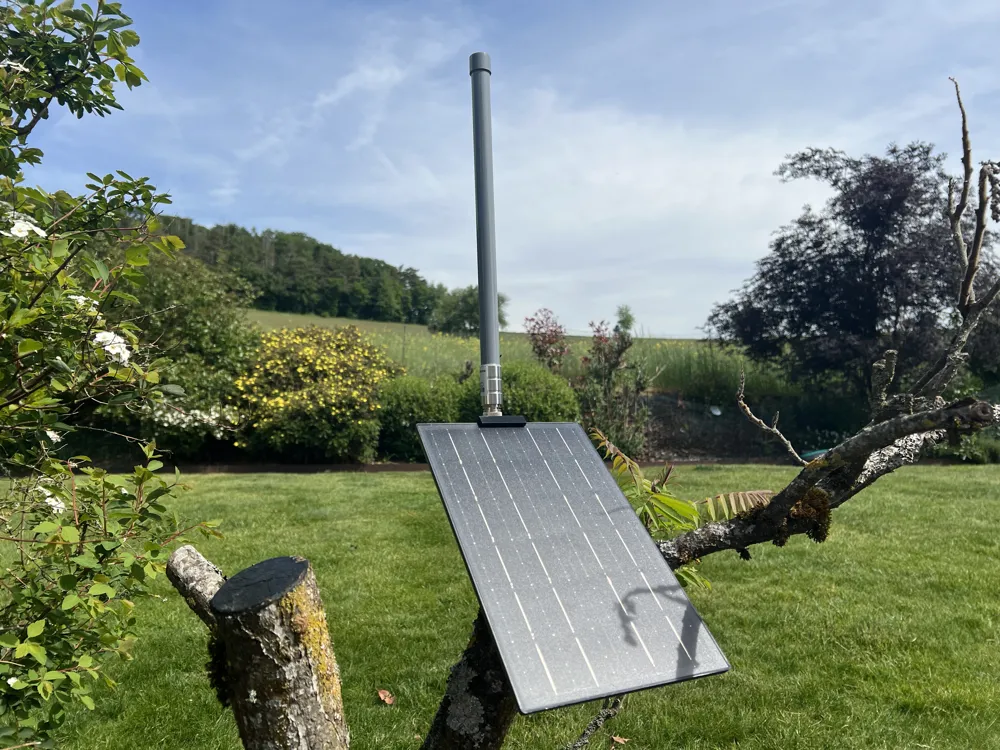

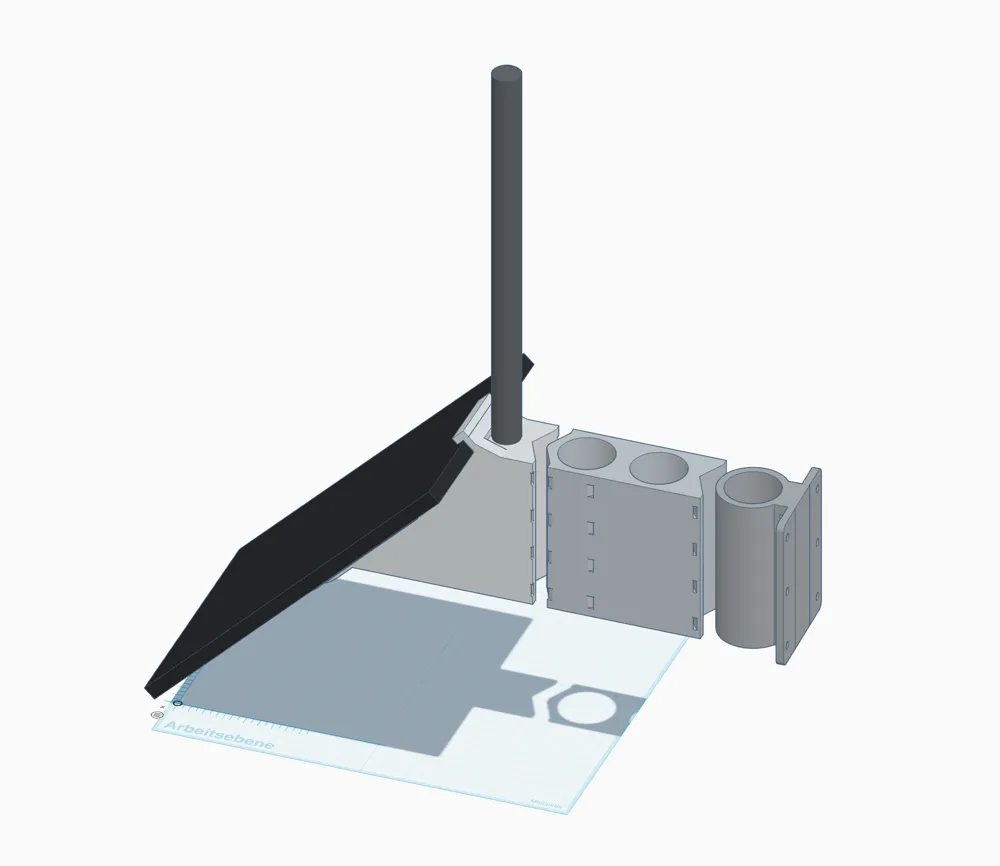

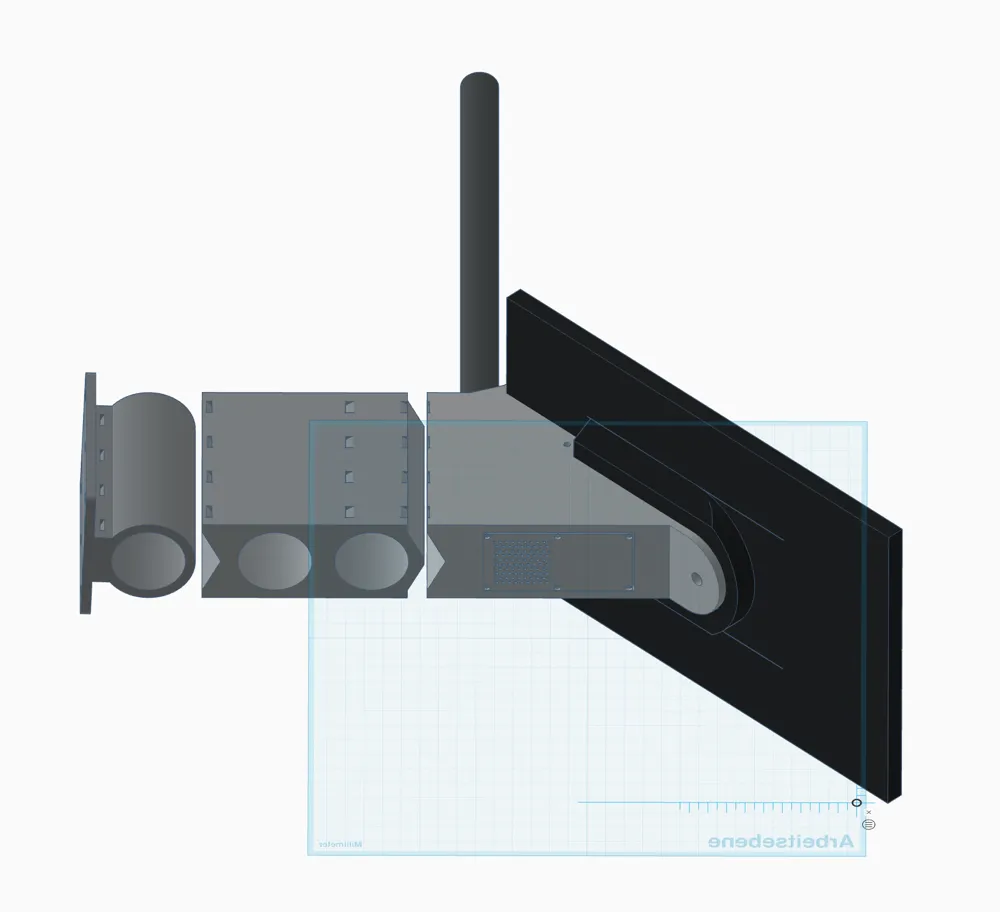

The enclosure was primarily developed for pole mounting and is ideal for continuously operated outdoor nodes. A spacer and a wall mount are optionally available.
Printing Notes
- Printed with PETG
- Best to print the enclosure on its side with support ("0.20mm Strength")
- Best to print the optional extensions without support ("0.20mm Standard")
Hardware Bill of Materials

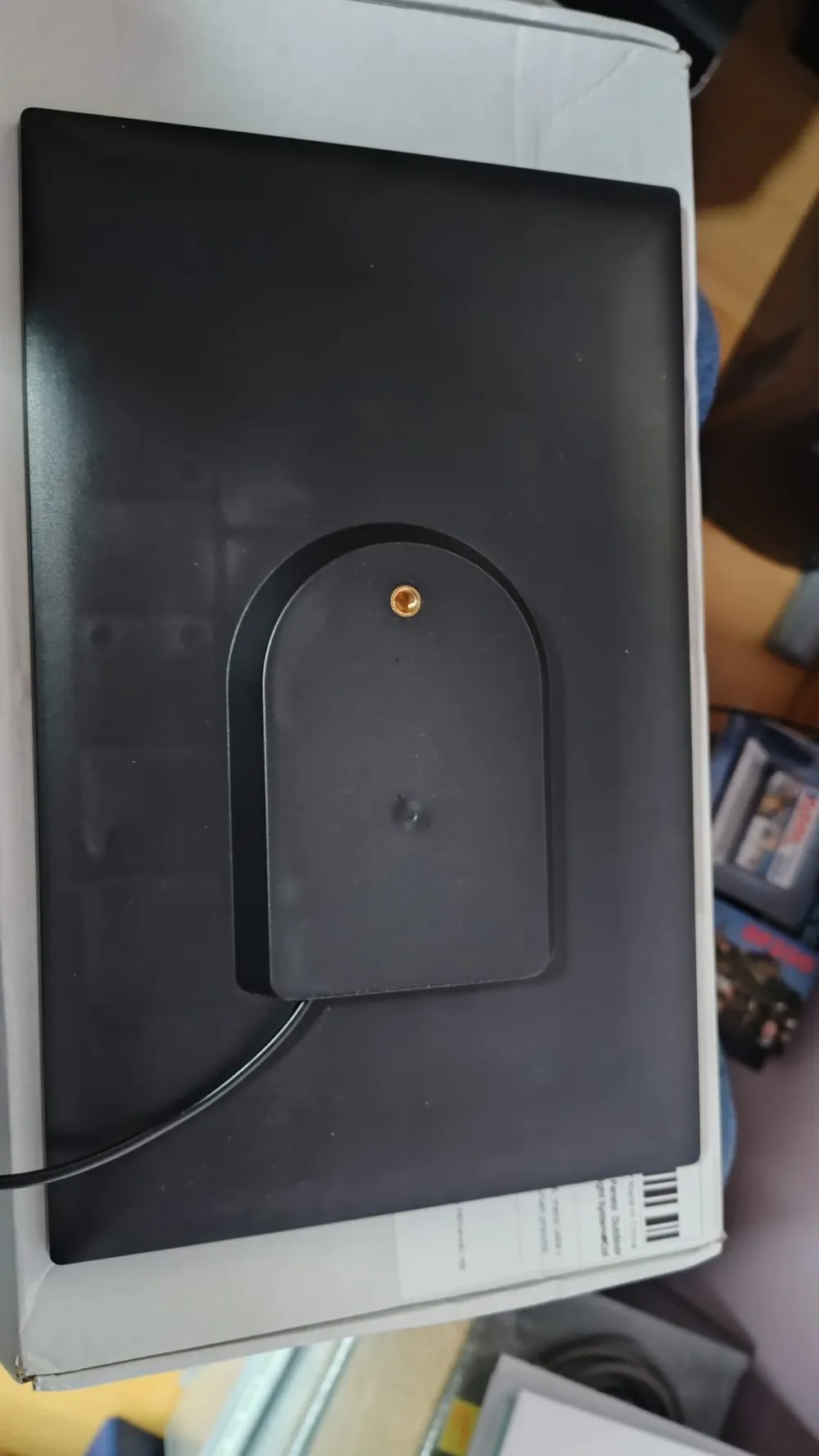

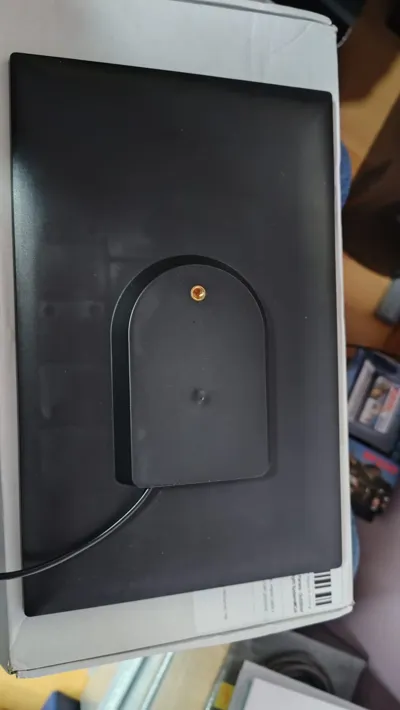

- Solar Panel (Aliexpress)
- XIAO nRF52840 & Wio-SX1262 Kit (Seeedstudio)
- 868 MHz Antenna LoRa - N Connector 5.5 dBi 40 cm (Aliexpress)
- CN3791 Solar Charge Controller Board MPPT (Amazon)
Matching batteries (e.g., 2x 18650) + cables
