Holster for Baofeng UV-9G and UV-9R
Print Profile(3)
Description
Follow Tiny Hatchet Builder so you never miss a preparedness model!

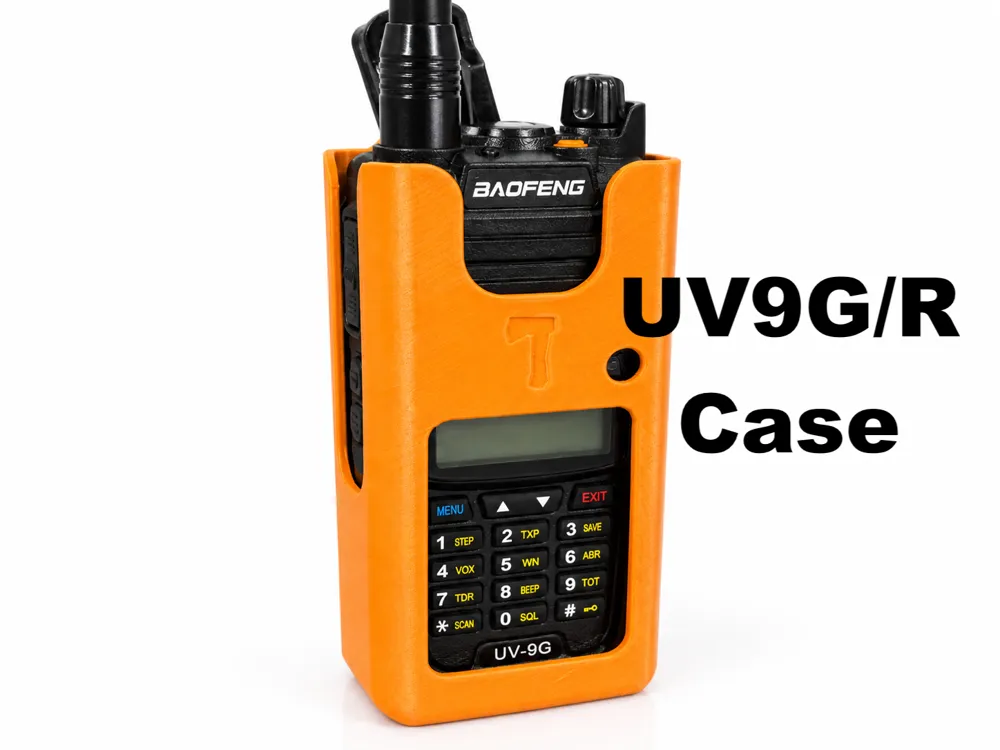

Looking for a safe and reliable holster for your Baofeng UV9G or UV9R radio?
This holster is the ticket.

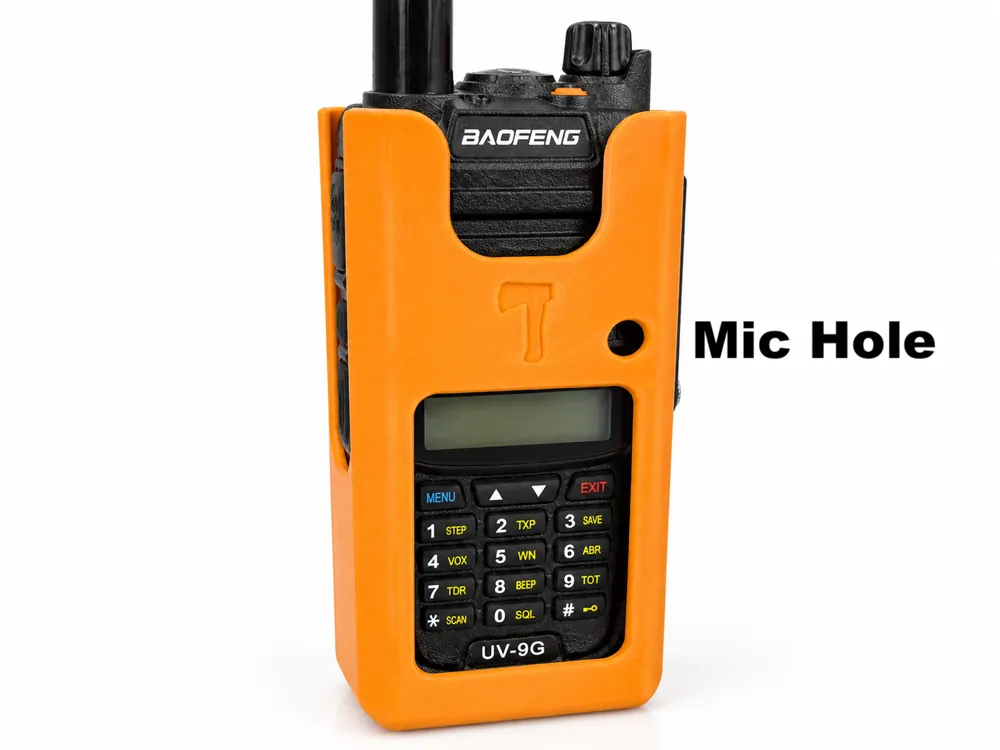

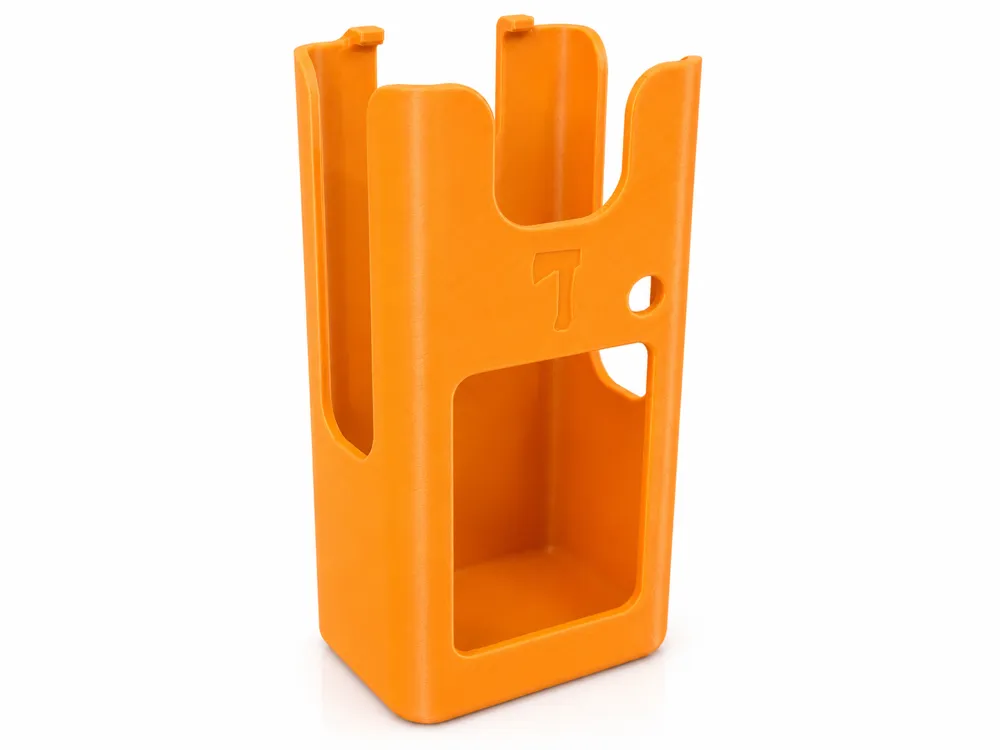

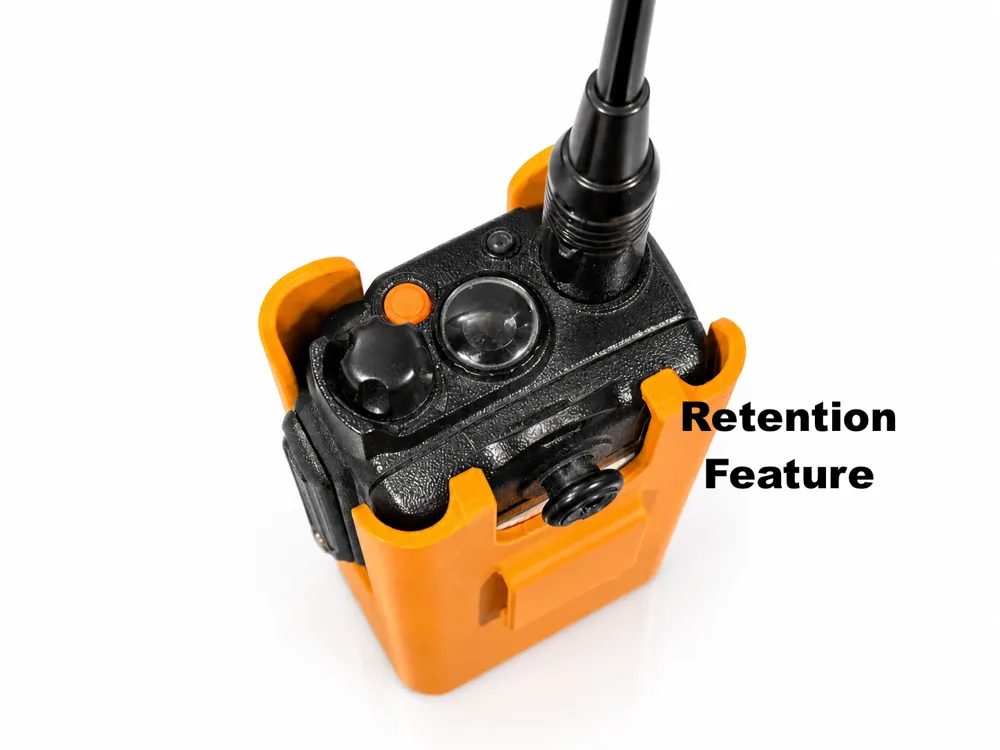

The front panel has cutouts to enable access to the buttons, microphone and speaker. The sides have slots for attachments to be mounted. Two retention clips on the top keep the radio from accidentally falling out and from rattling inside the case.

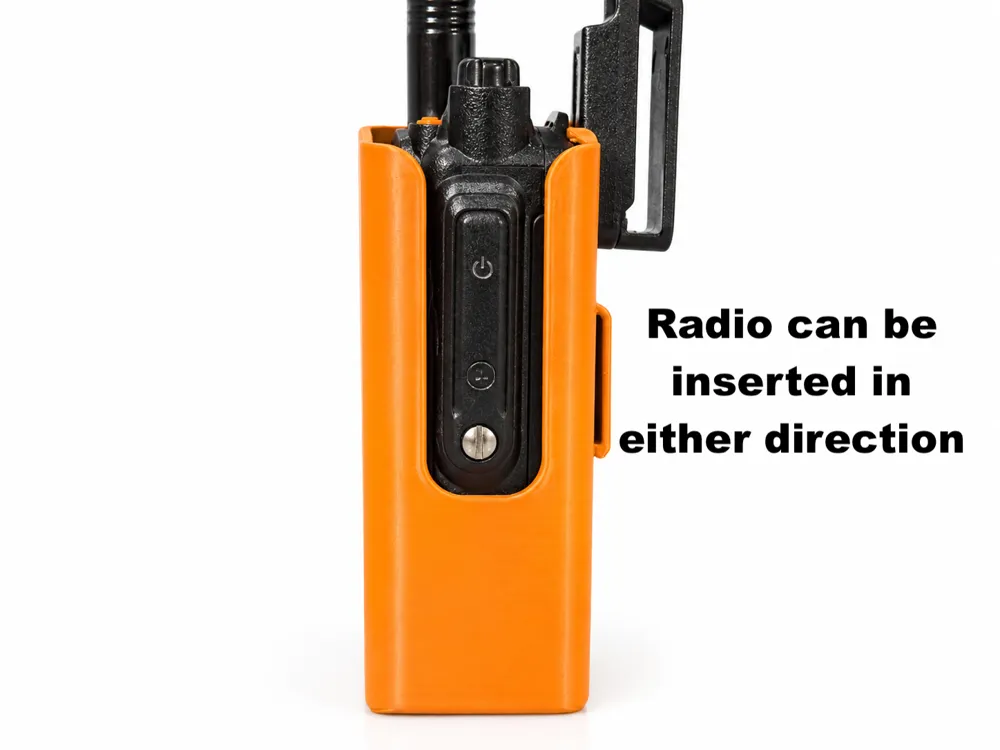

The top of the holster has a cutout so that the factory clip can be used if desired. Please note this will only work reliably with the touchpad facing forward to provide the best engagement with the retention clips.

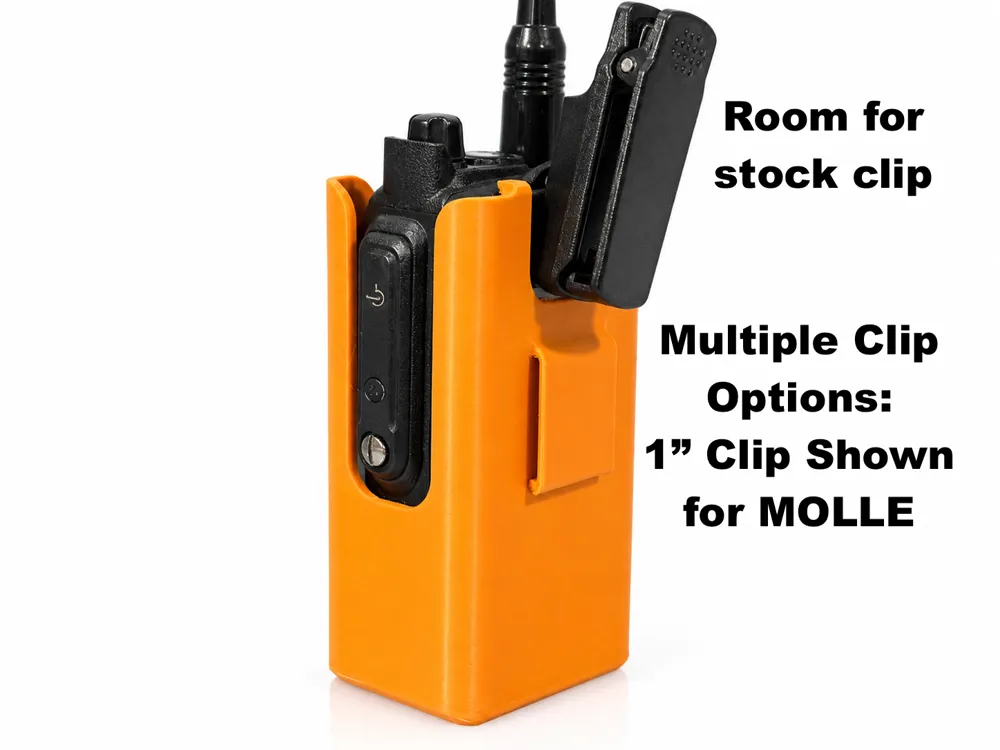

There are multiple models with different clip configurations to enable mounting to MOLLE, belts, or even sliding into a mag pouch.
Current clips:
1" Clip for attaching to MOLLE
2" Loop with 6mm inner clearance for attaching to belts
No Clip for sliding in and out of mag pouches.
The bottom of the holster was designed to provide a secure building platform and position the holster at a 30 degree angle to increase strength.
Design has been tested in PETG and the 1" Clip version will likely hold up the best in that material due to improved flexibility. PLA+ will likely work well with the no clip and loop attachment versions as there is minimal bending required for those applications, but has not been tested.

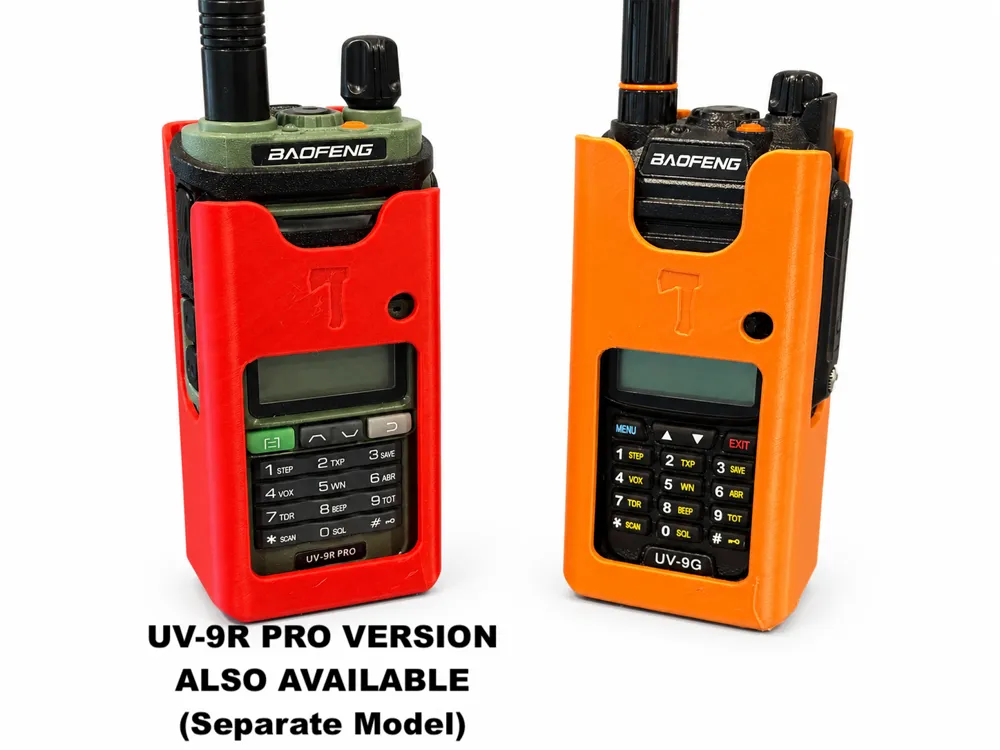

Note: Does not fit the UV-9R PRO. I have a separate model uploaded that does! https://makerworld.com/en/models/2804967-holster-for-baofeng-uv-9r-pro#profileId-3121014
Boost Me (for free)
Thanks for the support and don't forget to follow!
Change Log:
5/8/26: Initial release of 1" clip, 2in loop, no clip at RevA to CAD and 1" clip to print profile.
