Lenovo M720Q M920Q/X NEC8 Tiny5 Network Card Baffle Optical Port Network Card Baffle

M720Q Baffle / M920Q Baffle / M920x Baffle / NEC8 Baffle / P330 Baffle / Tiny5 Baffle

This project is derived from Domestic site | International site. This project only collects optical port network card models (the original project could not accommodate the print profile)

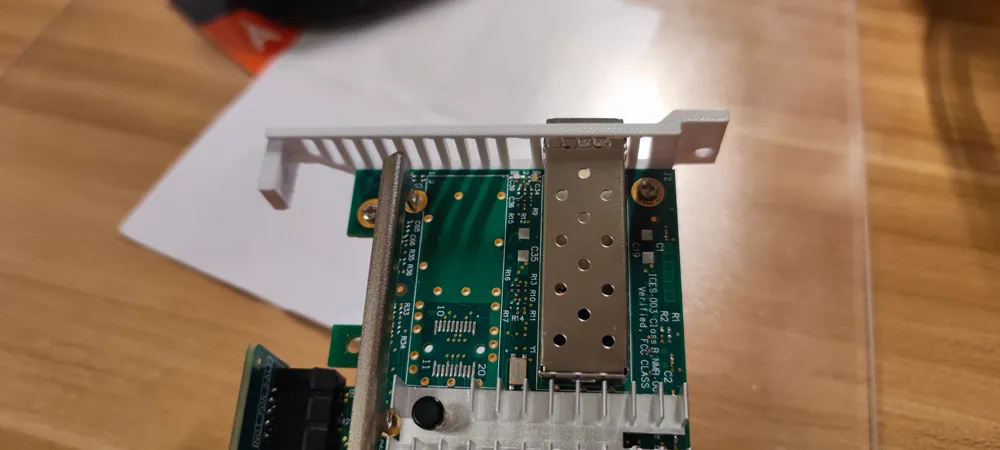

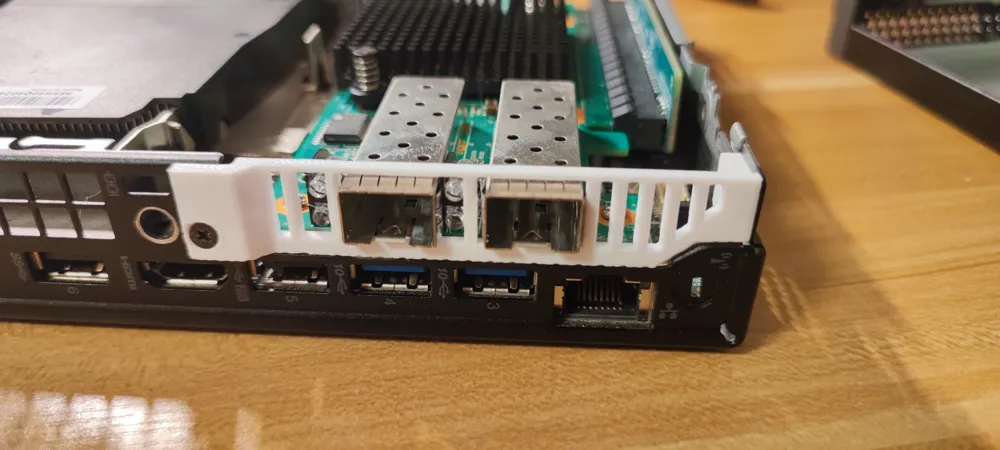

1. Adapted for SP310 dual-port 10 Gigabit network card - Fig 1
2. Adapted for X520 10 Gigabit network card (single and dual port available) - Fig 2
3. Adapted for Mellanox CX311A 10G single optical port - Fig 3
4. Adapted for Mellanox MNPA19-XTR 10G single optical port

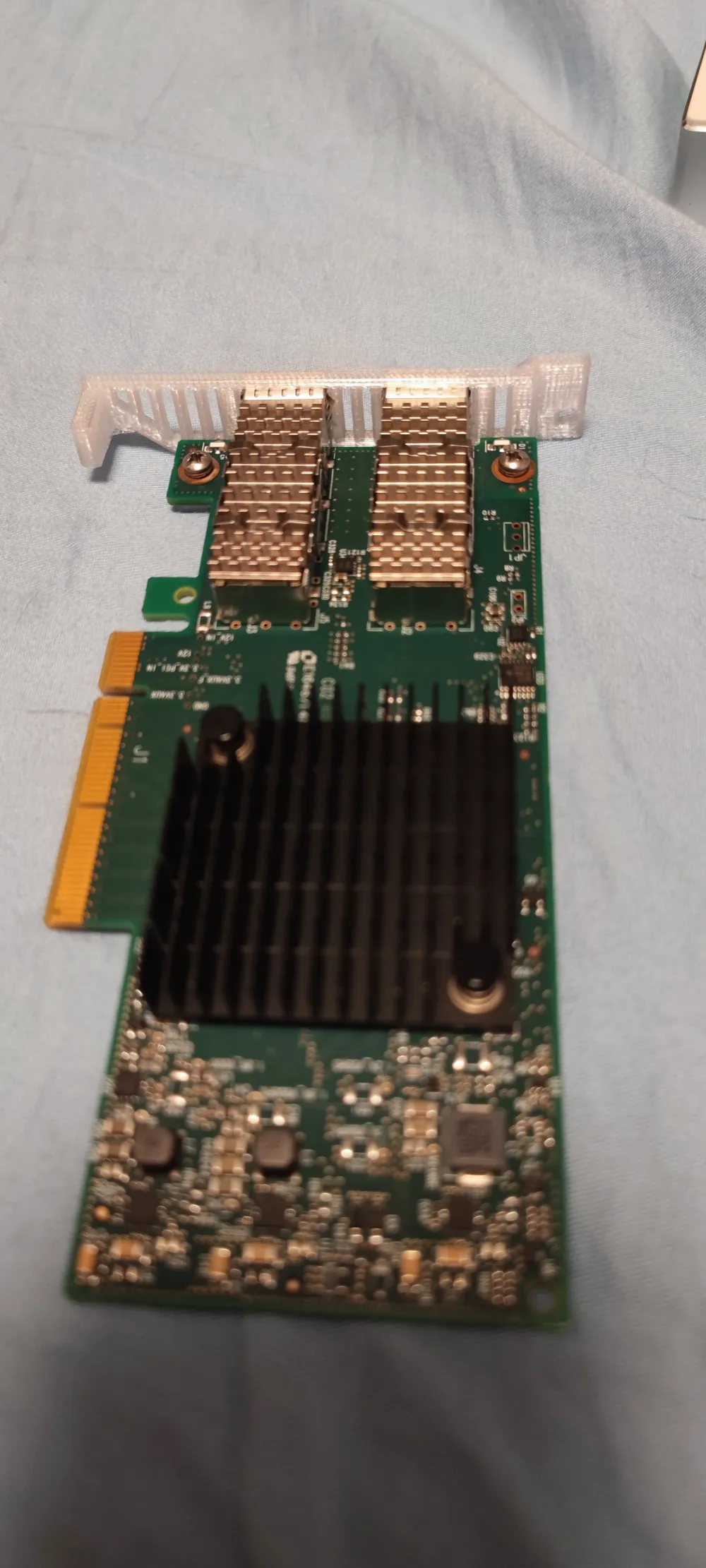

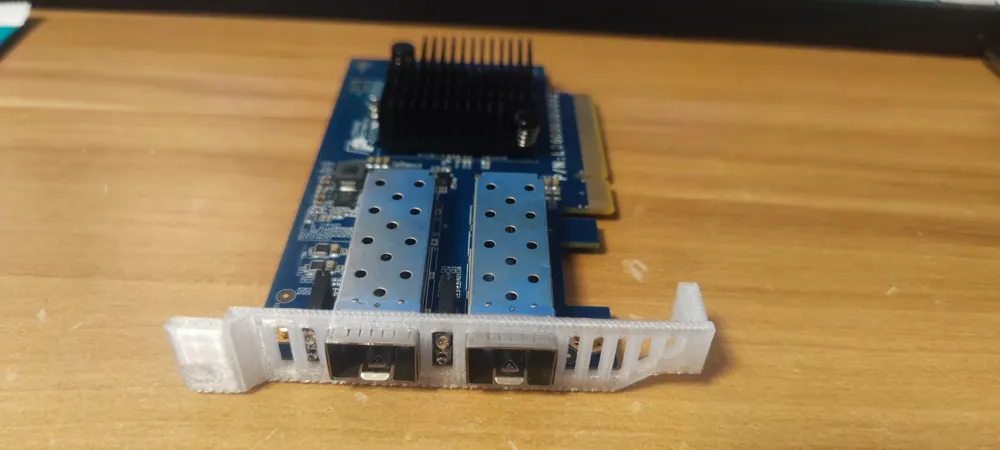

5. Adapted for Mellanox CX4121A ConnectX-4Lx 10G dual optical port - Fig 4

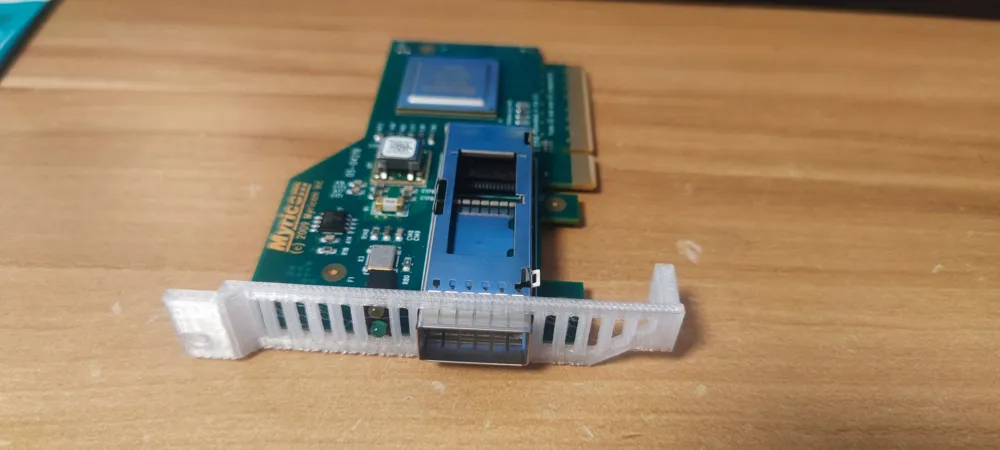

6. Adapted for Myricom 10G-PCIE-8B-QP - Fig 5

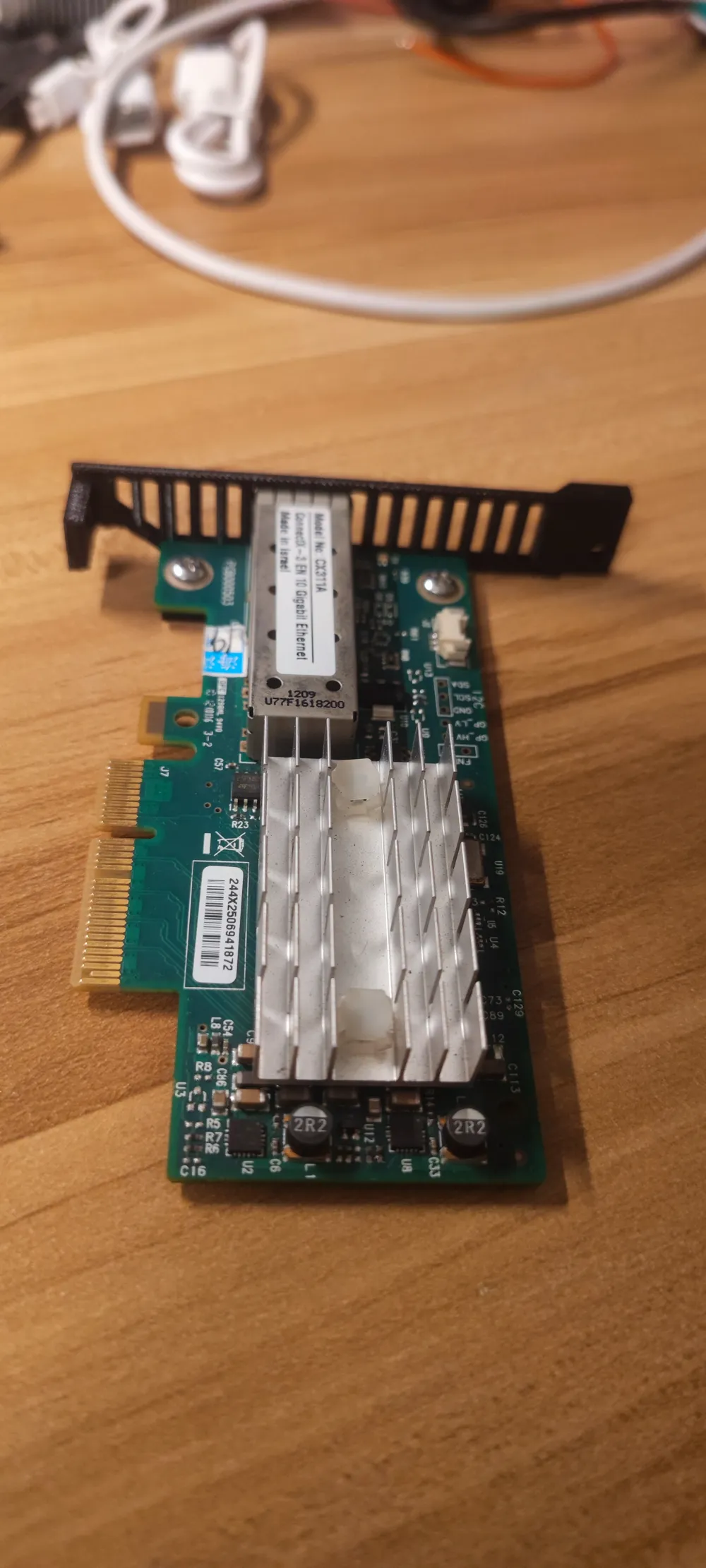

7. Adapted for Baude 10 Gigabit dual optical port 82599 - Fig 6

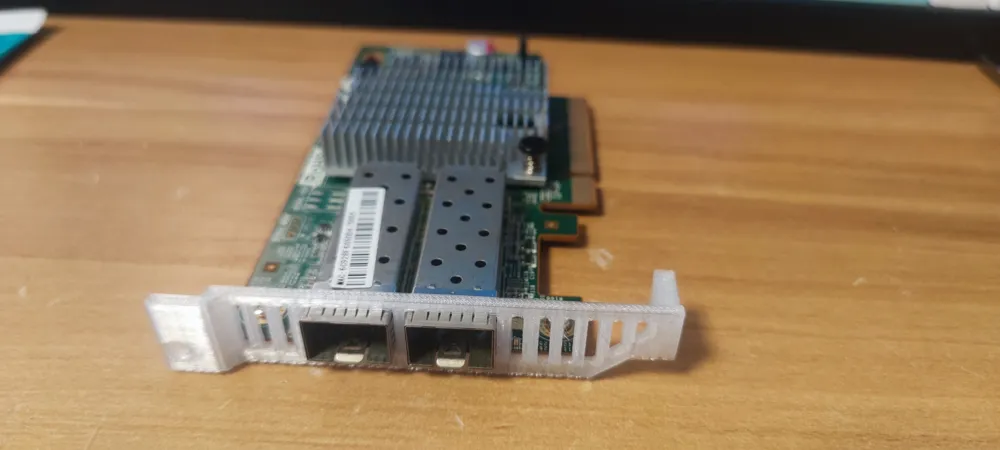

8. Adapted for Inspur X520-DA2 82599ES - Fig 7

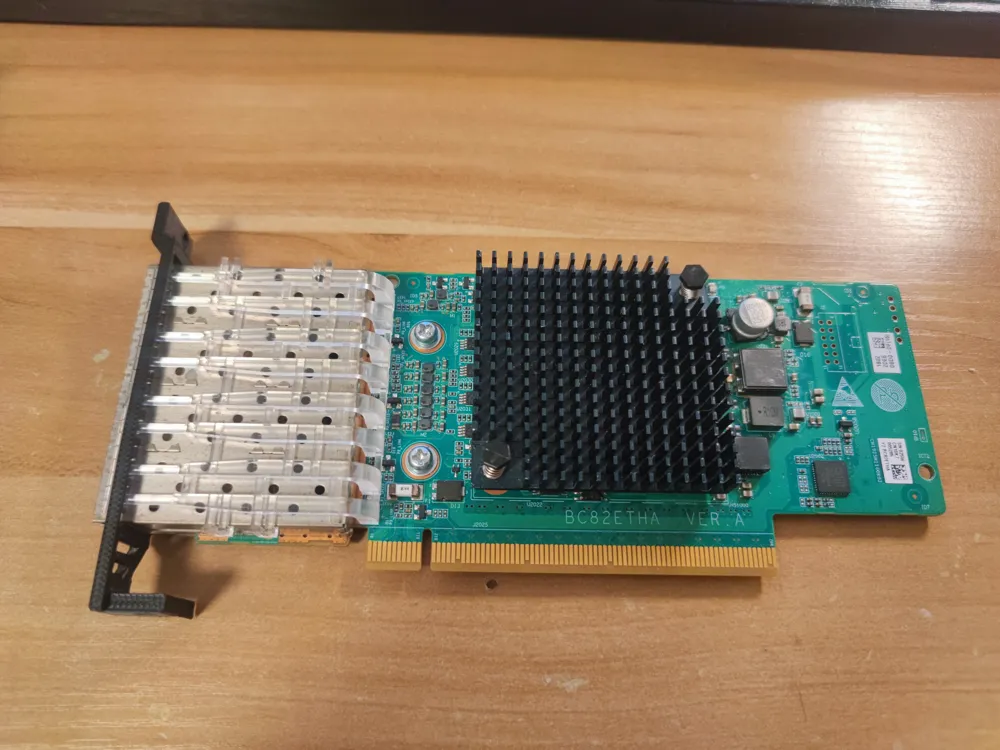

9. Adapted for Intel X710-F4 10G quad optical port - Fig 8

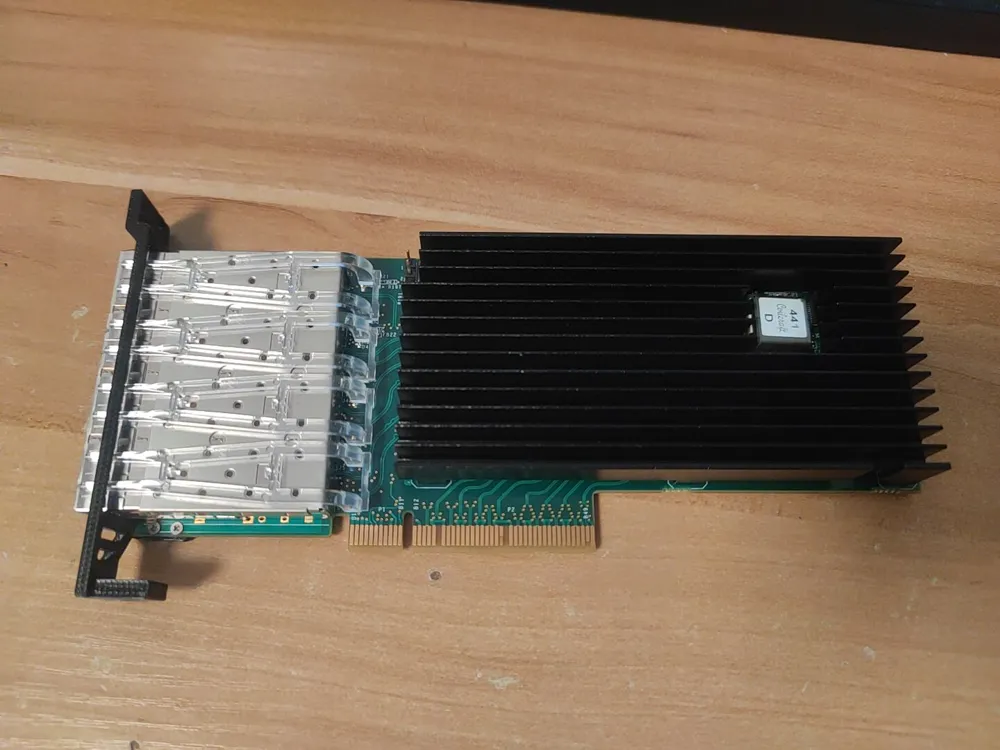

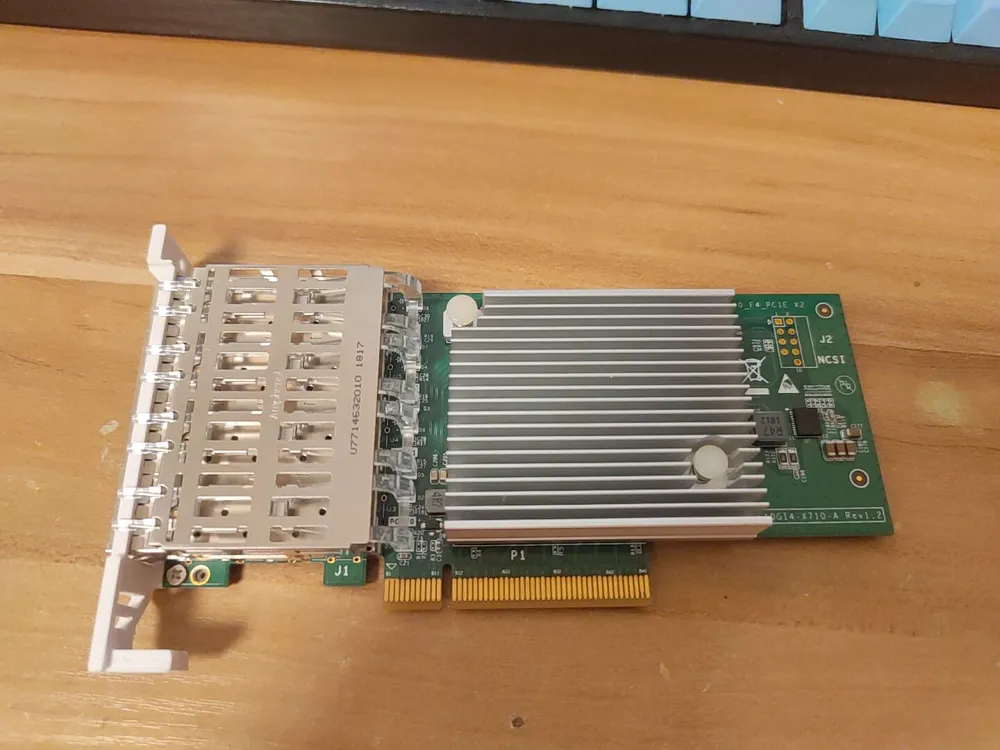

10. Adapted for Silicom X710-DA4 10G quad optical port - Fig 9

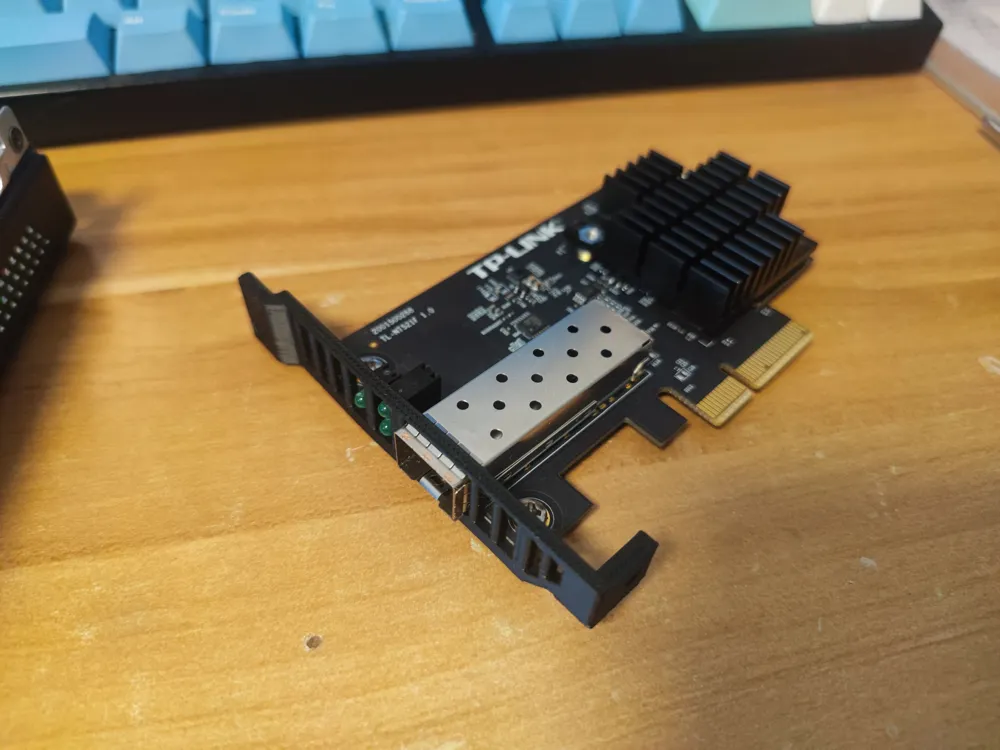

11. Adapted for TP-LINK TL-521F 10G single optical port - Fig 10
12. Adapted for Huawei SP570 2.5G quad optical port - Fig 11

PETG heat distortion temperature is 65 degrees. Actual tests show that hardware of models below 8500T+ will not deform. No guarantee if stuffed in confined spaces or in very high ambient temperatures.

One board in the 3MF project contains 10 units that can be directly duplicated for a single print. AMS is required (or you can modify the configuration yourself). Supports are already drawn.

• 20250705 Added Mellanox CX311A 10G single optical port, thanks to a Xianyu netizen for providing dimension information by sending the card.
• 20250803 Added Mellanox MNPA19-XTR 10G single optical port, thanks to a Xianyu netizen for providing dimension information by sending the card.
• 20250810 Added Mellanox CX4121A CX-4Lx 10G dual optical port, thanks to a Xianyu netizen for providing dimension information by sending the card.
• 20250901 Added Myricom 10G-PCIE-8B-QP / Baude 10 Gigabit dual optical port 82599 / Inspur X520-DA2 82599ES, thanks to a Xianyu netizen for providing dimension information by sending the card.
• 20260401 Added Intel X710-F4 10G quad optical port, thanks to a Xianyu netizen for providing dimension information by sending the card.
• 20260422 Added Silicom X710-DA4 10G quad optical port, thanks to a Xianyu netizen for providing dimension information by sending the card.
• 20260524 Added TP-LINK TL-521F 10G single optical port, thanks to a Xianyu netizen for providing dimension information by sending the card.
• 20260613 Added Huawei SP570 2.5G quad optical port, thanks to a Xianyu netizen for providing dimension information by sending the card.
