Bicycle Helmet Lamp Mount Fischer
Print Profile(1)
Description

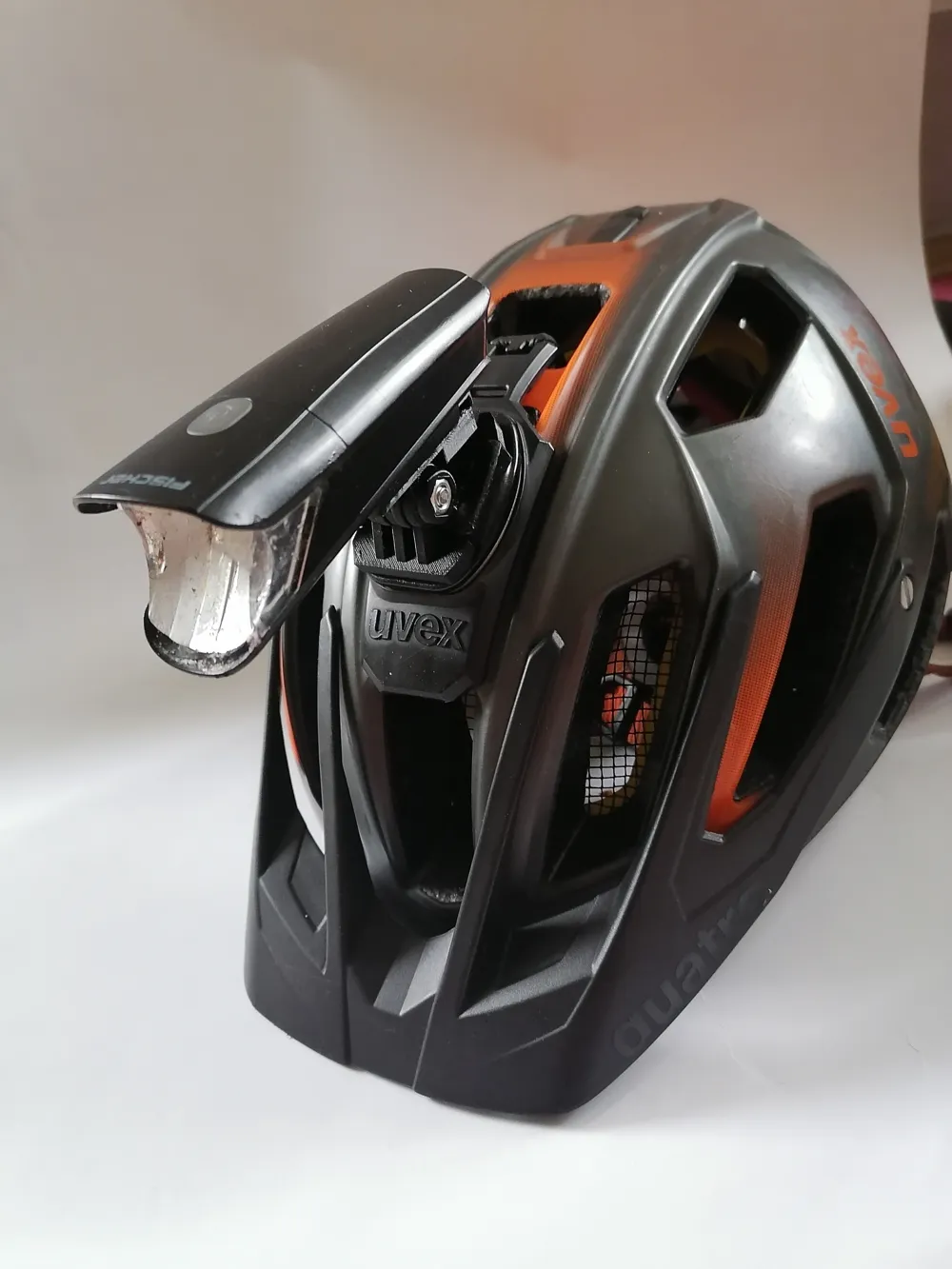

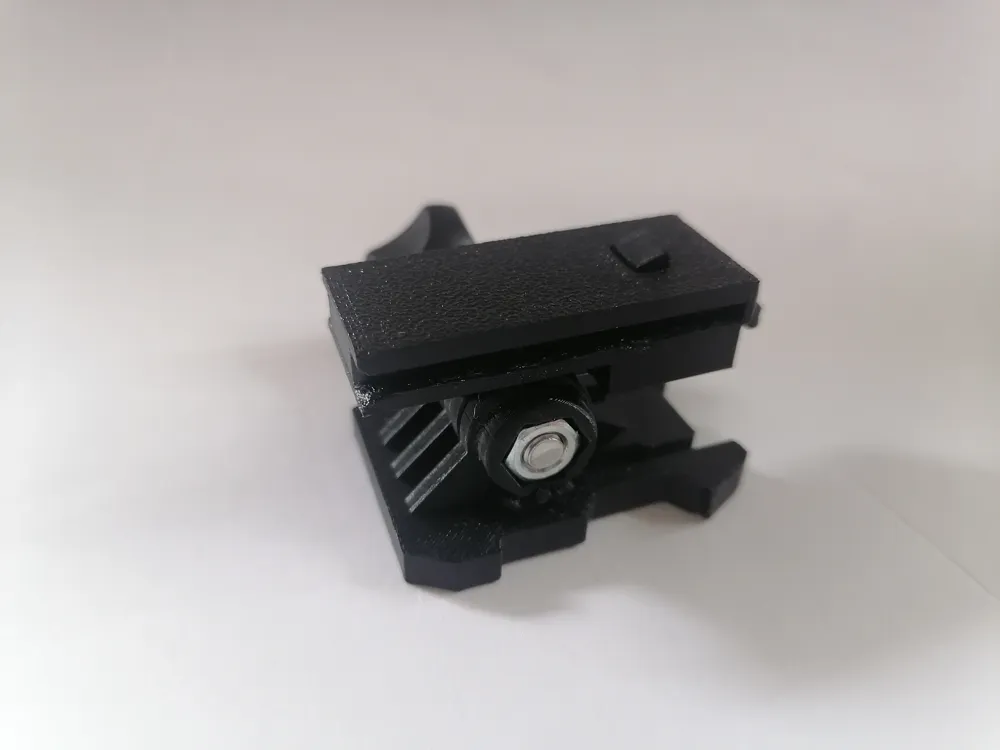

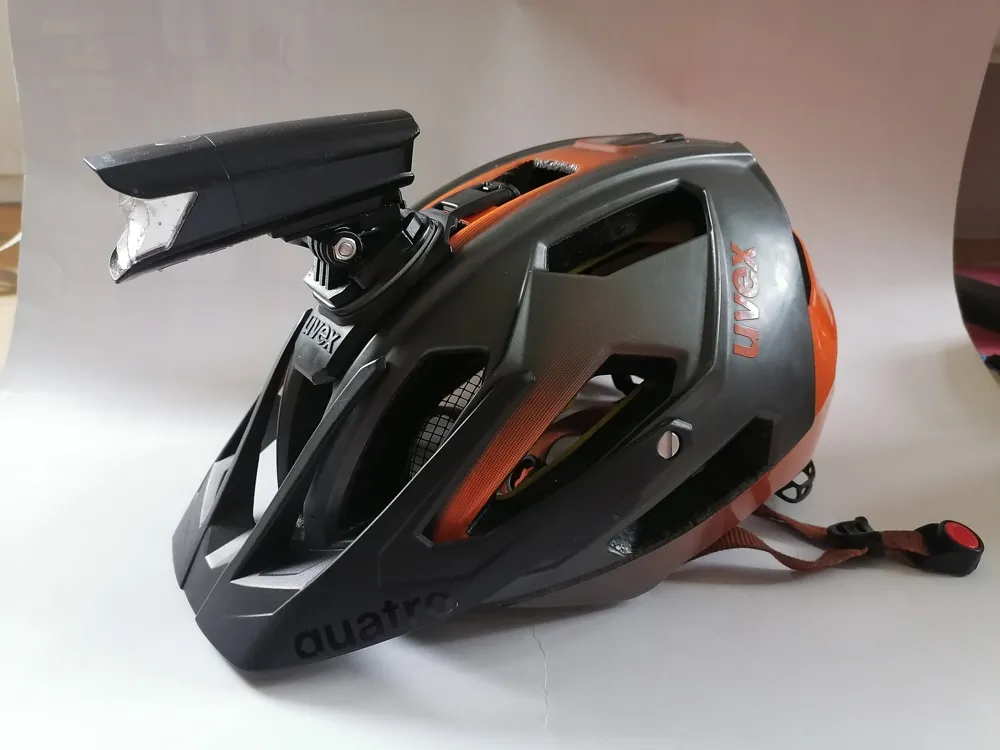

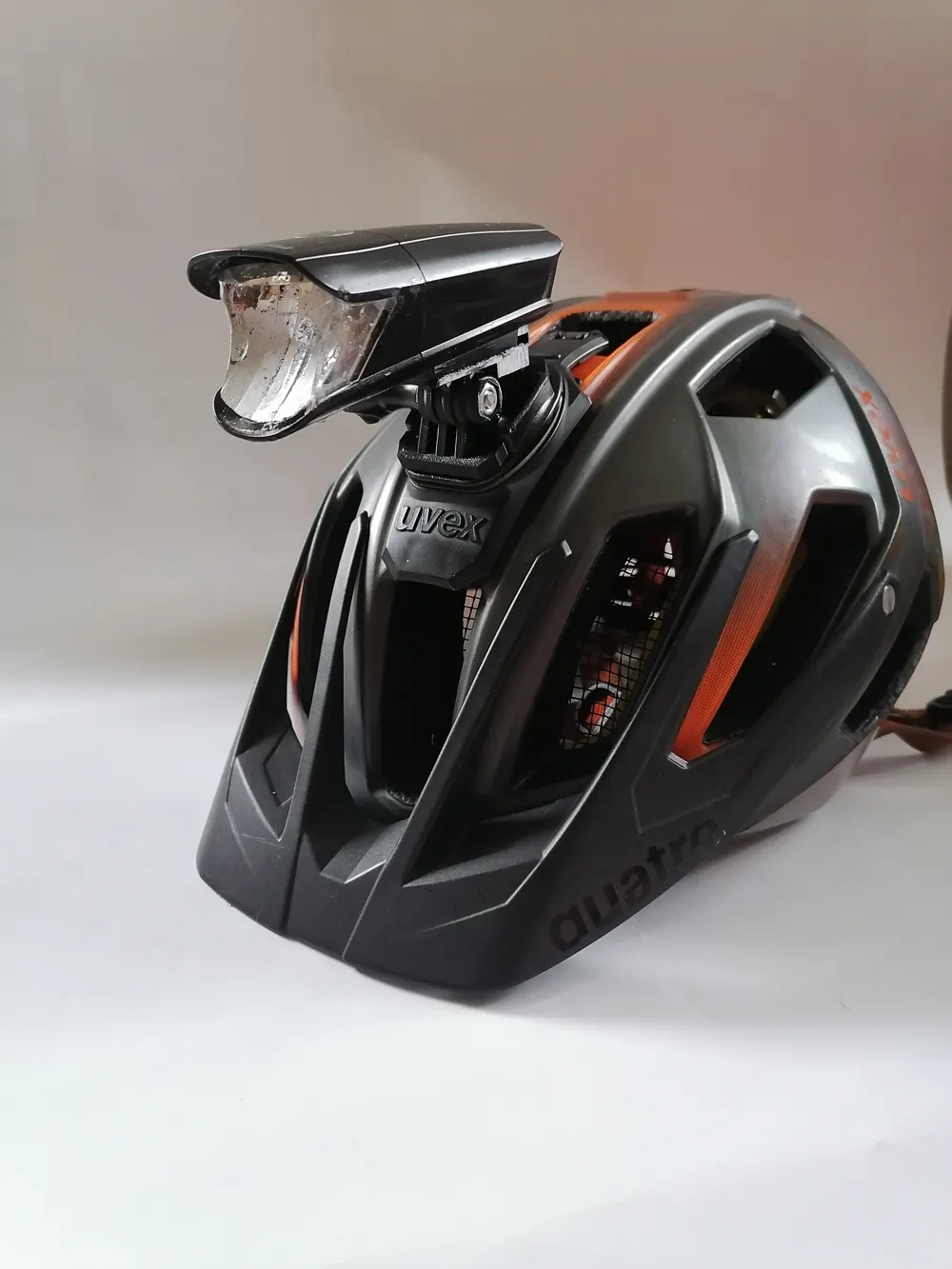

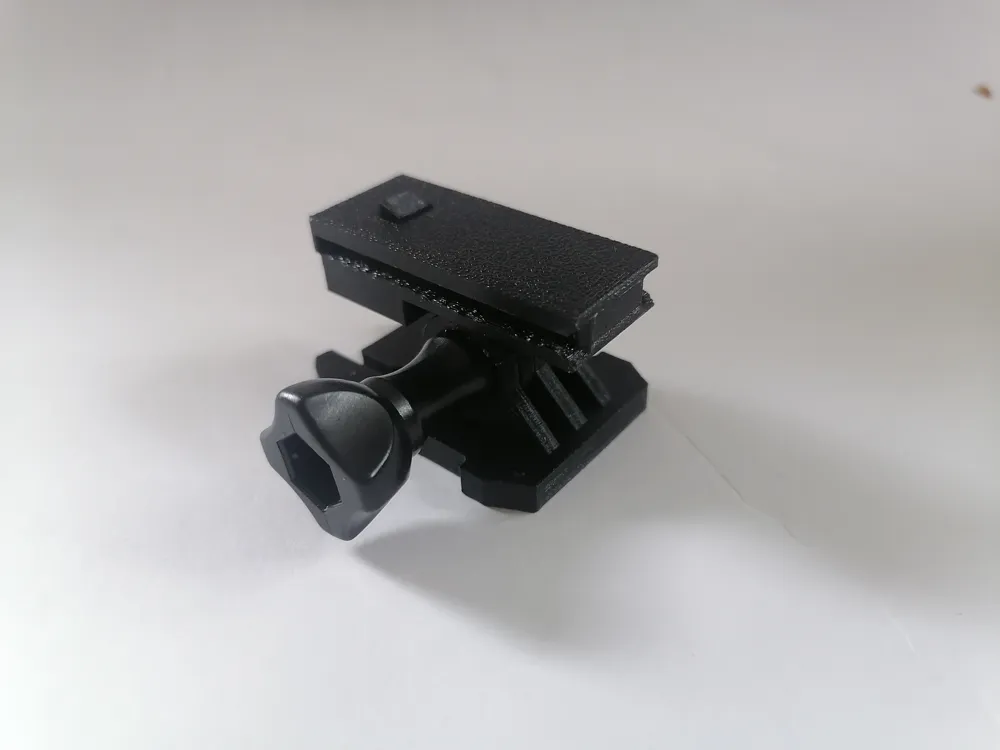

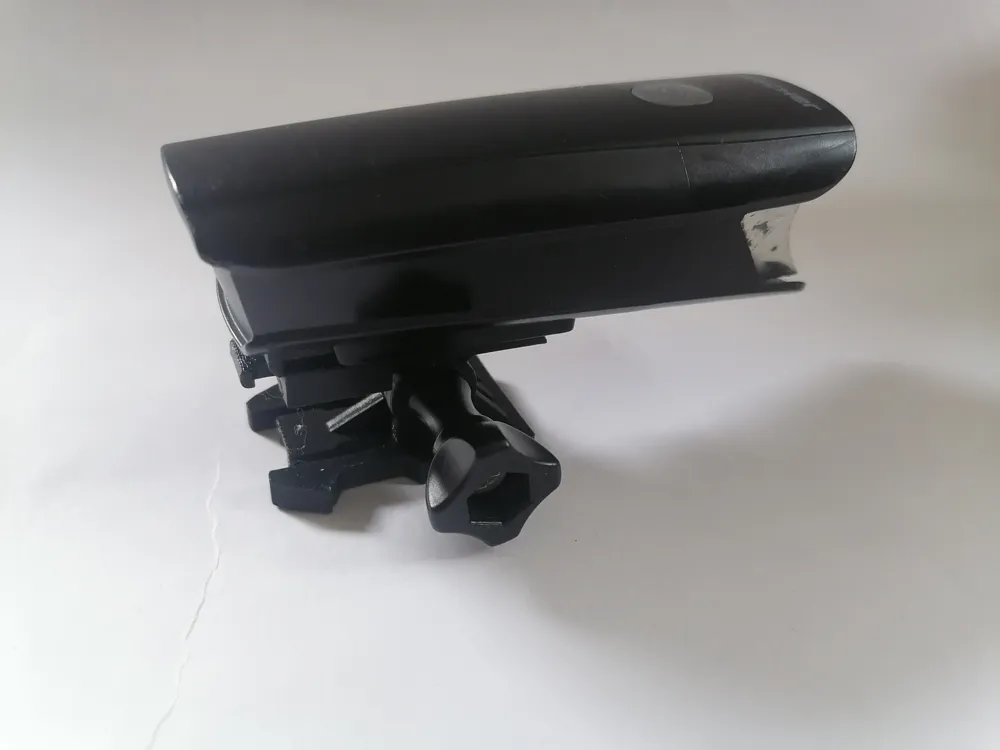

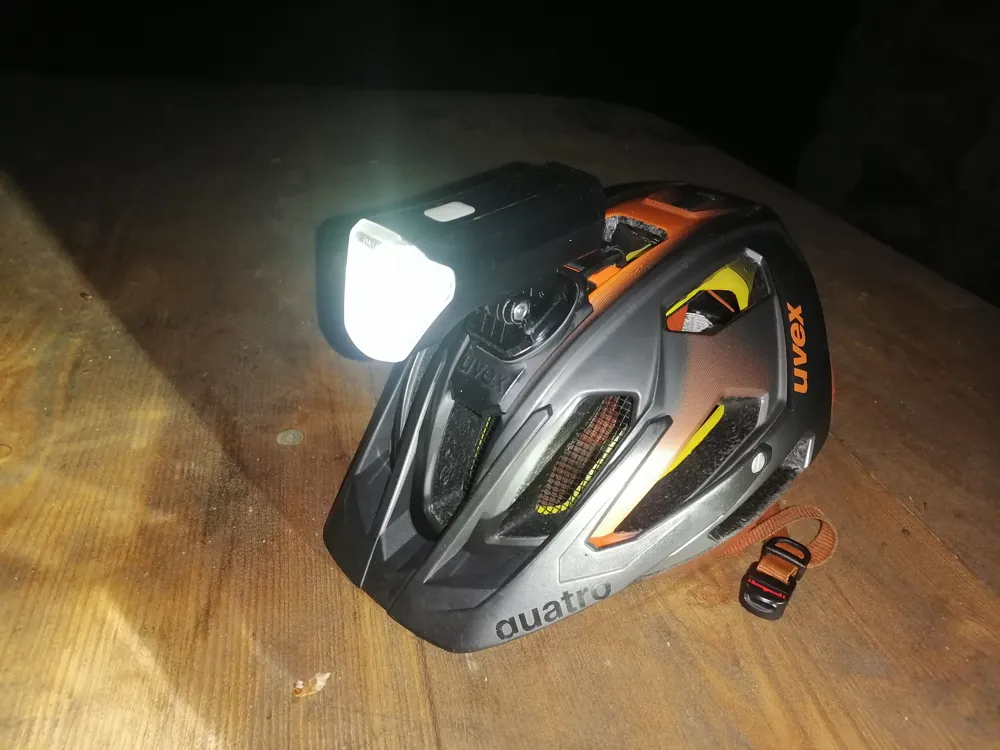

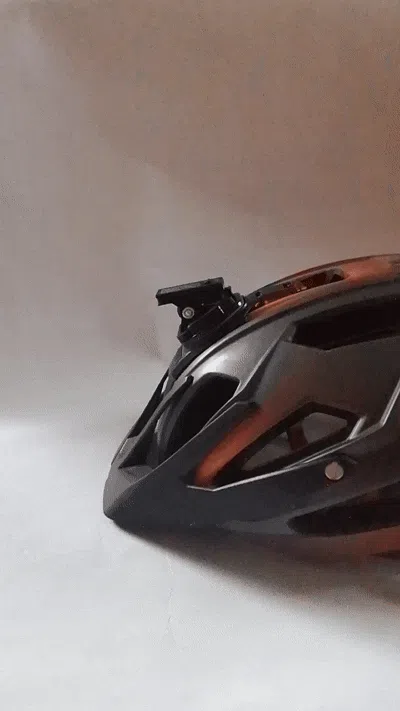

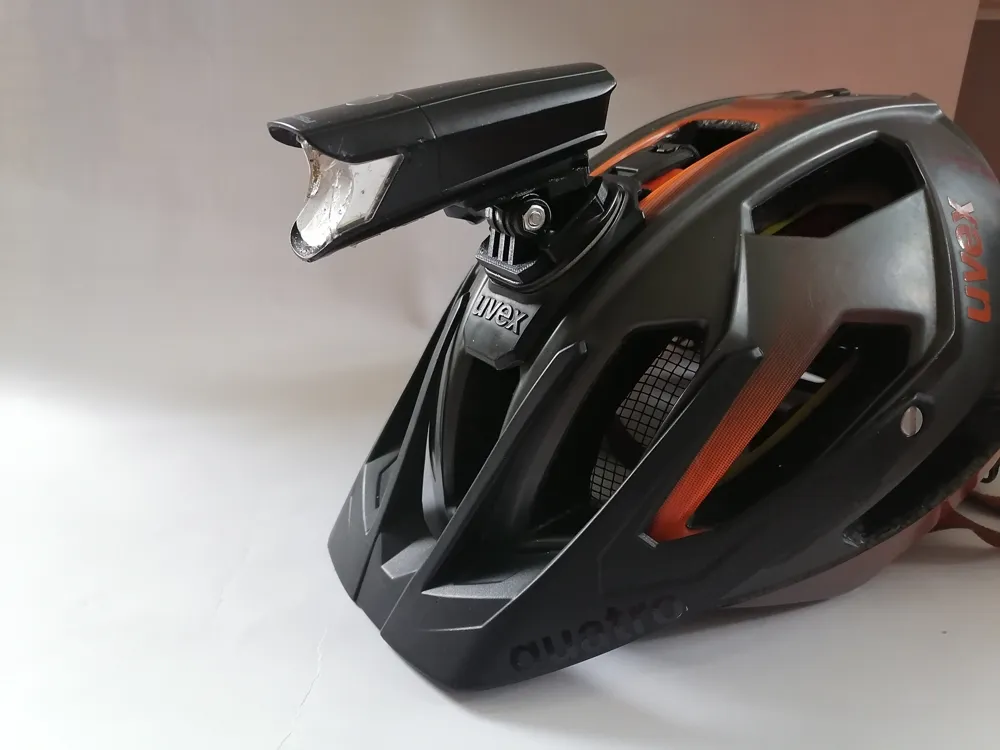

This is an adapter for the Fischer front light, allowing the light to be conveniently mounted on a bicycle helmet. The base of the light is a GoPro mount onto which the light is screwed.

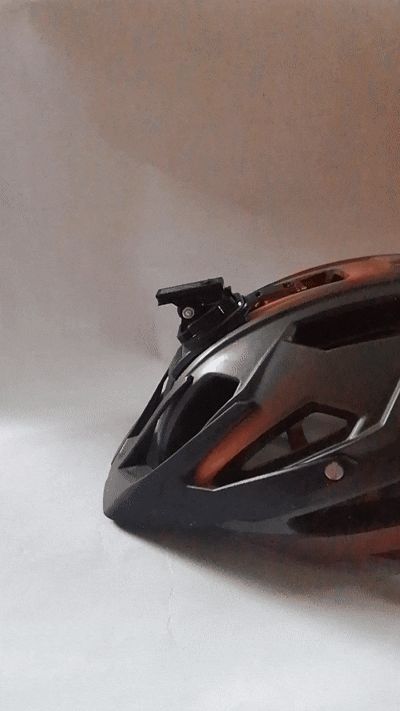

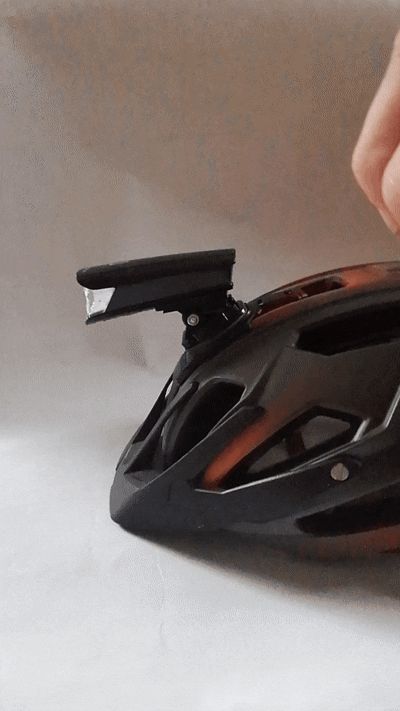

It works mechanically. It locks itself in place, and pressing the button releases the light.
You need
-ballpoint pen spring diameter 4x12 (simply cut these in half)
Important: when compressed, the spring must not be longer than 3 mm
-some oil for lubrication
-assembly instructions available as PDF.
Material-PETG
Nozzle diameter 0.4
Layer thickness 0.2
Support structure yes
